Reference Number: 141580

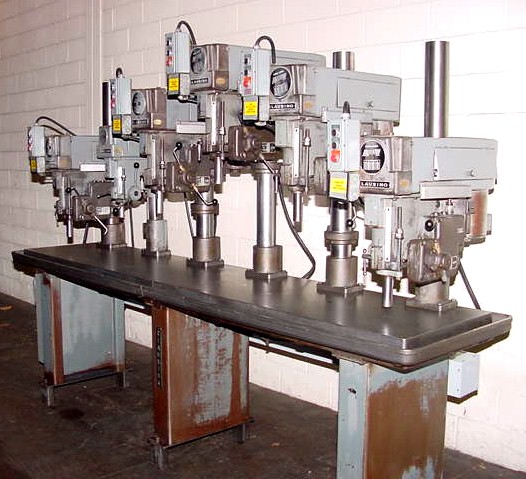

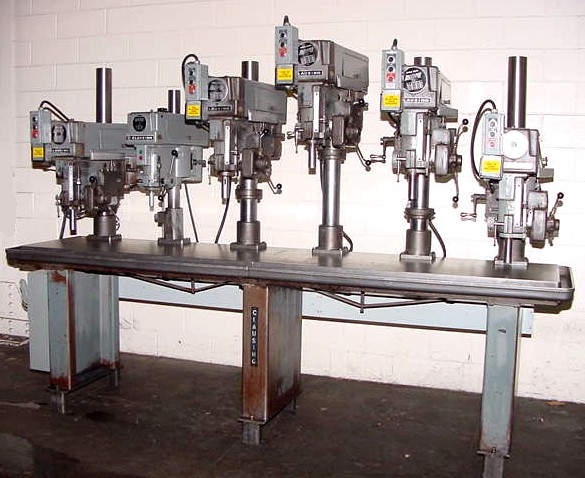

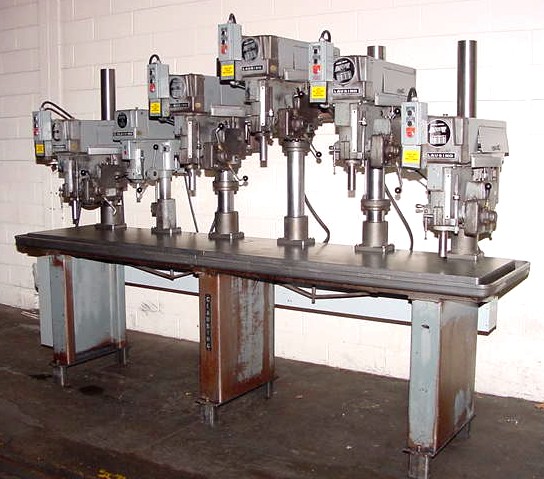

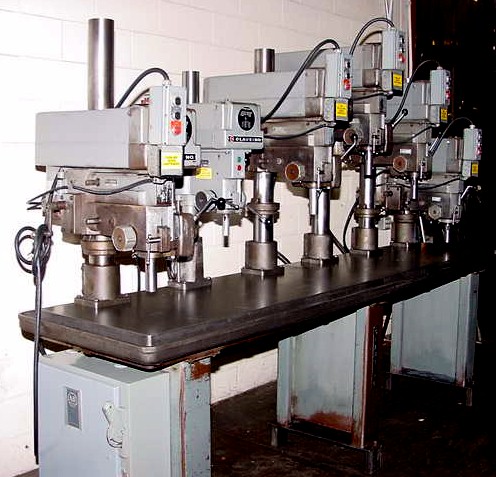

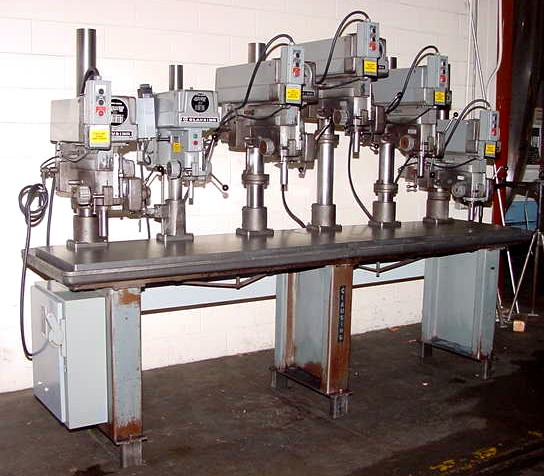

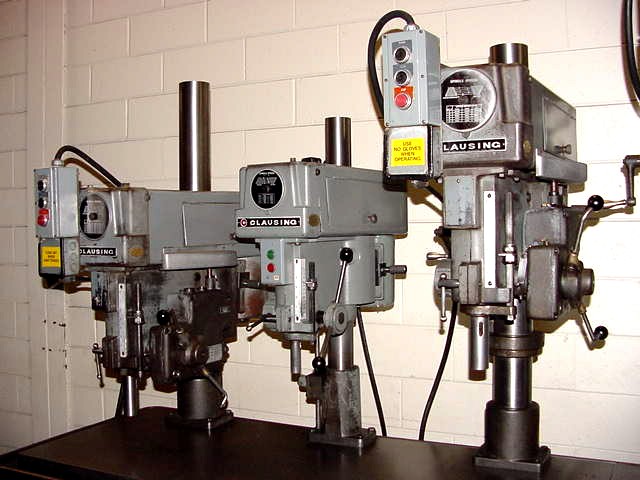

CLAUSING SIX SPINDLE DRILL PRESS

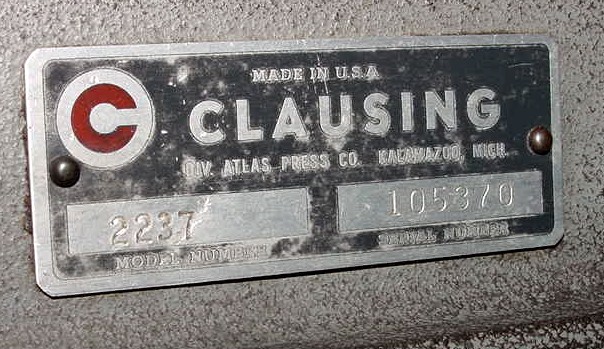

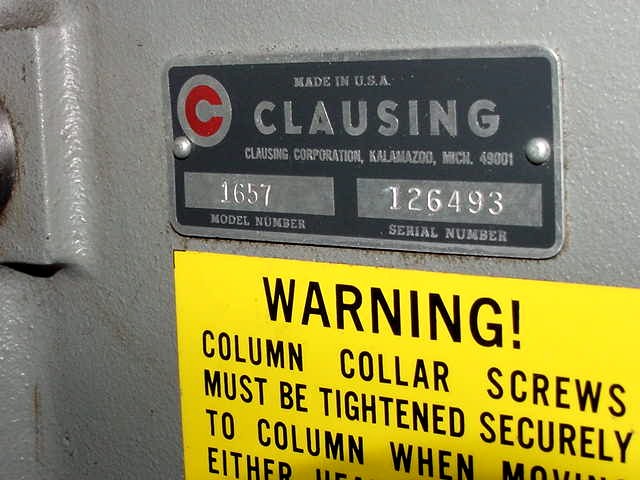

 MODELS:(1)1657 & (5)2237, S/N's: 126493,105370,2,3 & 4 NEW: 1970'S
 SPECIFICATIONS:
 OVERALL SIZE OF TABLE ................ 29-1/2" X 125-1/2"
 TABLE WORKING SURFACE ................ 24" X 120"
 APPROXIMATE WEIGHT ................... 4500 LBS

 ONE 15" STEP-PULLEY HEAD MODEL: 1657
 DRILLING CAPACITY:
     CAST IRON ........................ 5/8"
     MILD STEEL ....................... 1/2"
 DRILL TO CENTER OF CIRCLE ............ 15"
 SPINDLE TAPER ........................ #2 MORSE
 SPINDLE TRAVEL ....................... 4-3/4"
 SPINDLE DIAMETER ..................... 2"
 SPINDLE SPEEDS(5) .................... 260 - 3600 RPM
 COLUMN DIAMETER & THICKNESS .......... 3"DIA x 3/16"WALL

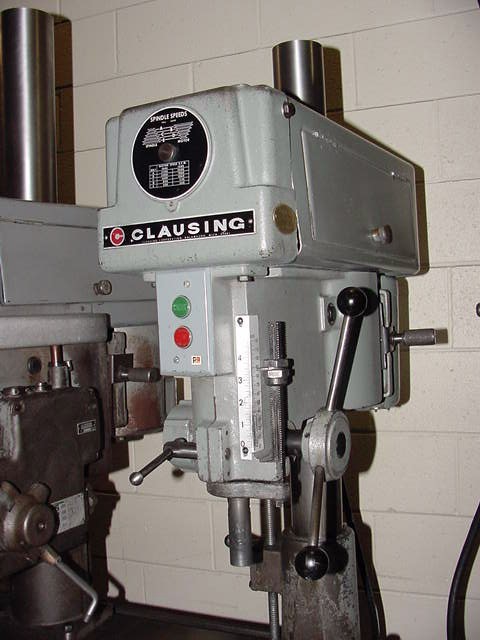

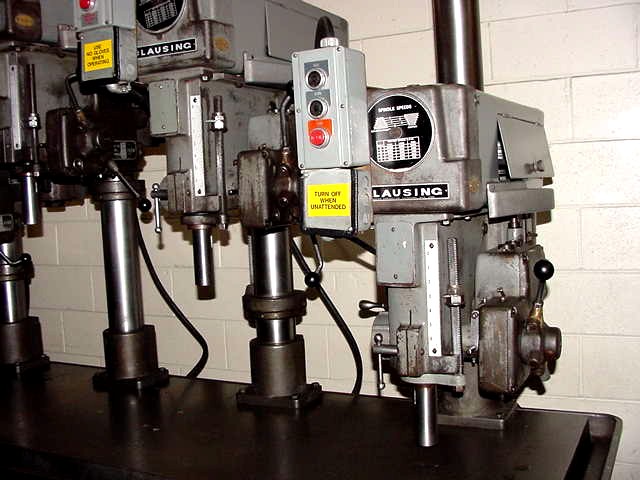

 FIVE 20" STEP-PULLEY HEAD MODEL: 2237
 DRILLING CAPACITY:
     CAST IRON ........................ 1-1/8"
     STEEL ............................ 7/8"
 DRILL TO CENTER OF CIRCLE ............ 20"
 SPINDLE TAPER ........................ #3MT
 SPINDLE TRAVEL ....................... 6-1/2"
 SPINDLE DIAMETER ..................... 2-1/2"

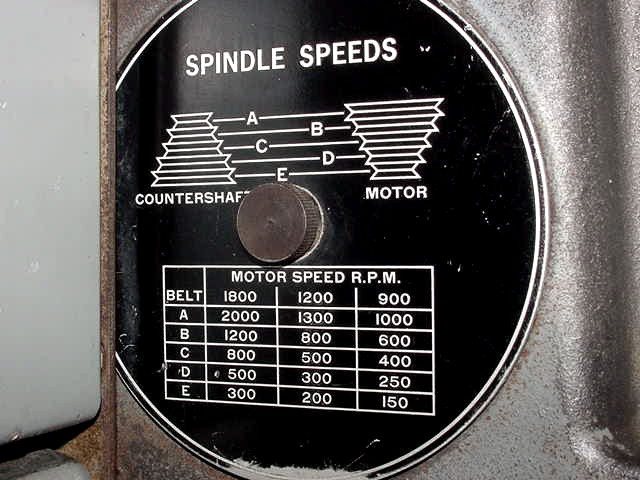

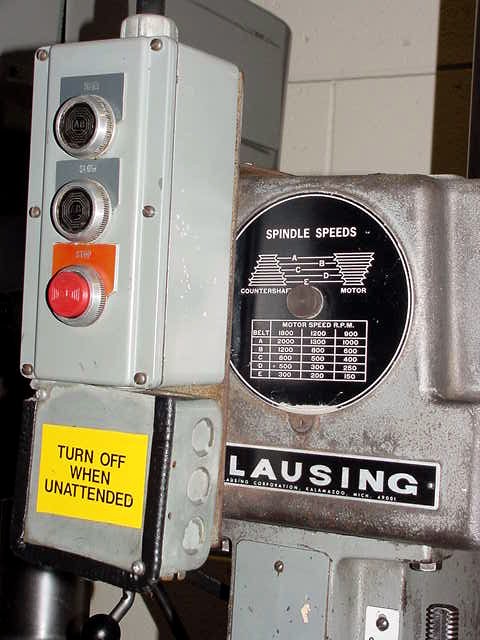

 SPINDLE SPEEDS(10) ................... 150 - 2000 RPM

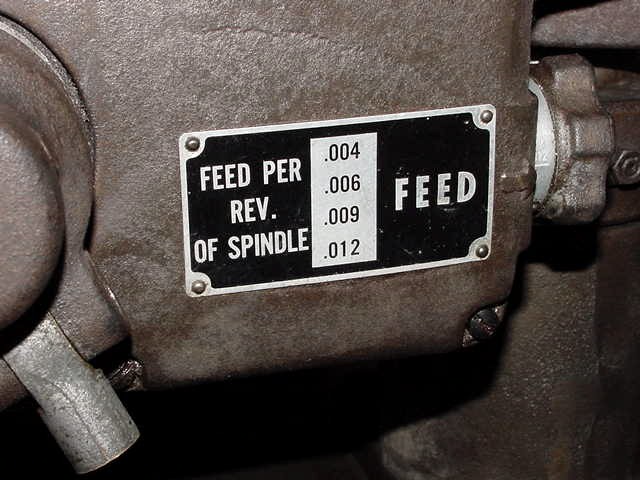

 POWER DOWN FEEDS(4) .................. .004, .006, .009 & .012
 COLUMN DIAMETER & THICKNESS .......... 4"DIA x 1/2"WALL

 EQUIPPED WITH:

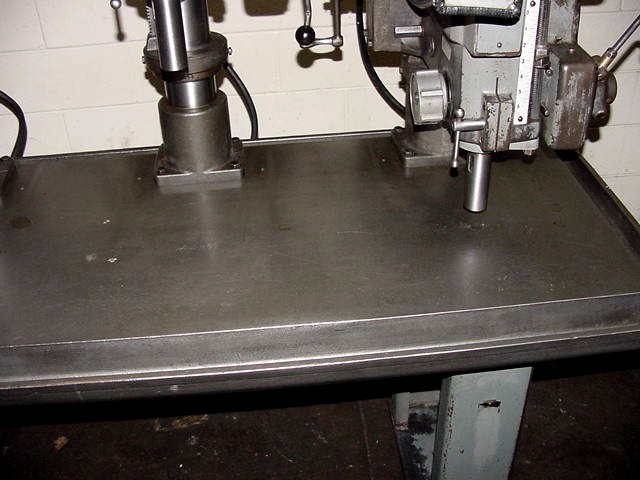

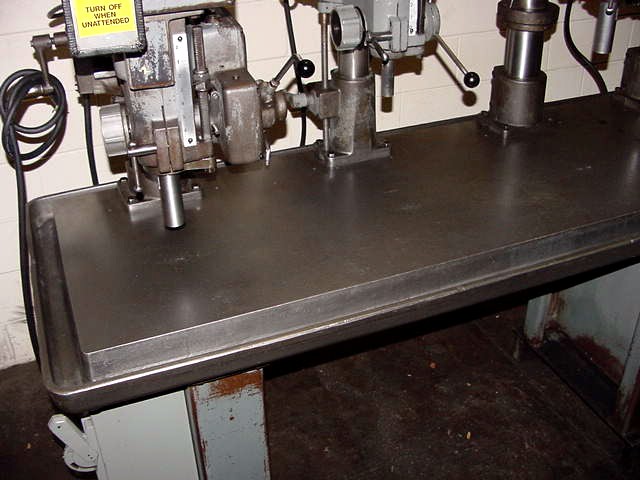

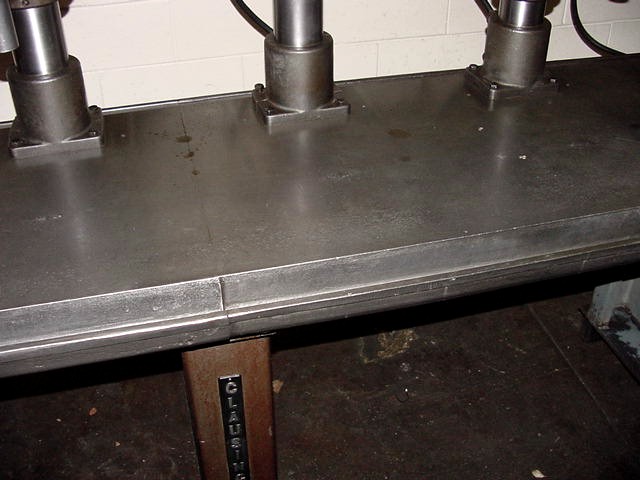

 - 29-1/2" X 125-1/2" LARGE PRODUCTION TABLE WITH TROUGH
 - HEAD RAISING & LOWERING RACK MECHANISMS

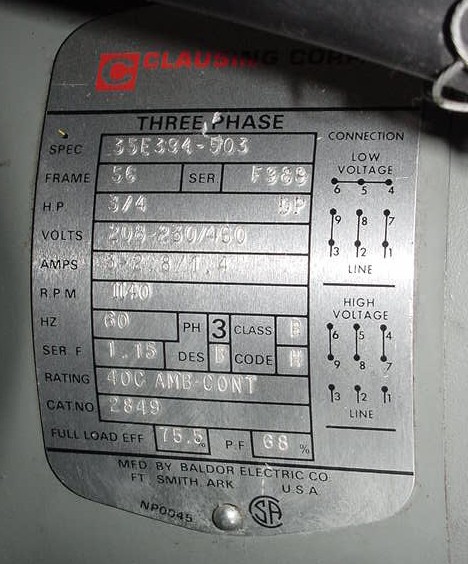

 - (1) MODEL: 1657 STEP-PULLEY 3/4 HORSE POWER HEAD

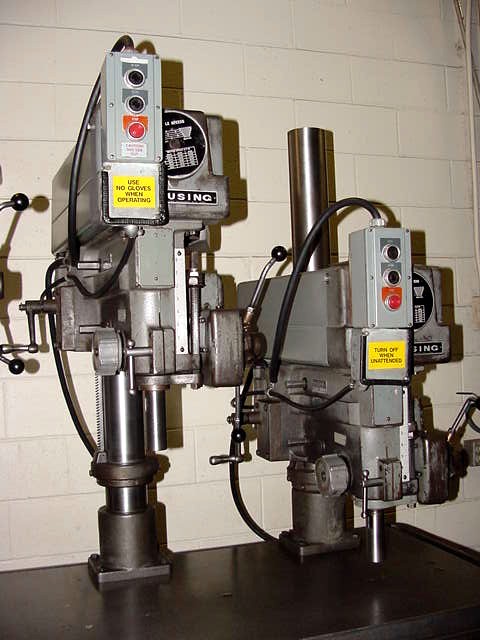

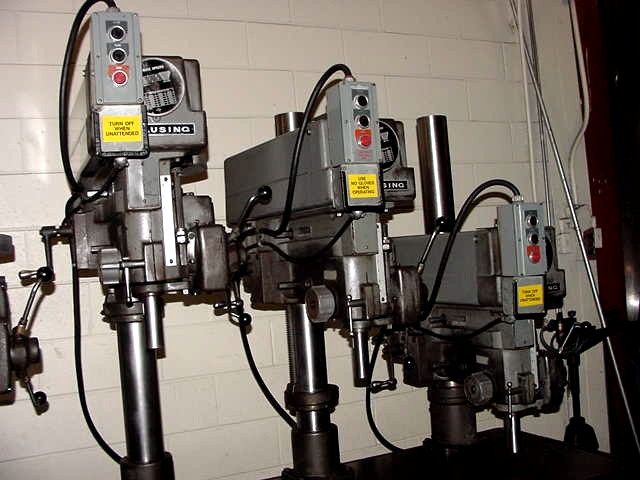

 - (5) MODEL: 2237 STEP-PULLEY 1-1/2 HORSE POWER HEADS

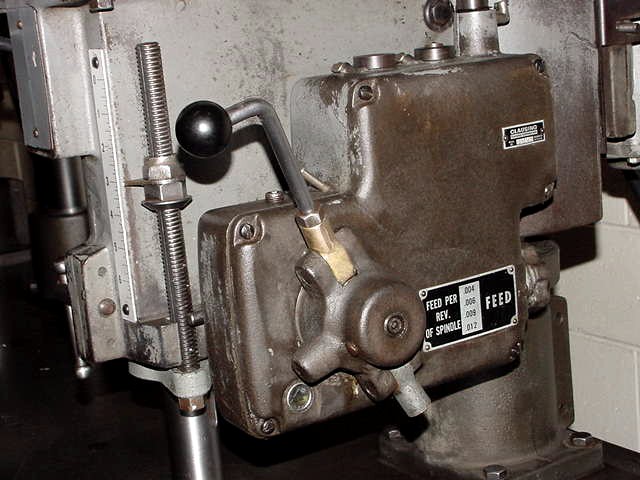

 - THE FIVE 20" DRILL HEADS COME EQUIPPED WITH POWER DOWN FEED

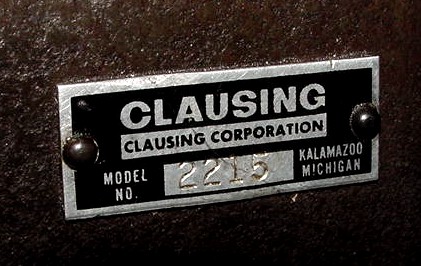

    CLAUSING MODEL:2215 GEAR DRIVEN POWER FEED

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
 CONDITION:   ****   SUPERB   ****
