Reference Number: 141581

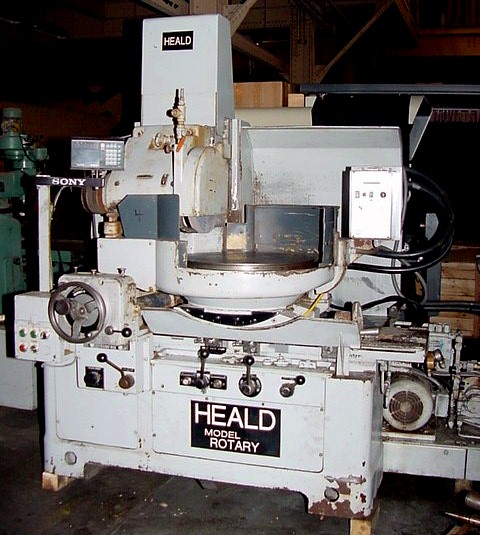

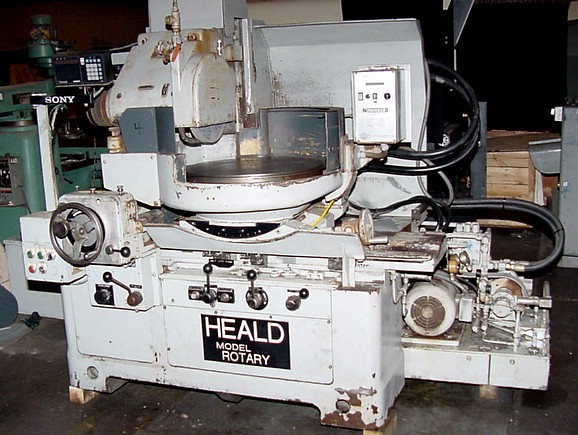

25" CINCINNATI-MILACRON HEALD HORIZONTAL SPINDLEPrice: On Request
ROTARY SURFACE GRINDER
MODEL: 361 S/N: 42581 NEW: 1968
CHUCK FACE DIAMETER..................... 24 7/8"
CHUCK'S MAGNETIC DIAMETER............... 24"
MAX. SWING INSIDE COOLANT PAN........... 28"
STANDARD WHEEL SIZE..................... 14" X 1.5" X 5"
MINIMUM WHEEL DIAMETER.................. 9"
DISTANCE TOP OF CHUCK/GRIND WHEEL....... 4.5 T0 17.5"
MAX ANGLE CONVEX/CONCAVE................ 17/10 DEGREE
TABLE TRAVEL............................ 16"
GRINDING STROKE......................... 12"
CHCUK SPEEDS............................ 38-100 RPM
WHEEL SPEED............................. 1765 RPM
TABLE SPEEDS FOR GRINDING/RUNOUT........ 0-15 FPM/20 FPM
POWER FEED ADJUSTMENT................... .0001" - .0006"
MOTORS MAIN/COOLANT/WHEEL............... 15 HP/ 1/2 HP/ 15
DIMENSIONS.............................. 115" X 79"
WEIGHT.................................. 12,000 LBS.
EQUIPPED WITH:
FEED BOX PROVIDES AUTO INCREMENTAL DOWNFEED OF THE WHEEL
@ EACH REVERSAL OF THE TABLE
INFINITELY VARAIBLE CHUCK SPEEDS
15 HP SPINDLE MOTOR

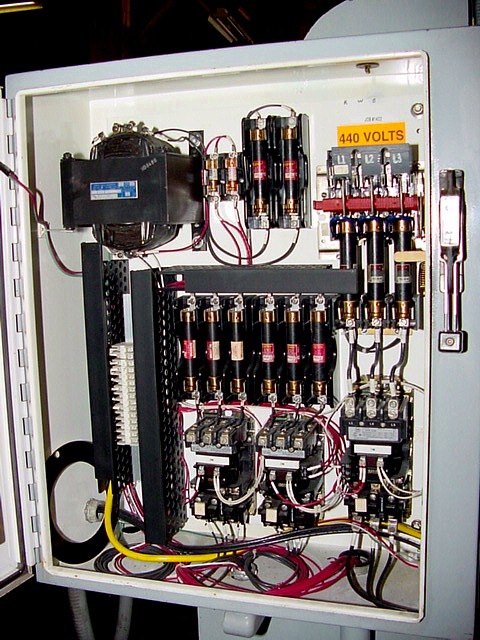

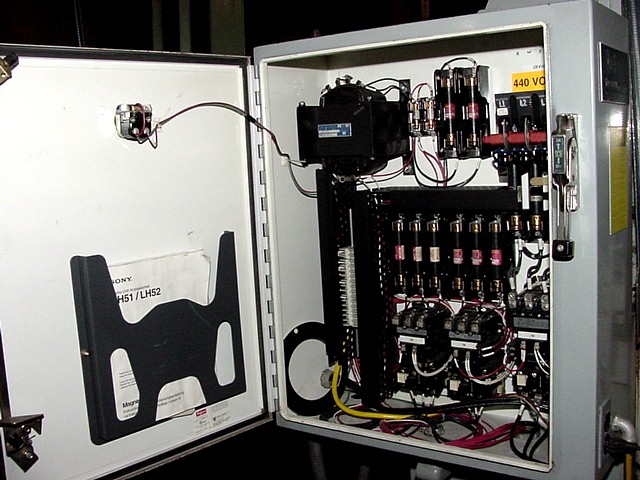

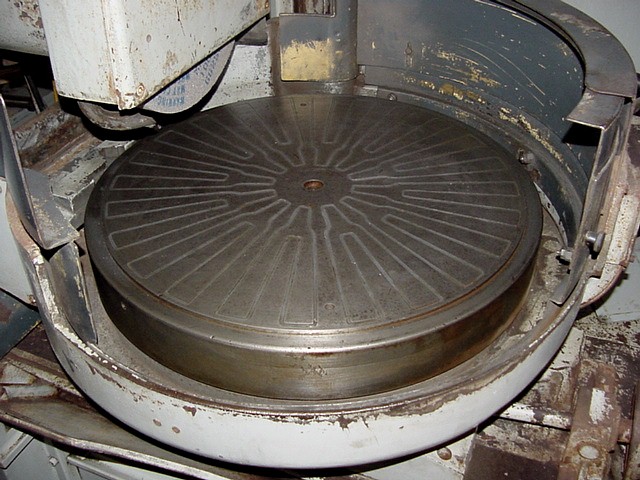

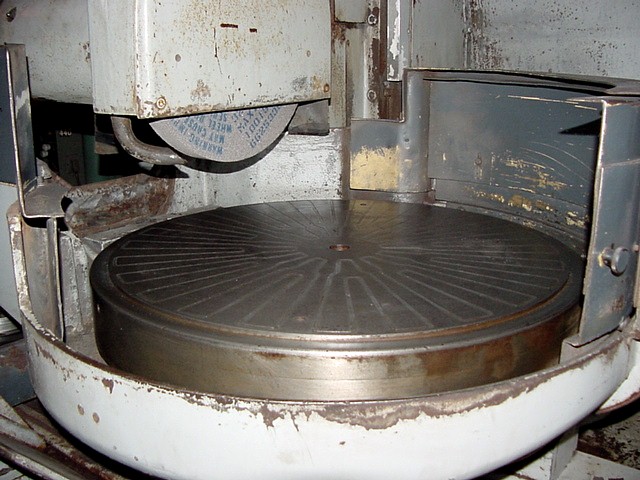

25" ELECTRO-MAGNETIC CHUCK W/CHUCK CONTROL

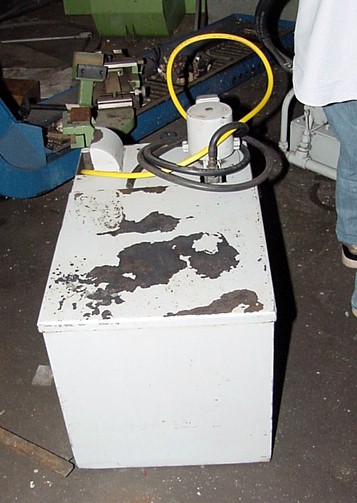

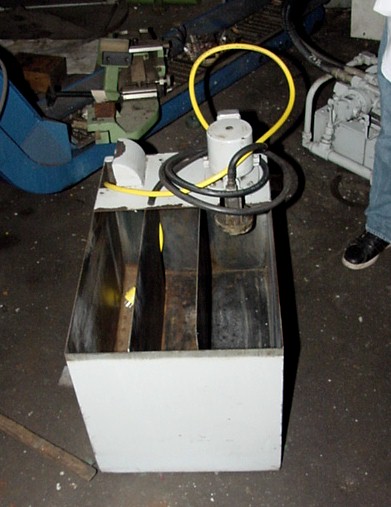

COOLANT SYSTEM
SONY DRO
* * EXCELLENT CONDITION * *
* * LOW HOURS FROM AIRLINE HUB MAINTENANCE FACILITY * *
* * INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE * *
