Reference Number: 141603

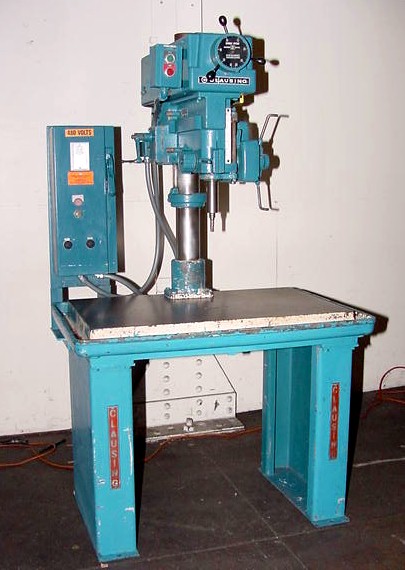

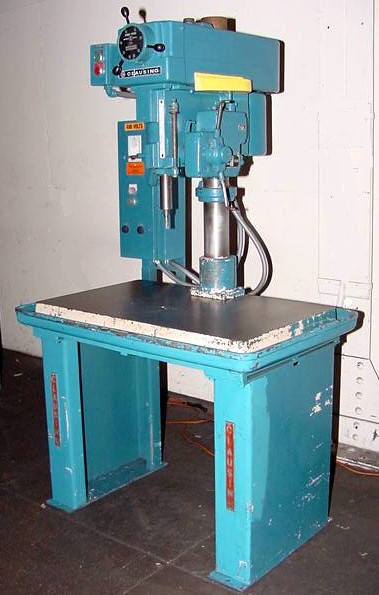

SPECIFICATIONS:20" CLAUSING VARIABLE SPEED DRILL PRESS

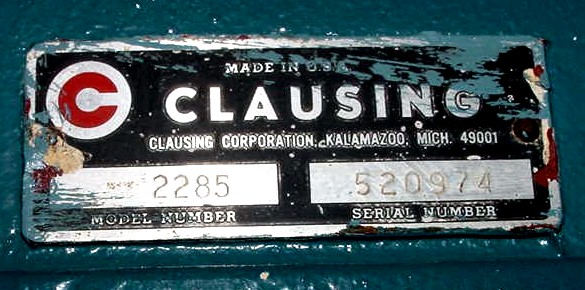

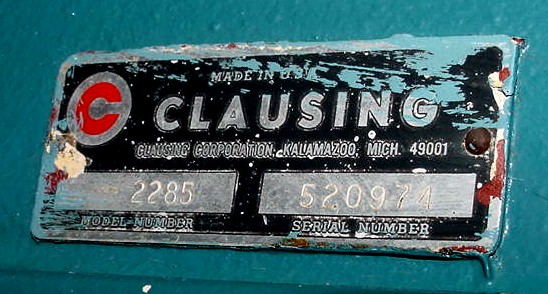

MODEL: 2285, S/N: 520974, NEW: 1977
with PRODUCTION TABLE
CAPACITY - CAST IRON ................ 1-1/4"
DRILLS TO CENTER OF CIRCLE .......... 20" DIAMETER
OVERALL SIZE OF TABLE (F-B x L-R) ... 29-1/2" x 45-1/2"
WORKING SURFACE OF TABLE (F-B x L-R). 24" x 40"

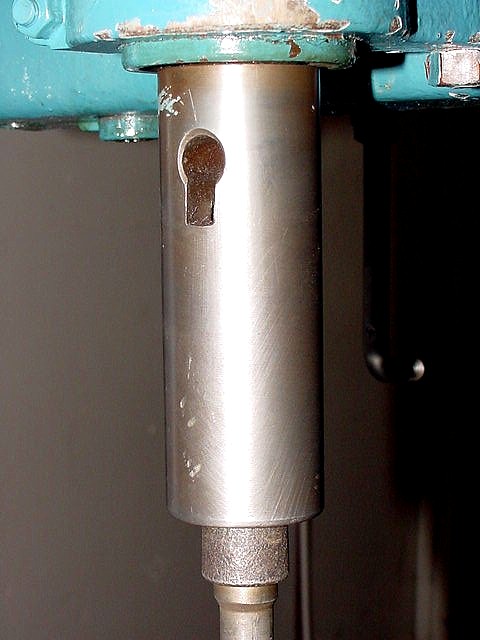

SPINDLE TAPER ....................... #3 MORSE
SPINDLE TRAVEL ...................... 6-1/2"
MAXIMUM DISTANCE SPINDLE TO TABLE ... 25-7/16"

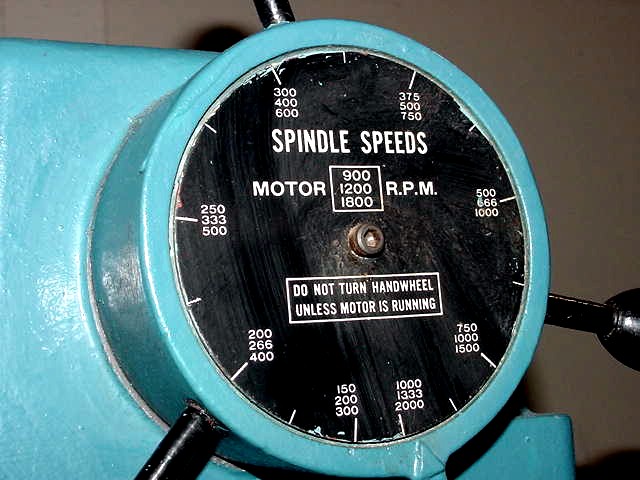

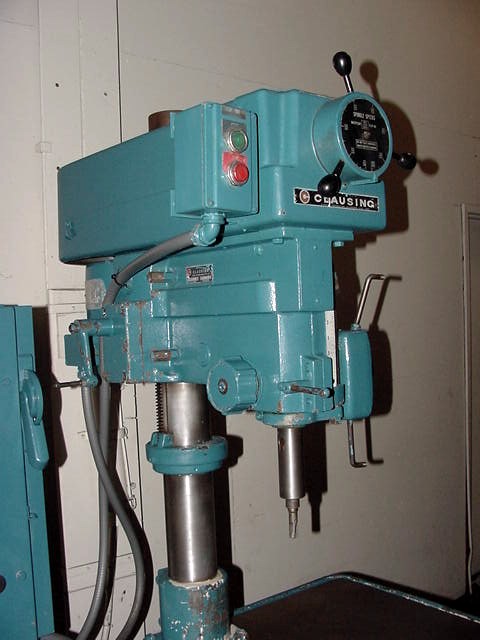

SPINDLE SPEEDS INFINITELY VARIABLE .. 300-2,000 R.P.M.

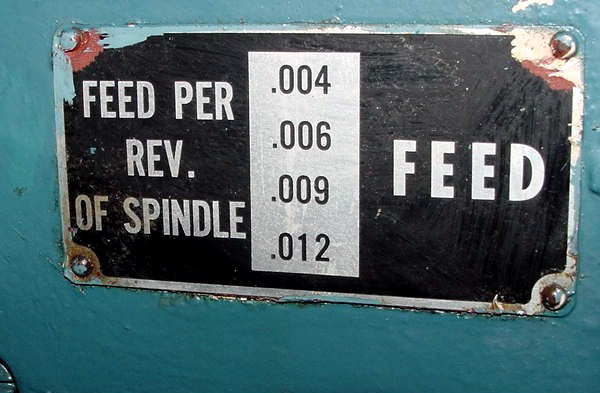

POWER DOWNFEEDS (4) ................. .004, .006, .009 & .012 IPR
APPROXIMATE WEIGHT .................. 1,450 Lbs.
EQUIPPED WITH:

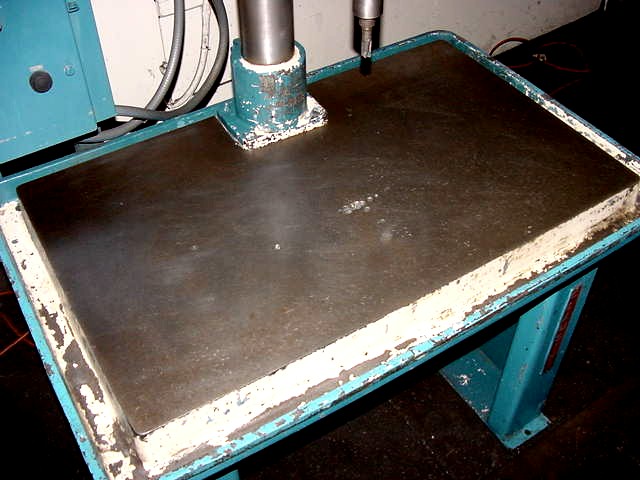

29-1/2" F-B x 45-1/2" L-R PRODUCTION TABLE W/COOLANT TROUGH

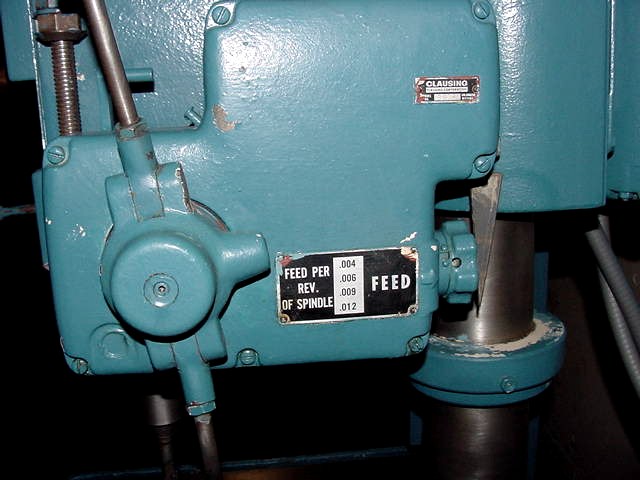

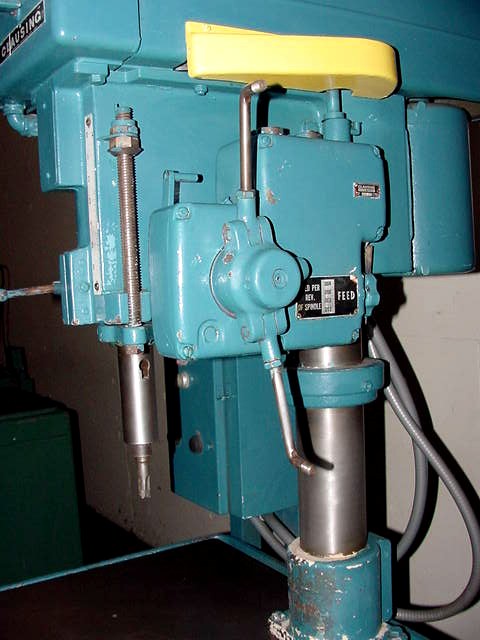

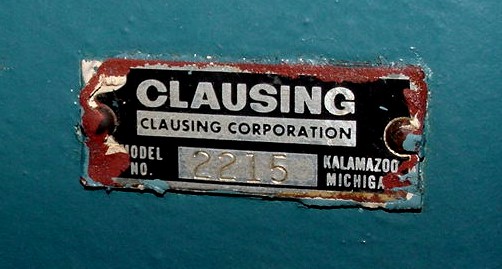

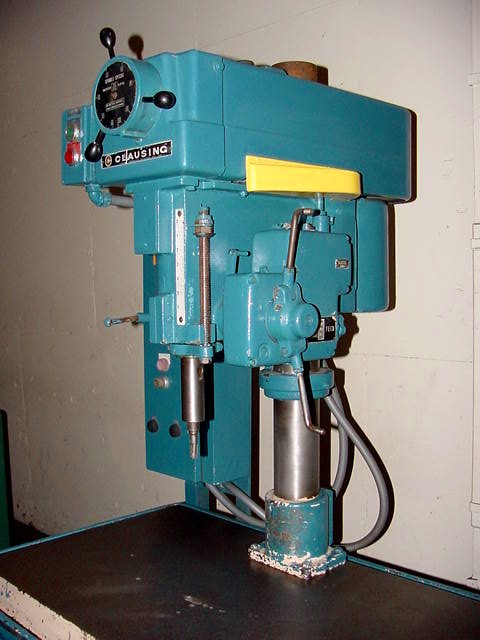

CLAUSING MODEL: 2215 GEAR DRIVEN POWER DOWN FEED UNIT
MANUALLY OPERATED RACK & PINION TYPE MECHANISM FOR
RAISING/LOWERING OF DRILLING HEAD ON COLUMN.
DRILL HEAD SWIVELS ON BALL RACE ON SPINDLE COLLAR.

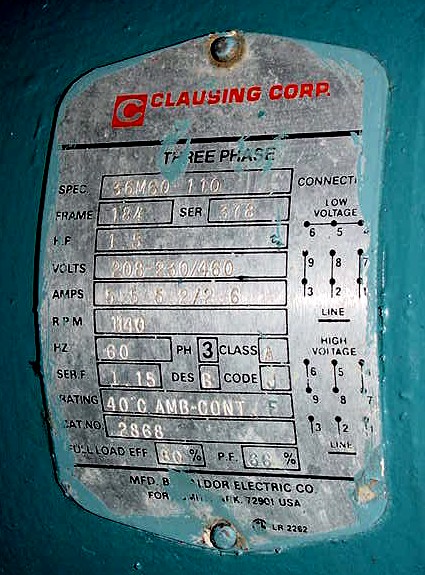

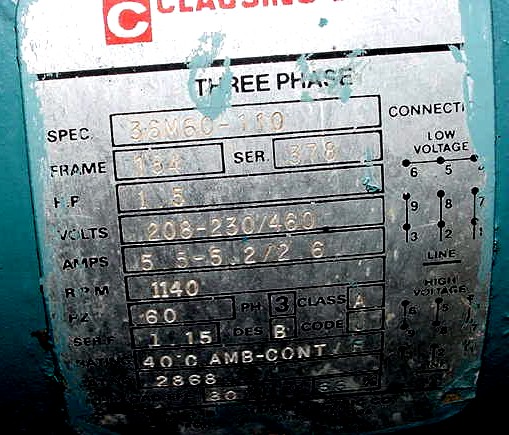

1.5 H.P. 3/60/230-460 VOLT SPINDLE DRIVE MOTOR
CONDITION: **** EXCELLENT ****
