Reference Number: 141607

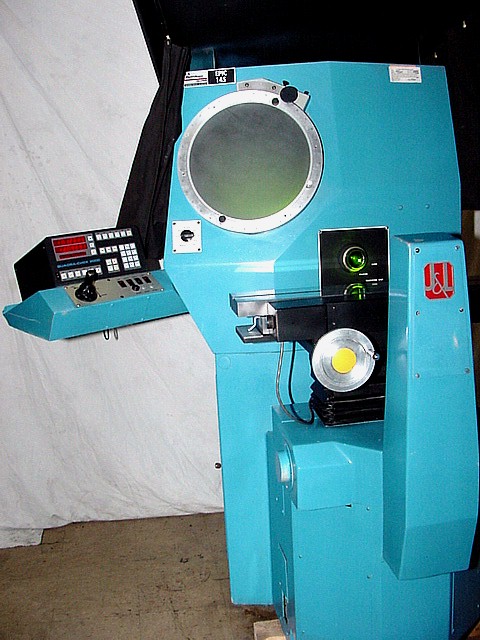

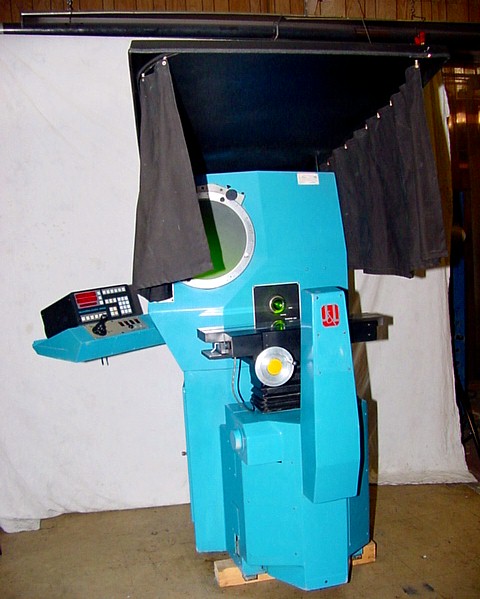

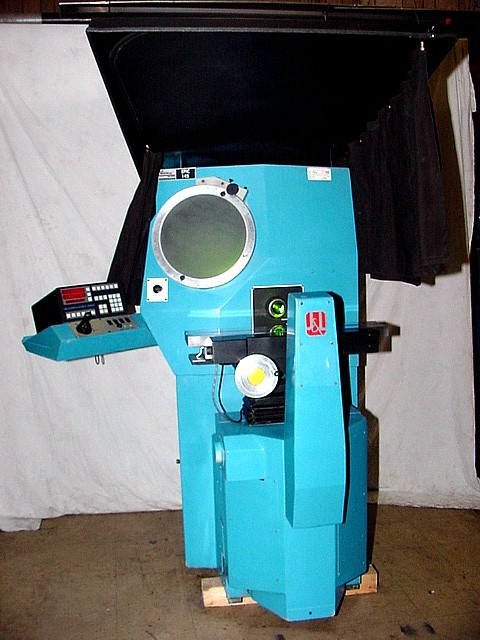

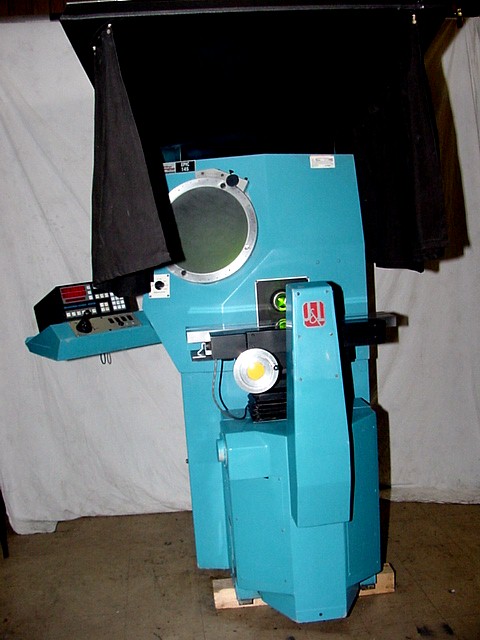

14" JONES & LAMSON (MADE IN VERMONT) OPTICAL COMPARATOR

 QUADRA-CHEK DIGITAL READOUT MODEL 2200-AR (S/N: 24069),
  2-AXIS DISPLAY, FEATURING PROGRAMMABLE GEOMETRIC FUNCTIONS

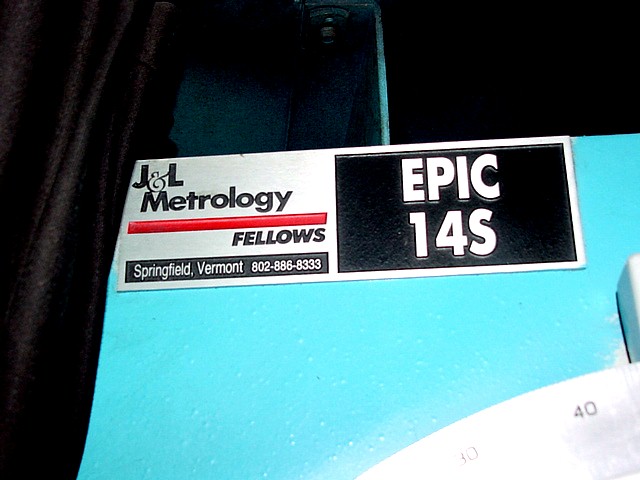

 MODEL EPIC 14S     S/N: 81537     NEW : 1997

  SPECIFICATIONS:

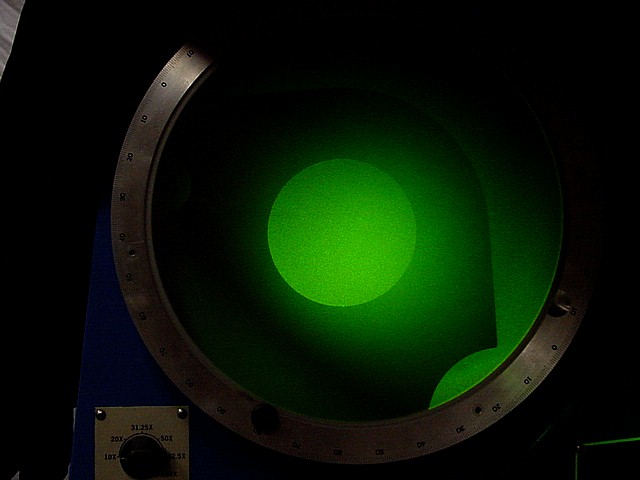

 SCREEN DIAMETER........................... 14"

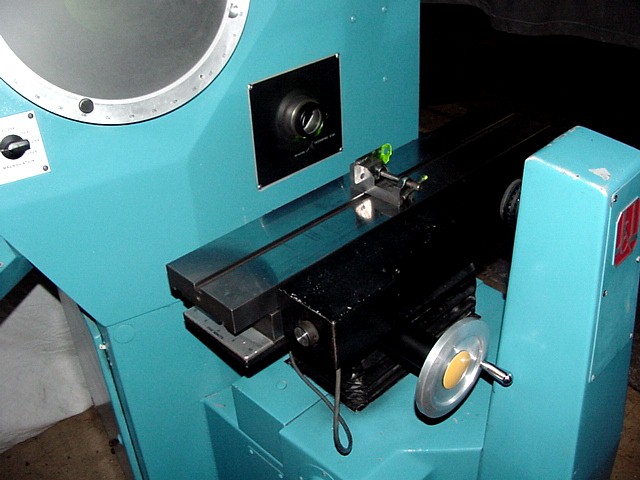

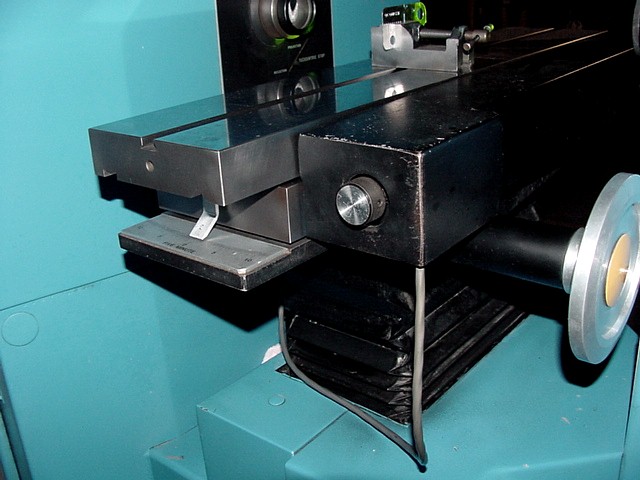

 TABLE SIZE................................ 6" X 30"
 MEASURING CAPACITY (TABLE TRAVEL)
 LONGITUDINAL: ............................ 9"
 VERTICAL:................................. 8"
 ANGULAR MEASURING CAPACITY.... 360 DEGREE CHART ROTATION
 CROSS TRAVEL FOR FOCUSING................. 3"
 HELIX ROTATION-TABLE SWIVELS.. 15 DEGREES LEFT & RIGHT
 DISATANCE, LENS CENTERLINE TO TABLE ...... 1" MINIMUM
                                           10" MAXIMUM

 FLOOR SPACE .................... 46" L-R X 67" F-B x 81" H
 APPROX. WEIGHT ............................2,900 LBS.


  EQUIPTMENT:
 SIDE SCREEN VIEWING
 ERECT IMAGES

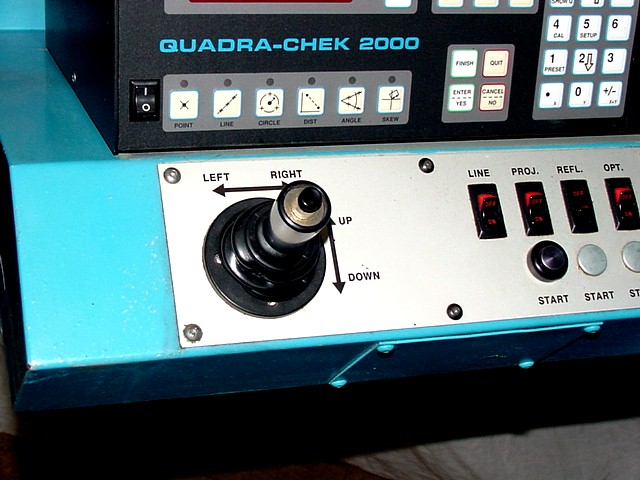

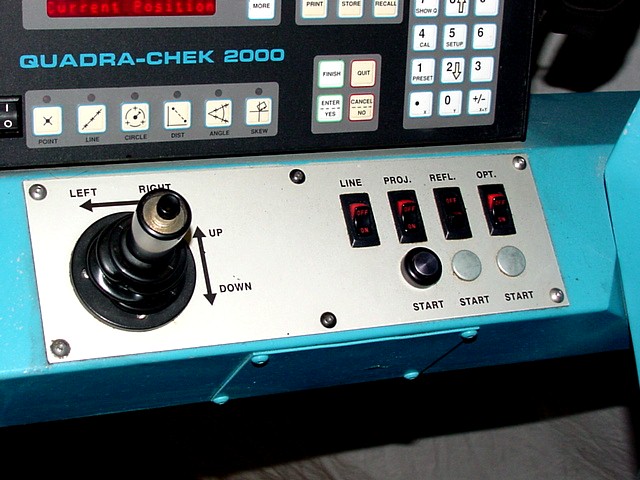

 JOYSTIC CONTROL
 POWER LONGITUDINAL TABLE TRAVEL
 POWER ELEVATION

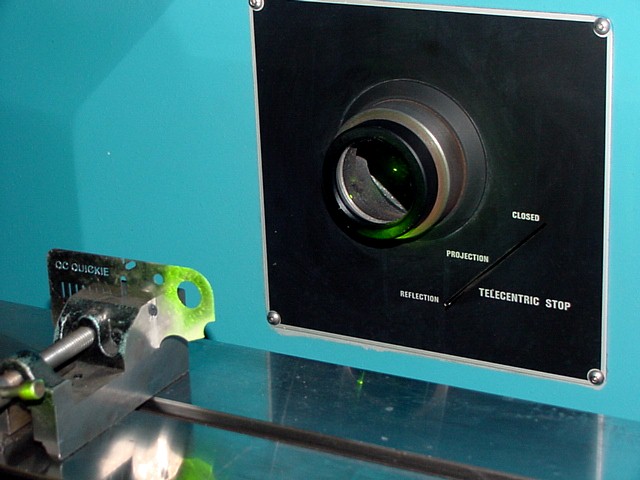

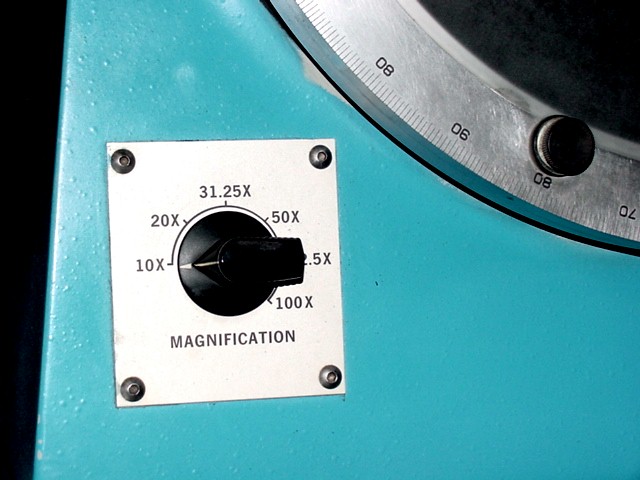

 SIX POSITION POWER LENS TURRET
 (3) LENSES .... 10X, 20X & 50X MAGNIFICATIONS

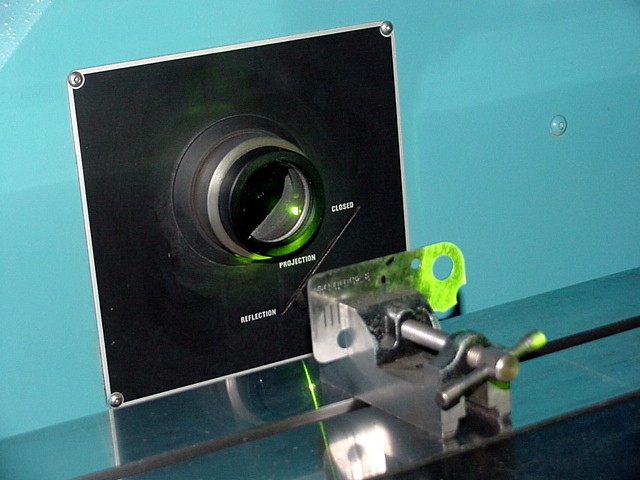

 NOVALITE MERCURY ARC PROJECTION

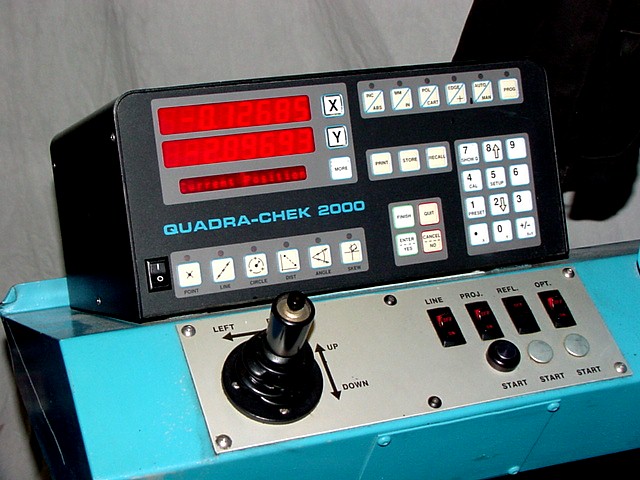

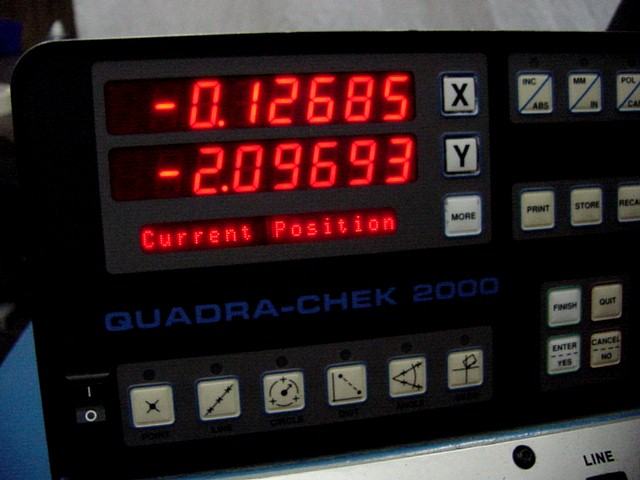

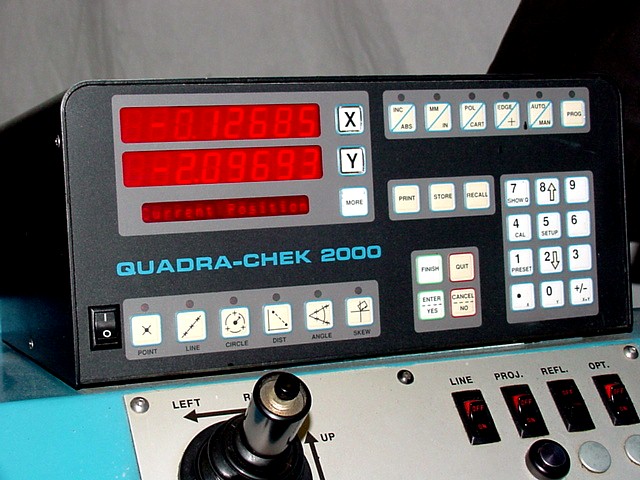

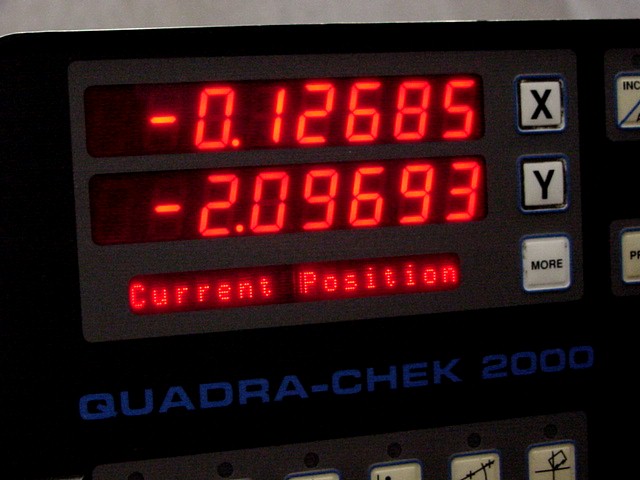

 QUADRA-CHEK DIGITAL READOUT MODEL 2200-AR (S/N: 24069),
  2-AXIS DISPLAY, FEATURING PROGRAMMABLE GEOMETRIC FUNCTIONS
  & RS-232 INTERFACE FOR DOWNLOADING STATISTICAL DATA

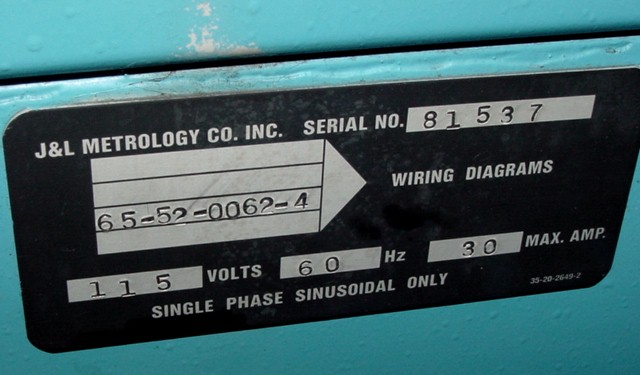

 ELECTRICAL- 1/60/118 VOLT

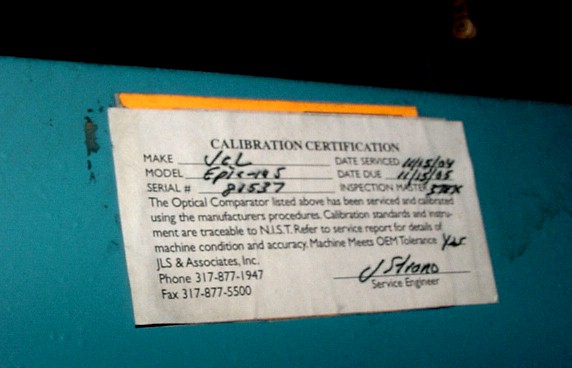

 LAST CALIBRATED BY:
 JLS & ASSOCIATES
 (317) 877-1947
 11/15/2006


  ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
 ** ORIGINAL PAINT - EXCEPTIONAL CONDITION & APPEARANCE **
