Reference Number: 141616

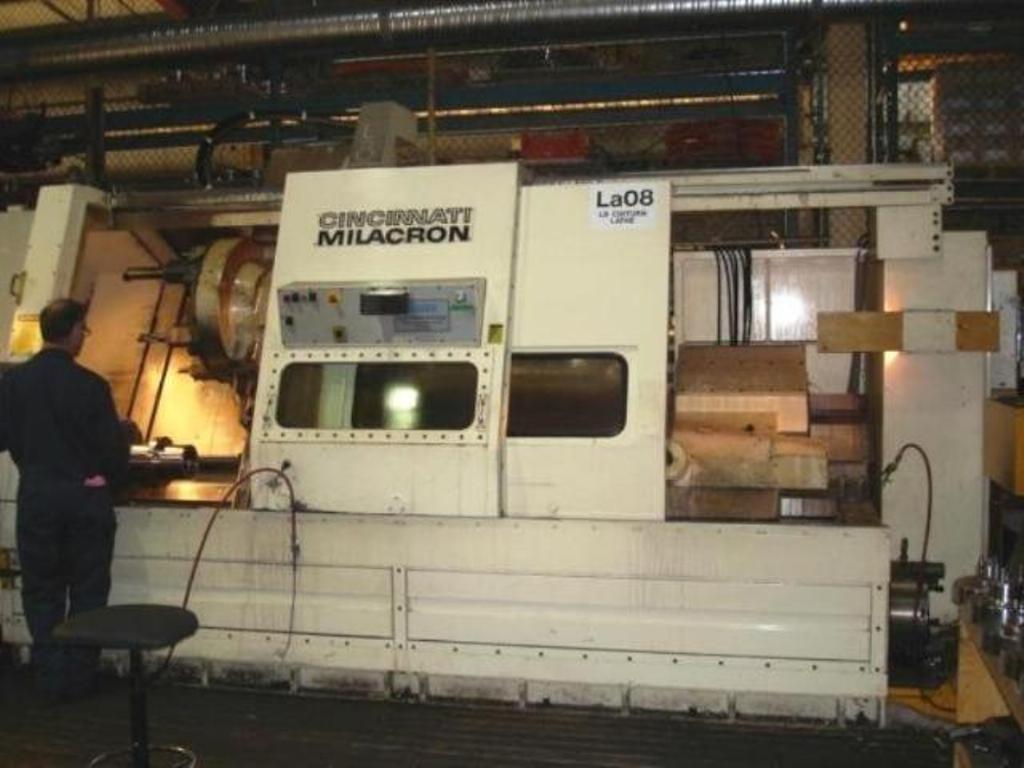

CINCINNATI 18U UNIVERSAL CNC LATHEPrice: $89,500
VICKERS AC2100 CNC CONTROL
NEW: 1999
SPECIFICATIONS:
MAX. SWING
MAXIMUM CUTTING DIA.
MAXIMUM CUTTING LENGTH 100"
DISTANCE BETWEEN CENTERS 105"
SPINDLE BORE 4.56"
SPINDLE NOSE A1-11
MAX BAR CAPACITY 4.00"
SPINDLE SPEEDS: 16-1600 RPM
X - AXIS
Z - AXIS
RAPID TRAVERSE RATE X/Z IPM
TURRET STATIONS 6 O.D. / 6 I.D.
TAILSTOCK QUILL TRAVEL
TAILSTOCK QUILL DIA.
TAILSTOCK TAPER
MAIN MOTOR 50 HP AC
EQUIPPED WITH:
VICKERS AC2100 CNC CONTROL
UPS BACKUP
21" 3-JAW HYDRAULIC CHUCK
STEADY REST
CHIP CONVEYOR
HEAVY DUTY TAILSTOCK
ALL AVAILABLE MANUALS
MACHINE COMPLETELY REBUILT AND RETROFITTED IN 1999
