Reference Number: 141644

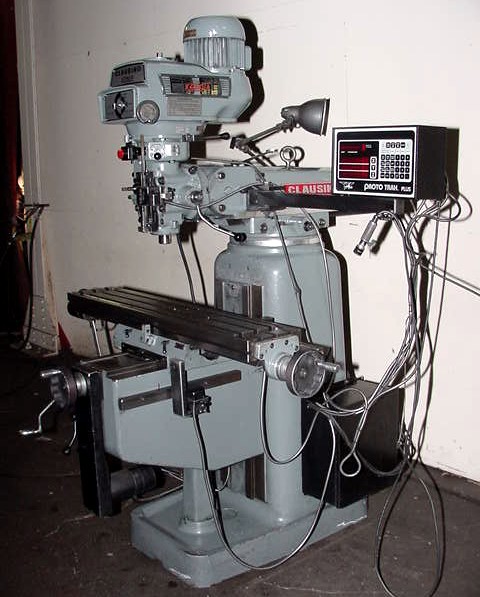

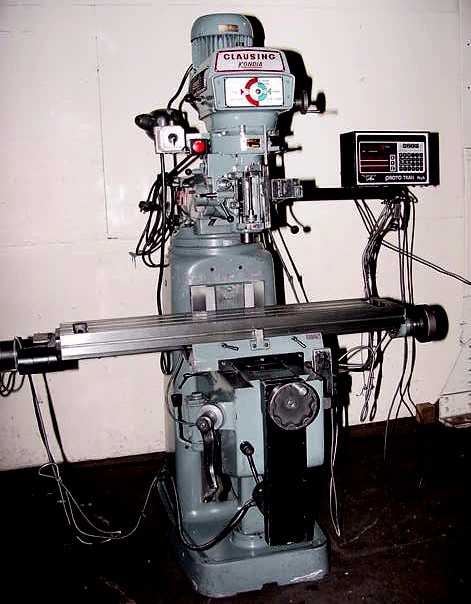

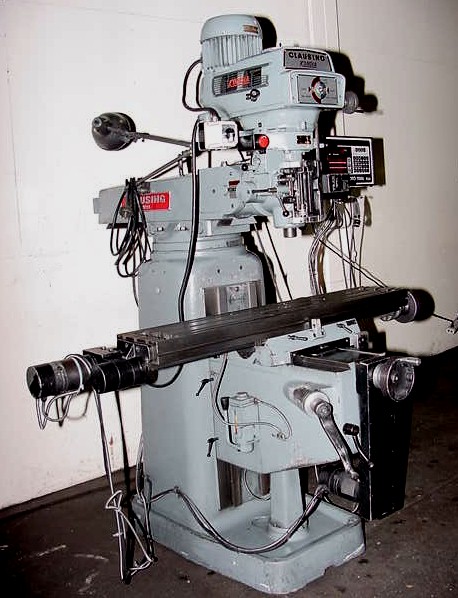

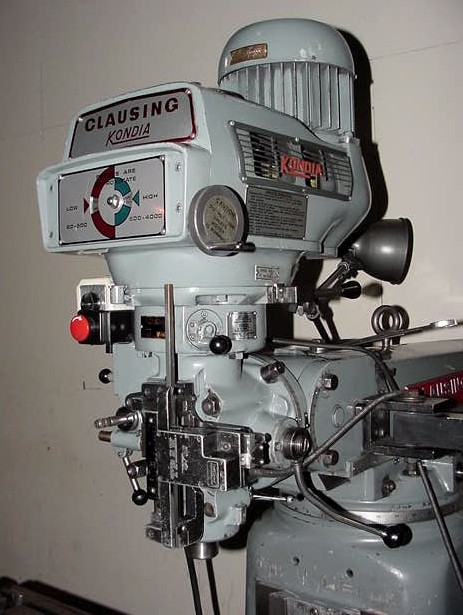

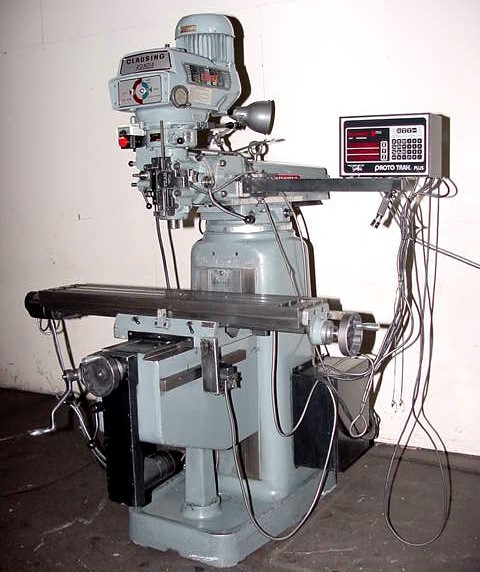

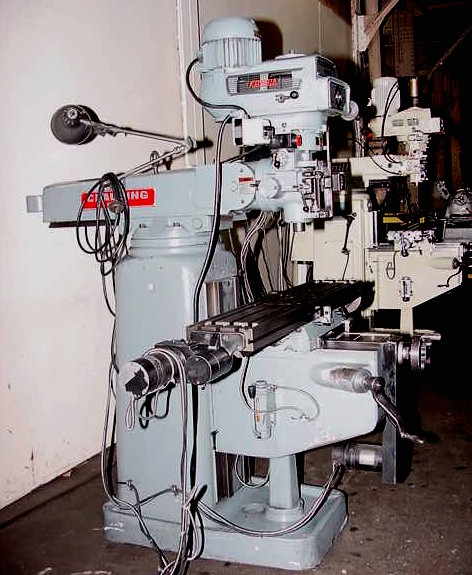

Price: $7,950CLAUSING-KONDIA 2-AXIS CNC VERTICAL MILL SPECIFICATIONS:
MODEL: FV-1 W/PROTO-TRAK PLUS CONTROL
w/HAND WHEELS AND 3 AXIS DIGITAL READOUTS

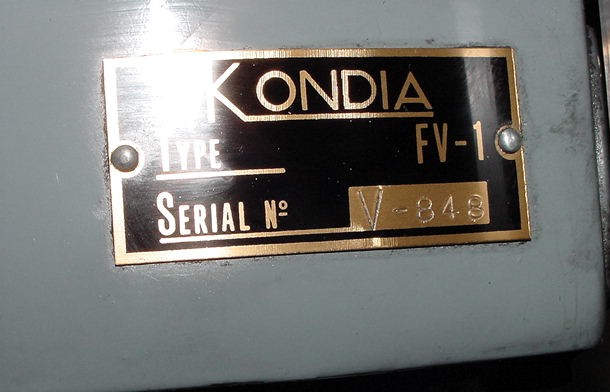

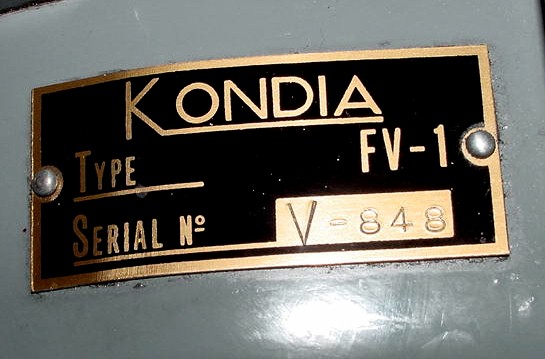

S/N:V-848, NEW:1990's

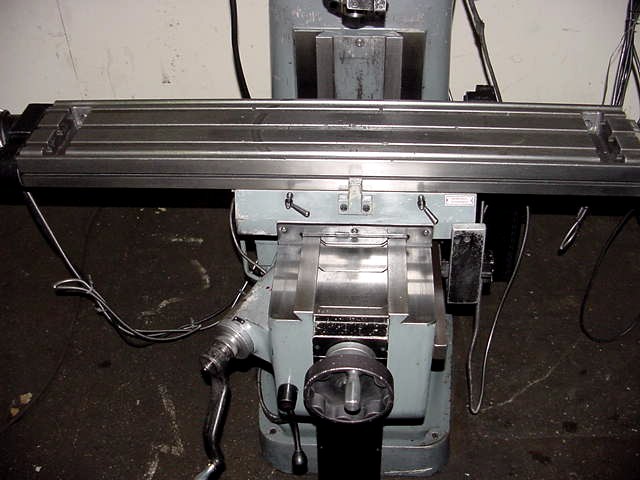

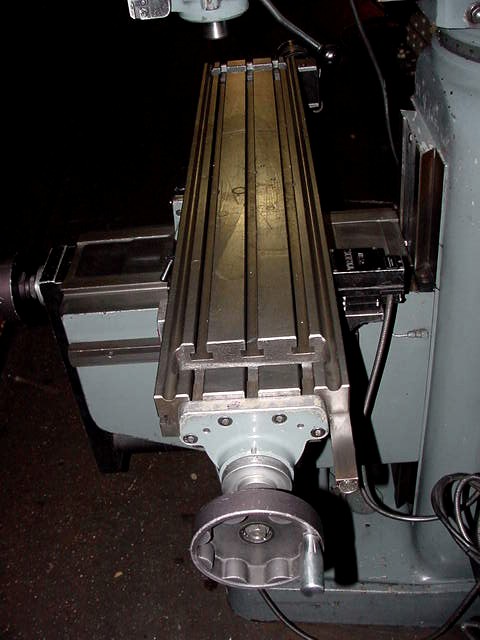

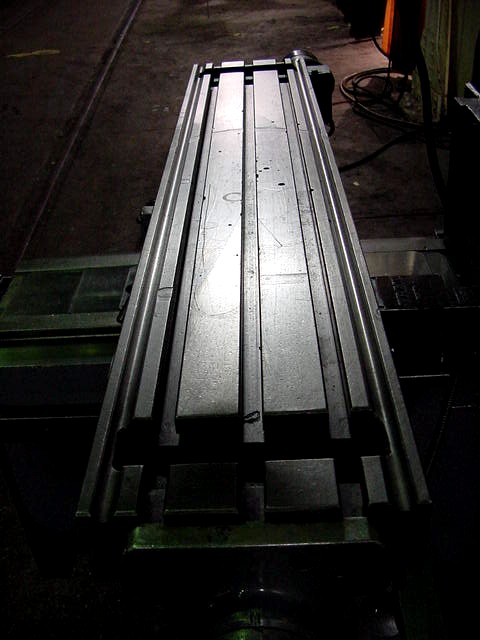

WORKING SURFACE OF TABLE ................. 9" x 48"
LONGITUDINAL TABLE TRAVEL ................ 30"
CROSS TABLE TRAVEL ....................... 15"
QUILL TRAVEL ............................. 5"
KNEE TRAVEL .............................. 16-1/2"
SPINDLE TAPER ............................ R-8

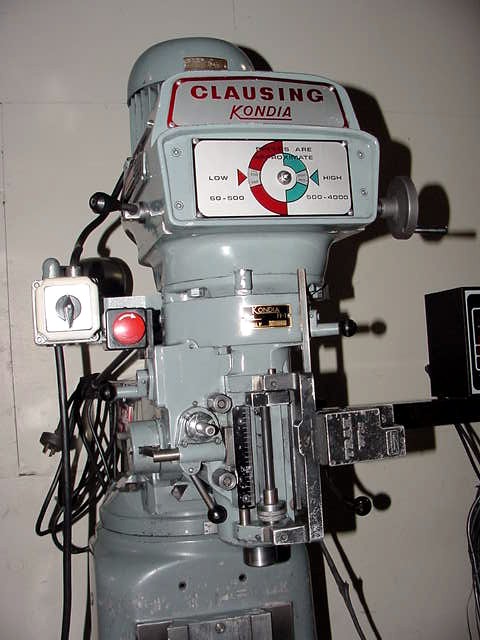

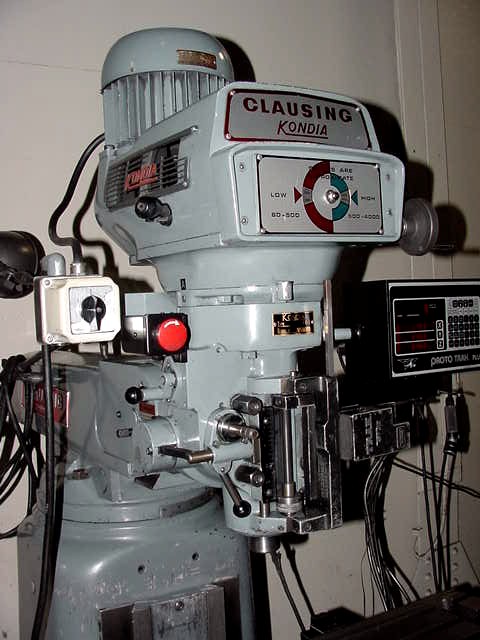

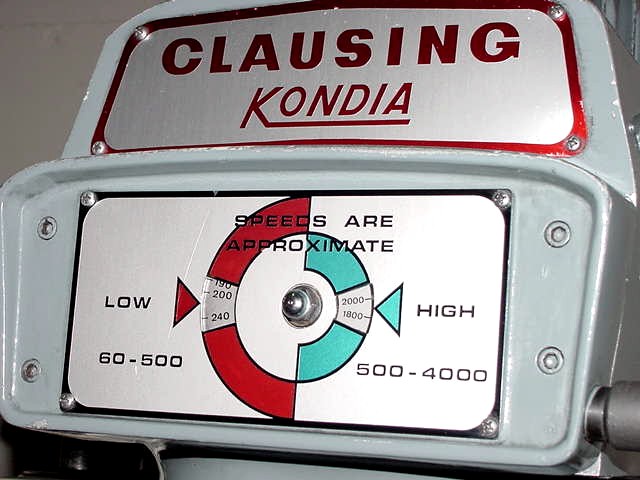

VARIABLE SPINDLE SPEEDS .................. 60 TO 4000 RPM
SPINDLE FEEDS(3) ................... .0015, .003, .006" IPR
FLOOR SPACE: ............................. 72" x 72" x 82"
WEIGHT APPROXIMATELY: .................... 2,400 LBS.
EQUIPPED WITH:

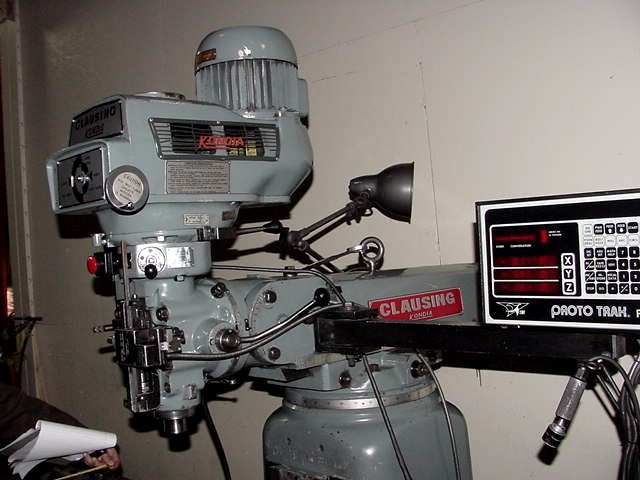

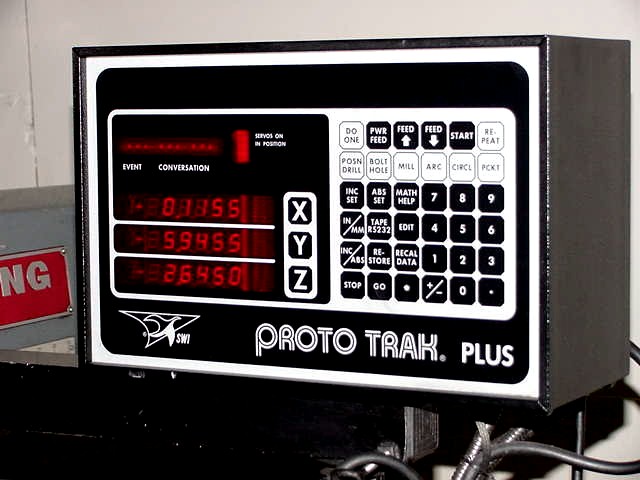

EZ-TRAK PLUS 2-AXIS CNC CONTROL (MADE BY SOUTHWESTERN IND.)
WITH SERVO MOTORS, MANUAL DATA INPUT 2 AXIS
LINEAR & CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,

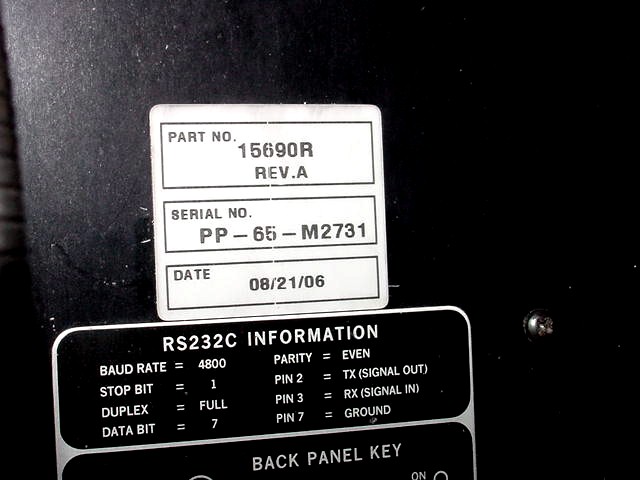

BOLT HOLE PATTERNS, RS-232,
CONTROL BOX WAS SWAPPED OUT BY SOUTHWEST INDUSTRIES IN 2006

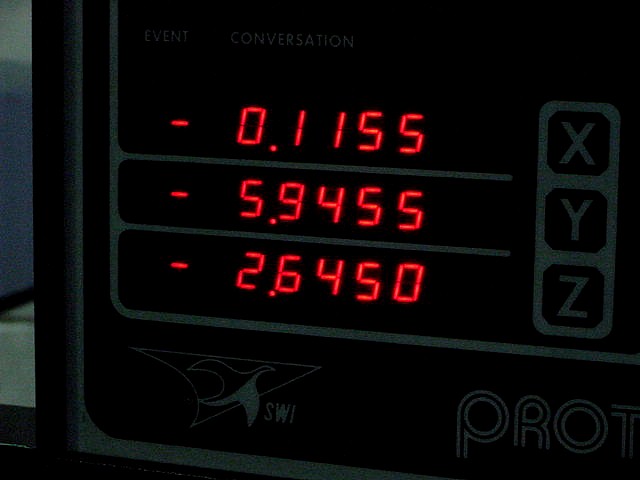

IN MANUAL OPERATION, CONTROL BECOMES 3 AXIS DIGITAL READOUT
REMOTE STOP & GO SWITCH

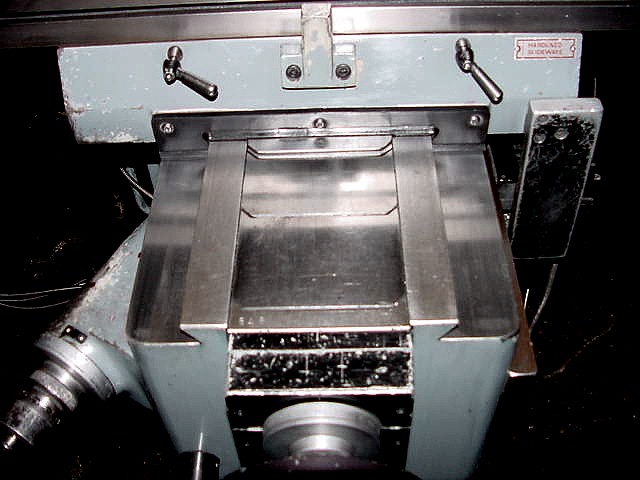

GROUND BALLSCREWS ON TABLE & SADDLE
HARDENED WAYS
LUBRICATION SYSTEM

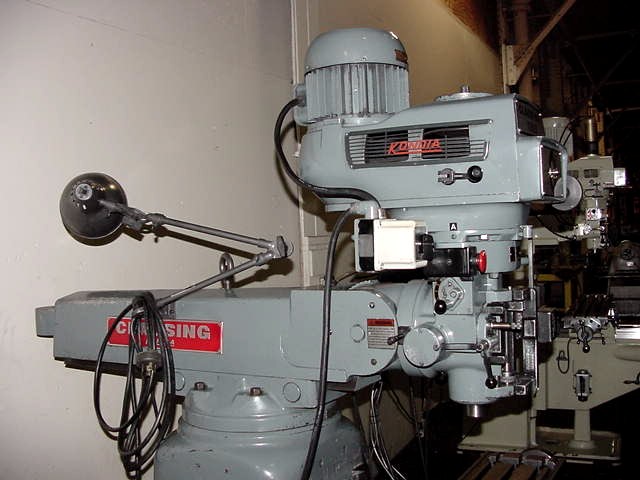

WORKLIGHT

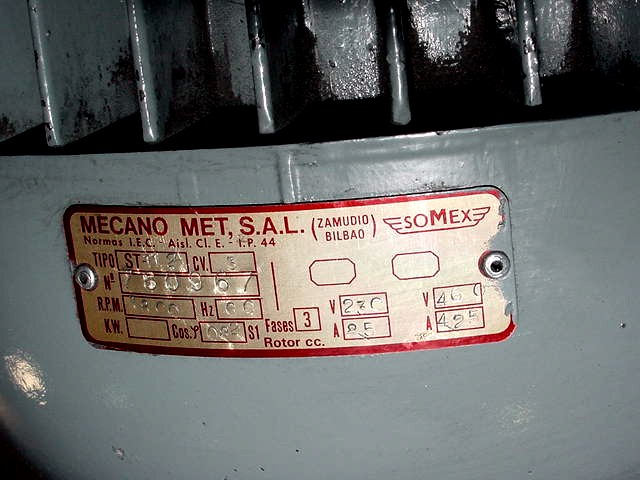

2 HP (3 HP 30 MIN DUTY) MAIN MOTOR
TRANSITION FREELY FROM 2-AXIS CNC TO MANUAL.
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK
EXCELLENT CONDITION - ORIGINAL PAINT!
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
