Reference Number: 141683

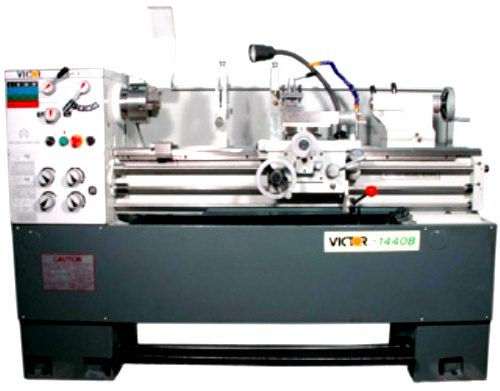

New Victor 14" x 40" Engine Lathe
 Model: 1440B

 Specifications:
 CAPACITY
  - Max. swing over bed 14" (355 mm)
  - Swing over cross-slide 8-5/8" (219 mm)
  - Distance between center 39.5" (1,003 mm)
  - Swing over gap 20" (508 mm)
  - Width of bed 8" (203 mm)

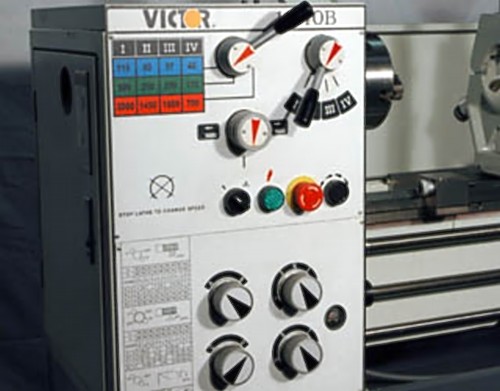

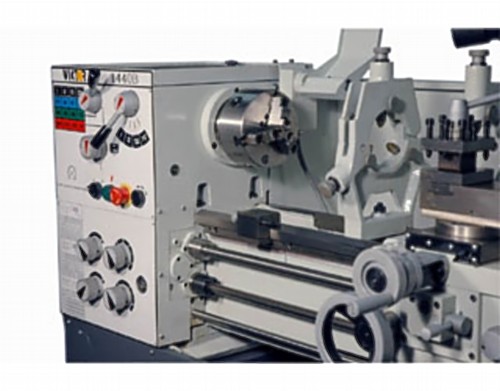

 HEADSTOCK
  - Number of spindle speeds 12 Speeds
  - Range of spindle speeds 40 ~ 2,000 rpm
  - Hole through spindle 1-1/2" (38 mm)
  - Spindle nose D1-4
  - Taper of spindle bore M.T. No. 5
 THREADS AND FEEDS
  - Inch threads 4 ~ 56 TPI x 34 kinds
  - Metric threads 0.4 ~ 7.0 mm x 26 kinds
  - Range of longitudinal feeds 0.0020" ~ 0.0548"/rev x 32 kinds
  - Range of cross feeds 0.0007" ~ 0.0178"/rev x 32 kinds

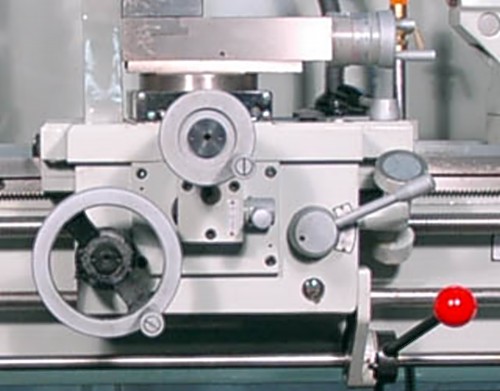

 CARRIAGE
  - Cross slide travel 7" (178 mm)
  - Compound rest travel 4" (100 mm)
 TAILSTOCK
  - Tailstock quill taper M.T. No. 3
  - Tailstock quill travel 4-7/8" (120 mm)
 POWER
  - Main motor / Coolant pump 3 HP 3Ph / 1/16 HP 3Ph
 DIMENSIONS
  - Overall dimension of lathe (L x W x H) 73" x 29.1" x 47"
  - Packing size of lathe (L x W x H) 75.6" x 29.1" x 62"
  - Net / Gross weight 1,650 / 1,936 lb. (750 / 880 kg)

  Specifications are subject to change without notice for further
 design improvements.

 Standard Equipment:
  - Change gears
  - Chip pan
  - Center sleeve

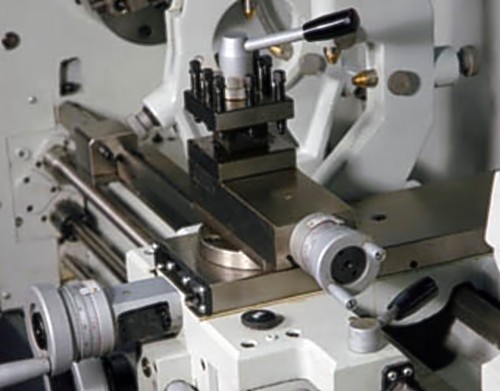

  - 4-Way tool post
  - Halogen work light
  - Dead center
  - Full length splash guard
  - Coolant system
  - Steady rest
  - Follow rest
  - Face plate
  - Chuck cover with limit switch

 Optional Equipment (call for pricing):
  - 6" 3-Jaw chuck
  - 5C collect closer
  - Taper turning attachment
  - 8" 4-Jaw chuck
  - Micro carriage stop
  - Live Center
  - Quick change tool post & holders
  - Digital Readouts - various choices
