Reference Number: 141686

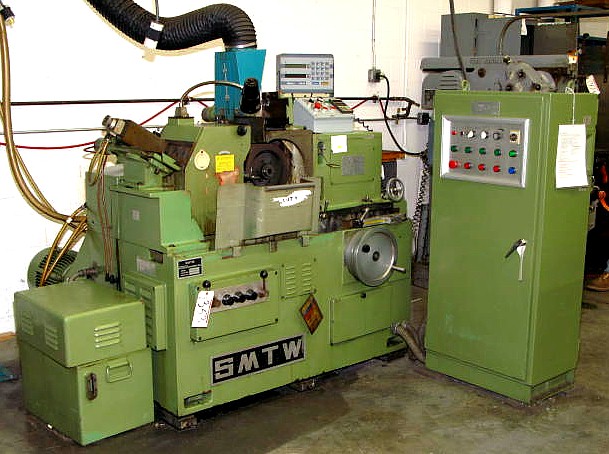

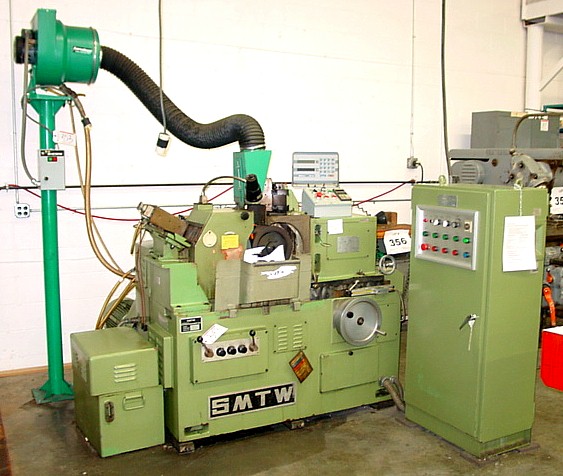

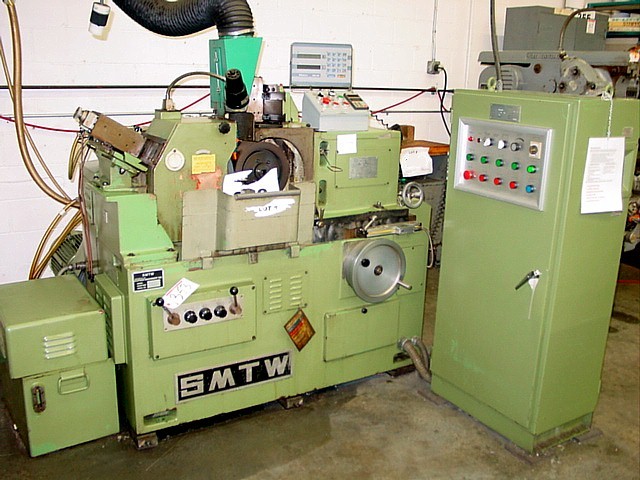

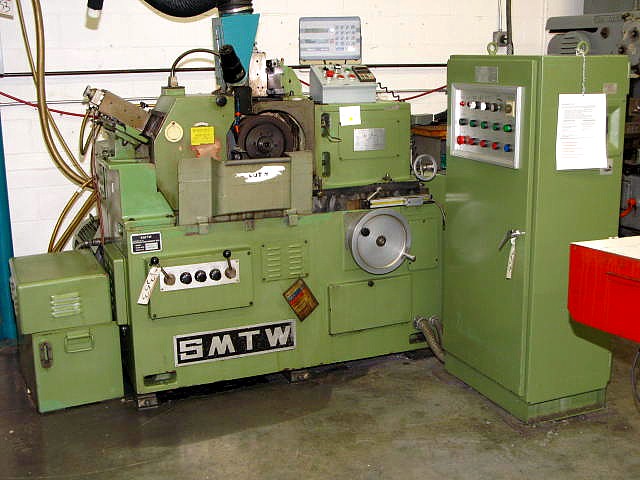

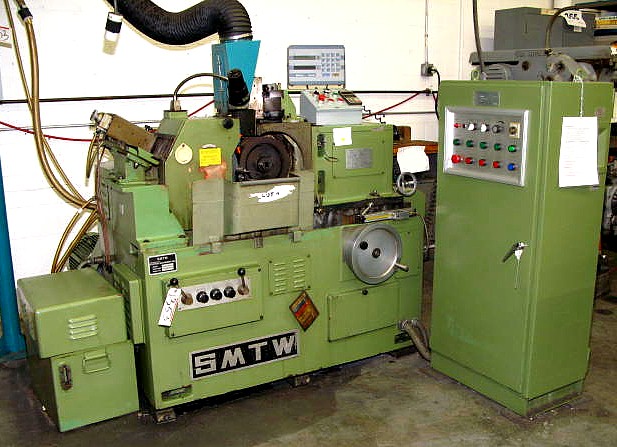

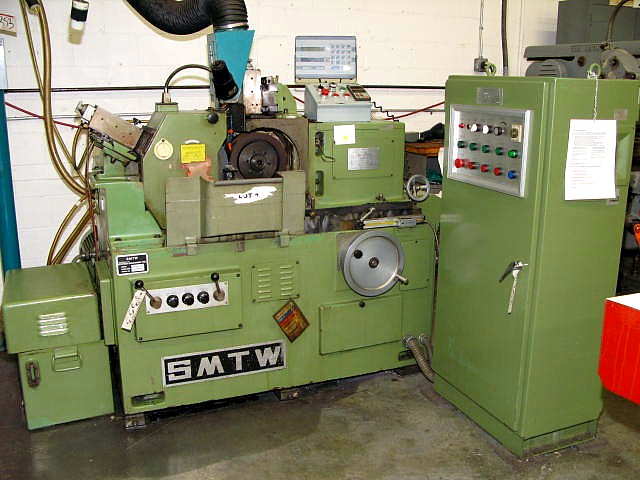

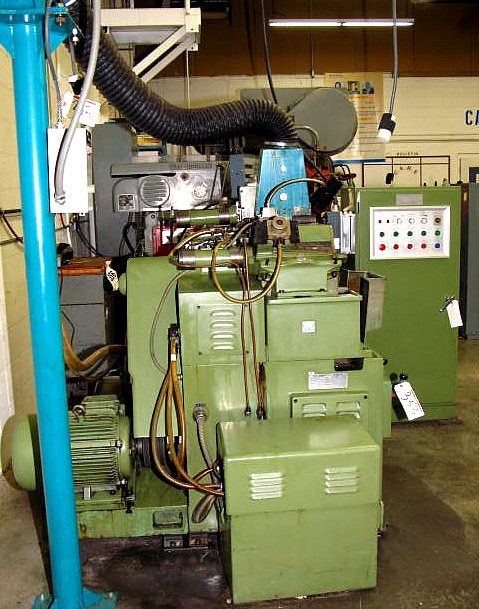

SMTW Centerless GrinderPrice: On Request
w/Auto Infeed Option

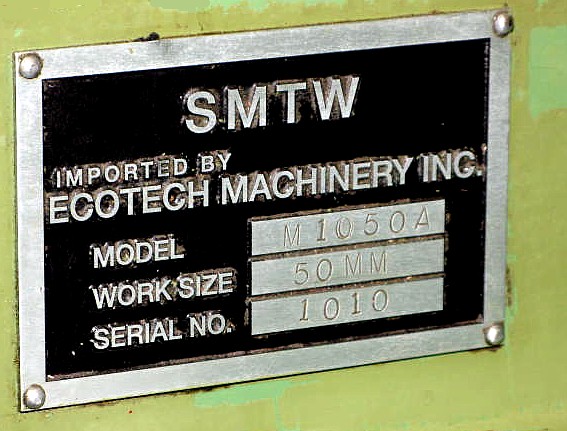

MODEL: 1050A S/N: 1010 NEW: 1994
Capacity, Diameter Range ............................................ 0.02" to 2"

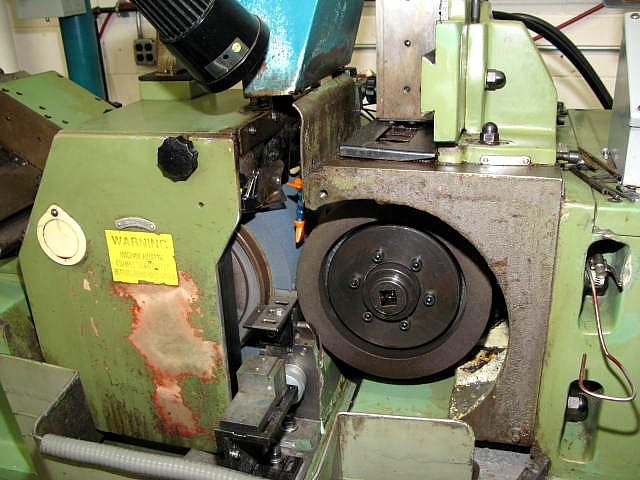

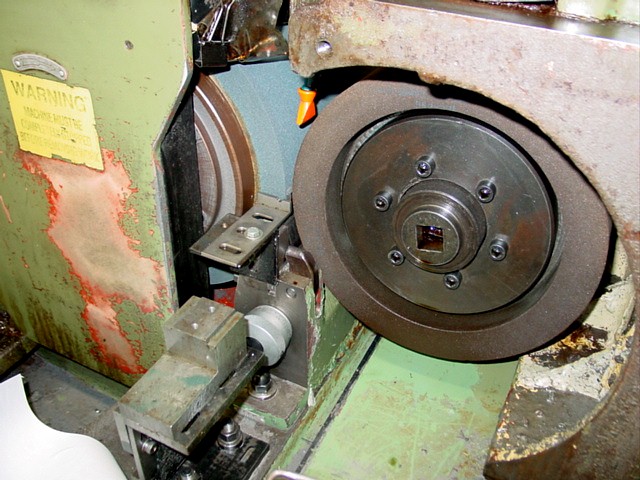

Grinding Wheel Size ..................................................... 15.7" x 6" x 8"
Regulating Wheel Size .................................................. 12" x 6" x 5"
Grinding Wheel Speed .................................................. 1668 RPM
Infinitely Variable Regulating Wheel Speed.................... 20-200 RPM
Regulating Wheel Swivel in Vertical Plane ................... -2°-+5°
in Horizontal Plane ............... -1°-+3°

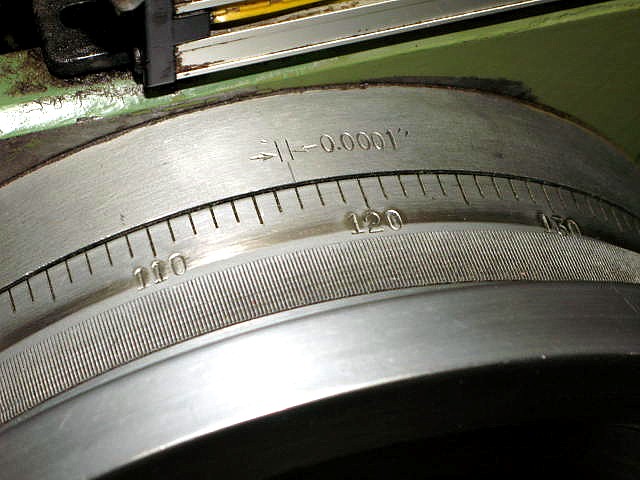

Feed per Division of Handwheel .................................... 0.0001"
Feed per Turn of Handwheel .......................................... 0.016"
Feed per Division of Dressing Dial .................................. 0.0005"
Height from Connected Line Between (2) Wheel
Axes to Workrest Bottom ............................................... 8.66"
Approx. Weight .............................................................. 7,000 lbs
Approx. Floor Space .................................. 97.6"L x 83.5"W x 58.2"High
EQUIPPED WITH:
Automatic Infeed of the Regulating Wheel (Option)

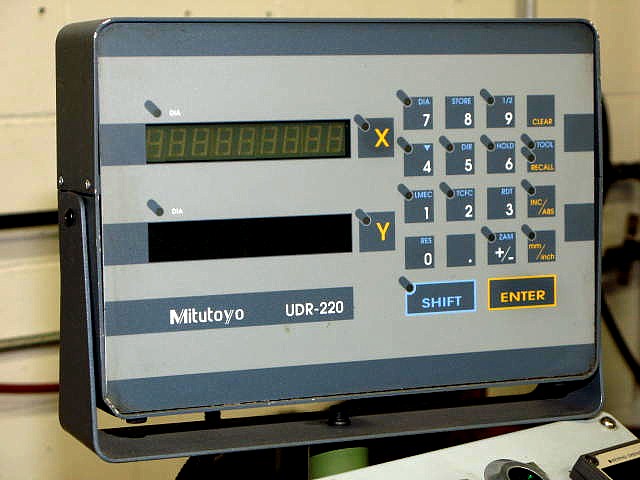

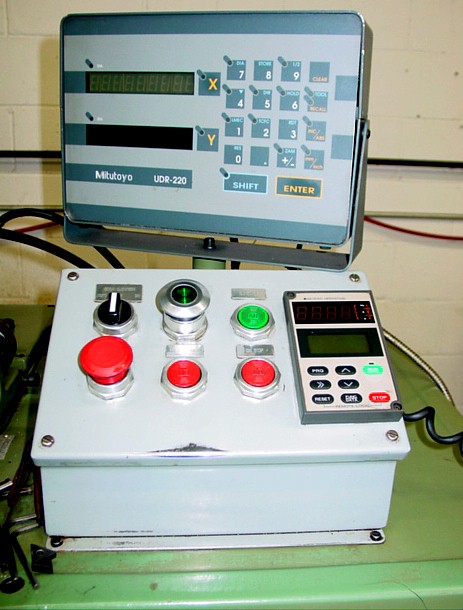

"MITUTOYO" Digital Readout Display for the Movement of the Regulating
Wheel

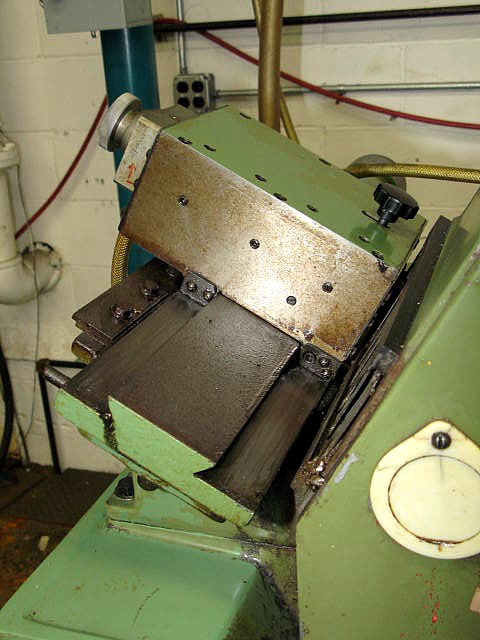

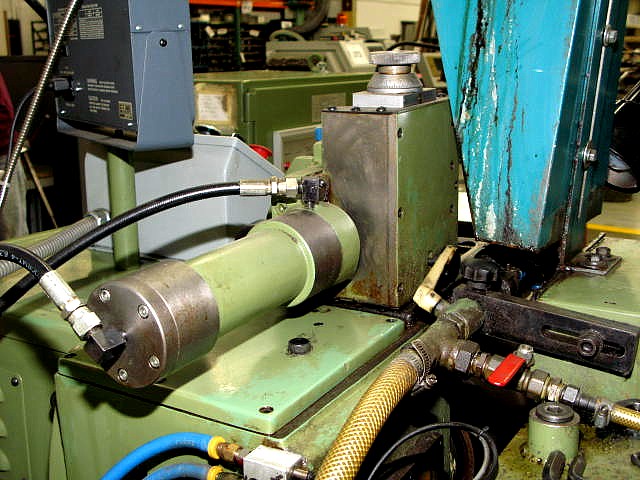

Hydraulic Dressing of Both Grinding and Regulating Wheels

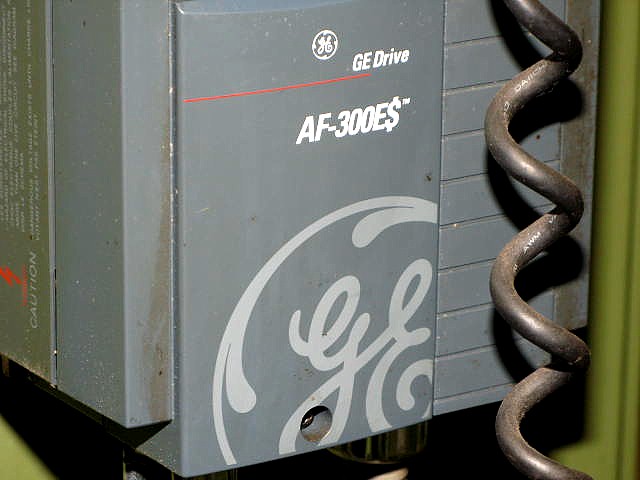

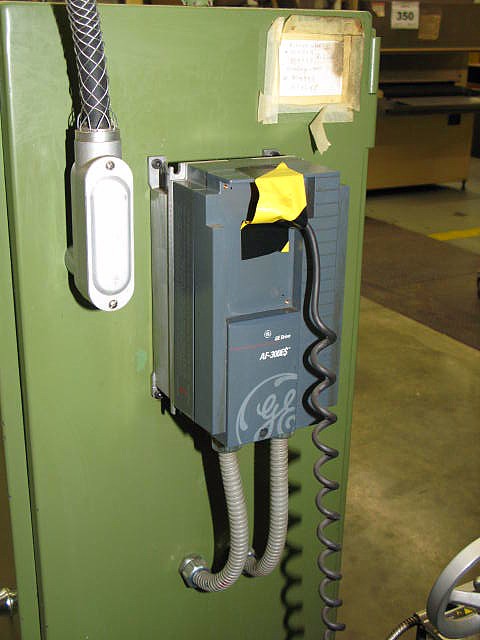

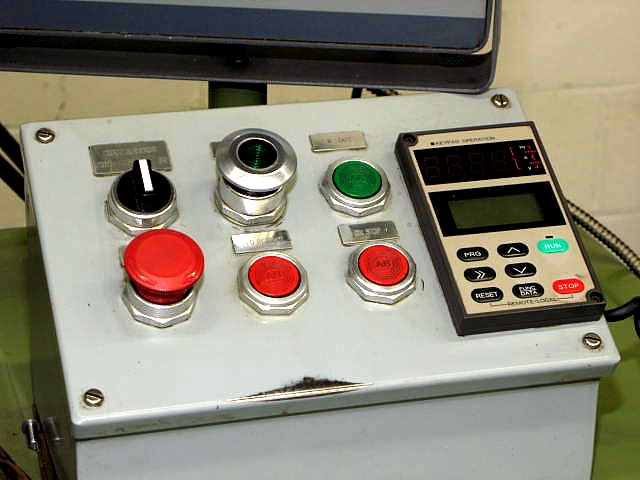

GE Electronic Variable Speed Drive Providing Infitely Variable
spindle Speeds for the Regulating Wheel
Work Rest
Work Light
Coolant System
"AERCOLOGY" Mist Collector W/Stand
14.74 H.P. Grinding Wheel Motor
2 H.P. Regulating Wheel Motor

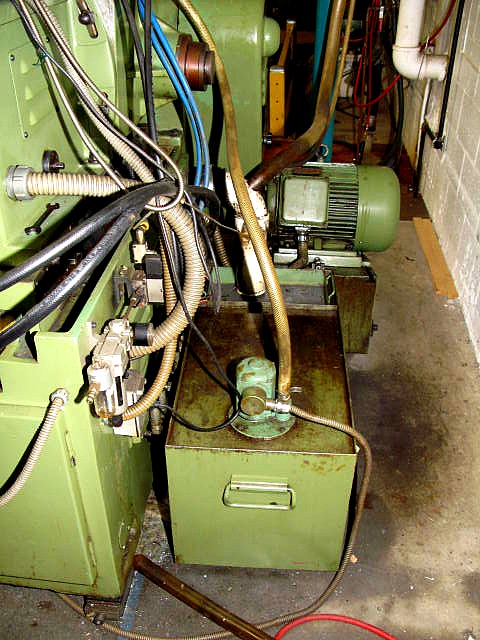

1 ½ H.P. Hydraulic Pump Motor

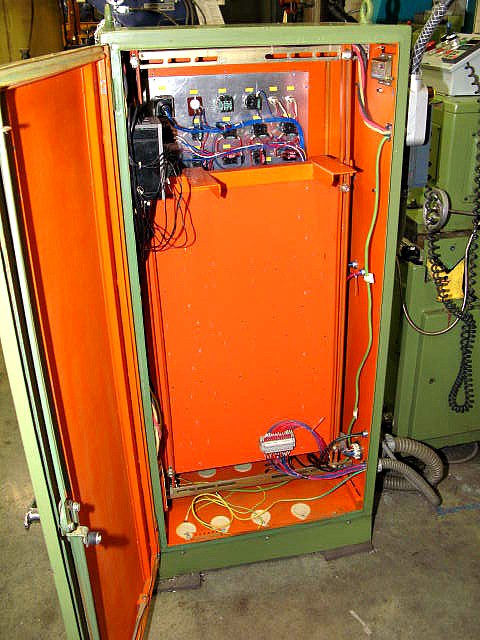

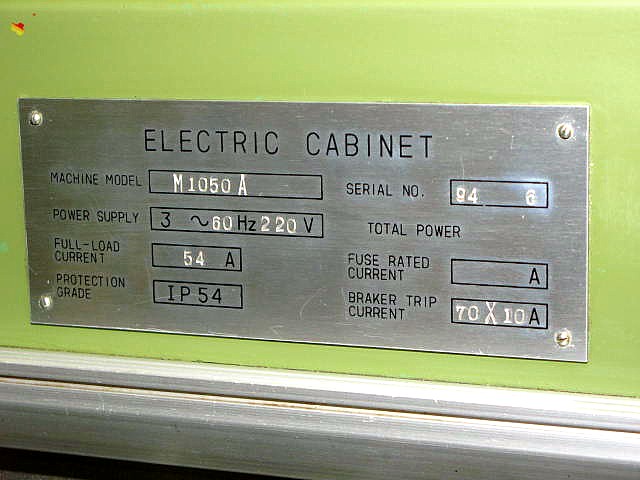

Machine is Presently Wired for 3/60/220 Volts
U.S. Distributor for Parts & Service:
Ecotech Machinery
(770) 279-2001
www.ecotechmachinery.com
Condition: Exceptional & Original
Inspect under power in our Harrison, NJ warehouse **
