Reference Number: 141709

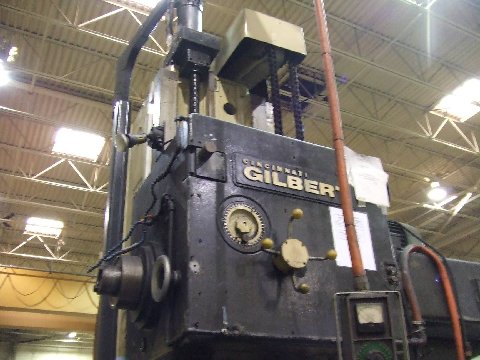

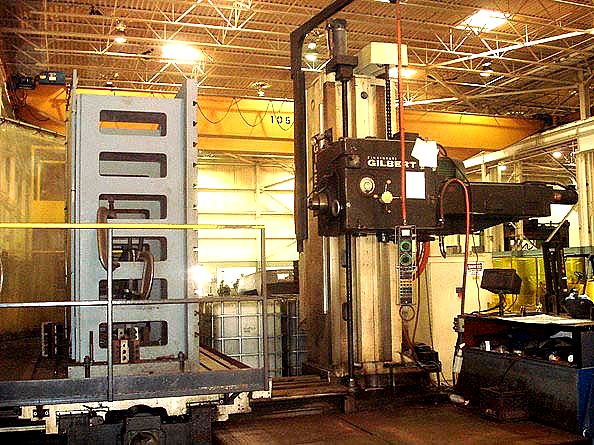

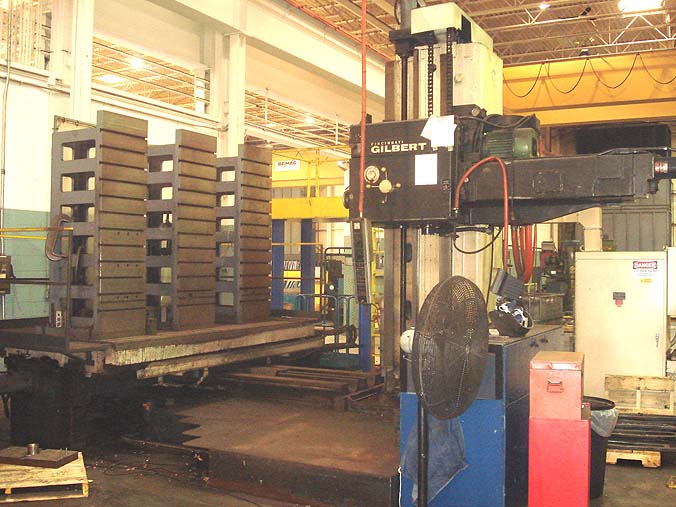

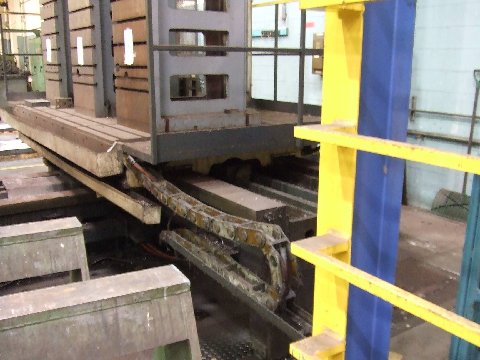

Price: $119,5005" CINCINNATI - GILBERT SPECIFICATIONS:
HORIZONTAL TABLE TYPE BORING MILL
MODEL: J, S/N: J285 , YEAR: 1976
SPINDLE DIAMETER .......................... 5"
SPINDLE TAPER ............................. #50 STD
SPINDLE TRAVEL ............................ 36"
VERTICAL HEADSTOCK TRAVEL ................. 84"
CROSS TABLE TRAVEL ........................ 120"
SADDLE TRAVEL ............................. 65"
TABLE SIZE ................................ 60" x 135"
MAXIMUM TABLE LOAD ........................ 60,000 LBS
SPINDLE SPEED RANGE(27) ................... 10 - 1,000 RPM
FEED RANGES:
SPINDLE & SADDLE .......................... .05 - 60 IPM
HEAD & TABLE .............................. .5 - 120 IPM
LENGTH OF BED ............................. 132"
HEIGHT TO TOP OF COLUMN ................ 156"H
EQUIPPED WITH:
THREE AXIS ACURITE DIGITAL READOUT
FULL PENDANT CONTROL
#50 TAPER POWER DRAW BAR
HARDENED BED & SADDLE WAYS
THREE WAY COLUMN
OUTRIGGER SADDLE SUPPORTS
BALL SCREWS ALL AXES
RAPID TRAVERSE ALL AXES
AUTO LUBRICATION SYSTEM
COOLANT SYSTEM
30 HORSE POWER MAIN MOTOR
