Reference Number: 141726

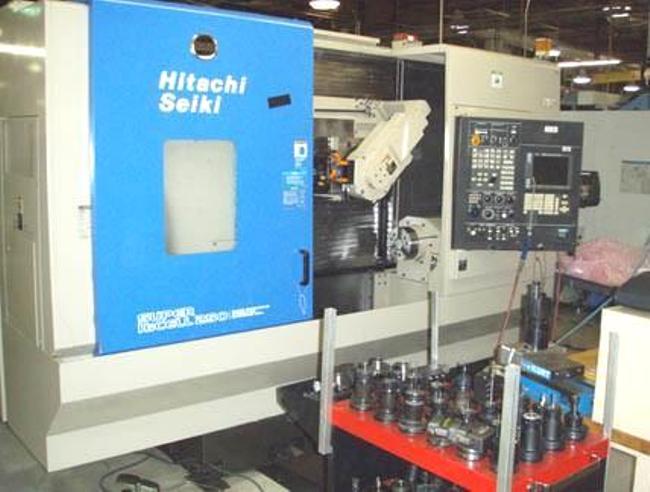

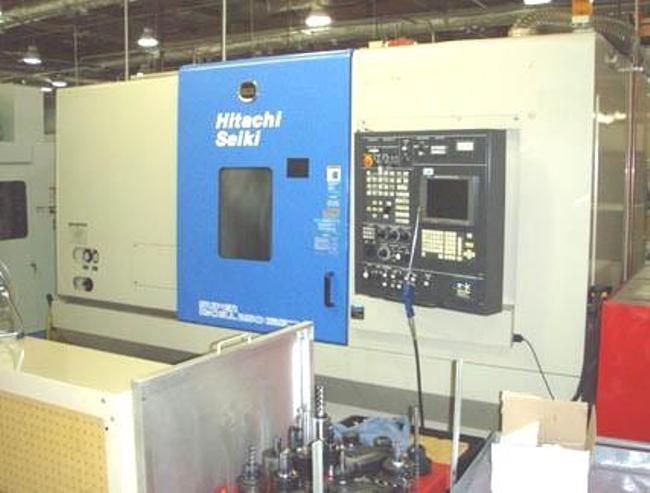

2001 HITACHI SEIKI SUPER HICELL 250Price: On Request
Chuck Size 10"
Max Diameter Bar Capacity 2.56"
Max Swing Over Bed 19.68"
Max Turning Dia (Live/Turning Tools) 19.68" / 14.56"
Max Machining Length 28.3"
Main Motor 25 / 20 HP
Spindle Speed 30 - 4000 RPM
Tool Positions 2
Tool Magazine 20
Spindle Bore 3.1"
Spindle Nose A2-8
Sub Spindle Chuck Size 8"
Sub Spindle Bar Capacity 1.65"
Sub Spindle Motor 10 / 7.5 HP
Rapid Traverse Rates (X&Z/Y) 1181 / 590 IPM
X-Axis Travel 23.6"
Z-Axis Travel 39.5"
C-Axis Index (Main & Sub) .001 Degrees
Y-Axis Travel +/- 2.95"
B-Axis Index 5 Degrees
Milling Speed 80 - 8000 RPM
Milling Motor 10 / 7.5 HP
Max Tool Diameter 3.9"
Max Tool Length 9.8"
Max Tool Weight 15 lbs.
Tailstock Taper MT #5
Machine Weight 17,600 lbs.
FEATURES:

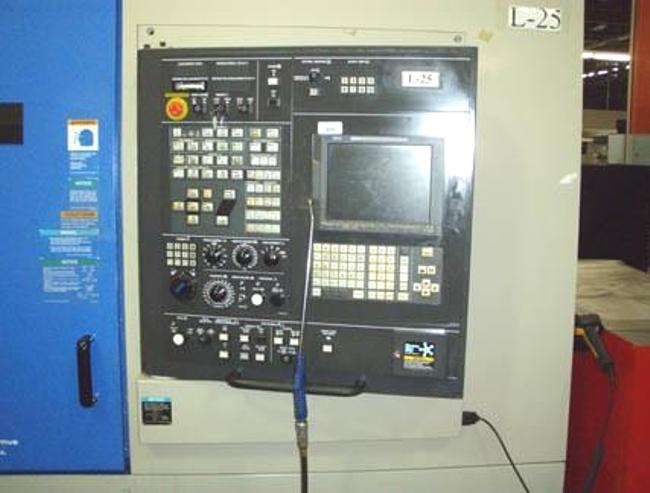

- SEICOS SIGMA 16T CNC CONTROL
- C, Y & B-Axis Milling Capability
- Programmable Sub Spindle with C-Axis
- 10" & 8" Hydraulic Chucks
- Q-Setter
- Coolant Thru Milling Spindle
- Torque Limiter Protection for X, Y, & Z Axes
- Chip Conveyor
