Reference Number: 141778

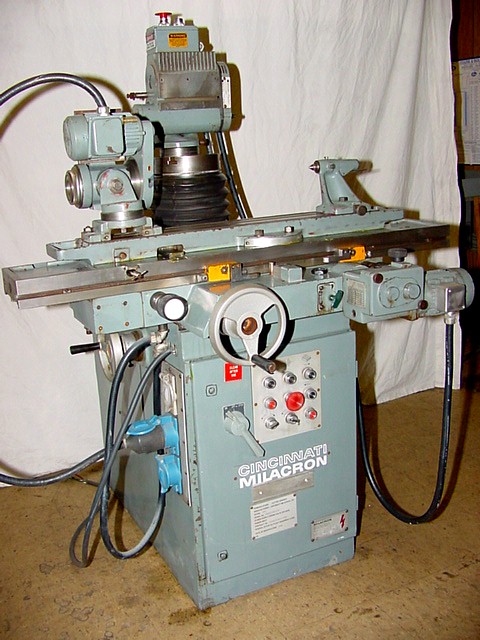

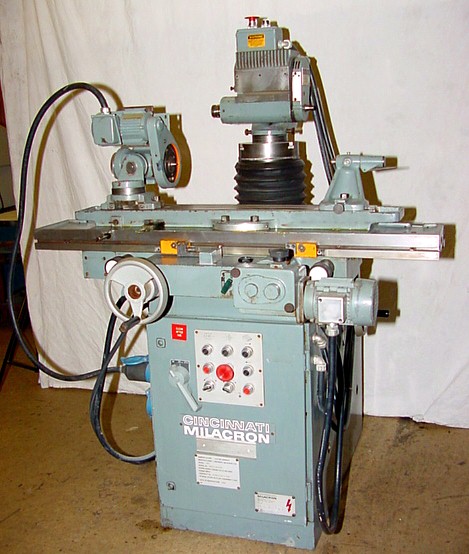

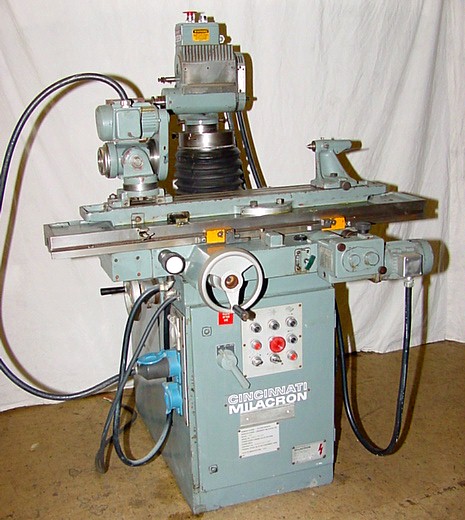

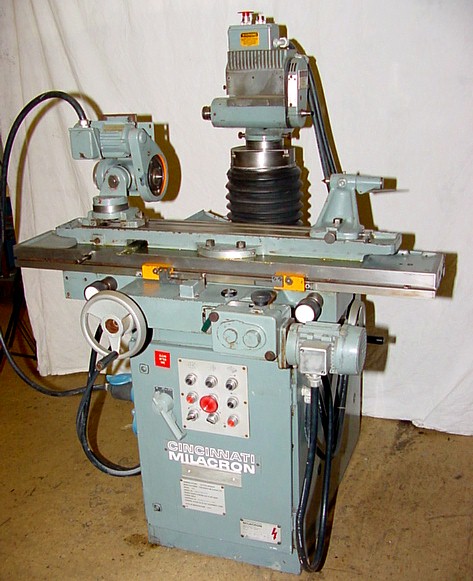

CINCINNATI-MILACRON
 UNIVERSAL TOOL & CUTTER GRINDER

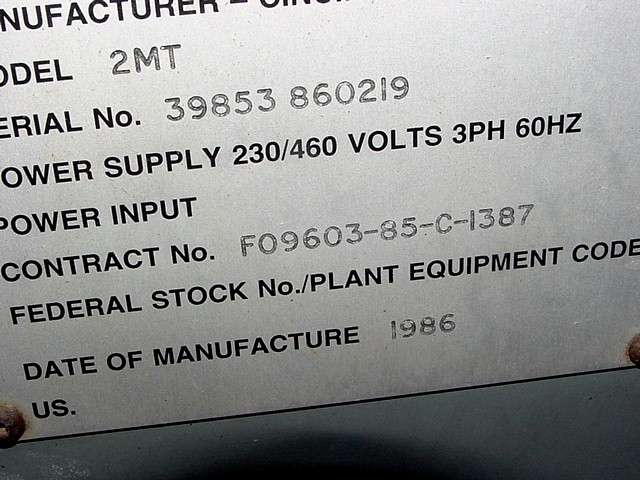

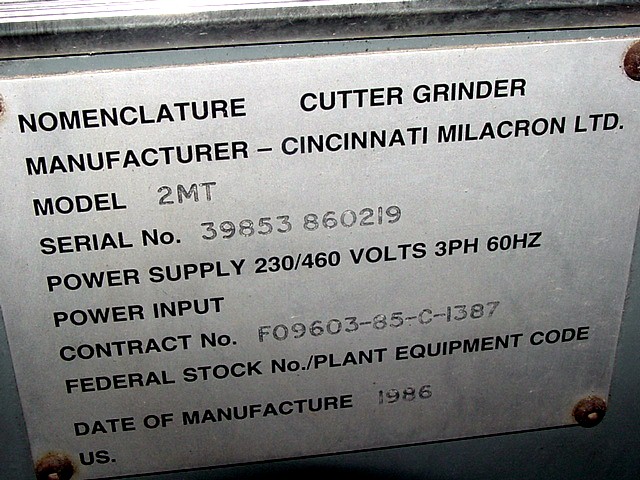

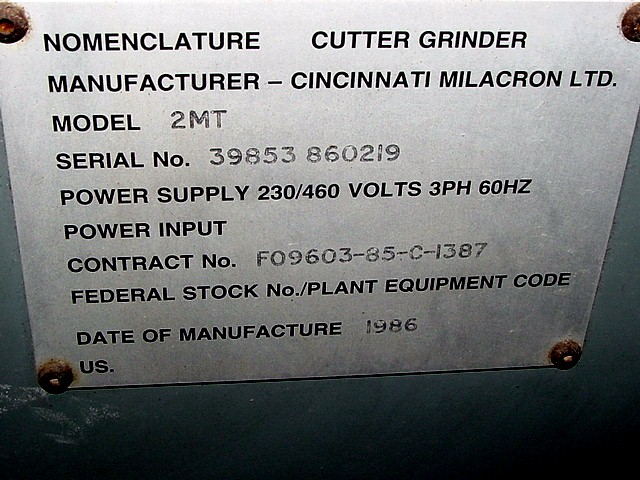

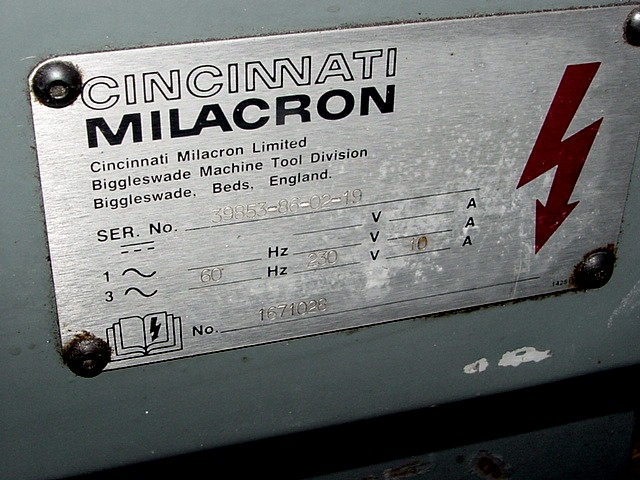

 MODEL: MT       S/N: 39853-86-02-19      NEW: 1986

  CAPACITY:
 SWING OVER TABLE DIAMETER ....................... 10"
 LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS .... 27"
 LENGTH, BETWEEN TAILSTOCK & WORKHEAD ........ 21-1/2"
 FACE MILLS ON WORKHEAD DIAMETER ................. 10"
 FACE MILLS USING FACE MILL GRINDING ATTACH. DIA.. 18"
 SAWS ON TABLE DIAMETER .......................... 48"
 FORMED CUTTERS (USING 6" WHEEL) DIAMETER ........ 10"

  RANGE:
 TABLE SIZE ................................. 6" X 36"
 LONGITUDINAL TABLE TRAVEL ....................... 16"
 OPTIONAL POWER TABLE FEED, (6) SPEEDS ... 28" TO 382" IPM
 CROSS MOVEMENT OF TABLE ......................... 10"
 TABLE SWIVEL ............................... 180 DEG.
 TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ..... 5"
 FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) .. 2"
 TABLE GRADUATIONS IN CENTER, IN DEGREES ..... 90 DEG.
 VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE . 10-1/2"
 MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ... 13-1/2"
 SPINDLE TILTS ABOVE AND BELOW CENTER ........ 15 DEG.
 SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE .. 360 DEG.

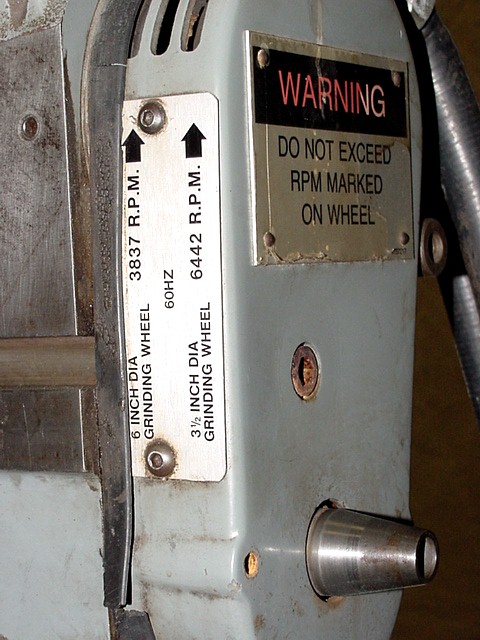

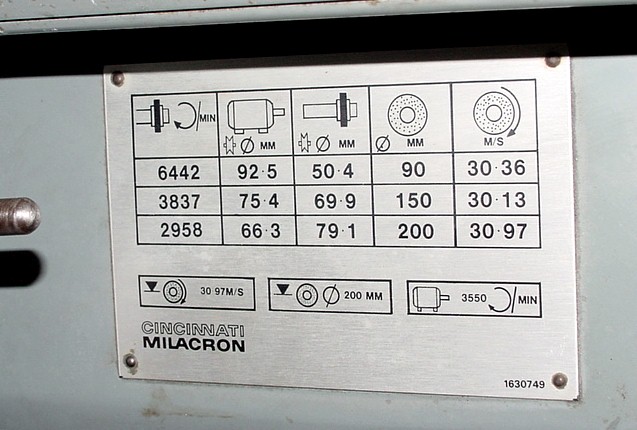

  SPINDLE SPEEDS:
 6" WHEEL, SURFACE SPEED 6,022 FT./MIN. .... 3,834 RPM
 3" WHEEL, SURFACE SPEED 5,887 FT./MIN. .... 6,425 RPM

  APPROXIMATE MACHINE WEIGHT .................. 3,000 LBS
 APPROXIMATE DIMENSIONS ................ 3' X 38"D X 5'H

  MACHINE FEATURES:

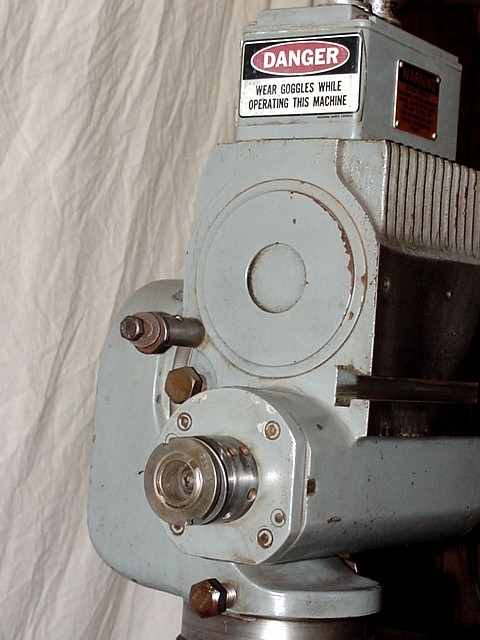

 TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)

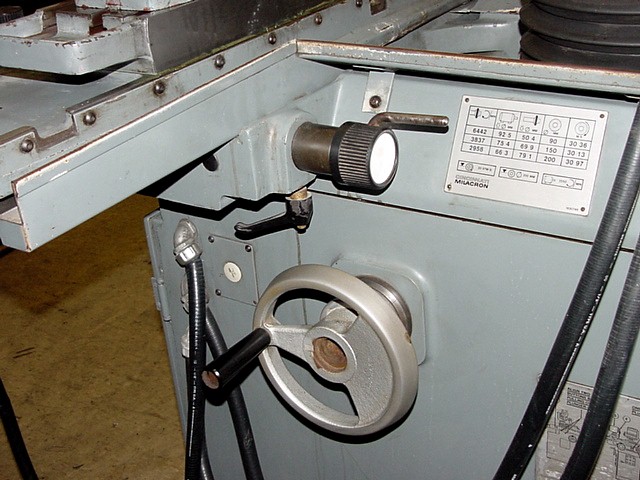

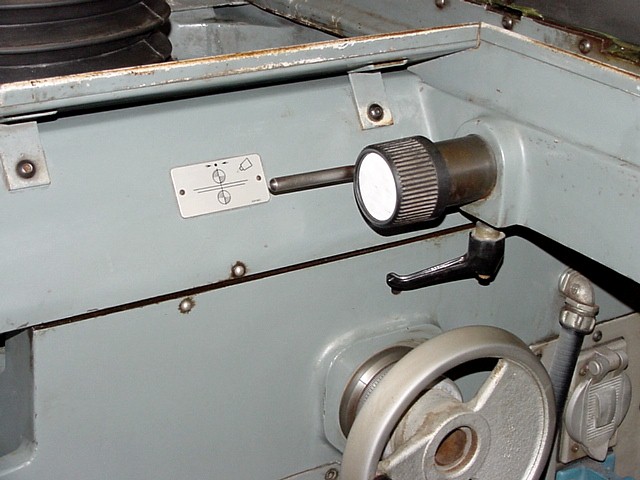

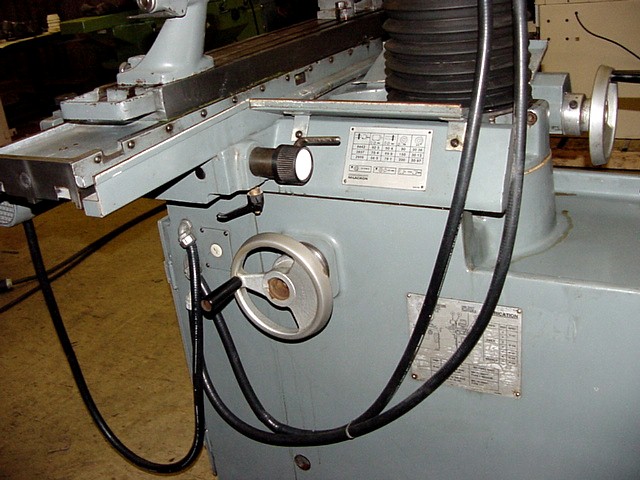

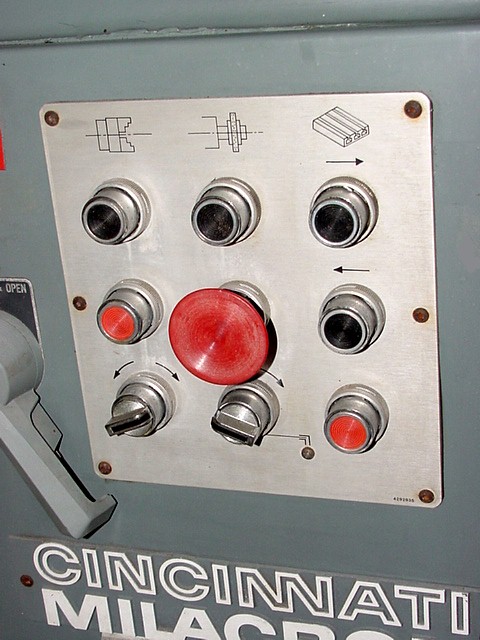

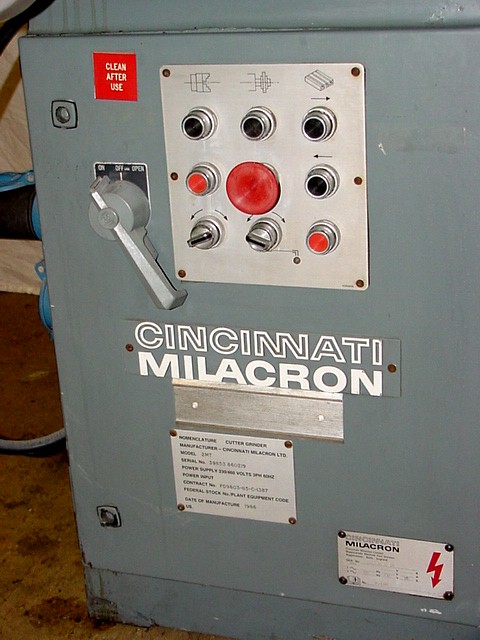

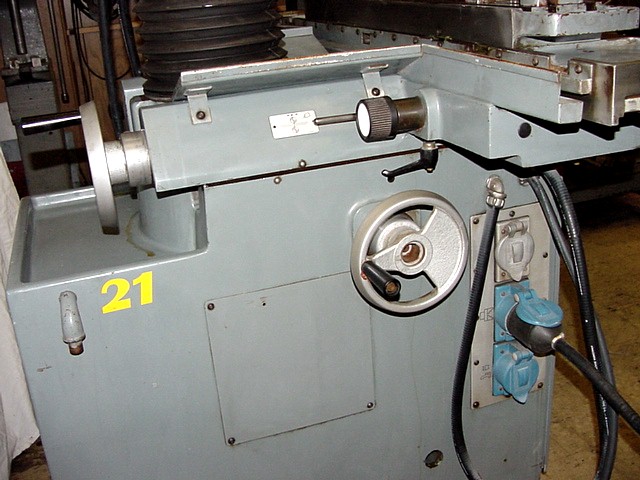

 DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
 BALL BEARING ANTI-FRICTION TABLE ROLLING IN
 REPLACEABLE HARDENED STEEL V-WAYS
 360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
 CAN INCREASE SPECIFIED CROSS RANGE BY 70%
 CAST IRON CONSTRUCTION

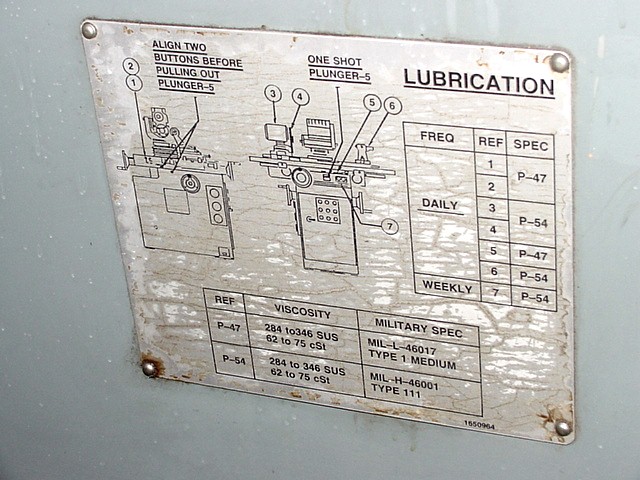

 ONE-SHOT LUBRICATION SYSTEM
 2-SPEED SPINDLE, INSTANTLY REVERSIBLE
 1 HP 3/60/230-460 VOLT SPINDLE MOTOR

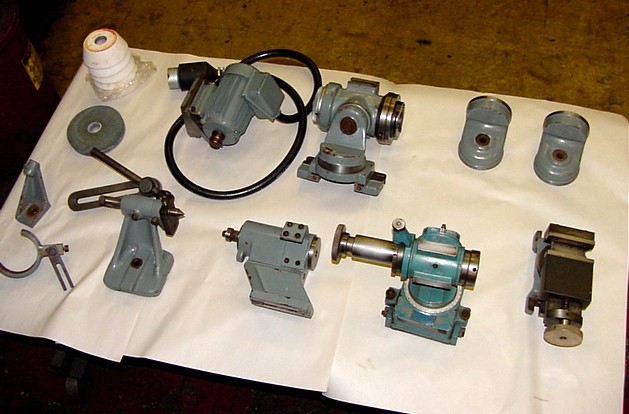

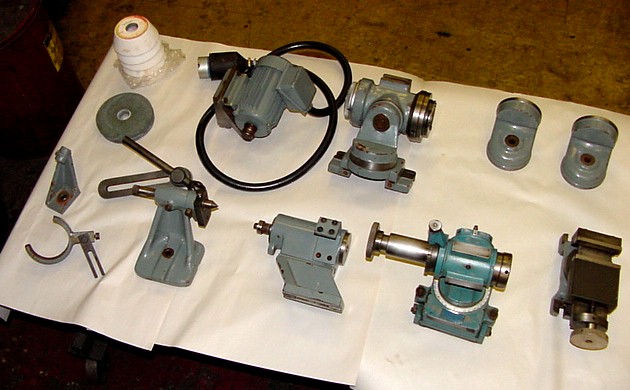

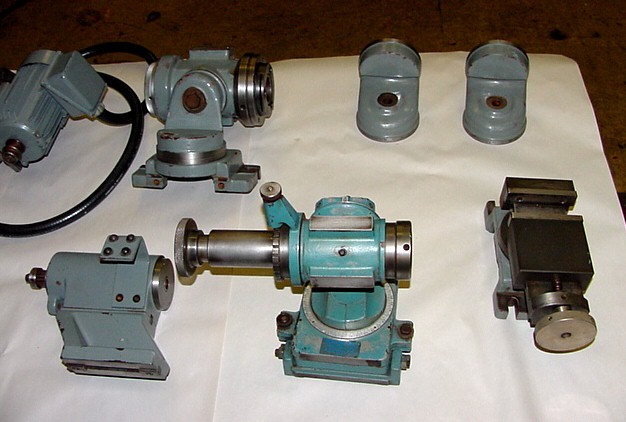

 EQUIPPED WITH:

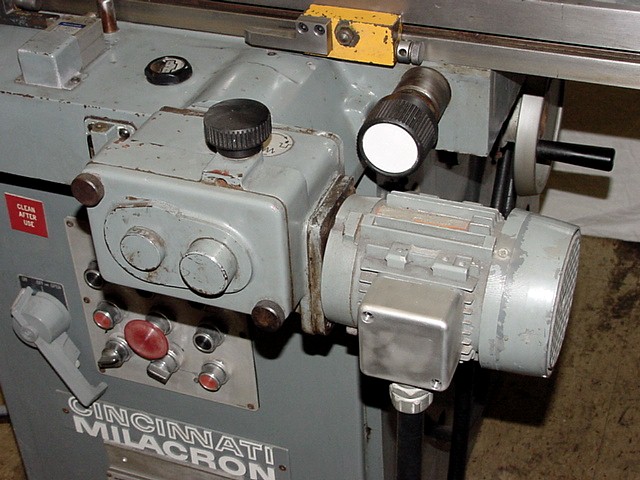

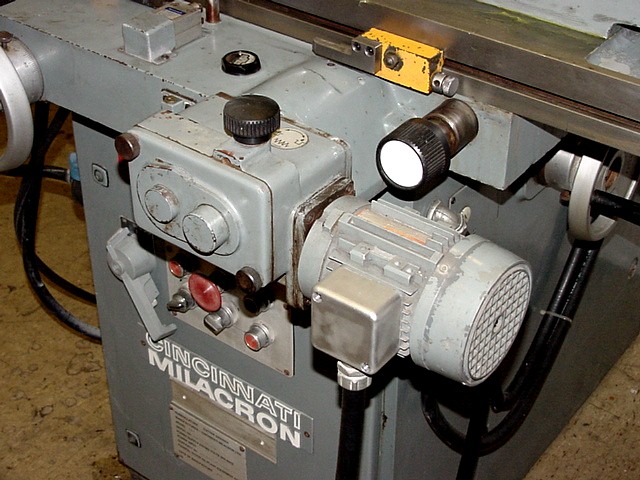

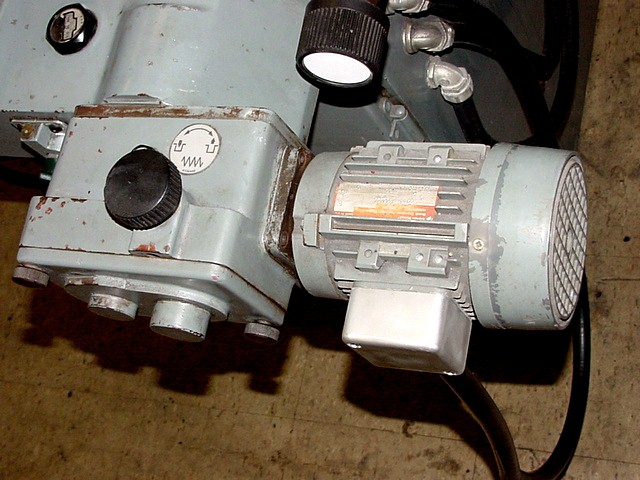

 POWER TABLE OPTION (LONGITUDINAL TRAVEL), (SIX)
  SPEEDS .... 28", 47", 80", 141", 236" & 382" IPM

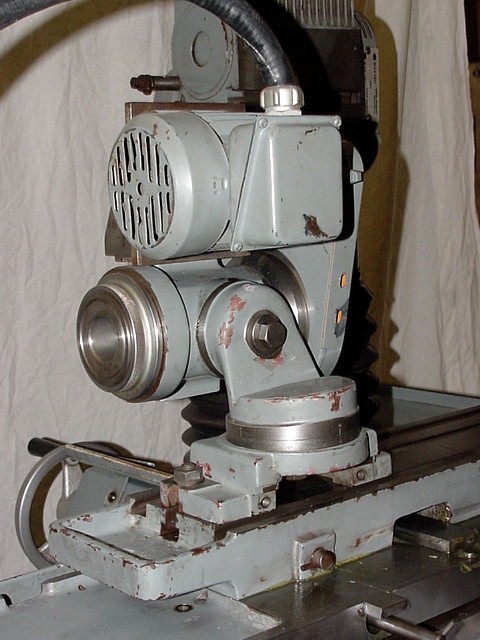

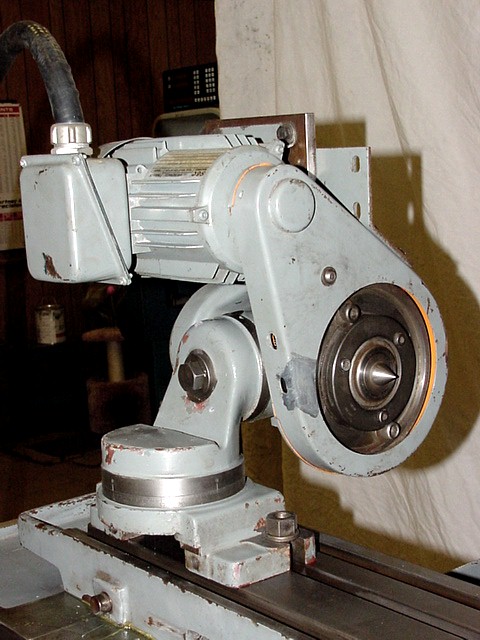

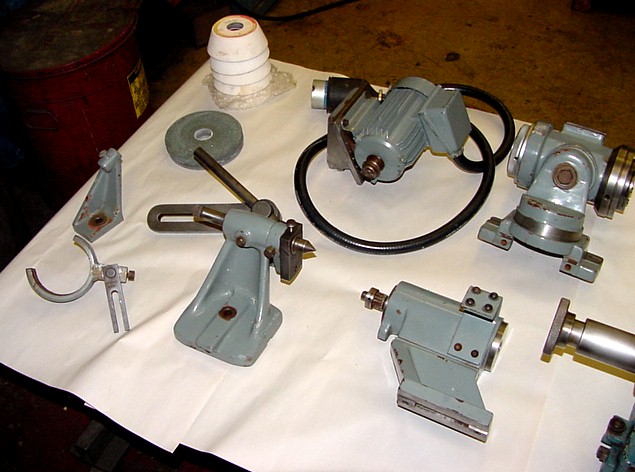

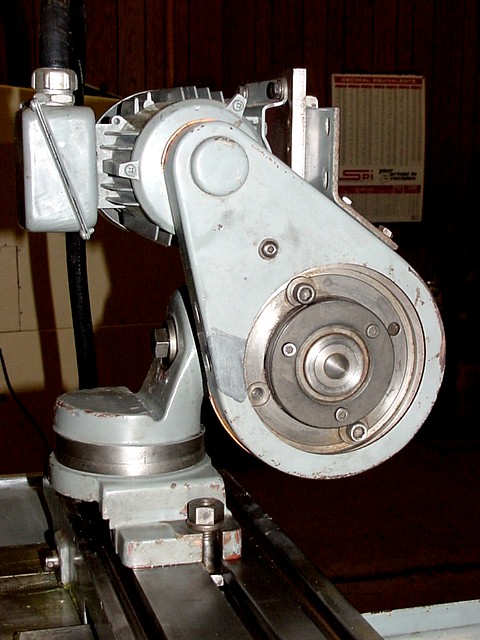

 CINCINNATI MILACRON MOTORIZED WORKHEAD, WITH REDUCTION
  SLEEVE & A CENTER

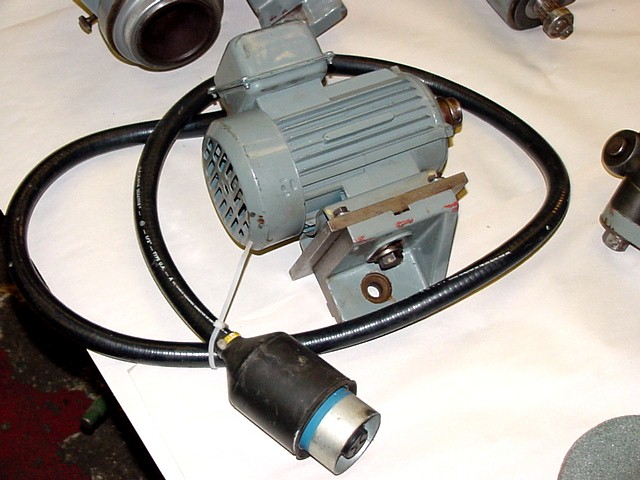

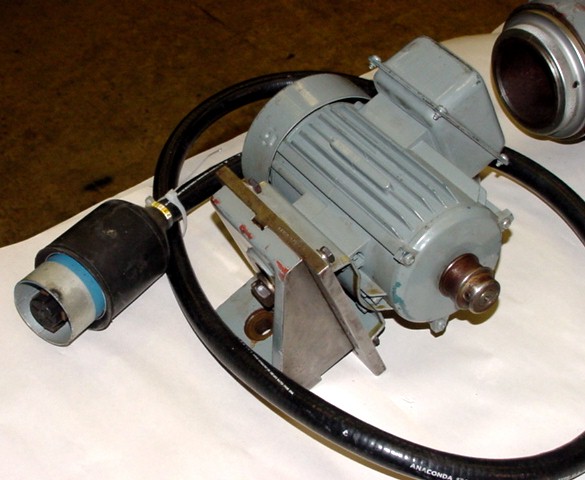

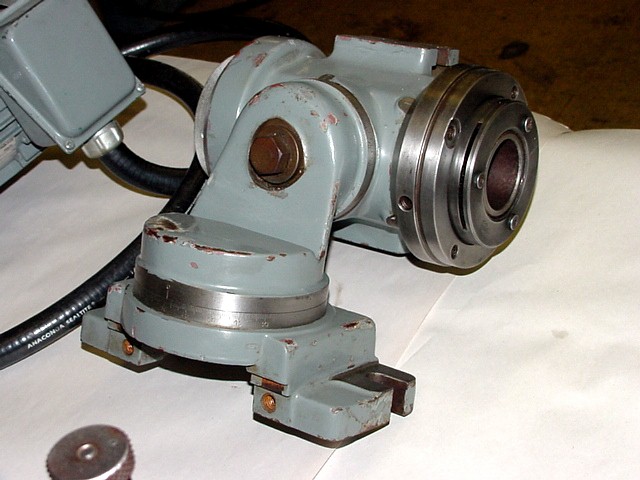

 CINCINNATI MILACRON NON-MOTORIZED WORKHEAD, WITH MOTOR
  DRIVE TO MAKE IT MOTORIZED

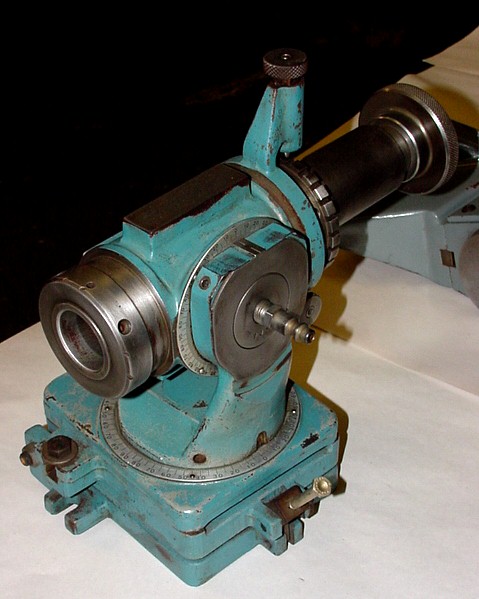

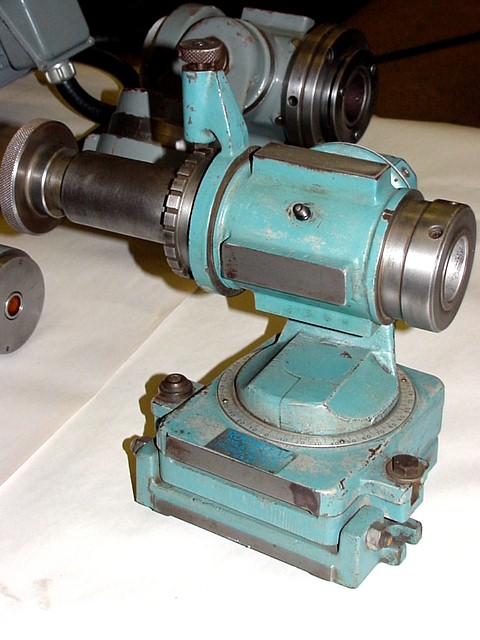

 "ROCHELEAU" AIR BEARING FIXTURE (USES 5C COLLETS)
 INTERNAL GRINDING ATTACHMENT

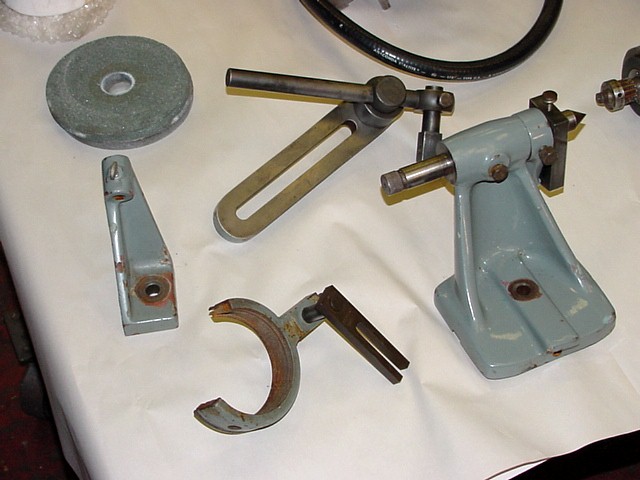

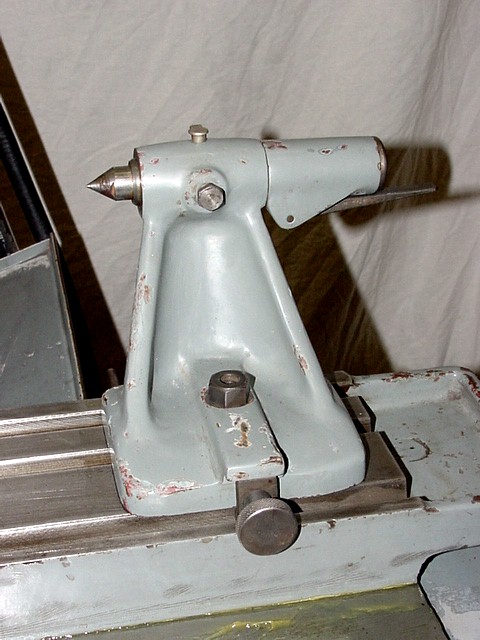

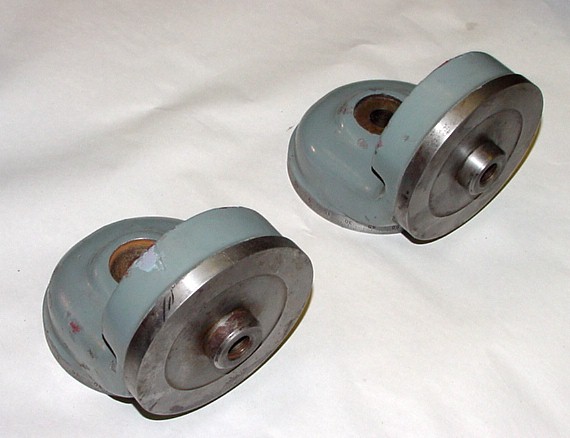

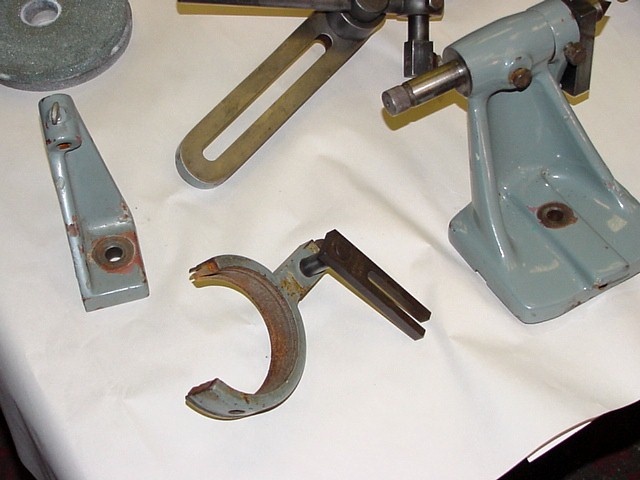

 SET OF TAILSTOCKS

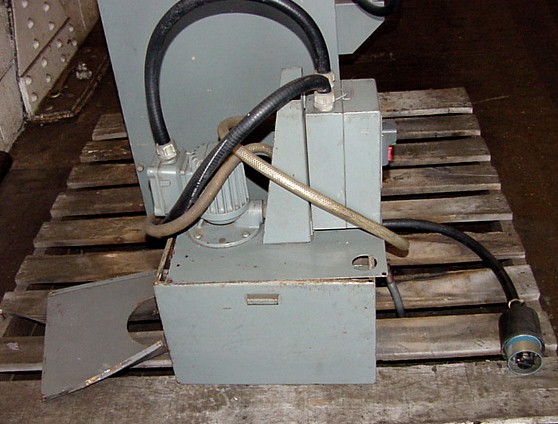

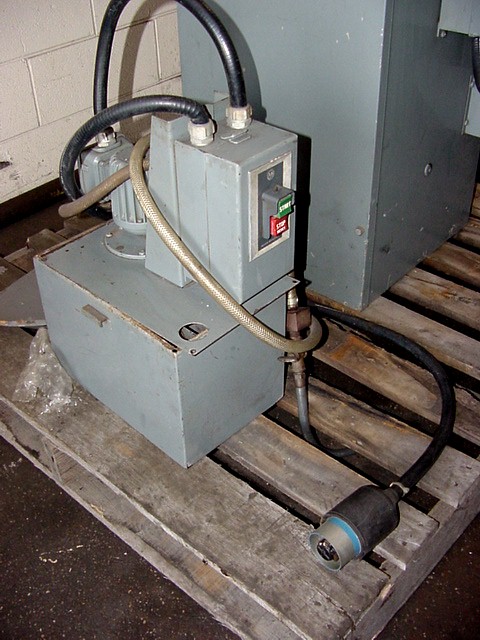

 COOLANT TANK

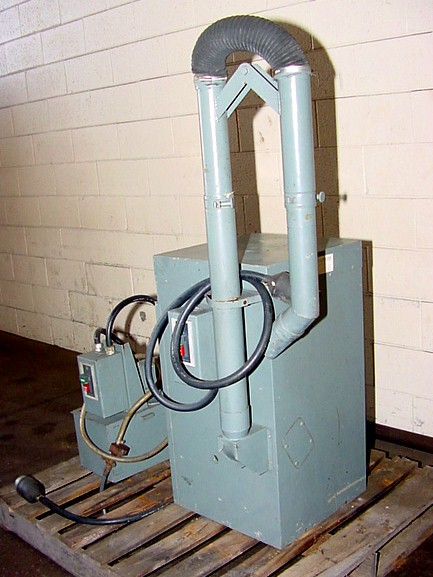

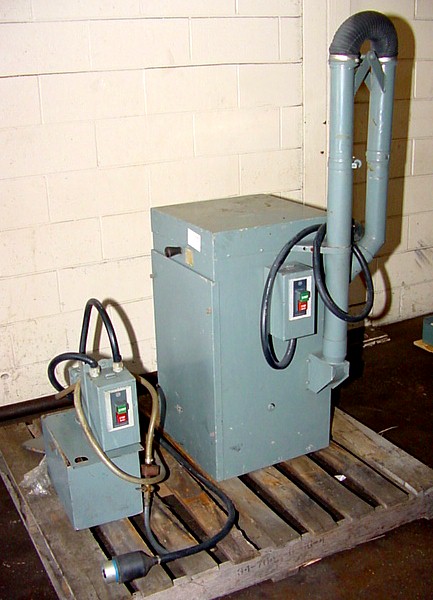

 TORIT DUST COLLECTOR

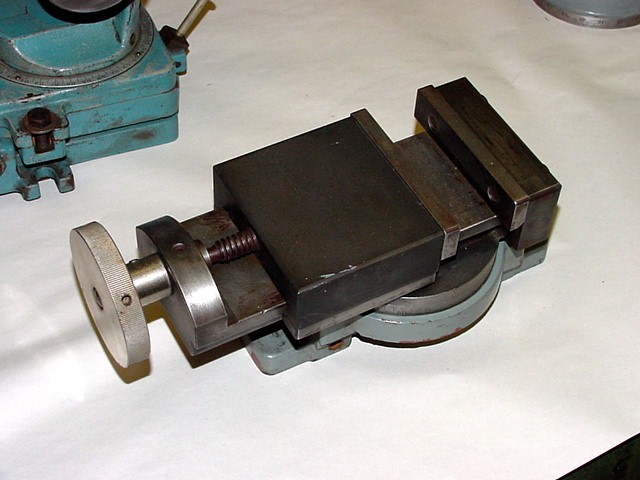

 VICE w/SWIVEL BASE

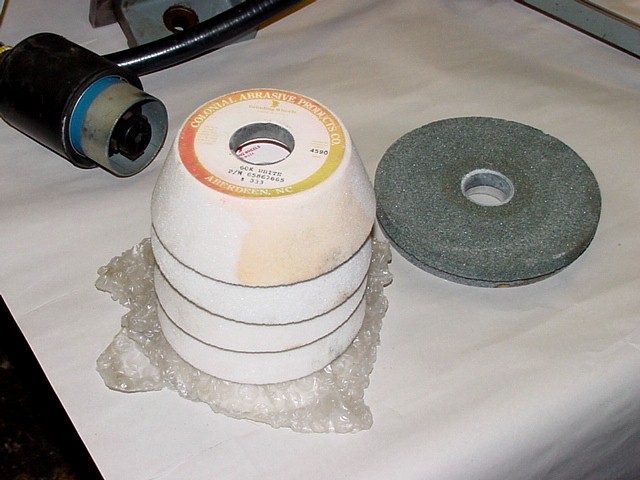

 BOX OF GRINDING WHEELS

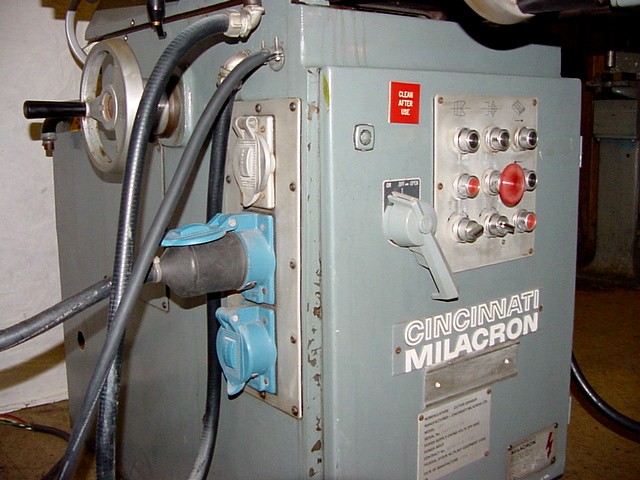

 PRESENTLY WIRED FOR 3/60/230 VOLTS

 ** U.S. GOV'T MACHINE - PURCHASED FROM STANDBY STORAGE **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
 ** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
