Reference Number: 141789
Price: On Request

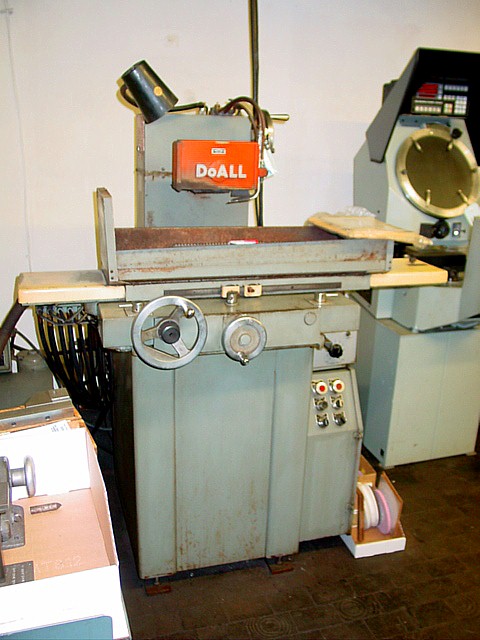

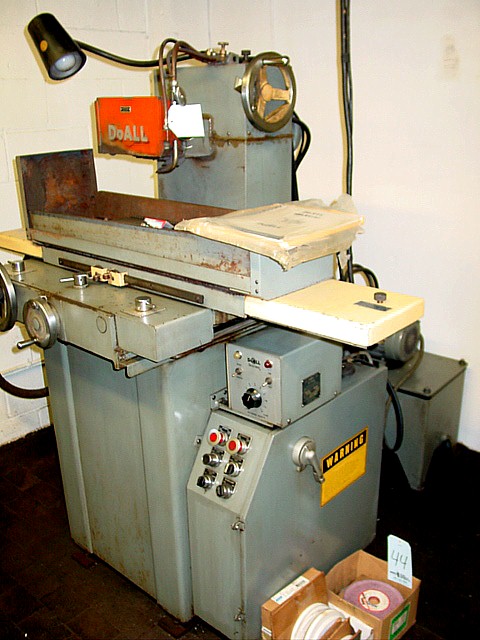

6" X 18" DOALL (MADE IN USA) HYDRAULIC SURFACE GRINDER
MODEL: VS-618-2 S/N: 357-79399 NEW: 1979
WIDTH & LENGTH GROUND....................... 6" X 18"
LONGITUDINAL TABLE TRAVEL........................ 20"
LONGITUDINAL TABLE SPEED............... 5' TO 60' FPM
CROSS TRAVEL...................................... 7"
AUTOMATIC CROSS INCREMENT PER
TABLE REVERSAL....................... 1/64" TO 1/4"
CROSS FEED HANDWHEEL GRAD..................... 0.001"
MAX. WORK HEIGHT UNDER 7" WHEEL.................. 12"
VERTICAL HANDWHEEL GRAD...................... 0.0001"
STANDARD GRINDING WHEEL......... 7"D X 1/2"W X 1-1/4"
APPROX. DIMENSIONS................. 68" X 44" X 66" H
APPROX. MACHINE WEIGHT.................... 1,820 LBS.
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL & CROSS FEEDS
6" X 18" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
DOALL VARIABLE HOLD NEUTROFIER CONTROL
COOLANT SYSTEM
AUTOMATIC LUBRICATION
EXTERNAL HYDRAULIC SYSTEM
DOWNFEED HANDWHEEL MOVES W/WHEELHEAD
1 H.P./3/60/230-460 VOLT DOALL "SUPER-PRECISION" DIRECT
DRIVE SPINDLE.
** ORIGINAL PAINT - EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR FACILITY **
