Reference Number: 141805

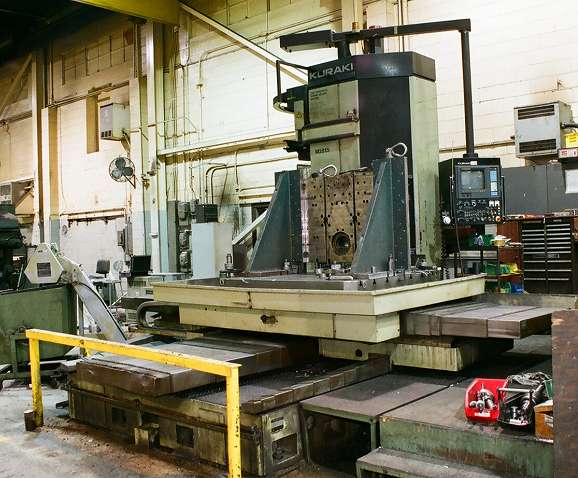

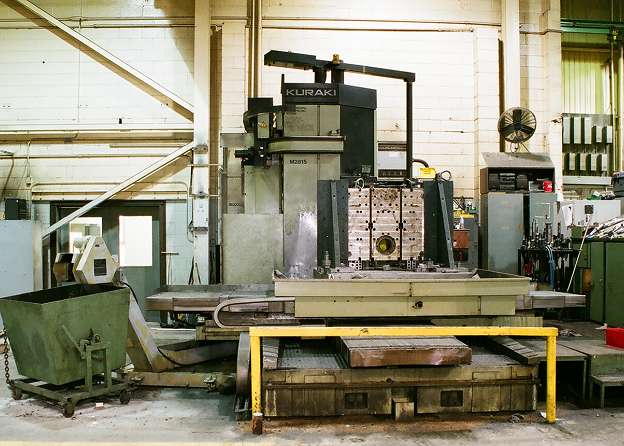

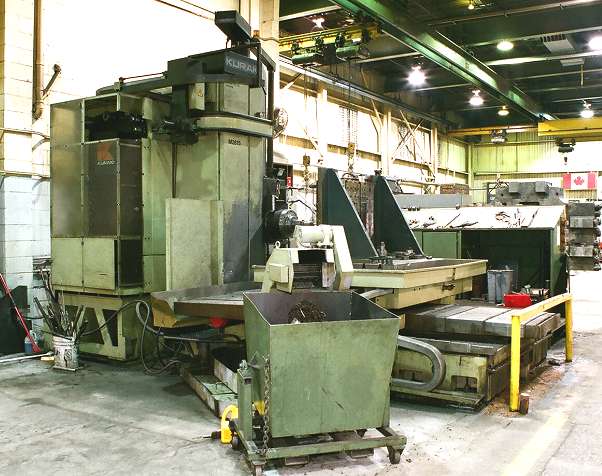

Price: On Request4.3" KURAKI CNC TABLE TYPE
HORIZONTAL BORING MILL, MJV-4403
MODEL: KBT-11WDXA, NEW: 1990
SPECIFICATIONS:
SPINDLE DIAMETER ................... 4.3"
SPINDLE SPEEDS (3 RANGES) .......... 5 - 2500 RPM
SPINDLE TAPER ...................... BT-50 TAPER
SPINDLE MOTOR ...................... 30 HP
SPINDLE TRAVEL (W-AXIS) ............ 25.6"
TABLE CROSS TRAVEL (X-AXIS) ........ 79"
VERTICAL TRAVEL OF SPINDLE (Y-AXIS). 59"
SADDLE TRAVEL (Z-AXIS) ............. 57"

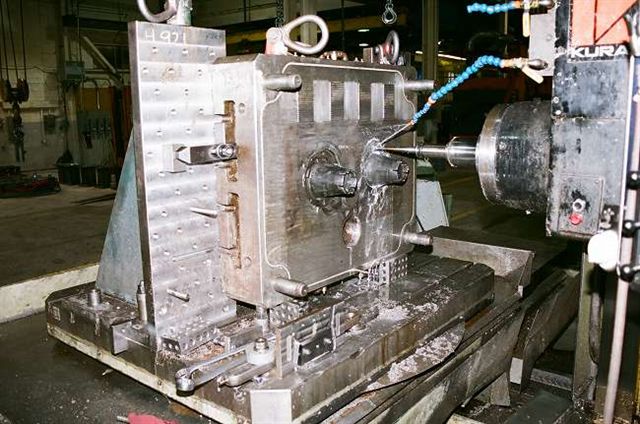

TABLE SIZE (BUILT-IN ROTARY) ....... 55" X 63"
AUTOMATIC TABLE INDEXING ........... 90 DEG SHOT PINS
16 PROGRAMMABLE POSITIONS AT ANY 0.001 DEGREES
TABLE LOAD CAPACITY ................ 13,860 LBS.
FEED RATE .......................... 0.04 - 158 IPM
RAPID TRAVERSE RATE ................ 394 IPM
MACHINE FLOOR SPACE ................ 226" X 187" X 173"
APPROXIMATE MACHINE WEIGHT ......... 55,000 LBS.
EQUIPPED WITH:

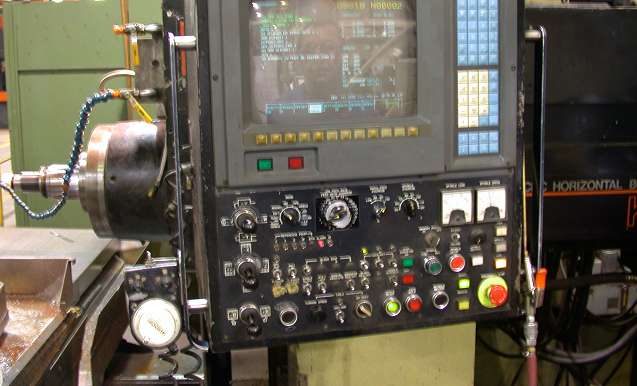

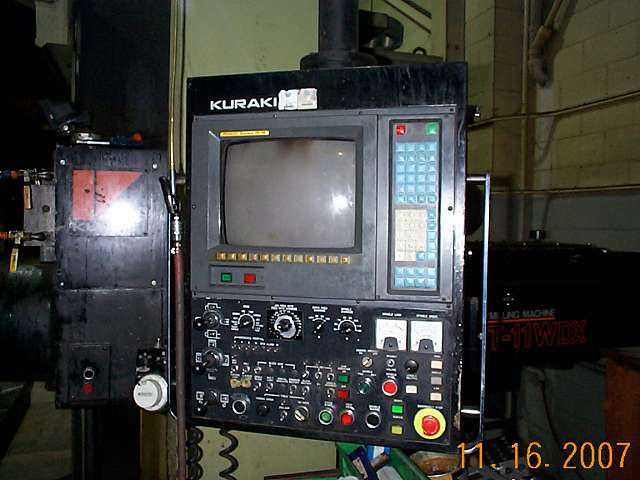

- FANUC 15M CNC CONTROL WITH 14" COLOR CRT
- 320 M MEMORY, RIGID TAPPING, GRAPHIC DISPLAY, HELICAL INTERPOLATION,
- CUSTOM MACRO 200 PIECES, RESTART OF BLOCK
- 40 POSITION AUTOMATIC TOOL CHANGER
- CHIP CONVEYOR
