Reference Number: 141809

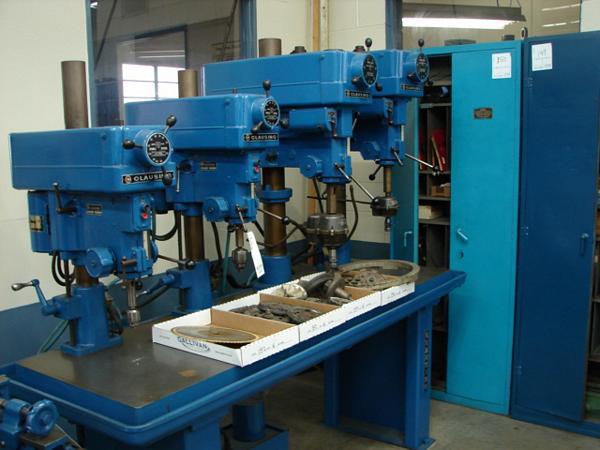

CLAUSING FOUR SPINDLE DRILL PRESS
 MODELS:(2)1687 & (2)2286, S/N's: 517990,1 & 510497,510309 NEW: 1970'S
 SPECIFICATIONS:
 OVERALL SIZE OF TABLE ................ 29-1/2" X 85-1/2"
 TABLE WORKING SURFACE ................ 24" X 80"
 APPROXIMATE WEIGHT ................... 3,500 LBS

 TWO 15" VARI-SPEED HEAD MODEL: 1687
 DRILLING CAPACITY:
     CAST IRON ........................ 5/8"
     MILD STEEL ....................... 1/2"
 DRILL TO CENTER OF CIRCLE ............ 15"
 SPINDLE TAPER ........................ #2 MORSE
 SPINDLE TRAVEL ....................... 4-3/4"
 SPINDLE DIAMETER ..................... 2"
 SPINDLE SPEEDS ....................... 330 - 2640 RPM
 COLUMN DIAMETER & THICKNESS .......... 3"DIA x 3/16"WALL

 TWO 20" VARI-SPEED HEAD MODEL: 2286
 DRILLING CAPACITY:
     CAST IRON ........................ 1-1/8"
     STEEL ............................ 7/8"
 DRILL TO CENTER OF CIRCLE ............ 20"
 SPINDLE TAPER ........................ #3MT
 SPINDLE TRAVEL ....................... 6-1/2"
 SPINDLE DIAMETER ..................... 2-1/2"
 SPINDLE SPEEDS ....................... 150 - 2000 RPM
 COLUMN DIAMETER & THICKNESS .......... 4"DIA x 1/2"WALL

 EQUIPPED WITH:
 - 29-1/2" X 85-1/2" LARGE PRODUCTION TABLE WITH COOLANT TROUGH
 - COOLANT PUMP & TANK
 - HEAD RAISING & LOWERING RACK MECHANISMS
 - (2) MODEL: 1687 VARI-SPEED 3/4 HORSE POWER HEAD
 - (2) MODEL: 2286 VARI-SPEED 1-1/2 HORSE POWER HEADS
 - MACHINE IS WIRED FOR 220 VOLT OPERATION


 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
 CONDITION:   ****   SUPERB   ****
