Reference Number: 141810

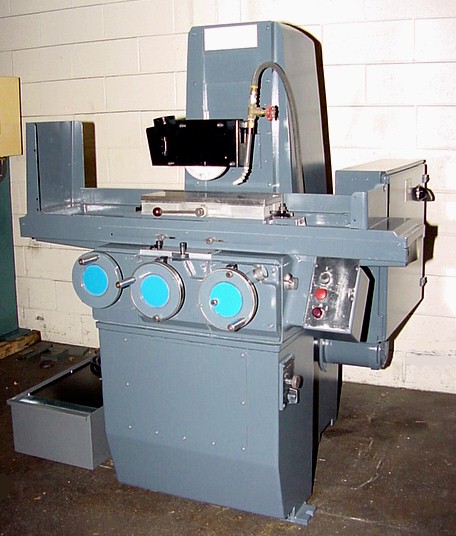

6" x 18" BROWN & SHARPE "PRECISION" (MADE IN USA)
  HYDRAULIC SURFACE GRINDER

 MODEL: 618 MICROMASTER "SERIES II"

 S/N: 523-6182-7667        NEW: 1979

  WIDTH & LENGTH GROUND ..................... 6" X 18"
 HEIGHT OF WORK GROUND W/STD. 7" WHEEL ...... 15-1/2"
 MAXIMUM LONGITUDINAL TRAVEL ................ 22"
 LONGITUDINAL TABLE SPEED ................... 5 TO 100 FPM
 MAXIMUM CROSS TRAVEL ....................... 7"
 AUTOCROSSFEED INCREMENT PER TABLE PASS ..... UP TO 1/4"
 HANDWHEEL, HAS ADJUSTABLE DIAL GRADUATED
 TO READ TO .................................. 0.0002"
 VERTICAL TRAVEL OF SPINDLE ................. 15-3/4"
 HANDWHEEL HAS ADJUSTABLE DIAL GRADUATED
 TO READ TO ................................. 0.0002"
 FINE-FEED KNOB, ADJACENT TO THE HANDWHEEL
 IS GRADUATED TO READ TO .................... 0.0001"

 APPROXIMATE MACHINE WEIGHT ................. 2,500 LBS
 APPROXIMATE FLOOR SPACE .............. 56"L X 62"D X 68"

  EQUIPPED WITH:
 HYDRAULIC LONGITUDINAL & CROSS FEEDS
 FINE FEED KNOB FOR VERTICAL HANDWHEEL (.0001" GRADUATION)
 1 H.P. BROWN & SHARPE SUPER-PRECISION "ORIFLEX"
  SUPER-PRECISION SPINDLE DRIVE
 6" X 18" PERMANENT-MAGNETIC CHUCK
 SELF-CONTAINED HYDRAULIC SYSTEM
 PRESENTLY WIRED FOR 3/60/440 VOLT OPERATION

  ** INSPECT UNDER POWER IN OUR HARRISON, N.J. FACILITY **
 ** EXCELLENT CONDITION & APPEARANCE **
