Reference Number: 141821

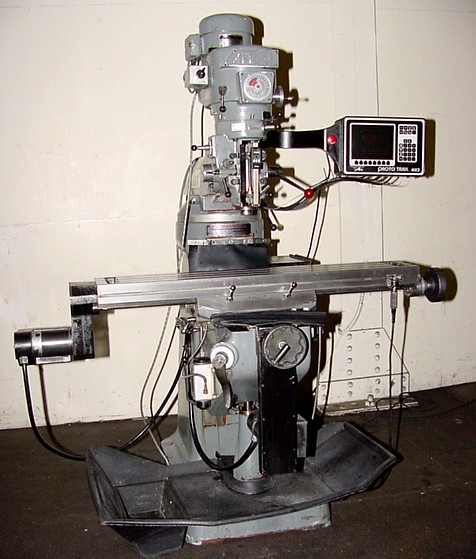

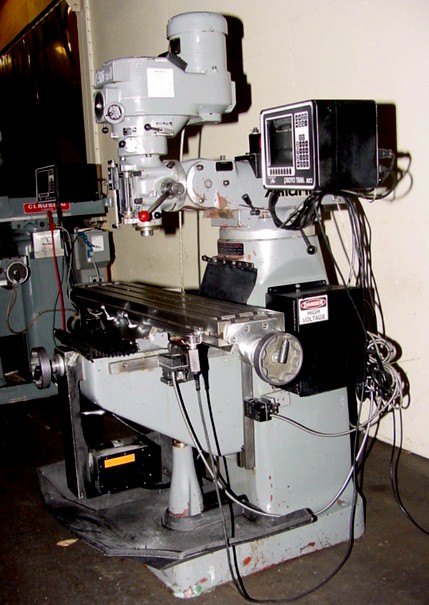

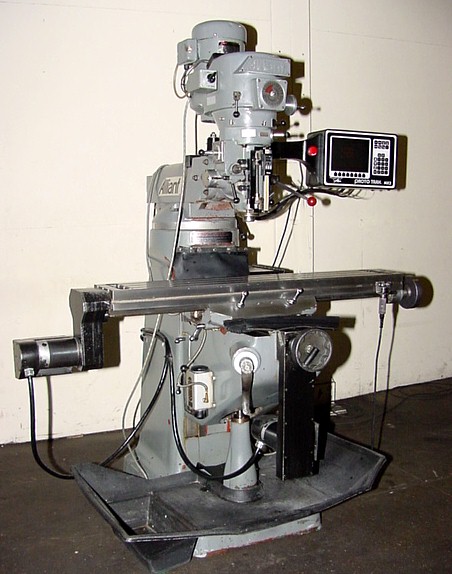

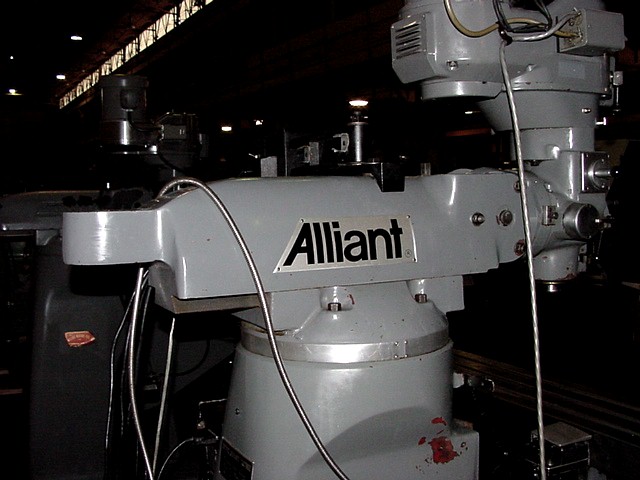

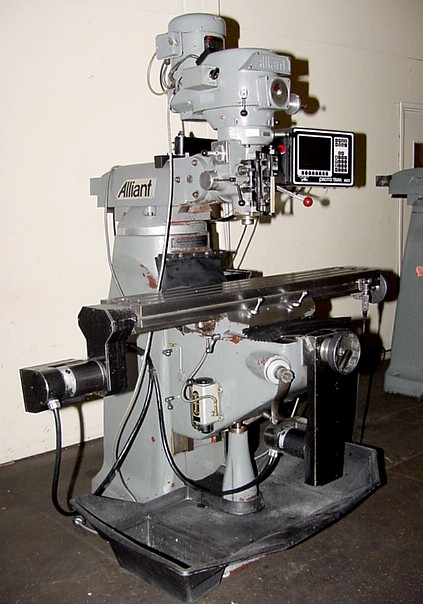

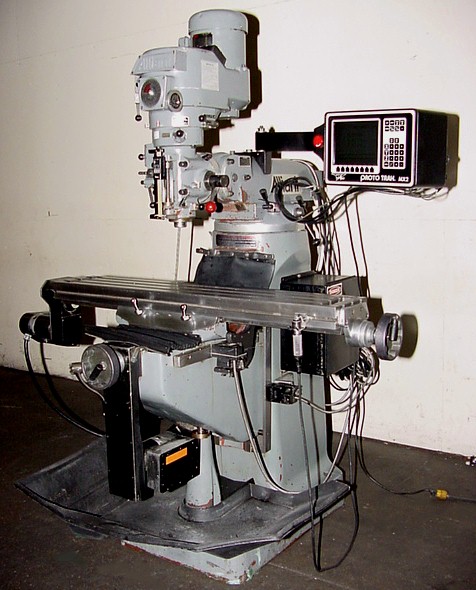

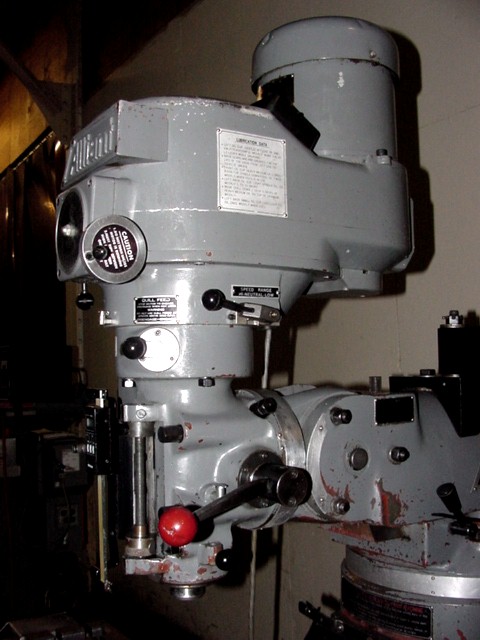

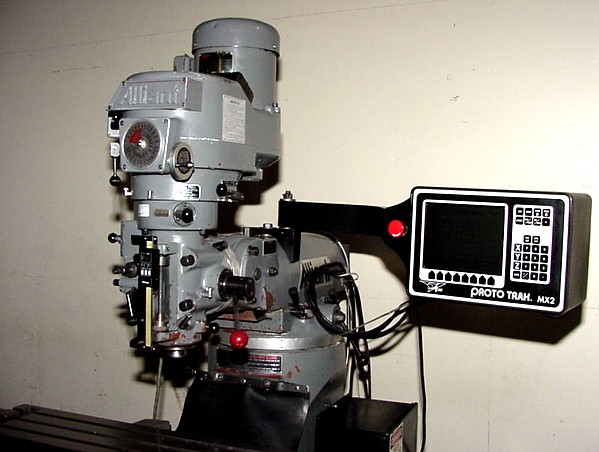

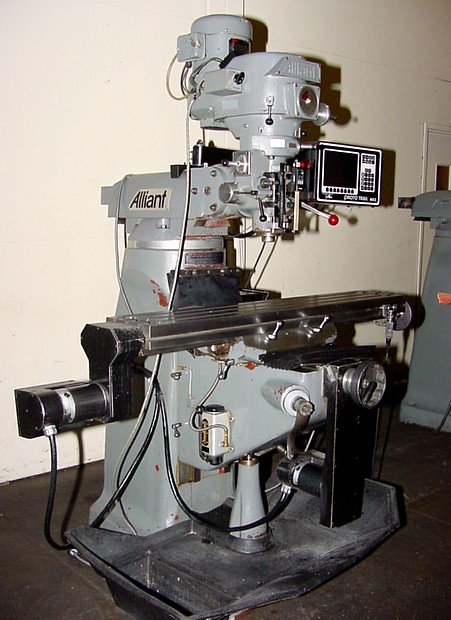

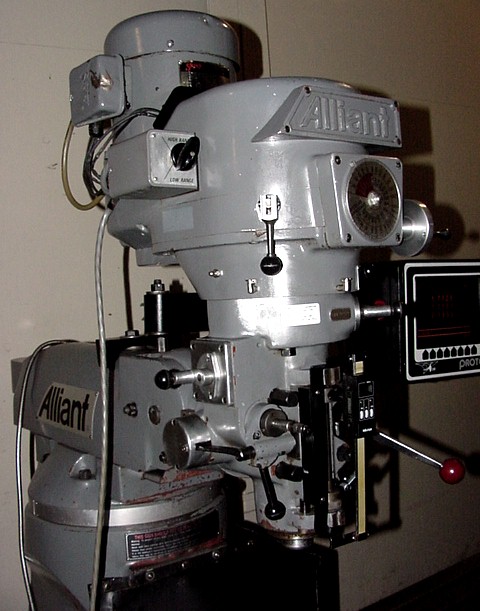

ALLIANT PROTO-TRAK 2-AXIS CNC VERTICAL MILL SPECIFICATIONS:
MODEL: 42VC W/PROTOTRAK MX2 CONTROL

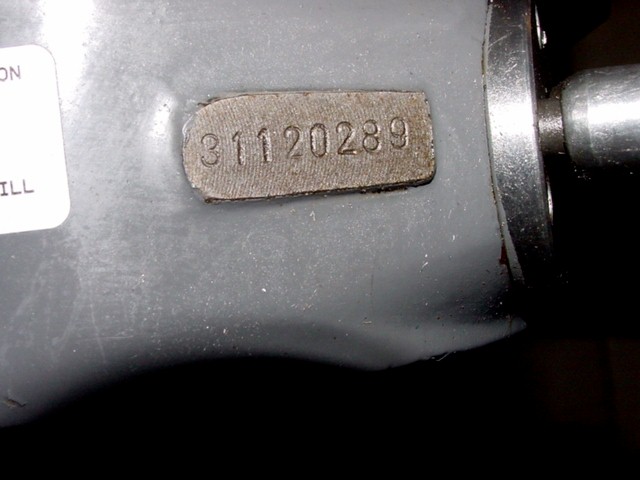

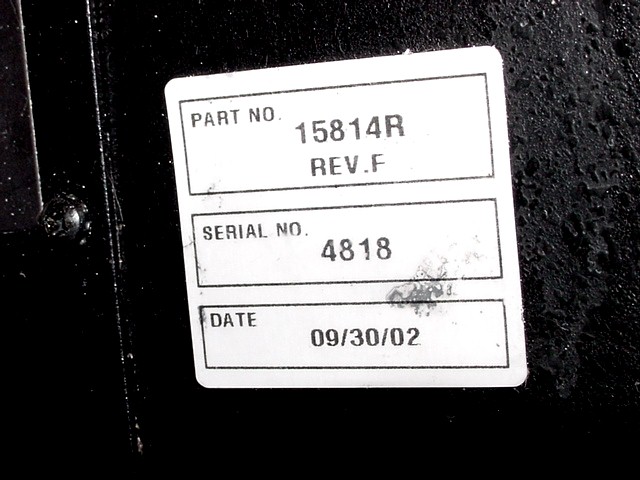

S/N:31120239 NEW: 1994 RETROFITTED: 2002

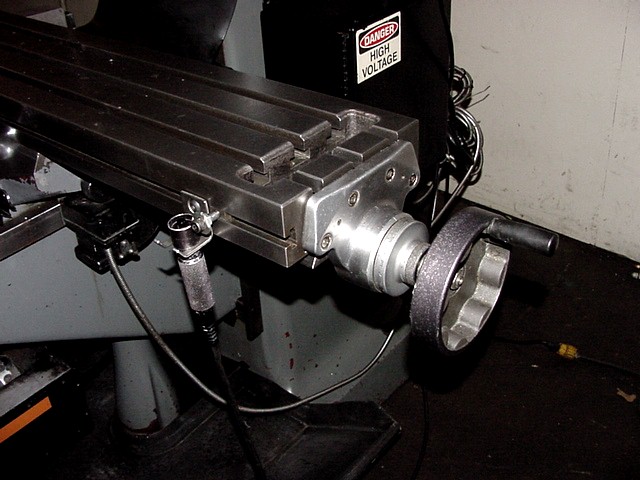

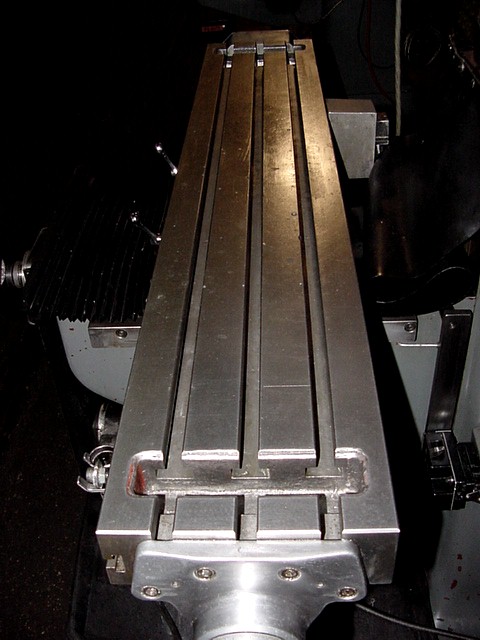

WORKING SURFACE OF TABLE ................. 9" x 50"
LONGITUDINAL TABLE TRAVEL ................ 32"
CROSS TABLE TRAVEL ....................... 12"
QUILL TRAVEL ............................. 5"
KNEE TRAVEL .............................. 16"

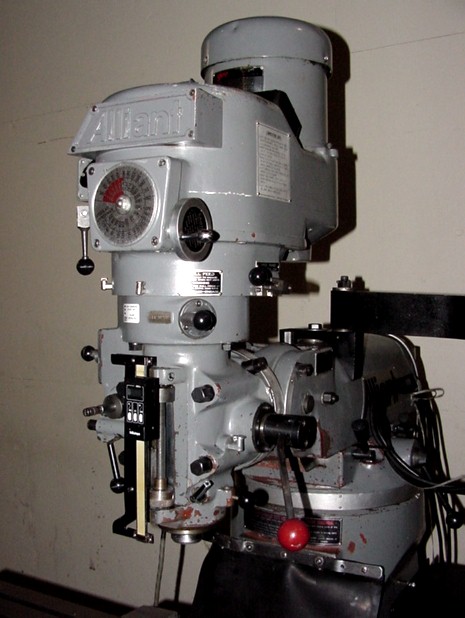

SPINDLE TAPER ............................ R-8

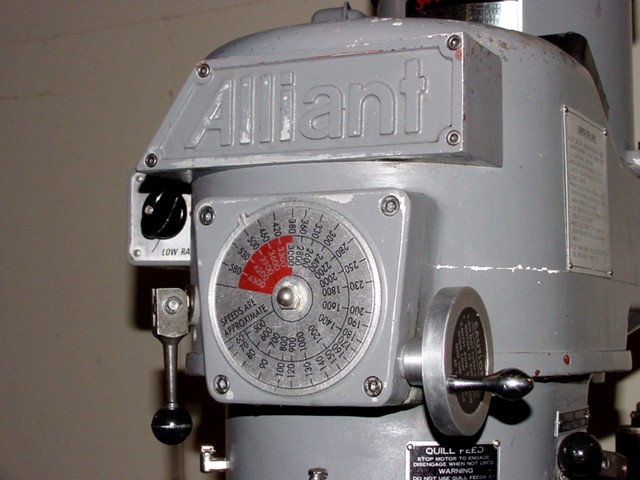

VARIABLE SPINDLE SPEEDS .................. 60 TO 4200 RPM
SPINDLE FEEDS(3) ................... .0015, .003, .006" IPR
FLOOR SPACE: ............................. 60" x 63" x 82"
WEIGHT APPROXIMATELY: .................... 2,400 LBS.
EQUIPPED WITH:

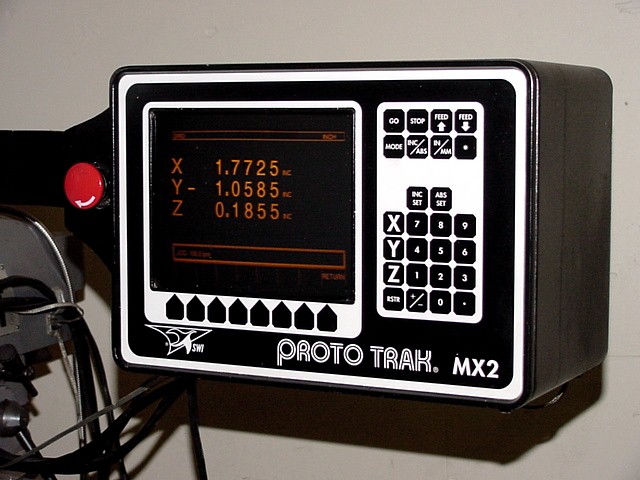

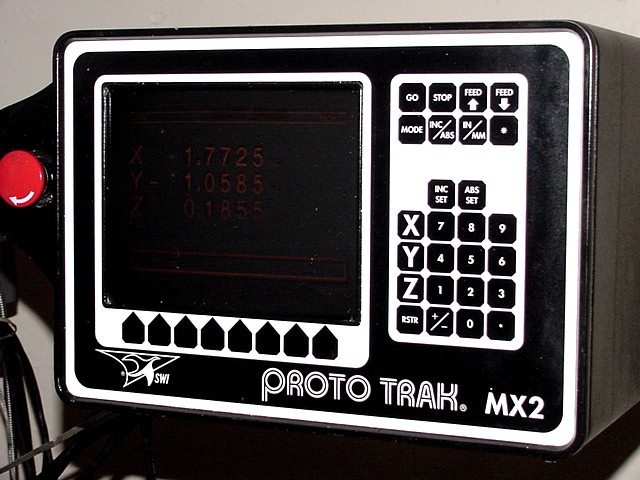

TRAK MX2 2-AXIS CNC CONTROL SYSTEM
WITH SERVO MOTORS, MANUAL DATA INPUT 2 AXIS
LINEAR & CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,
MIRROR IMAGE, PART GRAPHICS, 3.5" FLOPPY DRIVE

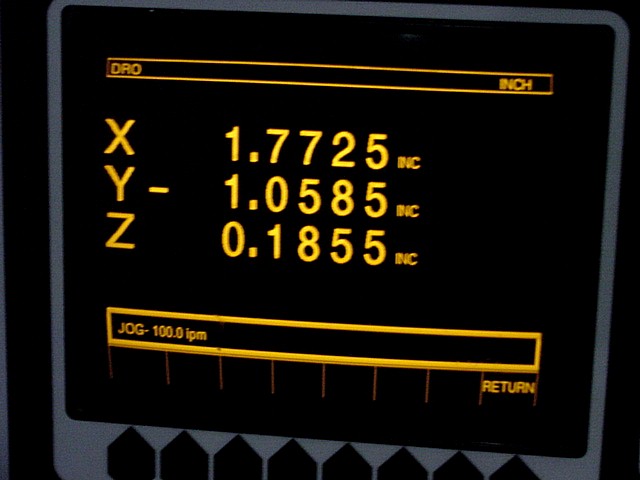

IN MANUAL OPERATION, CONTROL BECOMES 3 AXIS DIGITAL READOUT
THIRD AXIS DIGITAL READOUT IN CONTROL FOR KNEE VERTICAL TRAVEL

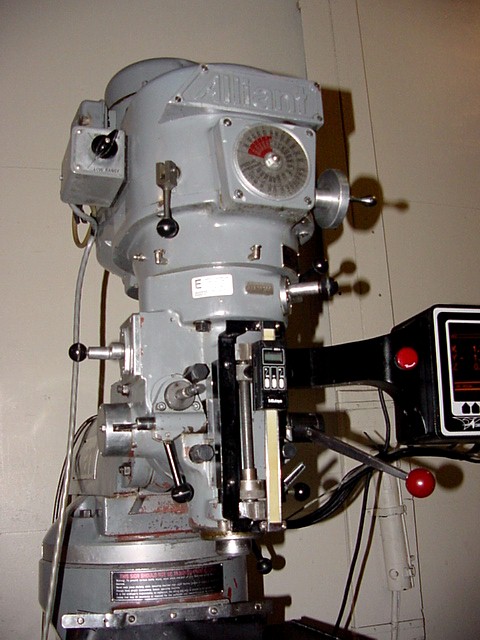

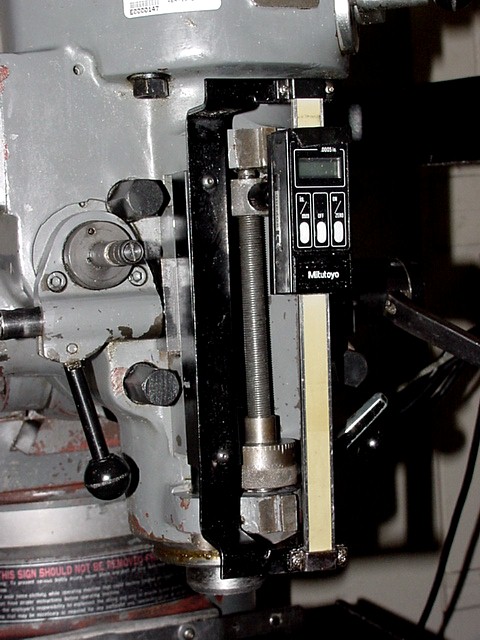

MITUTOYO READOUT FOR QUILL
REMOTE SWITCH
GROUND BALLSCREWS ON TABLE & SADDLE

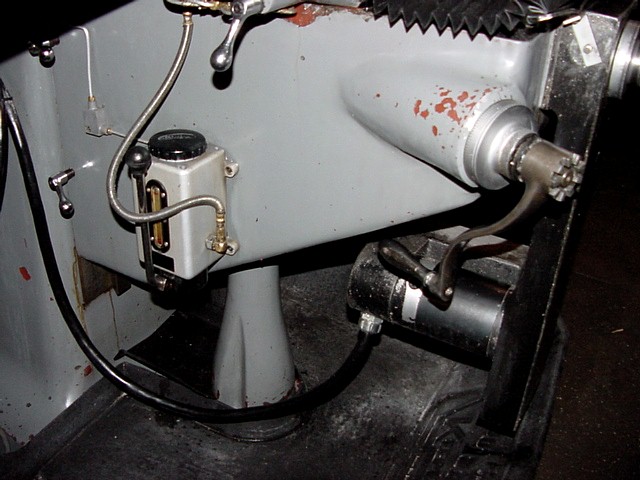

LUBRICATION SYSTEM

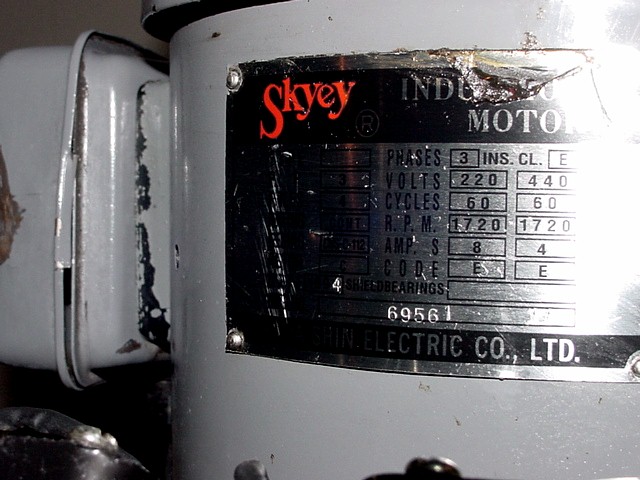

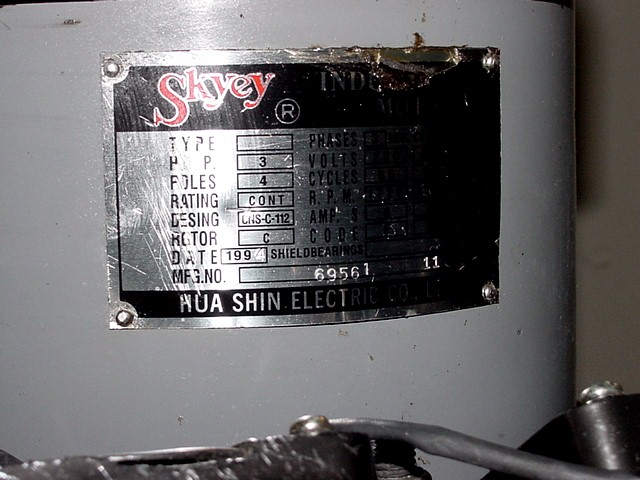

3 HORSE POWER MAIN MOTOR
SUPERB CONDITION - SIMPLY GORGEOUS!
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE.
