Reference Number: 141829

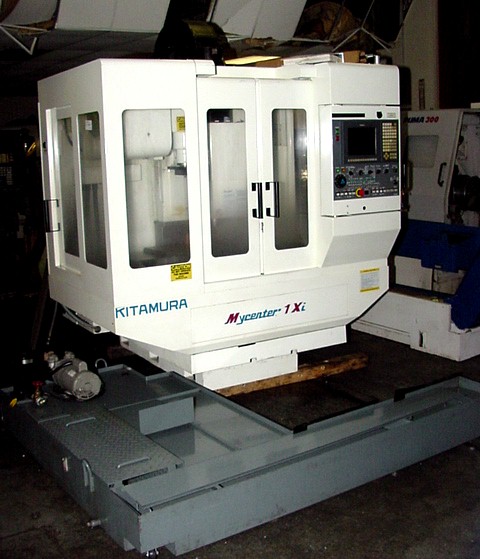

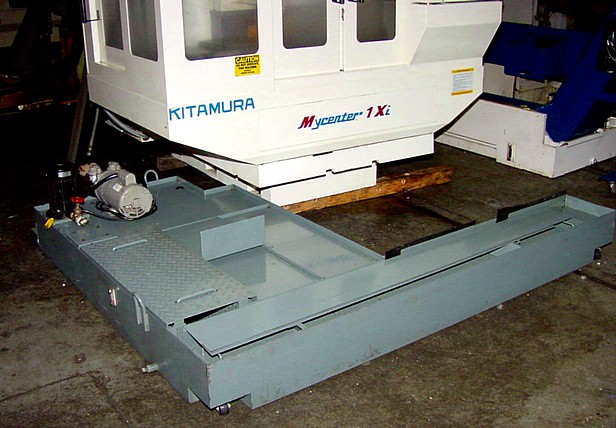

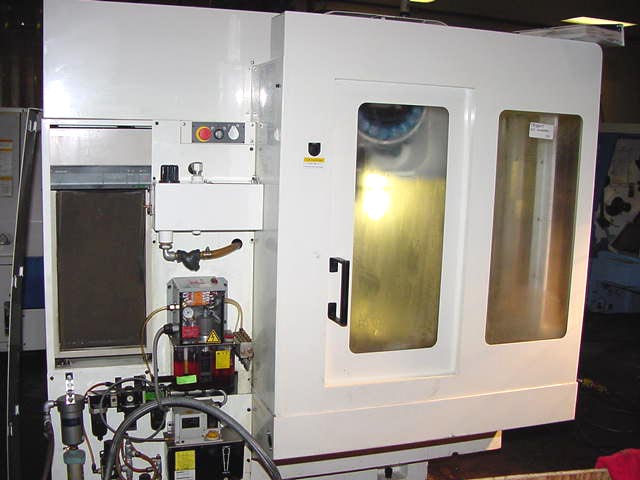

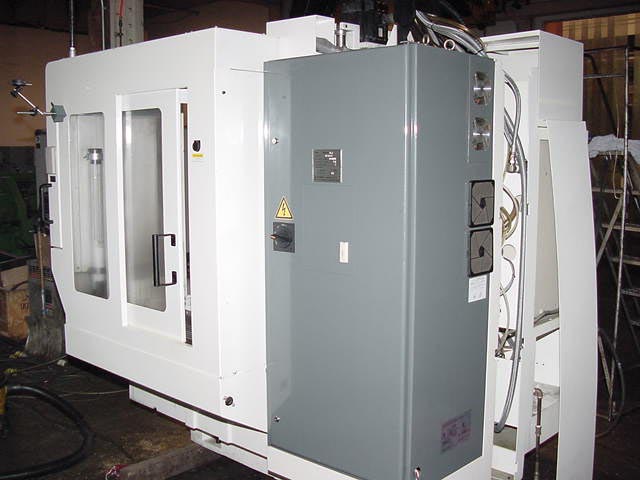

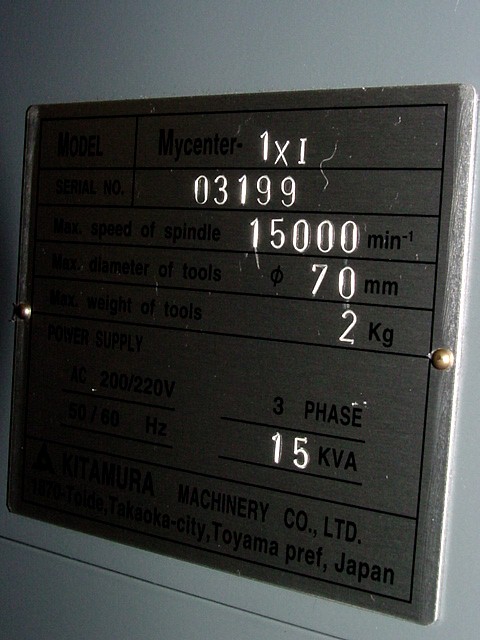

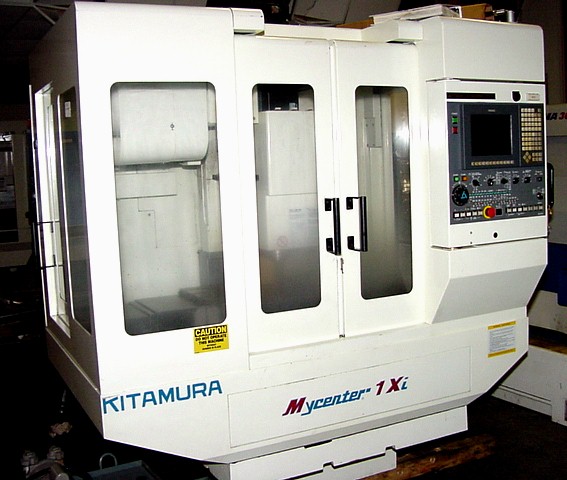

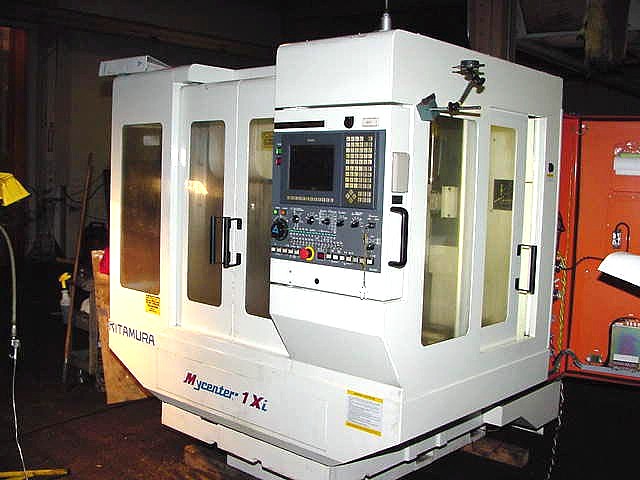

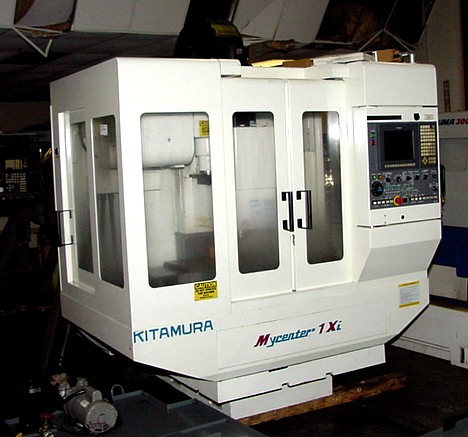

Kitamura Mycenter 1Xi VMCPrice: $39,500
HIGH SPEED - HIGH PRECISION MACHINE TOOL
2002 Machine in Excellent Operational Condition
EQUIPPED WITH

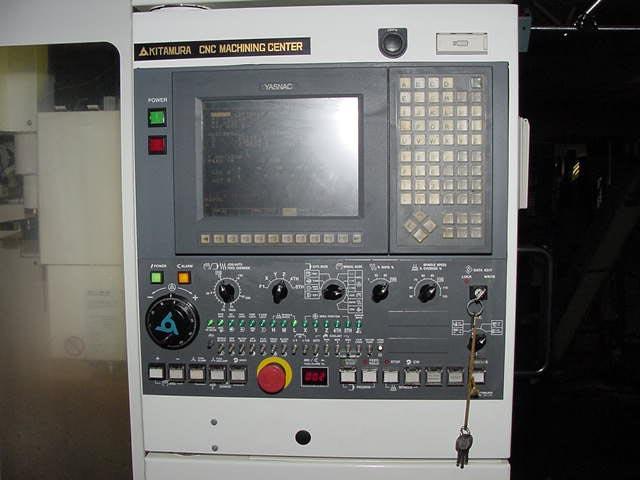

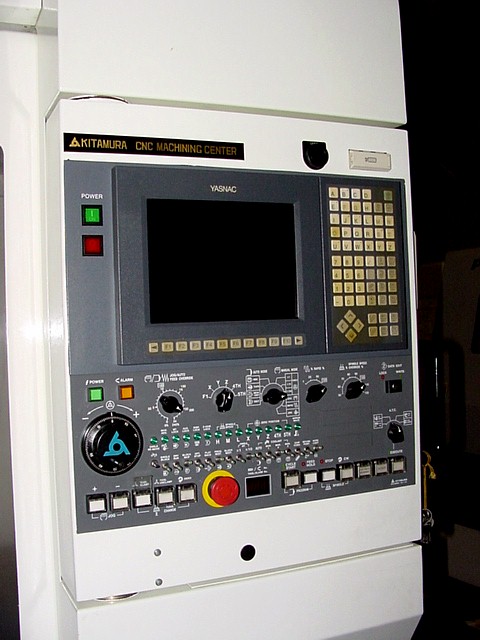

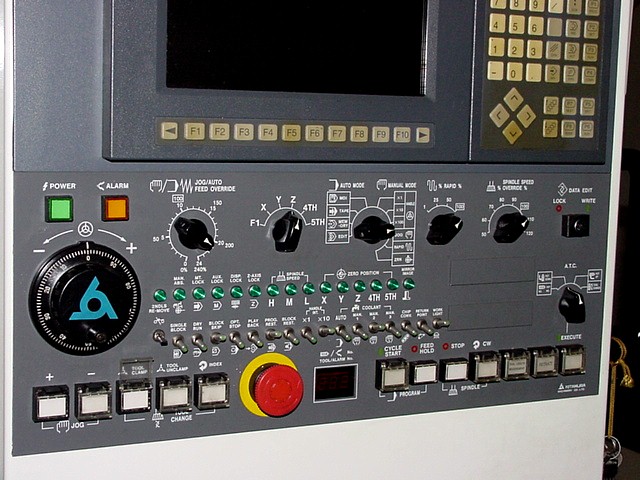

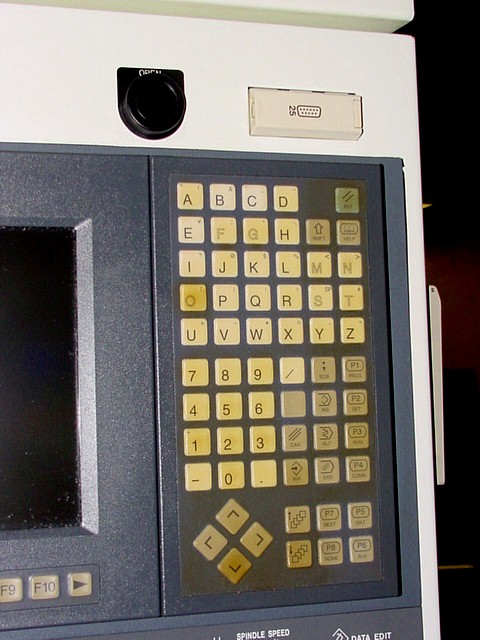

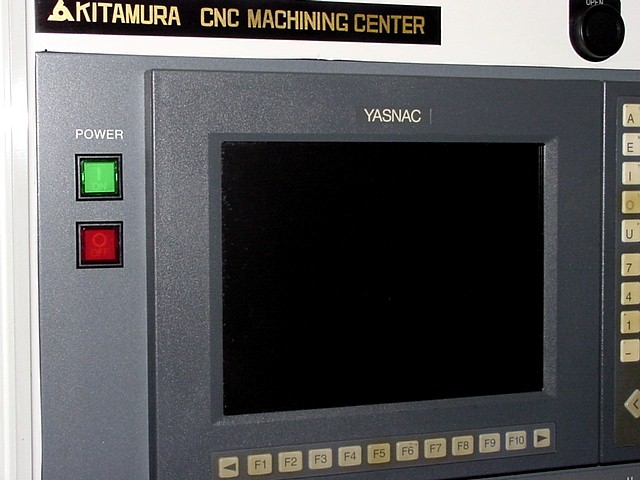

Yasnac I-80 CNC w/ (4) M Codes, RS232

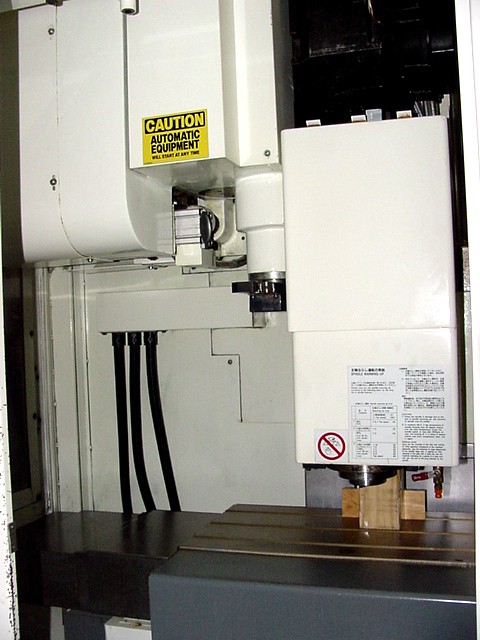

15,000 RPM Spindle
Rigid Tapping
20 Position ATC

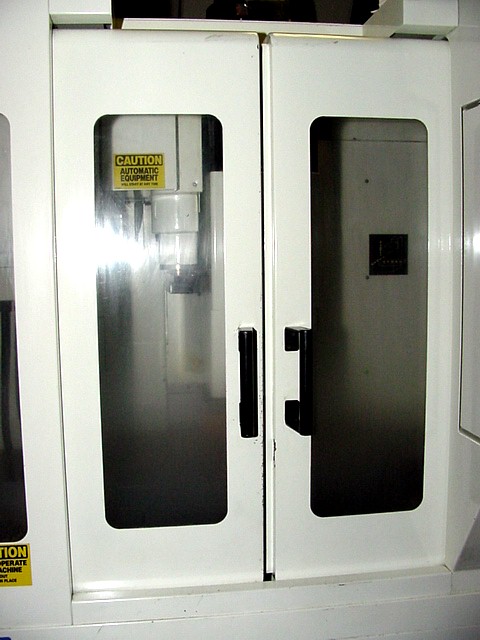

Full Enclosure
Spindle Chiller
Transformer
All Available Manuals
CATALOGUE SPECIFICATIONS:

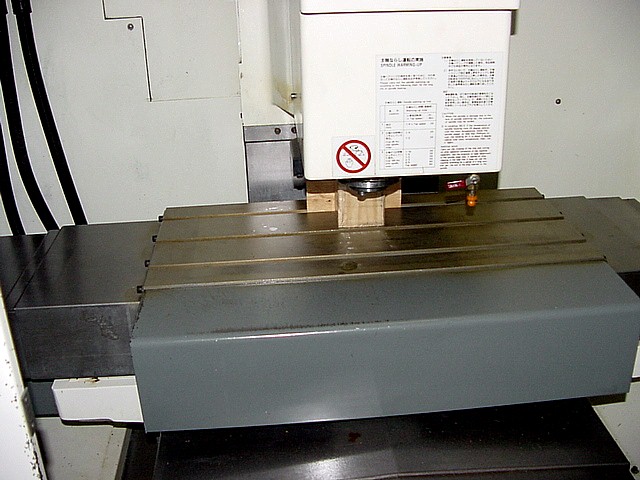

TABLE SIZE.................................... 14" x 30"

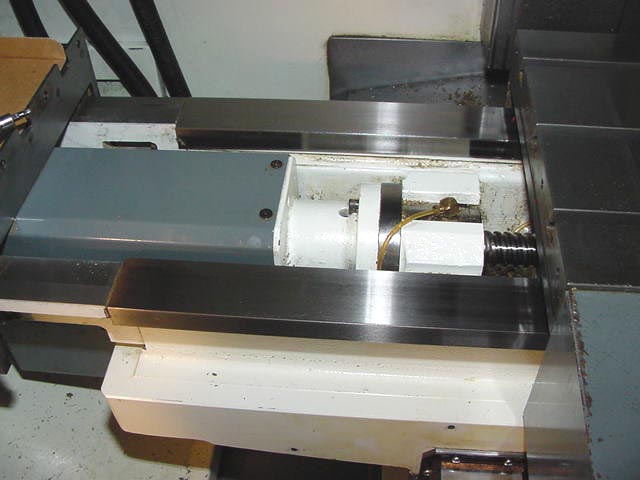

TRAVELS.........................(X) AXIS - 20"
(Y) AXIS - 14"
(Z) AXIS - 16"
SPINDLE NOSE TO TABLE ............... 5" - 20.9" MAX.
TABLE LOAD CAPACITY..................... 530 lbs
SPINDLE SPEED ................................ 150 - 15,000 RPM
SPINDLE TAPER................................ #35 NST
CUTTING FEED RATE, MAX............ 1417 IPM
RAPID TRAVERSE RATES.....(X,Y) 1969 IPM (Z) 1417 IPM
MOTOR............... .................................. 10/ 7.5 HP
TOOL CHANGE TIME (tool-tool)...... 0.7 Sec (chip-chip)...... 2.8 sec
FLOOR SPACE.................................... 94" x 81" x 104"
WEIGHT, APPROX: .......................... 8,200 lbs
