Reference Number: 141835

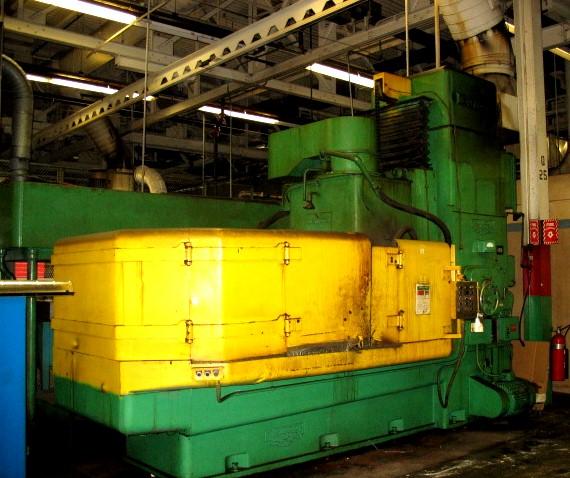

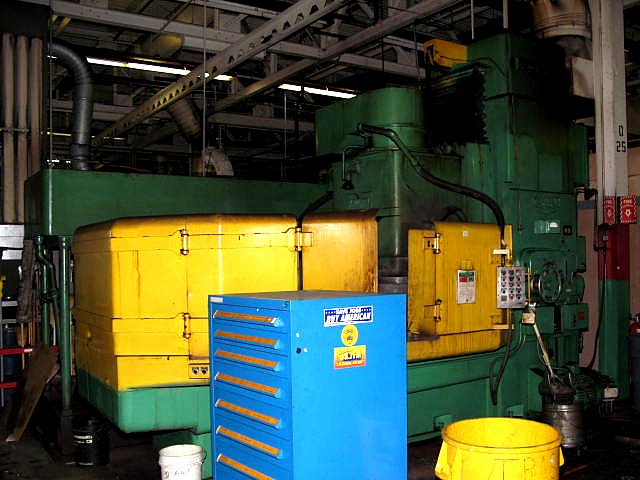

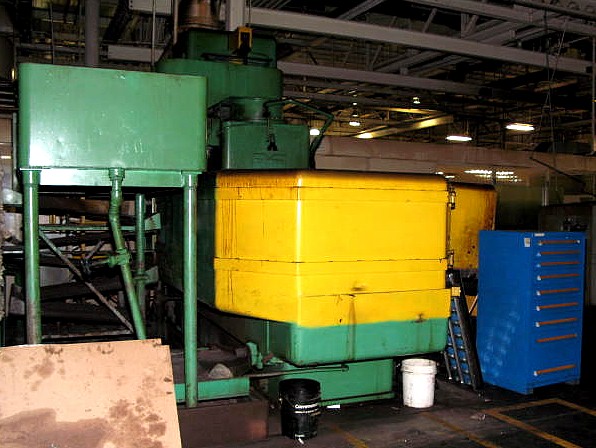

60" MATTISON "HEAVY DUTY" ROTARY SURFACE GRINDERPrice: On Request

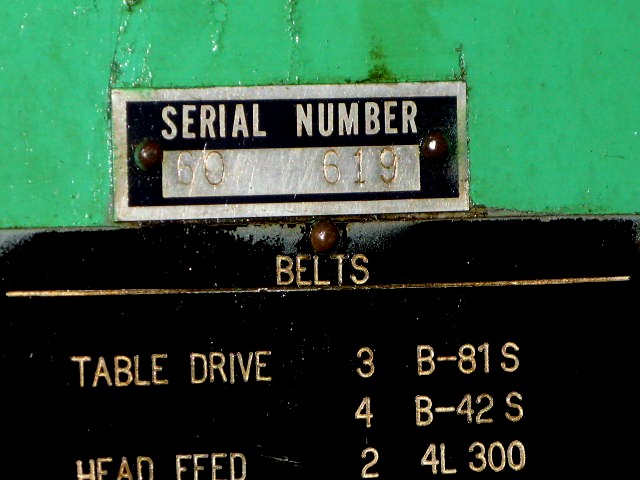

MODEL: 36-60 S/N: 60-619 NEW: 1968
CHUCK DIAMETER...................... 60"
MAXIMUM SWING....................... 80"
HEIGHT UNDER NEW WHEEL.............. 30"
TABLE SPEEDS........................ 1.6, 5.5, 10, 17 RPM
AUTOMATIC DOWNFEED, VARIABLE........ .005 TO .165
DIAMETER OF CORTLAND CHUCK.......... 36"
DIMENSIONS ........................ 196"L X 134"W X 174"H
APPROX. WEIGHT .................... 65,000 LBS
EQUIPPED WITH:

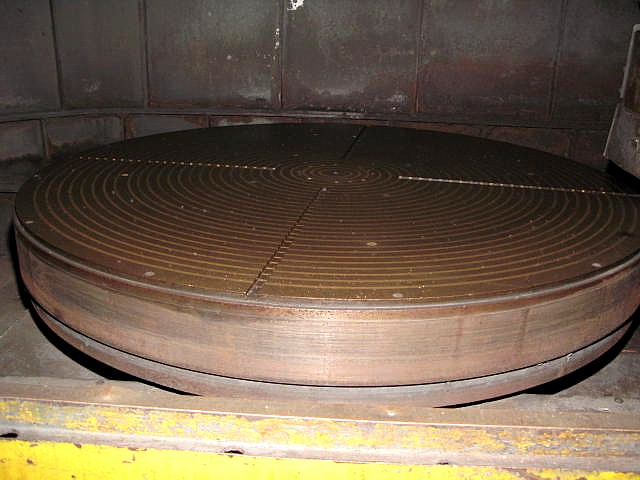

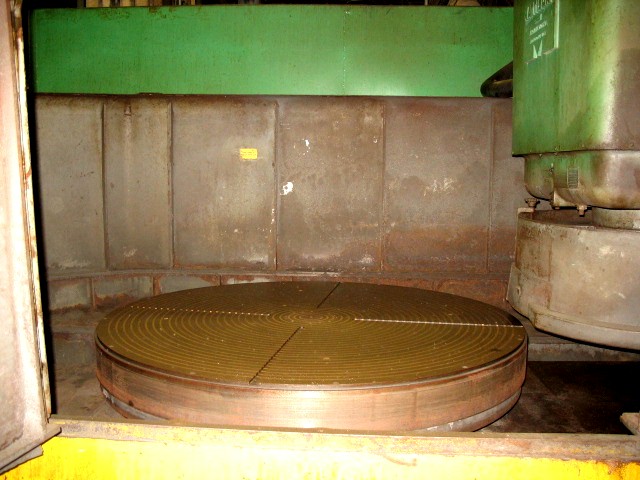

60" ELECTRO-MAGNETIC CHUCK (9/16" TO 5/8" CHUCK LIFE)
"ELECTRO-MATIC" NEUTROFIER
80" SWING
VARIABLE HOLD CHUCK CONTROL

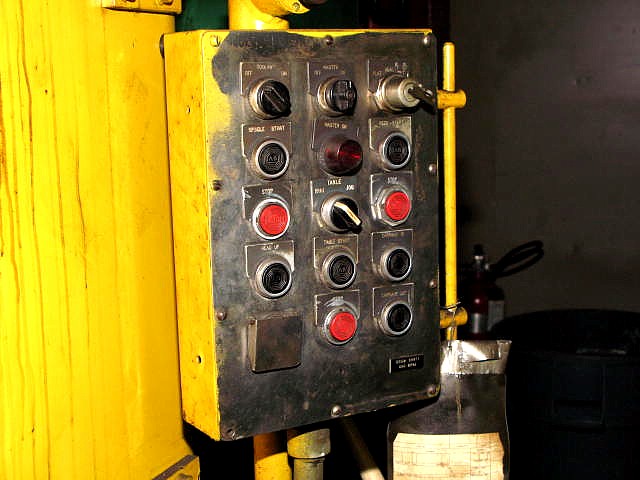

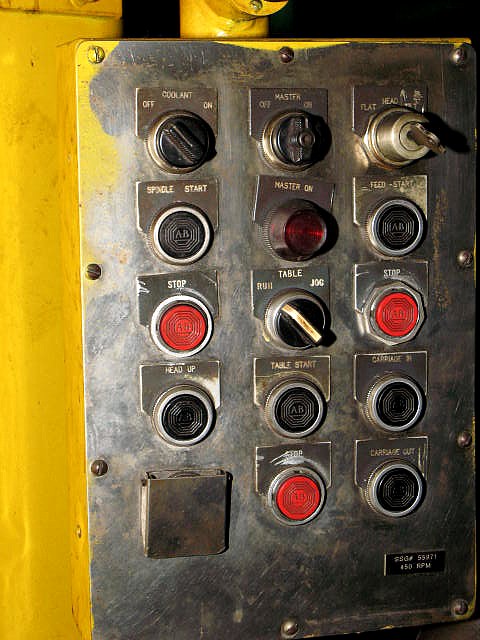

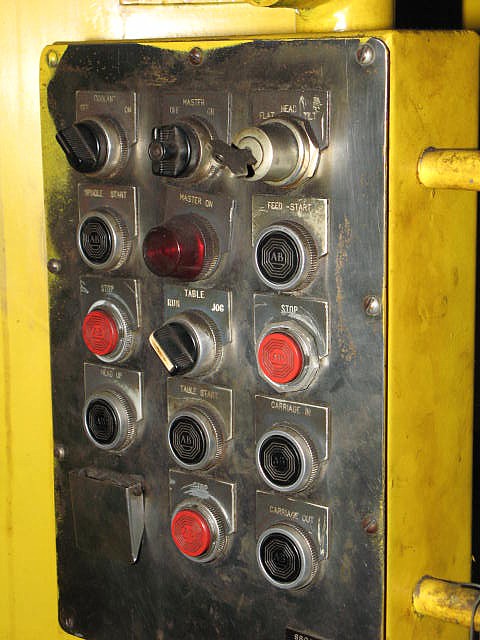

PENDANT CONTROL FOR MACHINE'S OPERATION
POWER TABLE TRAVERSE
POWER RAPID HEAD ELEVATION

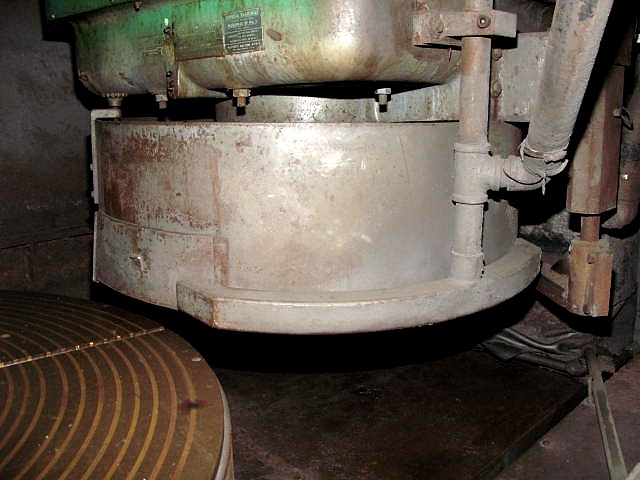

QUICK TILT SPINDLE
"TRABON" AUTOMATIC LUBRICATION SYSTEM
TWO-TIER, WATERFALL COOLANT SYSTEM

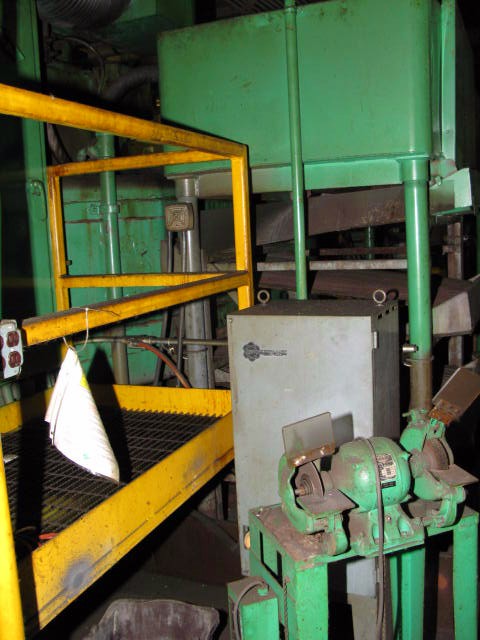

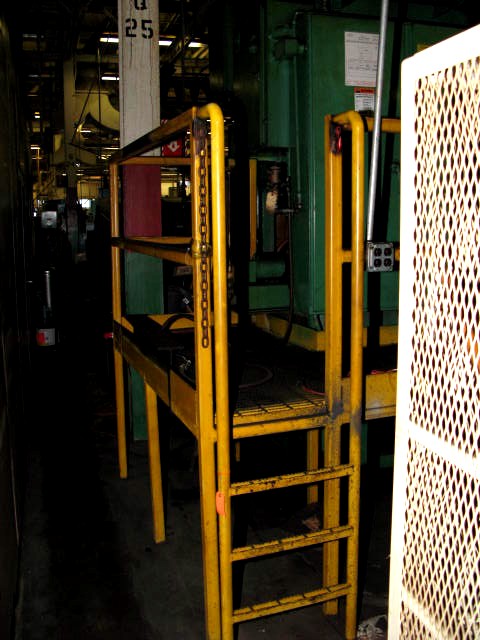

CATWALK AROUND BACK OF MACHINE

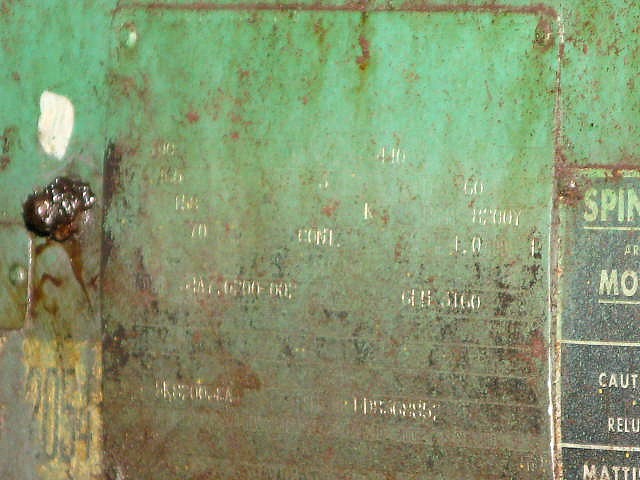

100 H.P., 220-440 VOLT, 3 PHASE 60 CYCLE SPINDLE MOTOR
(ONE TRUCK FOR MACHINE TOOL, OTHER TRUCK FOR ANCILLIARY EQUIPMENT)
FOB Wilmington, Delaware
** SUPERB CONDITION & APPEARANCE **
