Reference Number: 141838

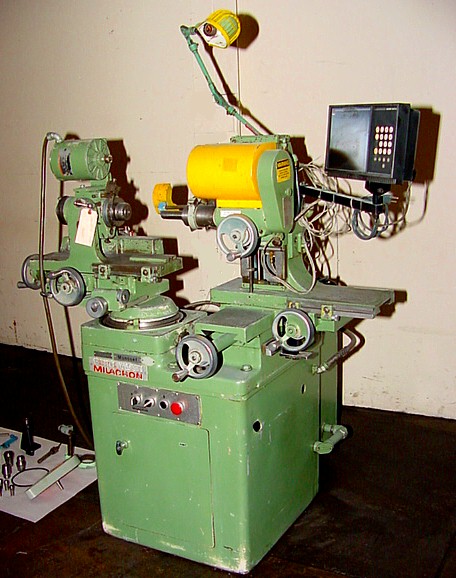

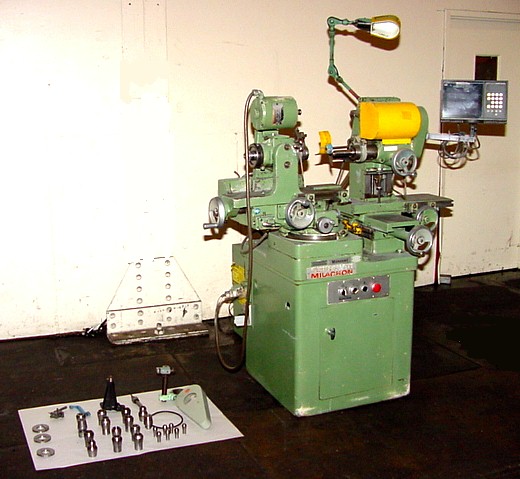

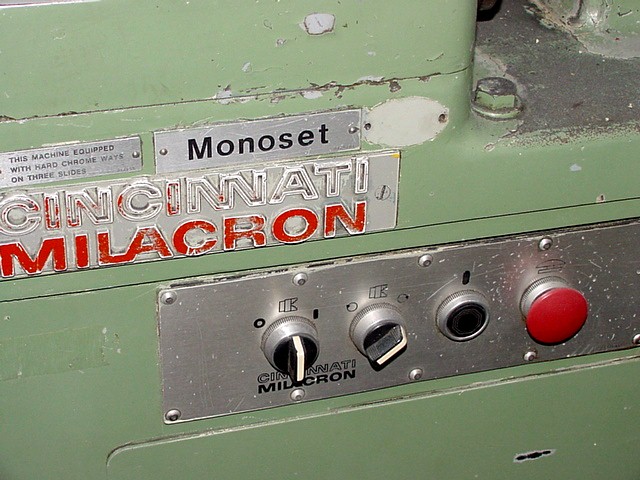

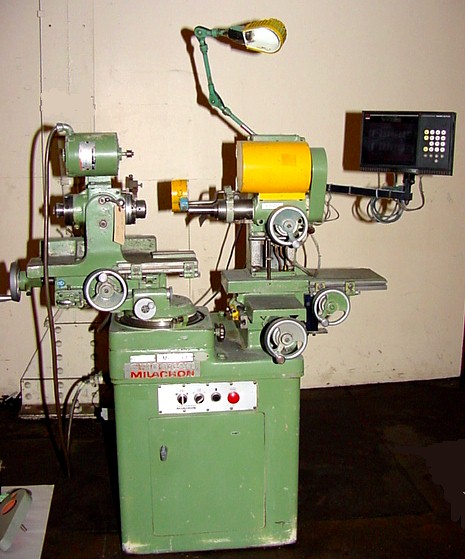

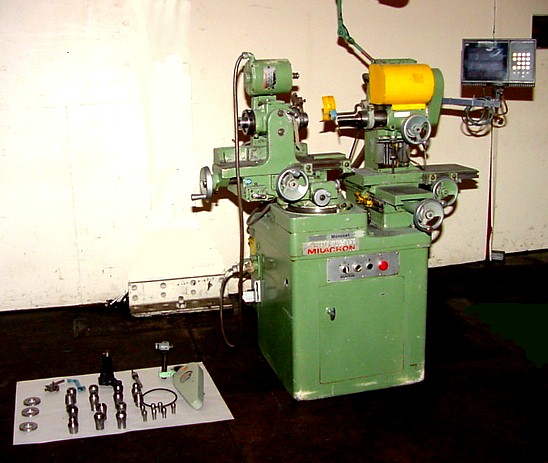

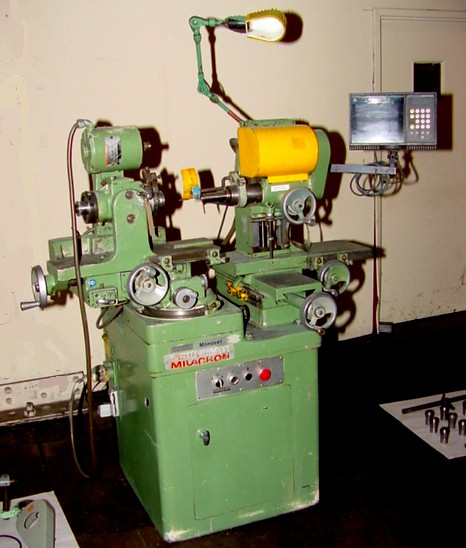

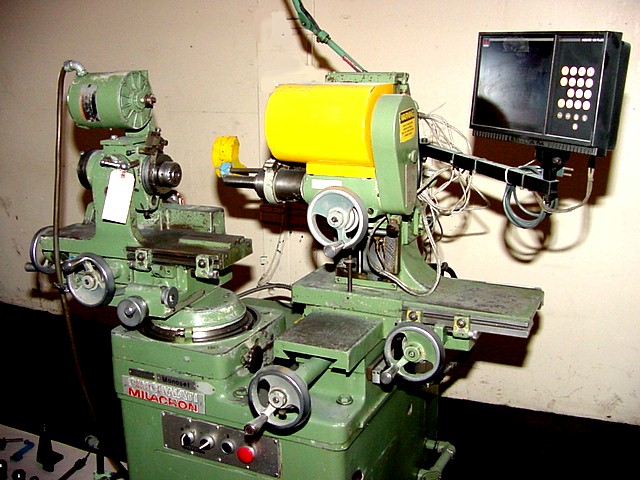

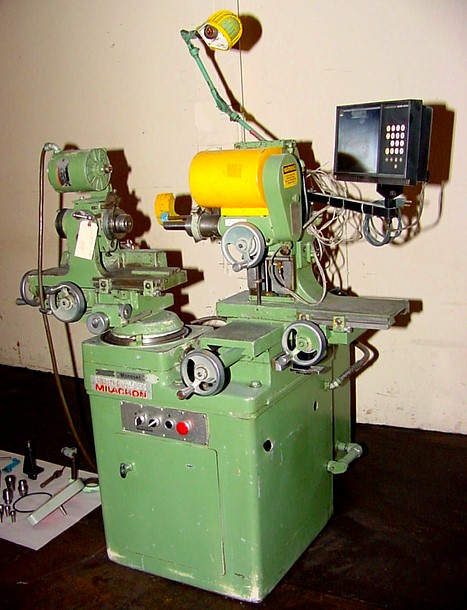

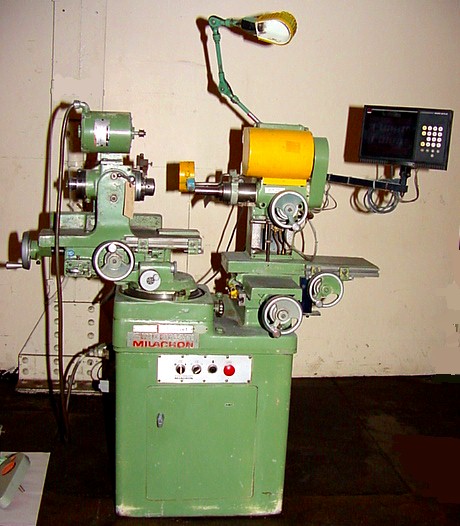

CINCINNATI-MILACRON "MONOSET" TOOL & CUTTER GRINDER

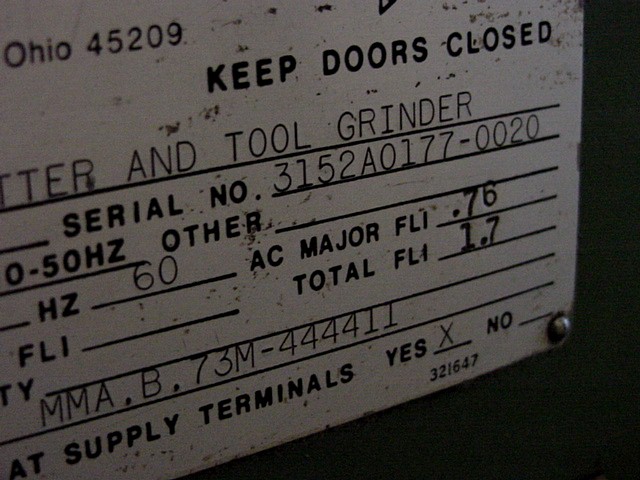

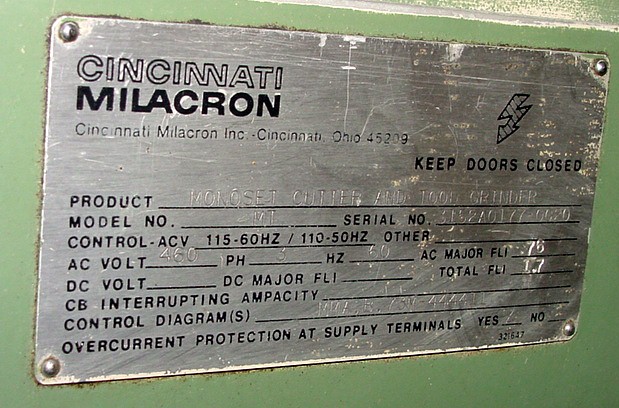

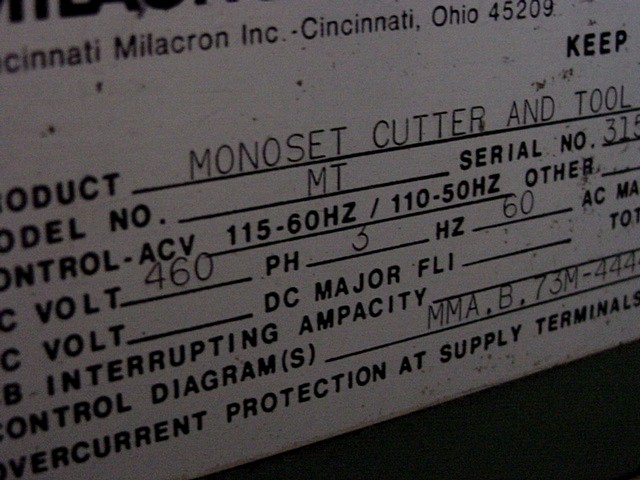

 MODEL: MT    S/N:  3152A0177-0020     NEW: 1977

 CAPACITY -
 WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
 MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
 MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
 MAX. GRINDING WHEEL DIA. .................... 4"
 MAX. LENGTH OF WORK BETWEEN SPINDLE &
 TAILSTOCK CENTER .......................... 6"
 RANGE -
 WORKHEAD SLIDE TRAVEL:
 LONGITUDINAL .............................. 5-3/4"
 CROSS ..................................... 5-3/4"

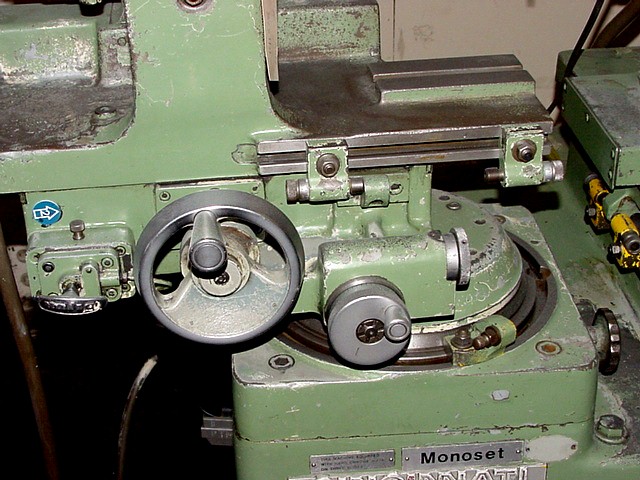

 WORKHEAD ANGULAR ADJUSTMENT:

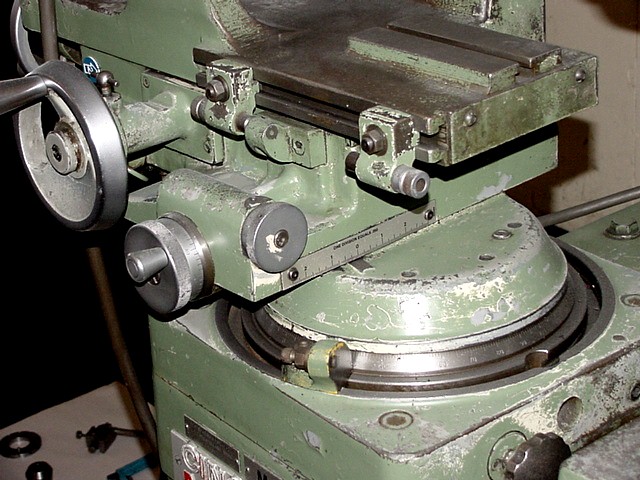

 MAX. TURNTABLE SWIVEL ..................... 235 DEG.
 ABOVE AND BELOW CENTER .................... 40 DEG.
 WHEELHEAD SLIDE TRAVEL:
 LONGITUDINAL .............................. 6"
 CROSS ..................................... 7-1/2"
 WHEELHEAD, VERTICAL MOVEMENT:
 ABOVE CENTER .............................. 4.5"
 BELOW CENTER .............................. 5"
 SPEEDS -

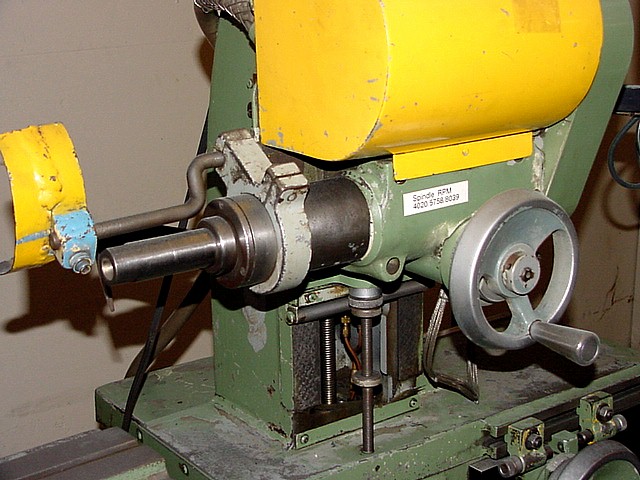

 (3) WHEELHEAD SPINDLE SPEEDS ................ 4,000,
                                         5,730, 8,000 RPM
 (1) WORKHEAD SPINDLE SPEED .................. 436 RPM
 APPROXIMATE WEIGHT ........................... 1,500 LBS.

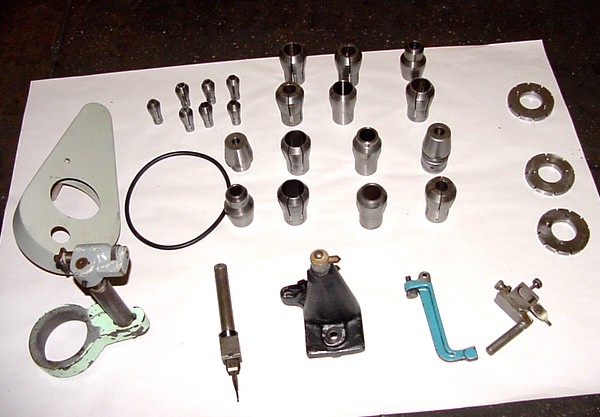

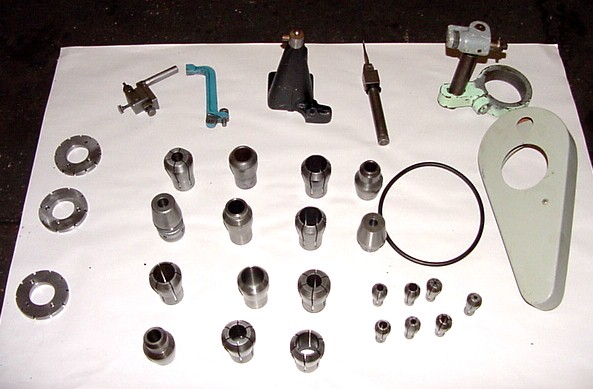

 EQUIPPED WITH:

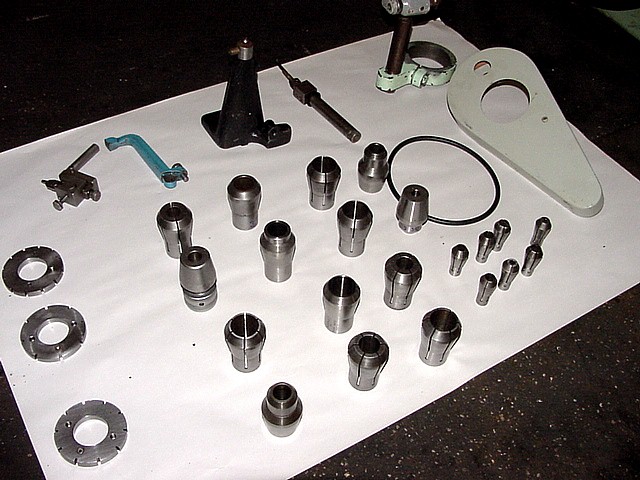

 "TOOLING PACKAGE"
  1 GRINDING WHEELHEAD TOOTHREST
  1 DIAMOND DRESSER
  1 SPRING LOADED INDEX PAWL FOR WORKHEAD, FRONT
  3 INDEX PLATES, #8, #10, #12
  6 TAPER HOLE COLLETS "C" SERIES FOR WORKHEAD
  FOR TAPER SHANKS MORSE # 2,3,4, BROWN& SHARPE 5,7,9
  13 STRAIGHT COLLETS
  7 SERIES "A" TYPE: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2
  6 SERIES C TYPE: 5/8, 3/4, 7/8, 1/1, 1/8, 1-1/4
  1 "A" TYPE COLLET ADAPTOR

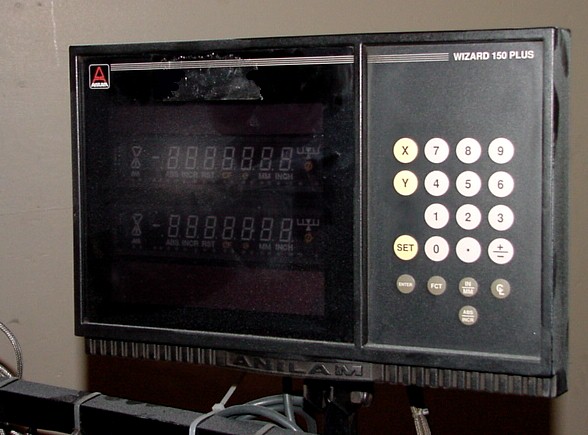

 DIGITAL READOUT DISPLAY
 HARD WAYS & SCREWS
 WHEEL GUARD

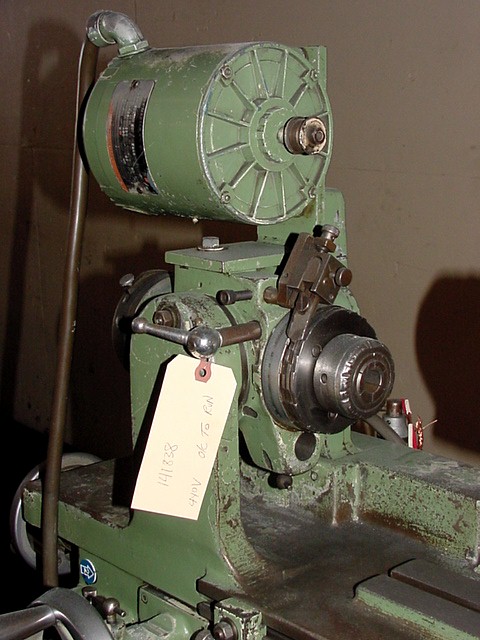

 1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD
 BIJUR ONE-SHOT LUBRICATION SYSTEM
 1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
 * * EXCELLENT CONDITION **

 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
