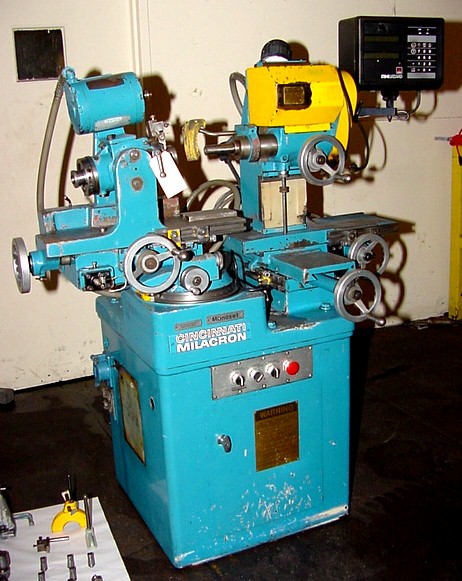

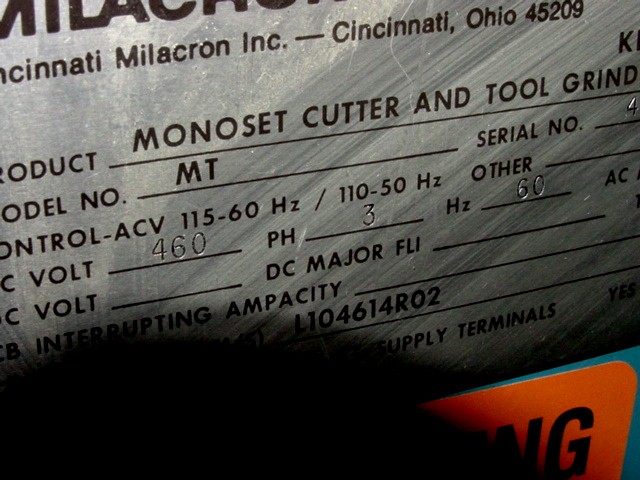

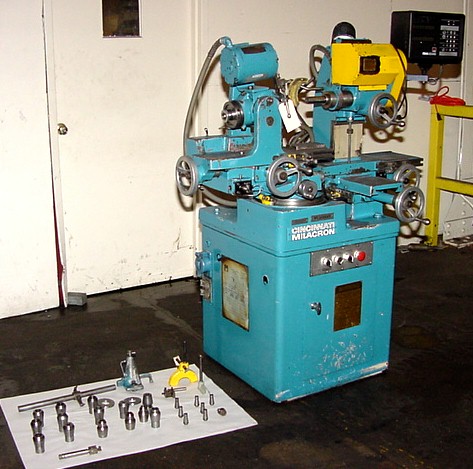

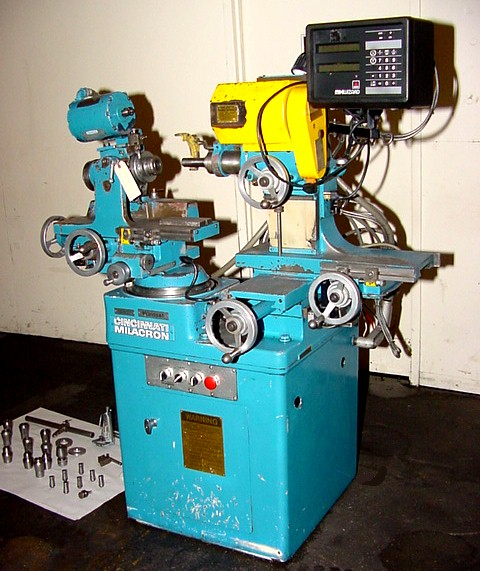

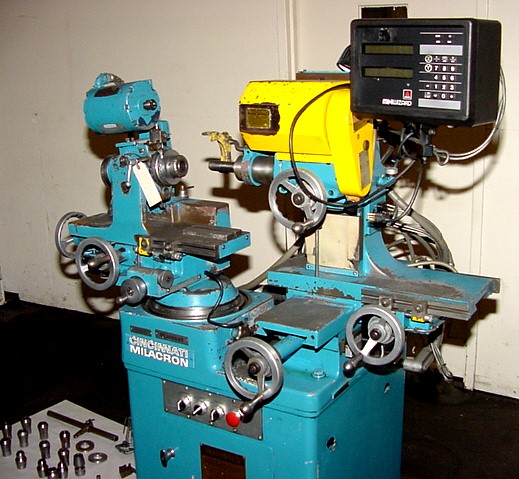

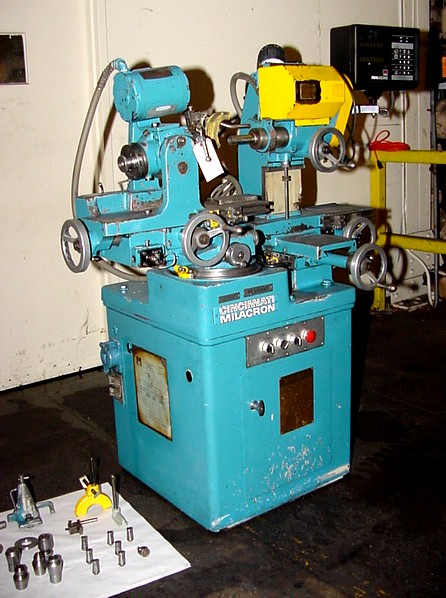

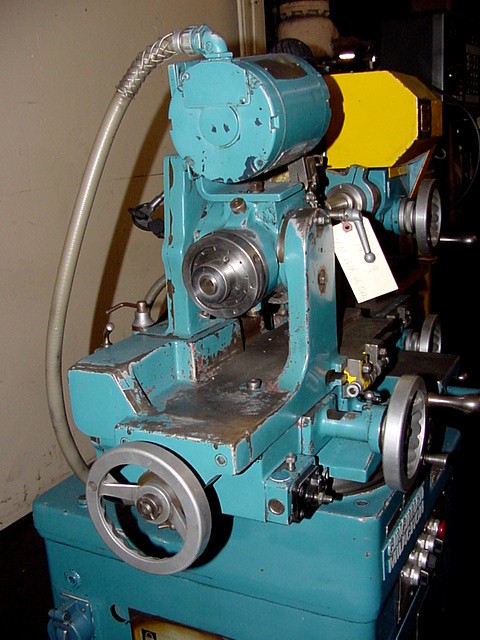

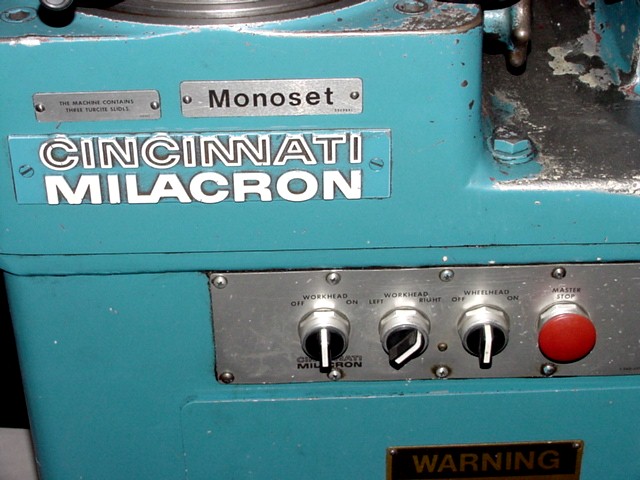

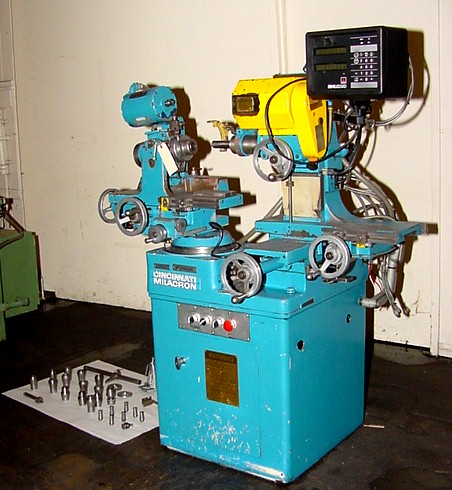

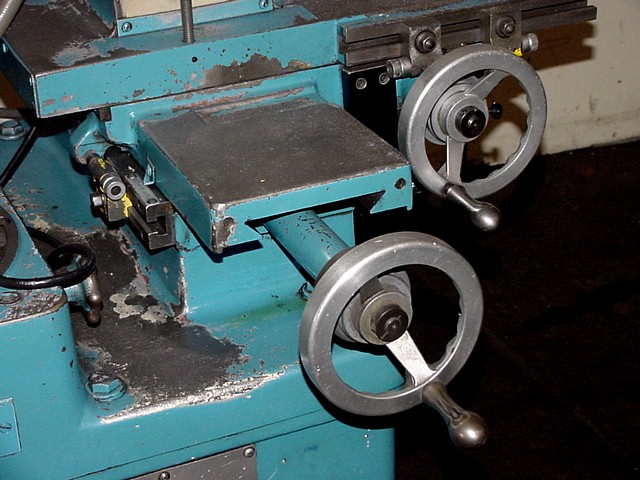

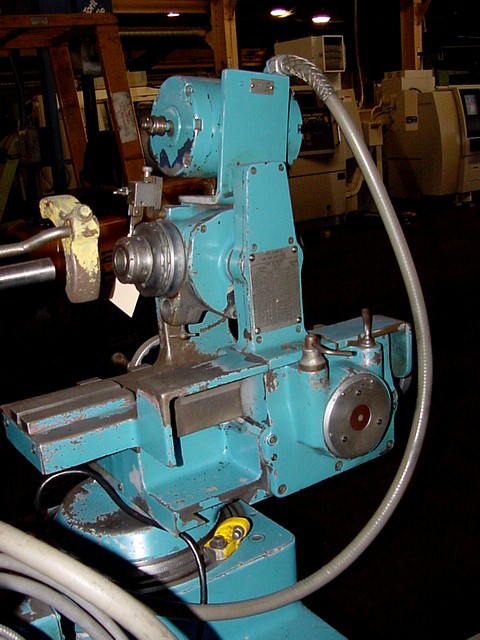

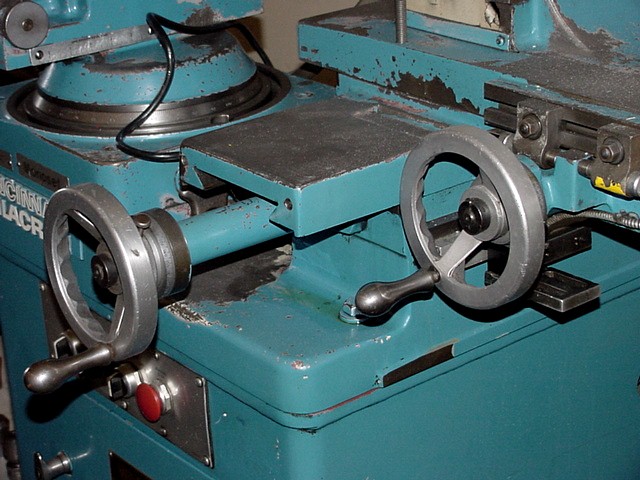

CINCINNATI-MILACRON "MONOSET" TOOL & CUTTER GRINDER
 W/" TOOLING " PACKAGE & DIGITAL READOUT DISPLAY

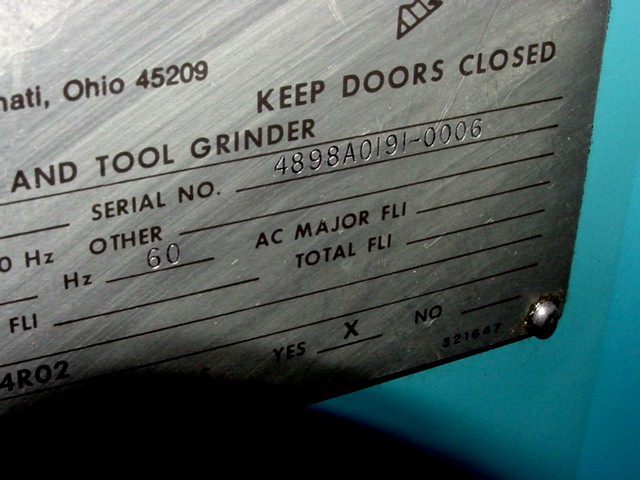

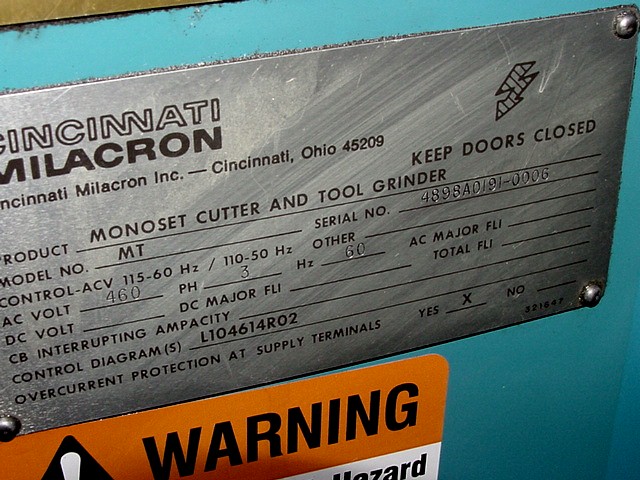

 MODEL: MT       S/N: 4898A0191-0006        NEW: 1991

 CAPACITY -
 WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
 MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
 MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
 MAX. GRINDING WHEEL DIA. .................... 4"
 MAX. LENGTH OF WORK BETWEEN SPINDLE &
 TAILSTOCK CENTER .......................... 6"
 RANGE -
 WORKHEAD SLIDE TRAVEL:
 LONGITUDINAL .............................. 5-3/4"
 CROSS ..................................... 5-3/4"
 WORKHEAD ANGULAR ADJUSTMENT:
 MAX. TURNTABLE SWIVEL ..................... 235 DEG.
 ABOVE AND BELOW CENTER .................... 40 DEG.
 WHEELHEAD SLIDE TRAVEL:
 LONGITUDINAL .............................. 6"
 CROSS ..................................... 7-1/2"
 WHEELHEAD, VERTICAL MOVEMENT:
 ABOVE CENTER .............................. 4.5"
 BELOW CENTER .............................. 5"
 SPEEDS -
 (3) WHEELHEAD SPINDLE SPEEDS ................ 4,000,
                                         5,730, 8,000 RPM
 (1) WORKHEAD SPINDLE SPEED ................. 436 RPM
 APPROXIMATE WEIGHT ........................ 1,500 LBS.


 MACHINE FEATURES:
 HARD WAYS & SCREWS

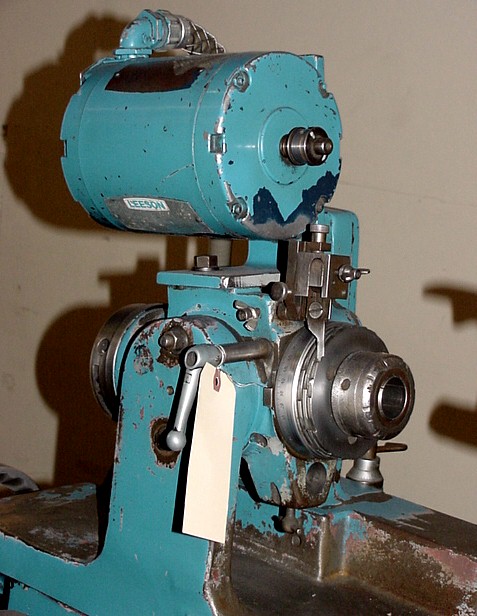

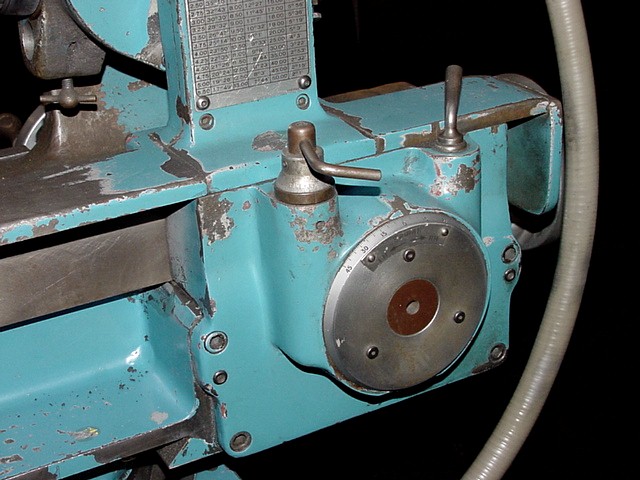

 1/4 HP 3/60/230-460 VOLT MOTORIZED WORKHEAD
 BIJUR ONE-SHOT LUBRICATION SYSTEM

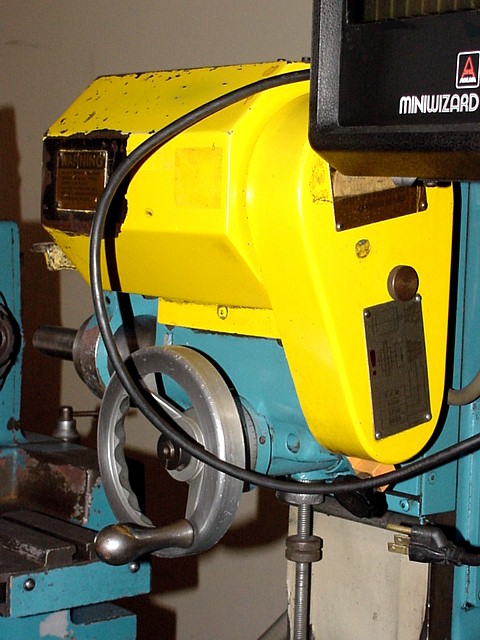

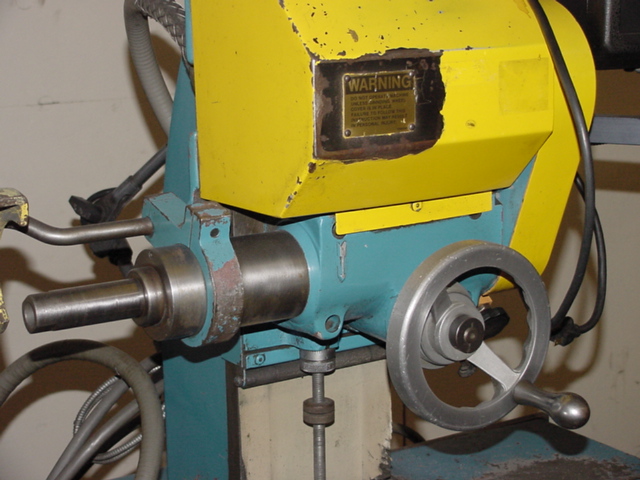

 1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
 MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

 EQUIPPED WITH:

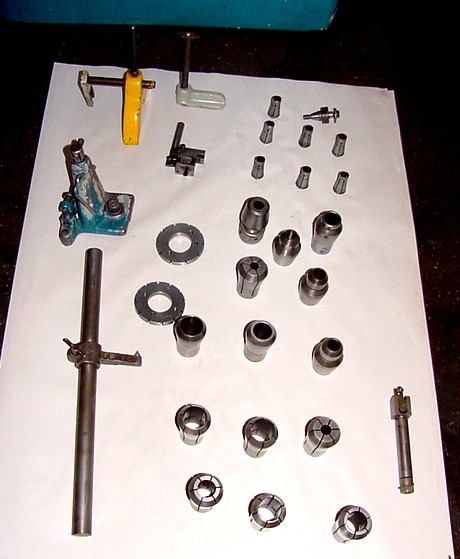

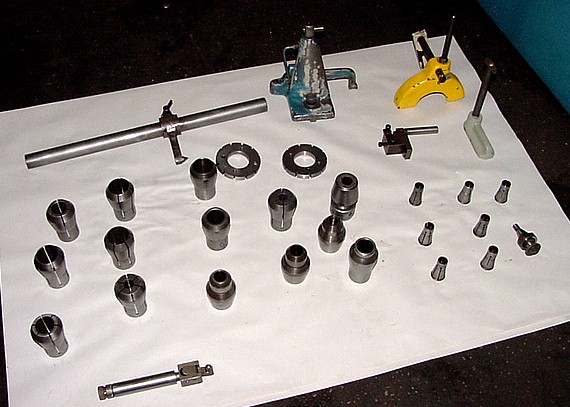

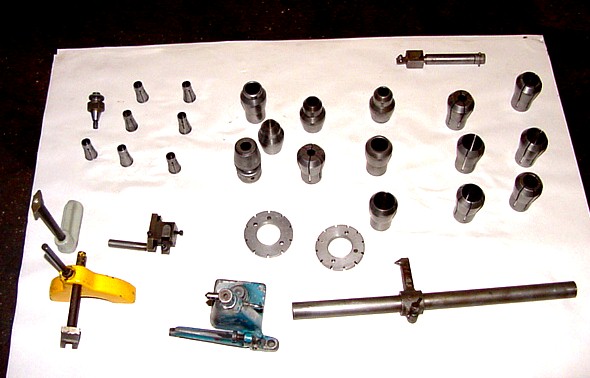

 "TOOLING PACKAGE"
  3 INDEX PLATES 8, 10, 12
  1 DRESSER, DIAMOND
  1 WHEEL MANDREL
  1 TOOTH REST CENTERING GAGE
  1 SPRING LOADED INDEX PAWL FOR WORKHEAD, FRONT
  6 TAPER HOLE COLLETS, SERIES "C" FOR WORKHEAD
  FOR TAPER SHANKS... MORSE 2,3,4 BROWN & SHARPE 5,7,9

  13 STRAIGHT COLLETS:
  7 SERIES "A" TYPE: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2
  6 SERIES "C" TYPE: 5/8, 3/4, 7/8, 3/1, 3-1/8, 1-1/4

  1 "A" TYPE COLLET ADAPTOR
  1 ADJUSTABLE TAIL-CENTER SUPPORT

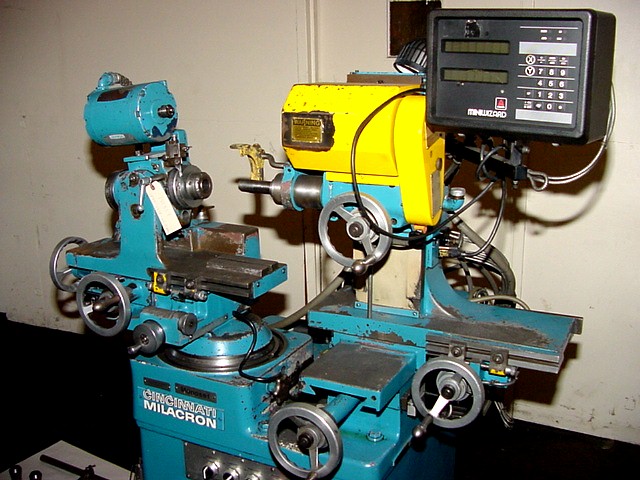

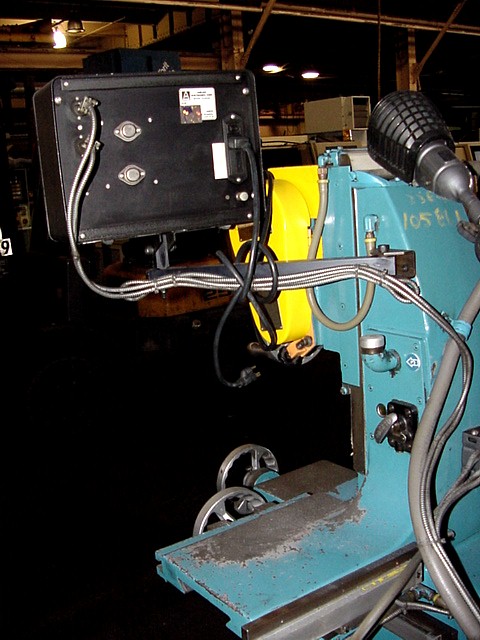

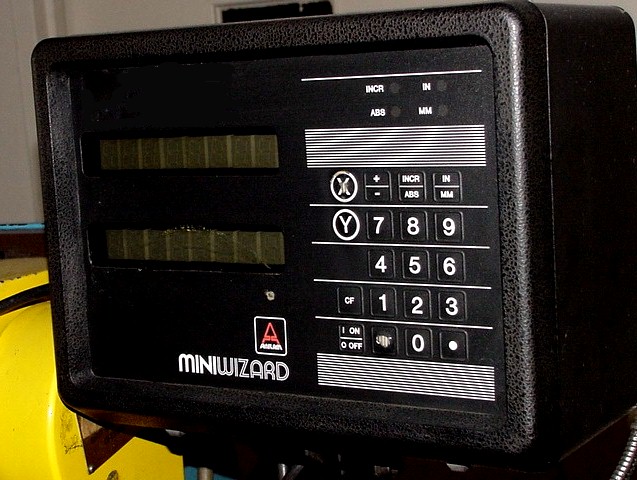

 DIGITAL READOUT DISPLAY

 ** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
