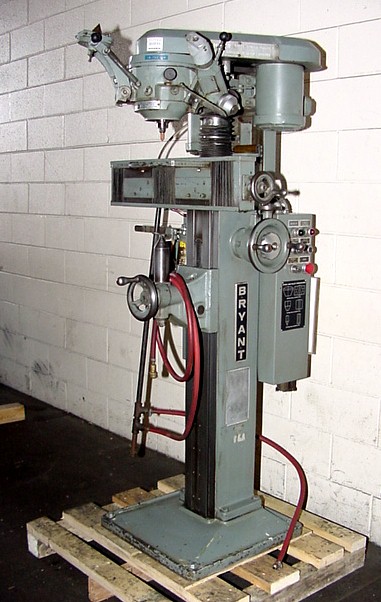

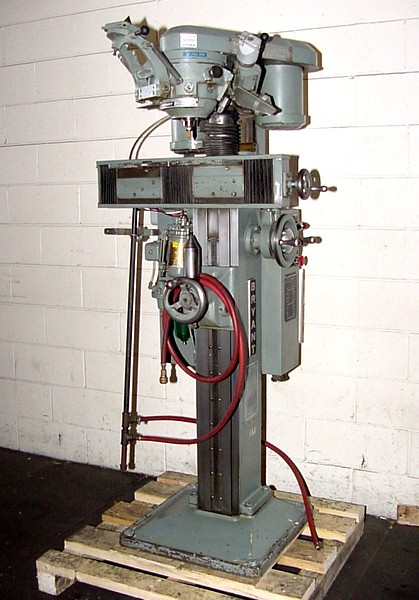

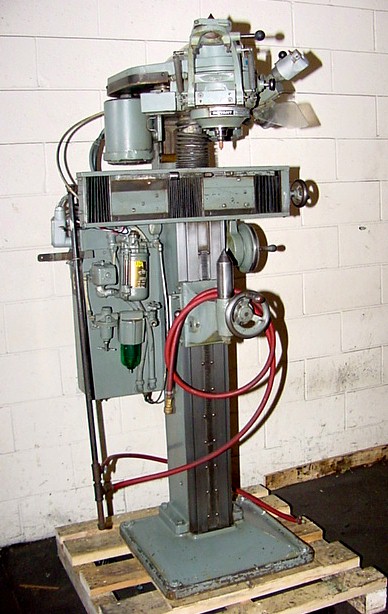

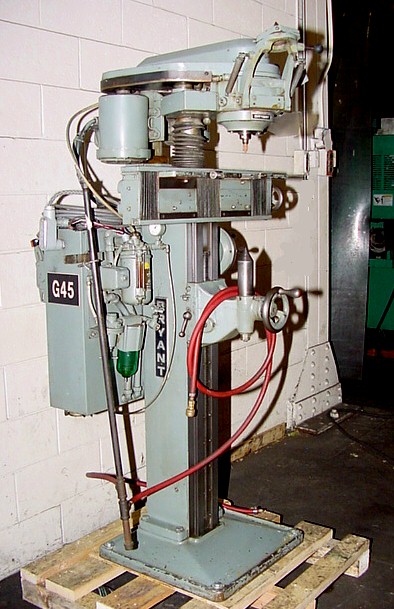

BRYANT CENTER HOLE GRINDER

 MODEL: 500    S/N: C-13276      NEW: 1971

 ** PRODUCES GEOMETRICALLY CORRECT CENTER HOLES - A VITAL
    REQUIREMENT FOR PRECISION O.D. GRINDING.  IT IS IDEAL
    FOR RECENTERING DISTORTED CENTERS IN MACHINE SPINDLES,
    ARBORS, CENTER-CONTROLLED CHECKING DEVICES & FOR
    OTHER SALVAGE WORK.  IT MINIMIZES STOCK REMOVAL &
    GREATLY IMPROVES WORK QUALITY & ACCURACY.
   60 DEGREE CENTERS UP TO 2" DIAMETER CAN BE GROUND
    IN WORKPARTS UP TO 6" DIAMETER AND 2" TO 42" LONG.
   OPERATION OF THE BRYANT IS UNIQUE.  INSTEAD OF UTILIZING
    PLUNGE GRINDING, WITH IT'S INHERENT FAULTS, IT
    "GENERATES" TO PRODUCE FINE FINISHES & PRECISION
    TOLERANCES SIMILAR TO THOSE OBTAINED ON AN INTERNAL
    GRINDER.

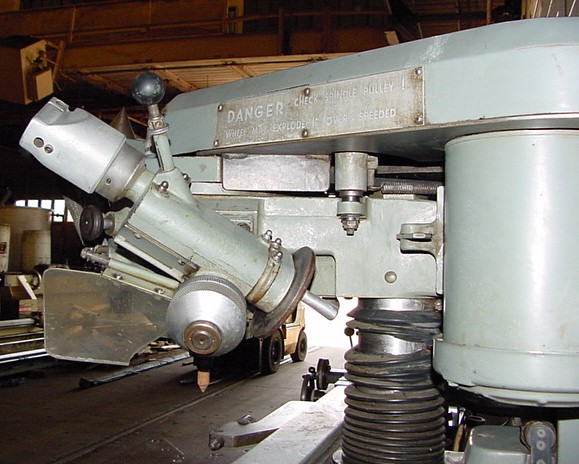

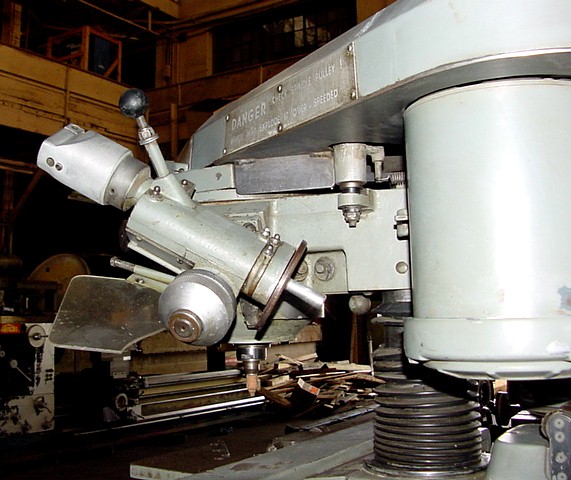

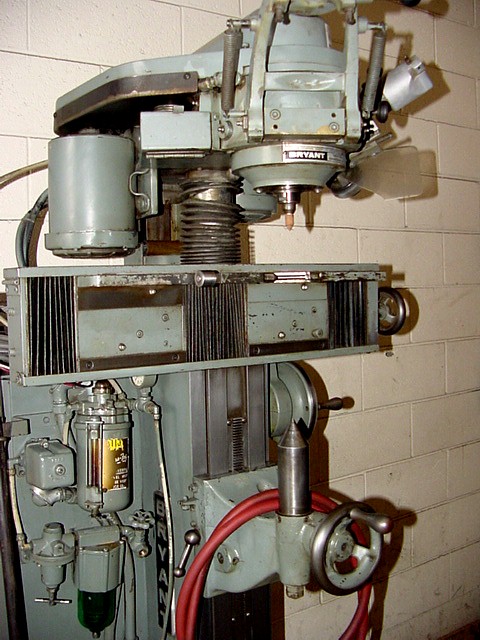

   HI-PRECISION 3-WAY GRINDING TO THE CONE-SHAPED GRINDING
    WHEELS USED. THESE MOTIONS ARE (1) ROTARY MOTION OF THE
    GRINDING CONE ABOUT ITS SPINDLE AXIS.  (2) PLANETARY
    MOTION OF THE GRINDING CONE ABOUT THE WORK AXIS.
    (3) RECIPROCATING MOTION OF THE GRINDING CONE ALONG A
    LINE 30 DEGREES FROM THE VERTICAL.  THE GRINDING CONE
    MAKES A LINE CONTACT WITH THE CENTER HOLE SURFACE,
    WHICH SIMULTANEOUSLY RECIPROCATING ALONG THIS LINE.
    THE UNEVEN WHEEL WEAR, OCCURRING WITH REGULAR PLUNGE
    GRINDING DUE TO FULL-WHEEL CONTACT, IS ELIMINATED.

 WORKPIECE LENGTH:.................................. 2 TO 42"
 CLEARANCE FROM TAILSTOCK CENTER TO COLUMN:............. 6.2"
 VISE CAPACITY................................... .060" TO 6"
 CONE ANGLE OF CENTERHOLES GROUND................. 60 DEGREES
 MAXIMUN CENTER HOLE GROUND........... 2" DIA.A AT 13,000 RPM
                                    1.12" DIA. AT 21,500 RPM
                                    0.56" DIA. AT 45,000 RPM
 MINIMUM CENTER HOLE GROUND............................ .050"

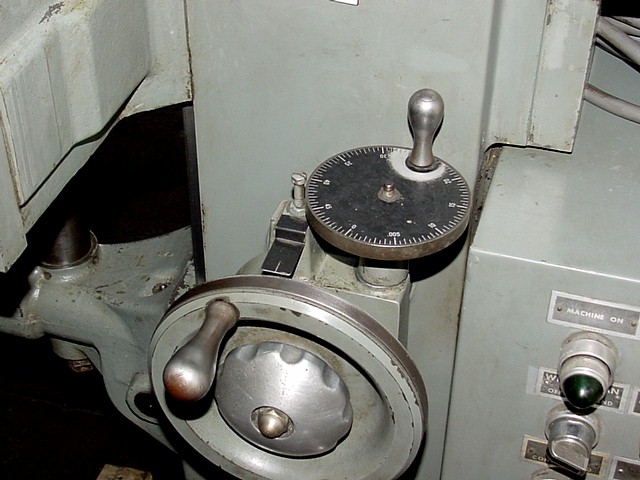

 ANGULAR GRINDING STROKE...................... .005" TO .100"
 PLANETARY DRIVE SPEED............................... 330 RPM

 APPROX. WT. ....................................... 1250 LBS
 DIMENSIONS ...................... 36" L-R, 31" F-B, 72" HIGH


 EQUIPPED WITH:

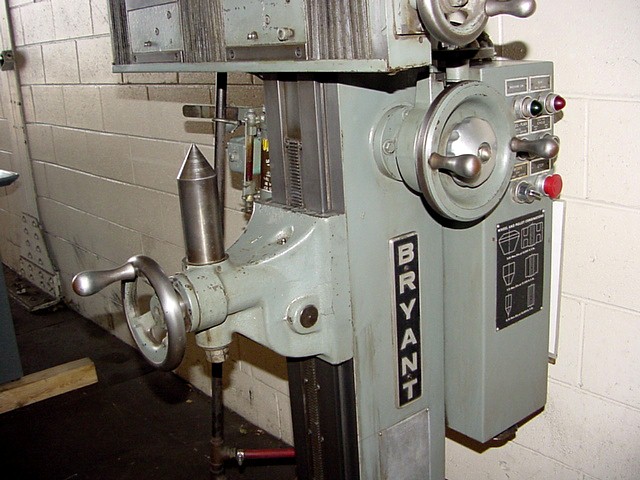

 PRECISION TWO-JAW VISE
 TAILSTOCK
 DRESSER WITH DIAMOND
 (1) DEAD CENTER

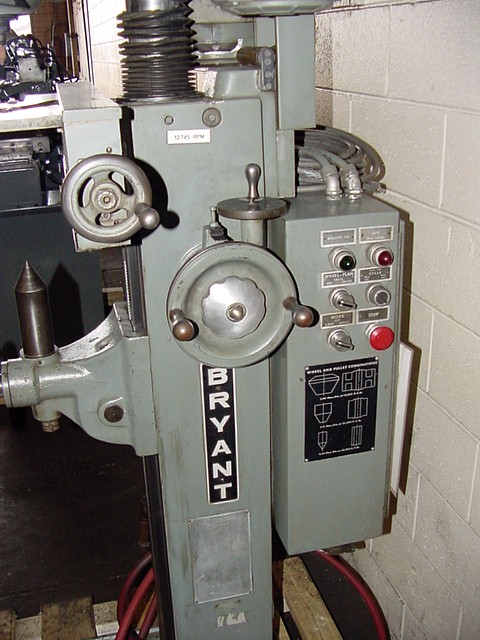

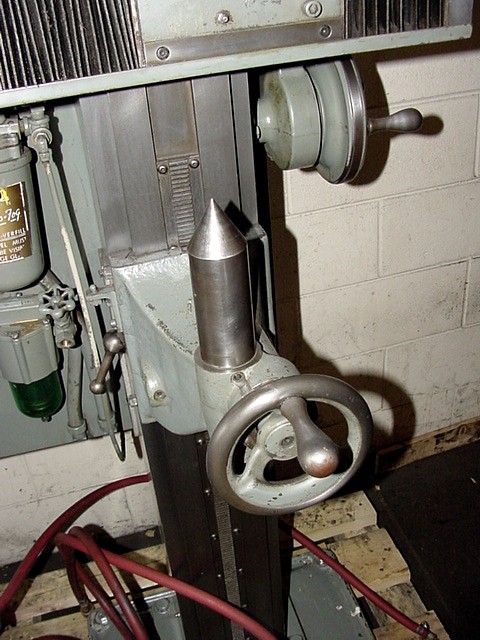

 PIVOTING TOP CENTER - READILY POSITIONS WORKPARTS FROM
  EXISTING CENTER HOLES

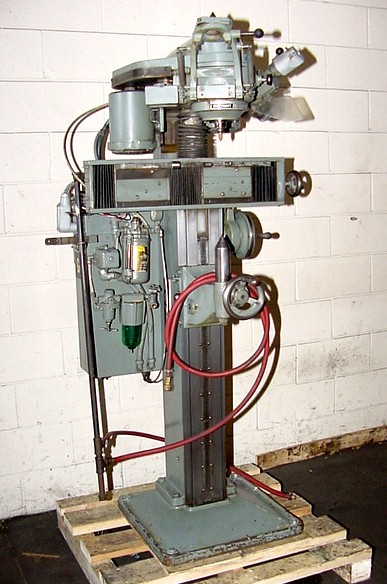

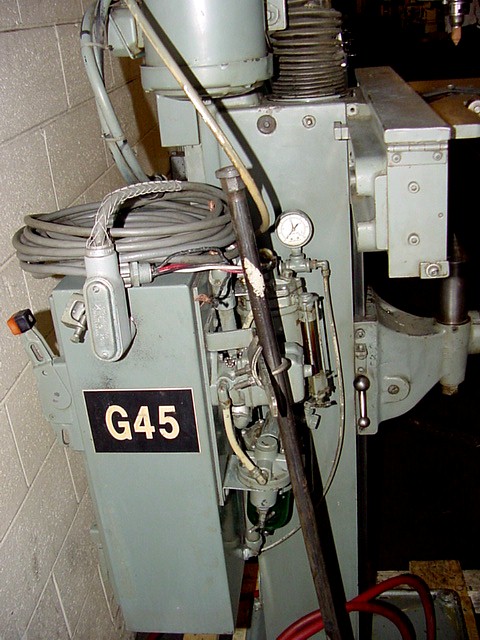

 NORGREN MICRO-FOG OIL LUBRICATOR WITH FILTER
 ADAPTER FOR DUST COLLECTOR
 1/4 H.P. 3/60/208-220-440 VOLT PLANETARY DRIVE MOTOR

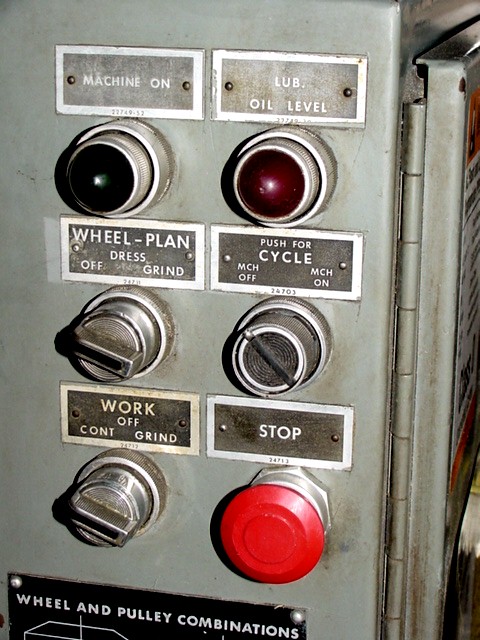

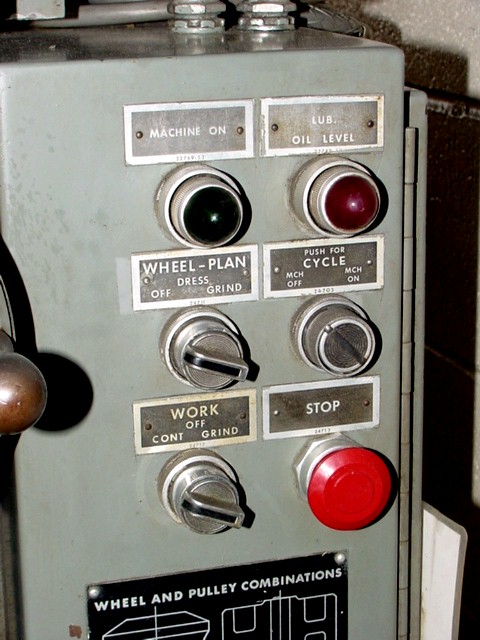

 3/4 H.P. 3/60/230-460 VOLT MAIN DRIVE MOTOR WITH CONTROLS

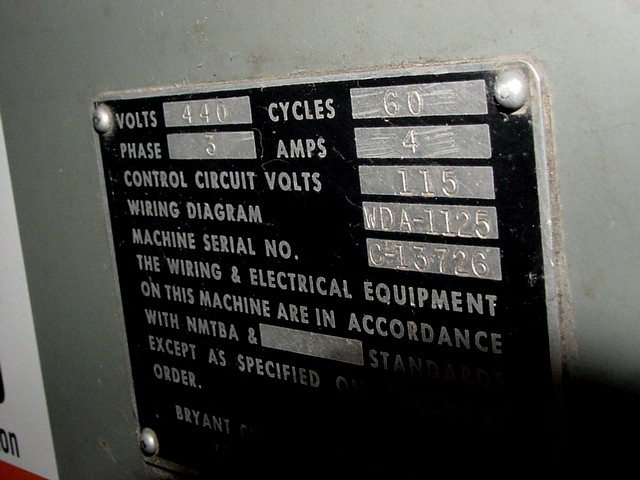

 MACHINE WIRED FOR 3/60/440 VOLT OPERATION

 *** EXCELLENT CONDITION - ALL ORIGINAL PAINT ***

 ** F.O.B. OUR HARRISON, NJ WAREHOUSE **
