Reference Number: 141849

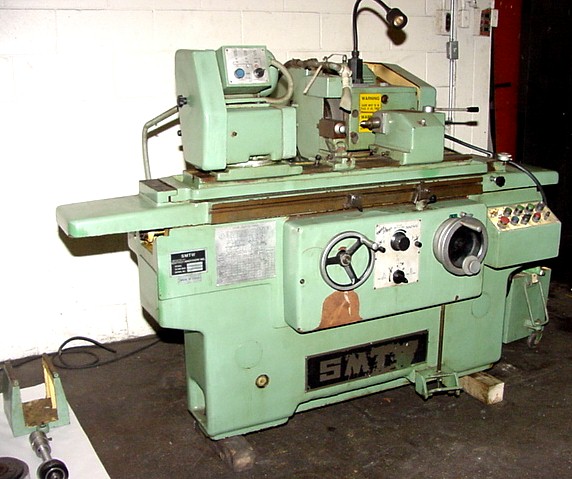

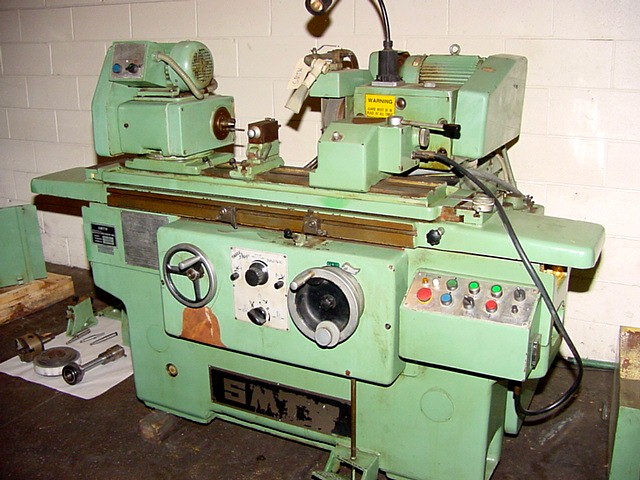

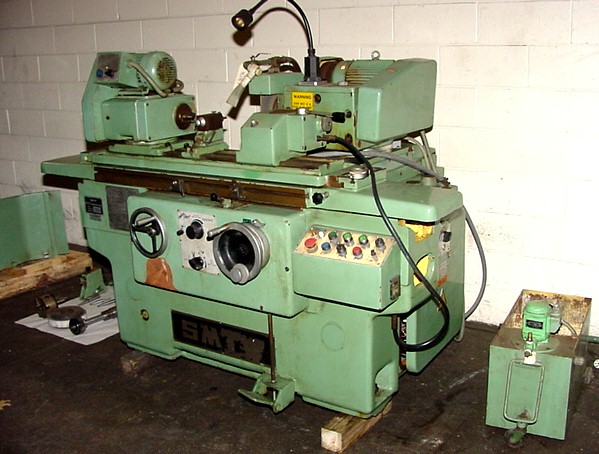

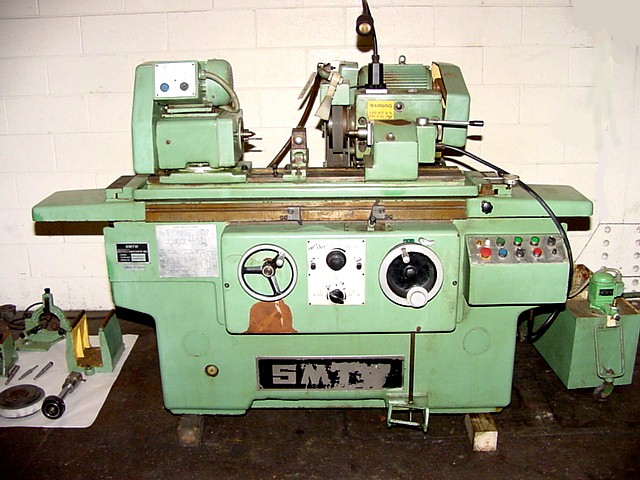

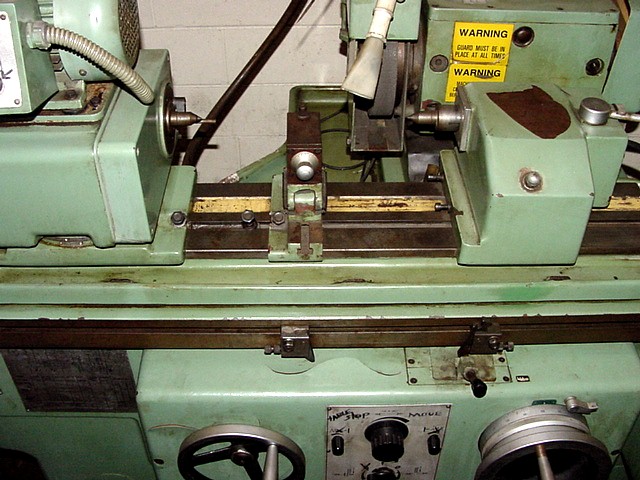

8" X 20" SMTW UNIVERSAL I.D./O.D. CYLINDRICAL GRINDERPrice: On Request

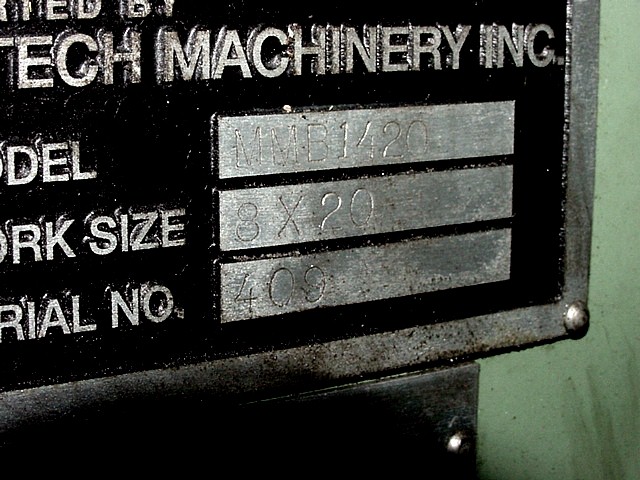

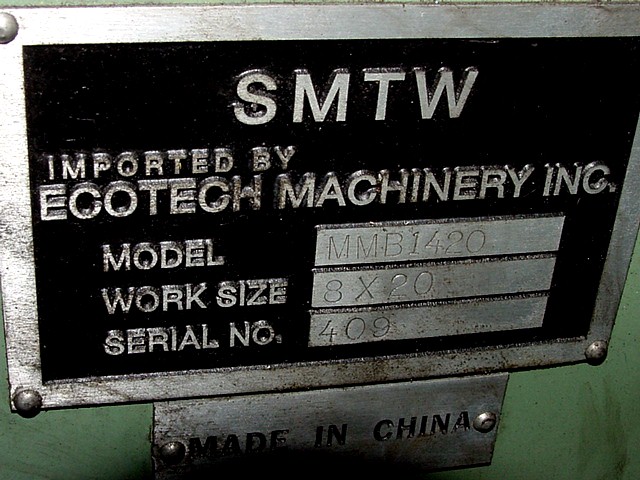

MODEL: MMB1420 S/N: 409 NEW: 1999
MAXIMUM SWING OVER TABLE .............. 8"
DISTANCE BETWEEN CENTERS................ 20"
MAX. WORKLOAD .......................... 112 LBS.

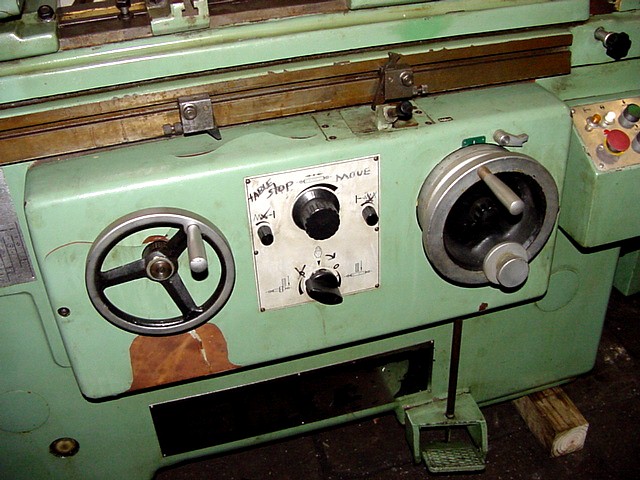

WORK CARRIAGE:
TRAVERSE SPEED......................... 4" TO 157" IPM

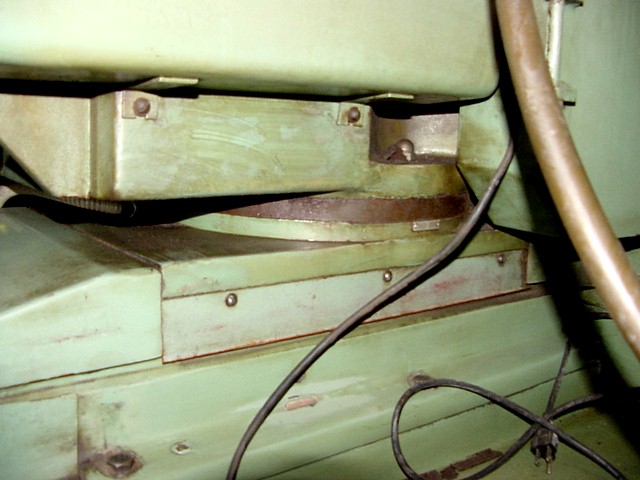

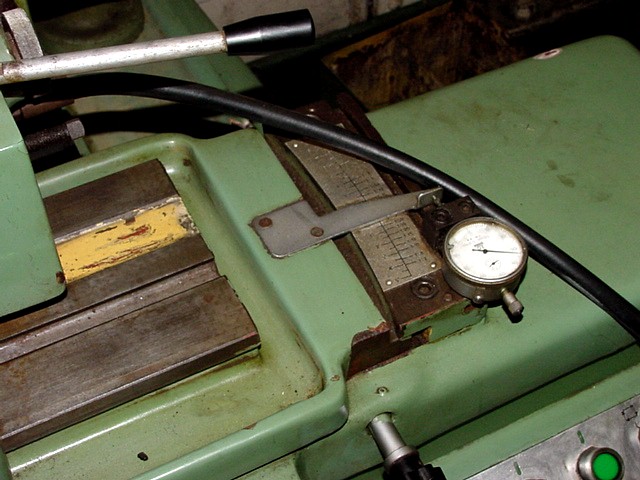

TABLE SWIVELS, CLOCKWISE/CCW .......... 5 DEG./9 DEG.

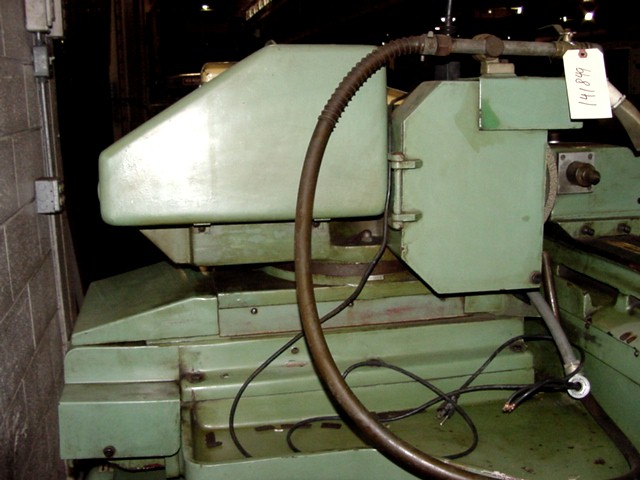

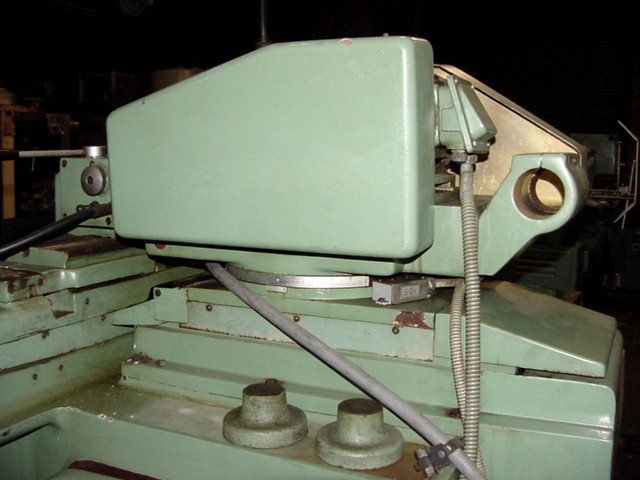

WHEELHEAD & WHEEL FEED:
STANDARD GRINDING WHEEL SIZE........... 12" O.D. X 1.5"W
X 5" HOLE

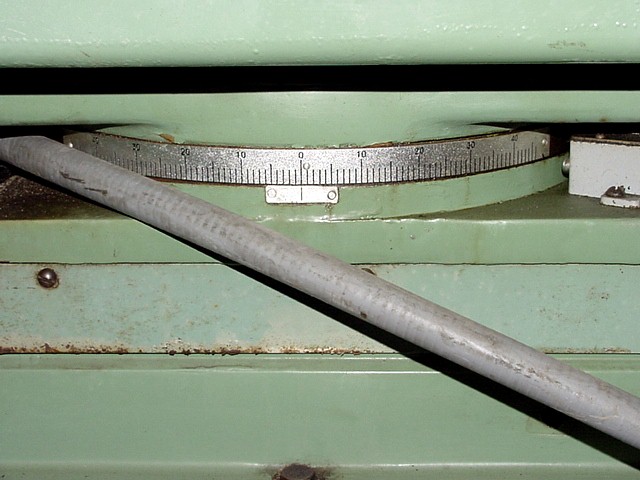

SWIVEL RANGE .......................... +/- 180 DEGREES
GRINDING WHEEL SPINDLE SPEED .......... 1,100 & 2,200 RPM

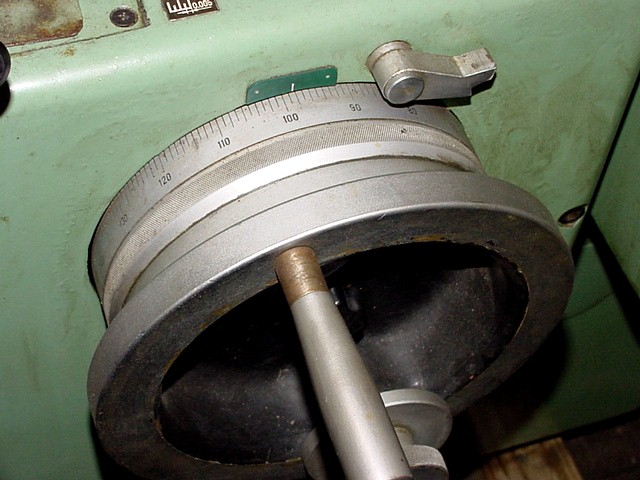

WHEELHEAD MOVEMENT PER REV. OF
HANDWHEEL ............................. 0.04"
WHEELHEAD, HANDWHEEL DIV. ............. 0.00005"
AUTOMATIC INFEED PER TABLE REVERSAL ... YES
RAPID HYDRAULIC INFEED STROKE.......... 0.8"
SPEED OF RAPID MOVEMENT ............... 30" IPM.

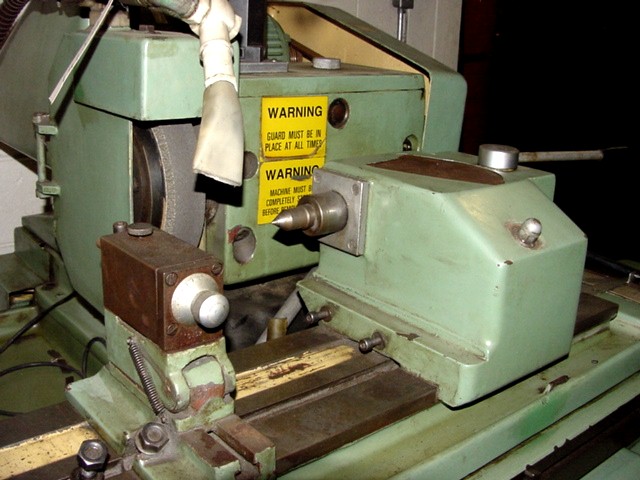

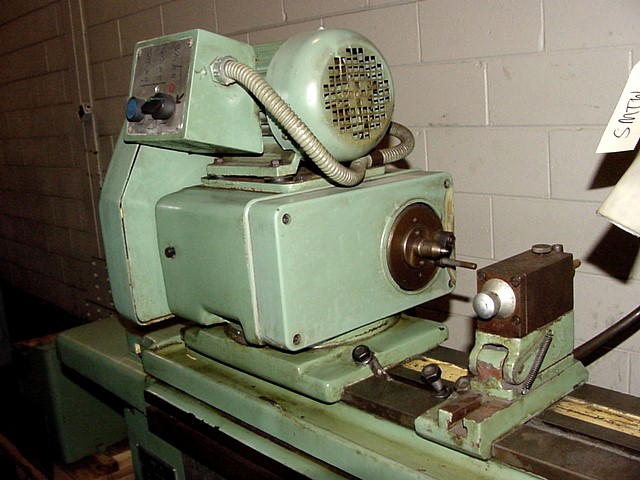

MOTORIZED WORKHEAD AND TAILSTOCK:
WORKHEAD SPINDLE SPEEDS (6 SPEEDS) .... 60 TO 450 RPM
WORKHEAD TAPER......................... #3 MT
WORKHEAD SPINDLE HOLE THRU DIA. ....... 0.512"
WORKHEAD SWIVEL RANGE.................. +/- 90 DEGREES
TAILSTOCK TAPER........................ #3 MT
TAILSTOCK SPINDLE TRAVEL .............. 1"
APPROX. MACHINE WEIGHT ................ 4,630 LBS.
APPROX. DIMS. ........................ 79" x 56" 63"H
MACHINE FEATURES:
HYDRODYNAMIC WHEELHEAD BEARINGS
HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED @ TABLE REVERSAL
AUTOMATIC PLUNGE INFEED
HYDRAULIC RAPID WHEELHEAD ADVANCE/RETRACTION
DUAL LIVE/DEAD HEADSTOCK SPINDLE

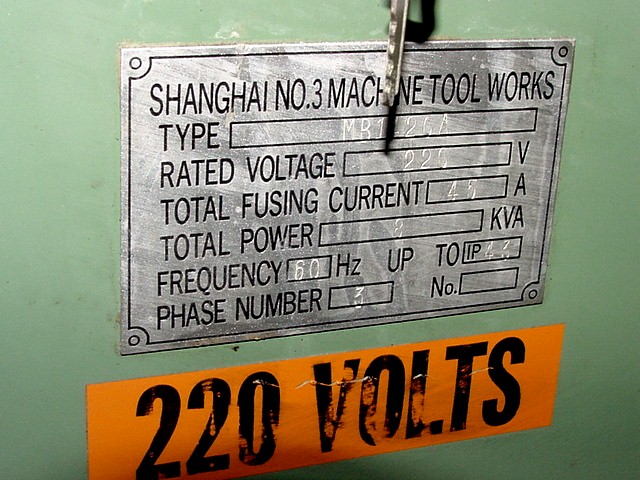

3 - 4 H.P. (2.2/3 KW) 3/60/230-460 VOLTS WHEELHEAD MOTOR

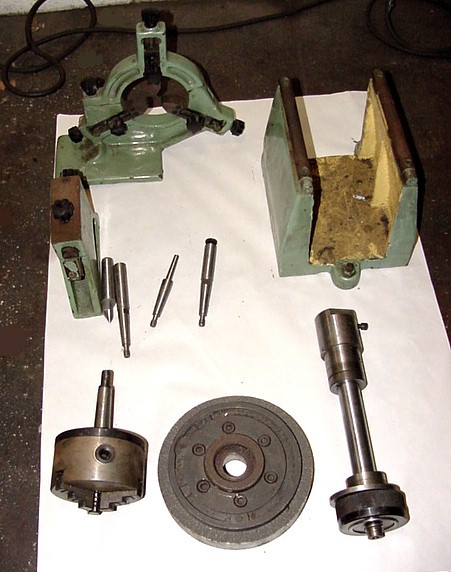

EQUIPPED WITH:
SWING AROUND INTERNAL GRINDING ATTACHMENT

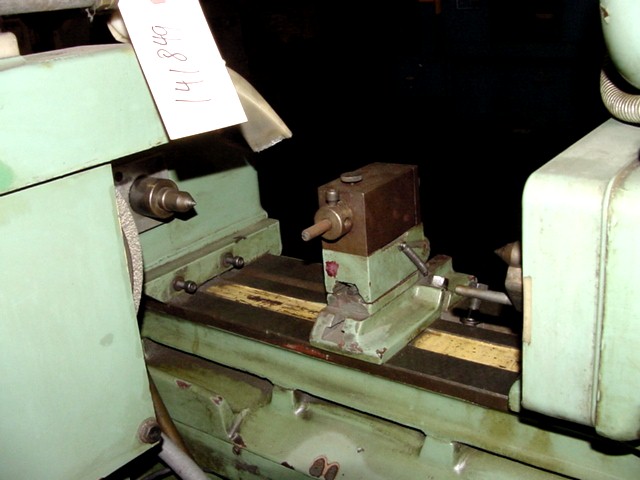

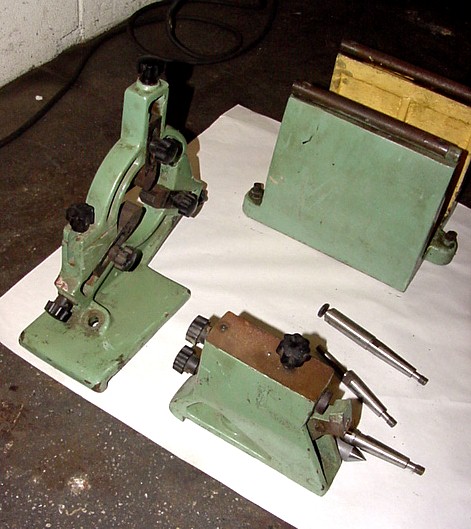

(1) 3-POINT STEADY REST
(1) 2-POINT STEADY RESTS
SWING BACK TABLE MOUNTED WHEEL DRESSER w/MICROMETER FINE
FEED ADJUSTMENT
5" 3-JAW CHUCK MOUNTED ON ADAPTOR

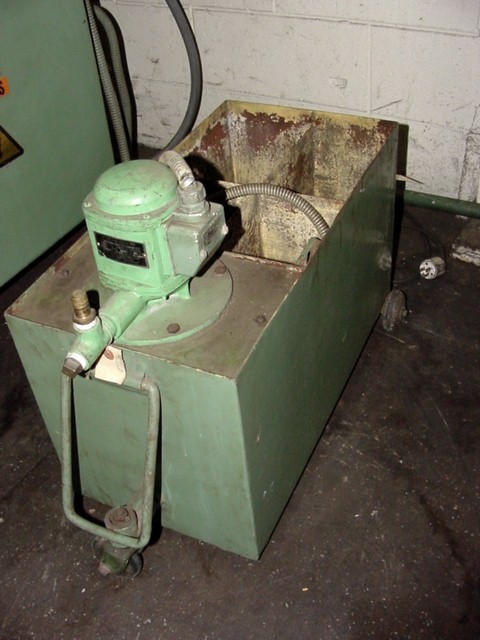

EXTERNAL COOLANT TANK & PUMP
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** ORIGINAL PAINT - EXCEPTIONAL APPEARANCE & CONDITION **
