Reference Number: 141851

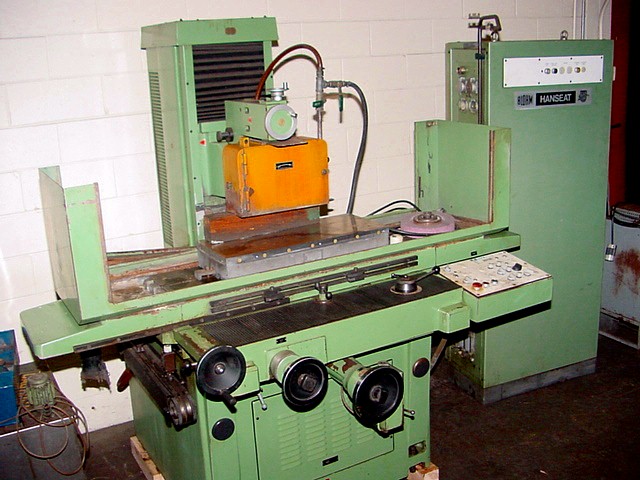

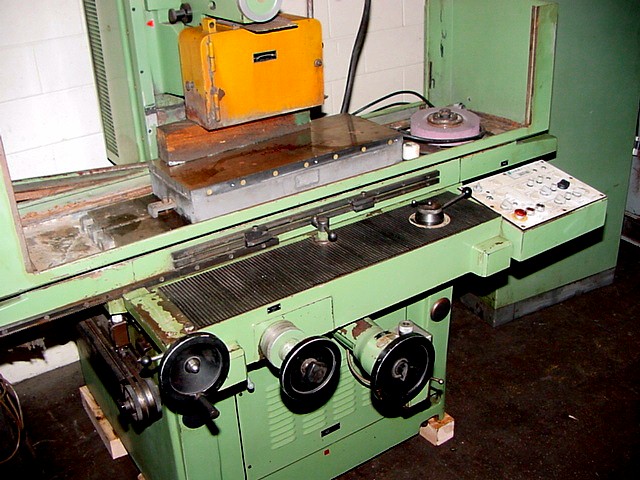

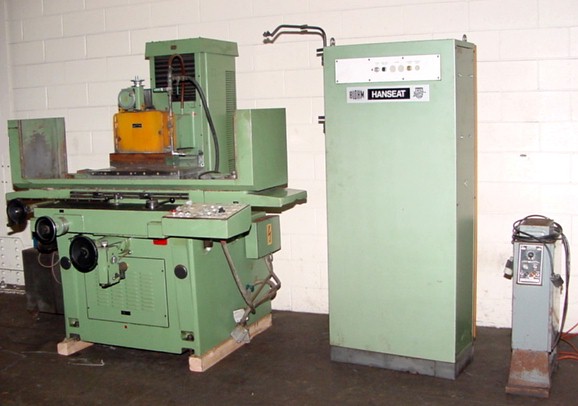

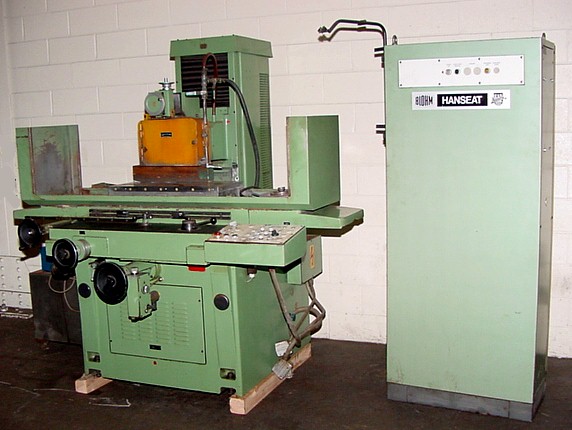

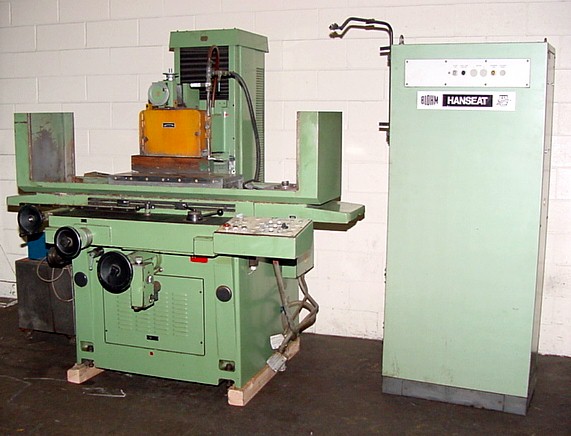

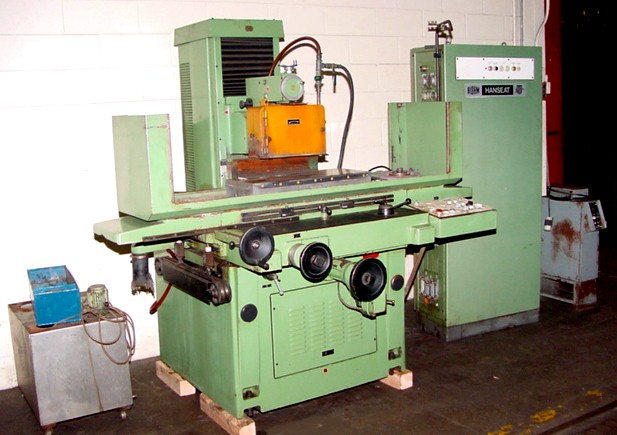

12" X 28" BLOHM "HIGH-PRECISION" (MADE IN GERMANY)Price: On Request
SURFACE GRINDER W/AUTOMATIC INCREMENTAL DOWNFEED

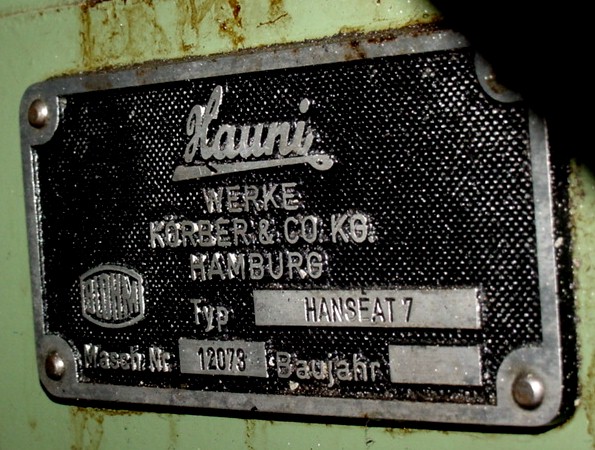

MODEL: HANSEAT 7 S/N: 12079 NEW: 1984
SPECIFICATIONS:
WORKTABLE SIZE.............................. 12" X 28"
MAX. DISTANCE TABLE TO SPINDLE CENTER ............ 23"
WHEEL SIZE ............................. 14" X 2" X 5"
LONGITUDINAL TABLE TRAVEL ........................ 30"
CROSS TRAVEL, AUTOMATIC/MANUAL ............... 13"/14"
VERTICAL TRAVEL ............................. 19- 1/4"
LONGITUDINAL TABLE SPEED .............. 6'6 - 98'6 FPM
AUTO CROSSFEED PER TABLE REVERSAL ........ 0.08" - 2.5"
CROSS HANDWHEEL, GRAD. ........................ 0.001"
AUTO INCREMENTAL DOWNFEED ........... 0.0004" TO .001"
RAPID VERTICAL POWER POSITIONING............... 40 IPM
VERTICAL HANDWHEEL, GRAD. .................... 0.0005"
FINE FEED KNOB, GRADUATED TO ................ 0.00005"
APPROX. MACHINE WEIGHT ..................... 6,000 LBS
EQUIPPED WITH:
AUTOMATIC INCREMENTAL DOWNFEED
HYDRAULICALLY ACTUATED LONGITUDINAL FEED
POWER ELECTRIC CROSSFEED
POWER RAPID TRAVERSE OF GRINDING WHEELHEAD

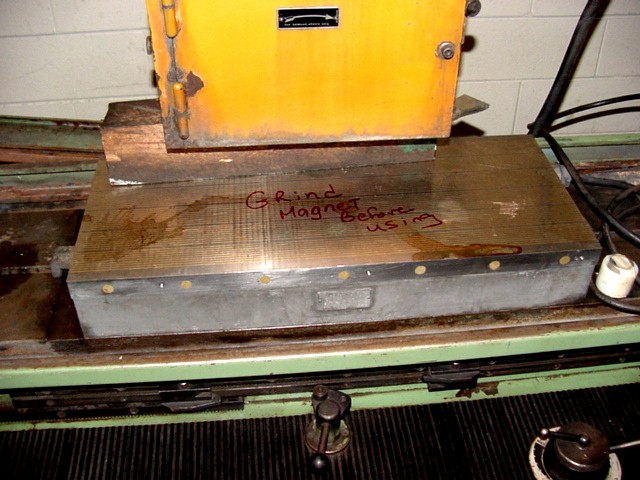

11- 3/4" X 27- 1/2" "ULTRA" FINE-DIVISION ELECTROMAGNETIC
CHUCK WITH VARIABLE HOLD NEUTROFIER CONTROL
(1) GRINDING WHEEL MOUNT

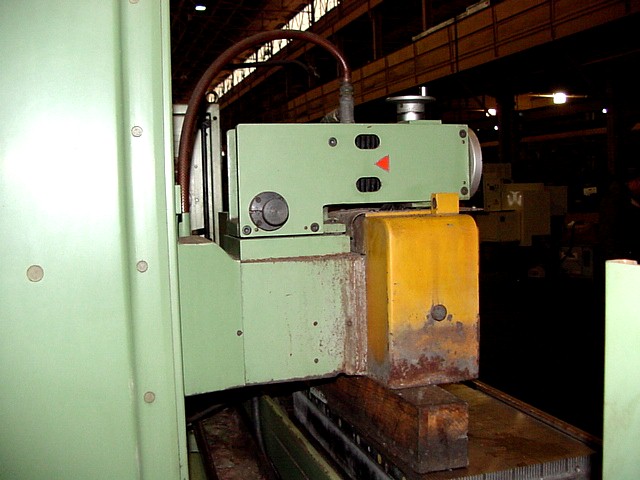

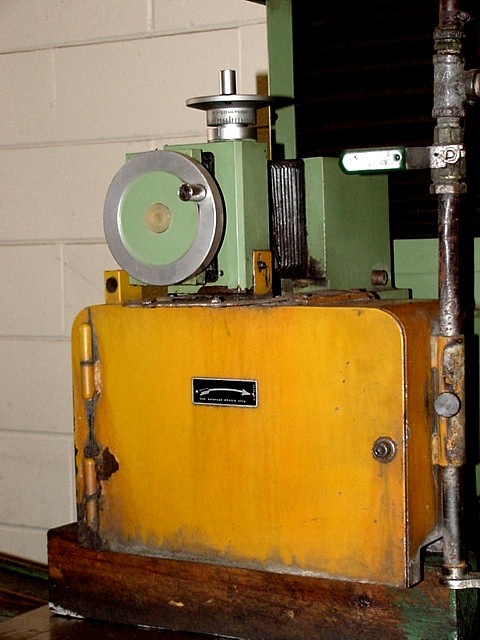

OVER-THE-WHEEL DRESSER
EXTERNAL COOLANT PUMP AND TANK
5.5 HP 3/60/230-460 VOLT DIRECT DRIVE SPINDLE DRIVE MOTOR

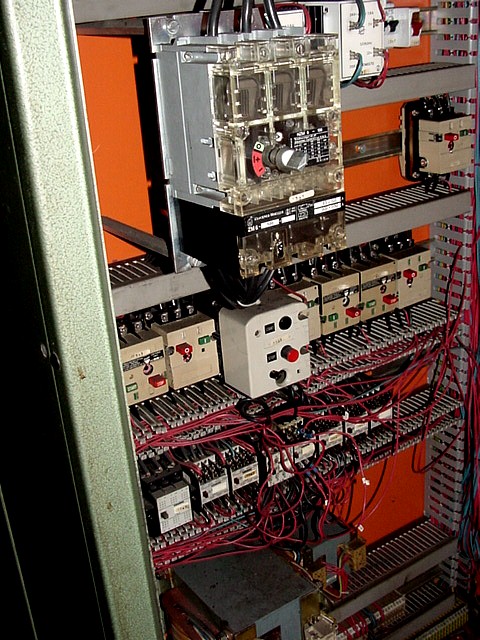

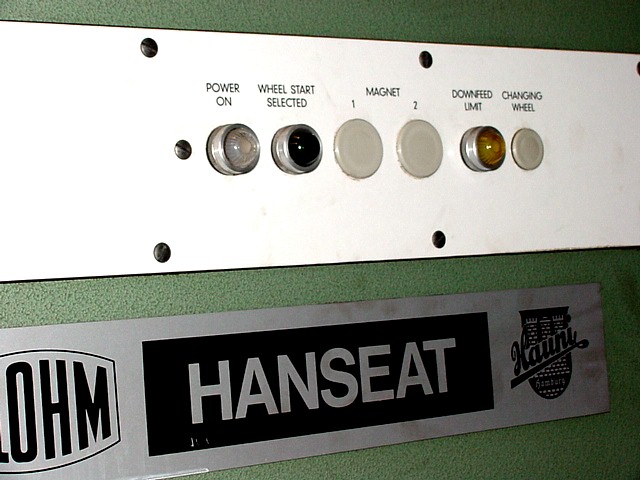

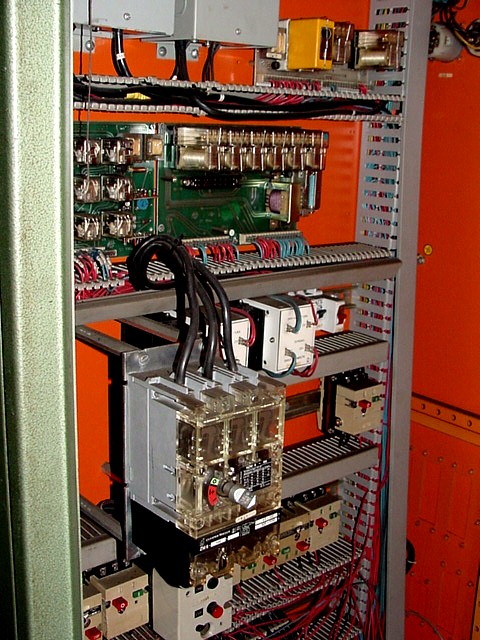

SEPERATE ELECTRICAL CABINET

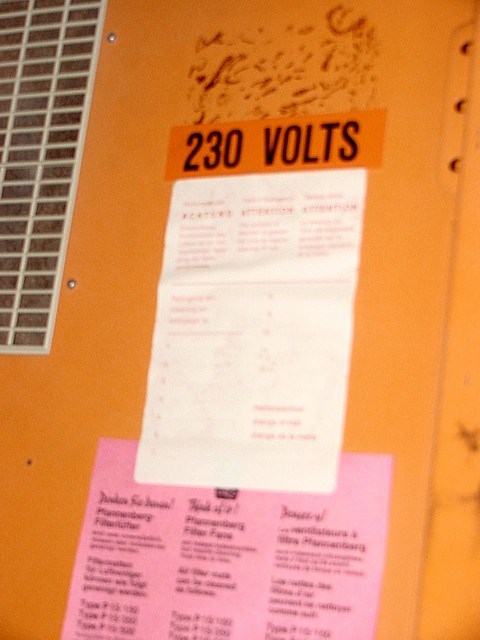

MACHINE IS PRESENTLY WIRED FOR 230 VOLTS
** EXCELLENT CONDITION **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
