Reference Number: 141887

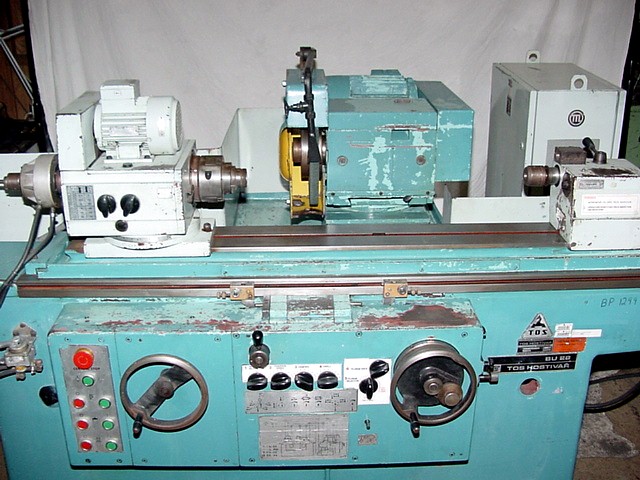

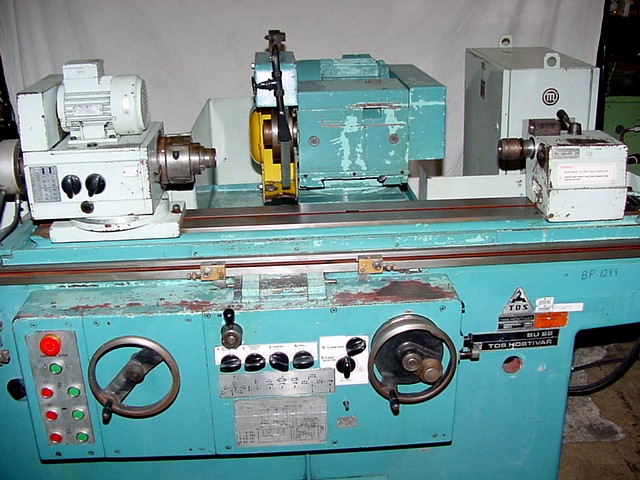

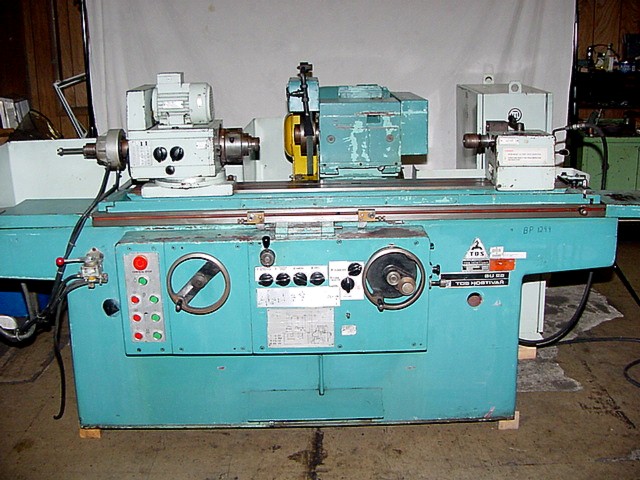

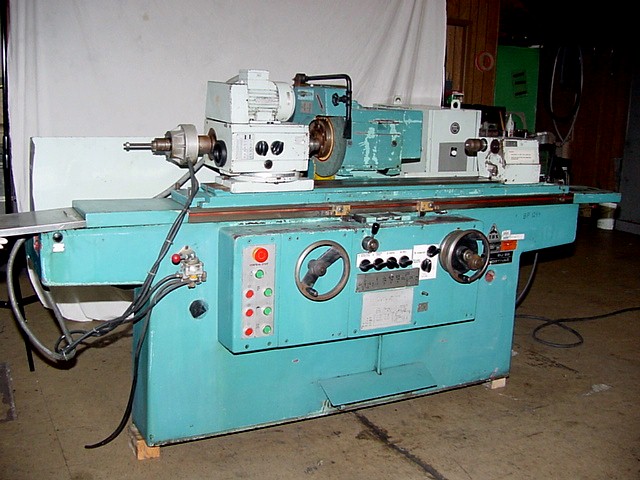

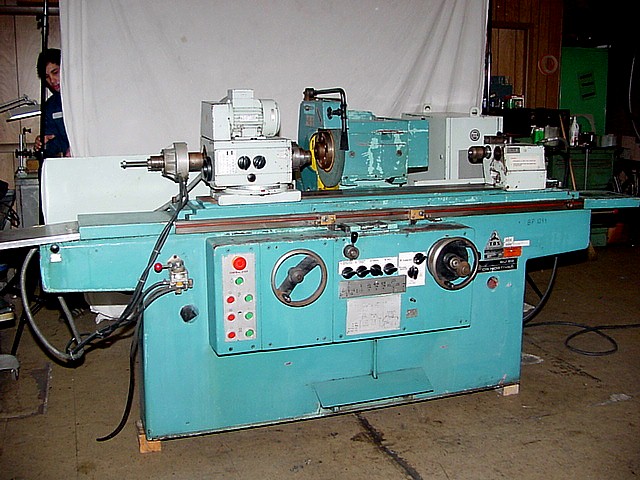

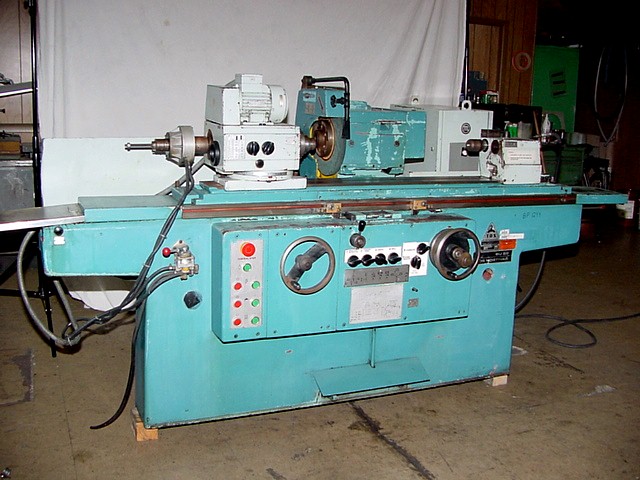

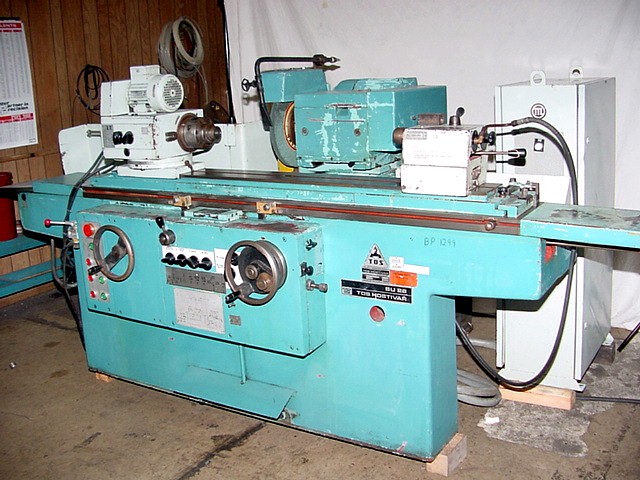

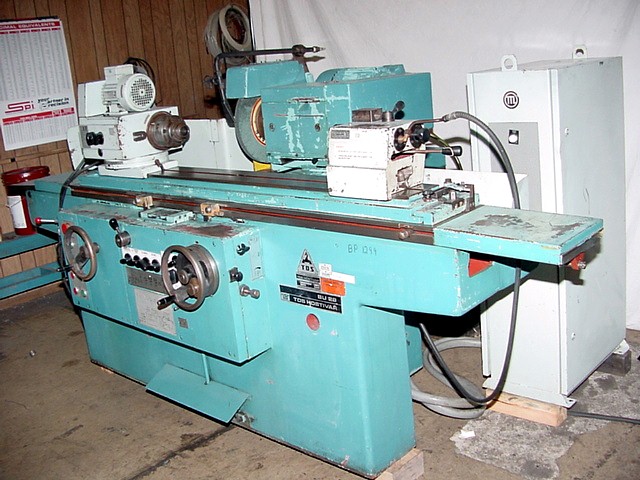

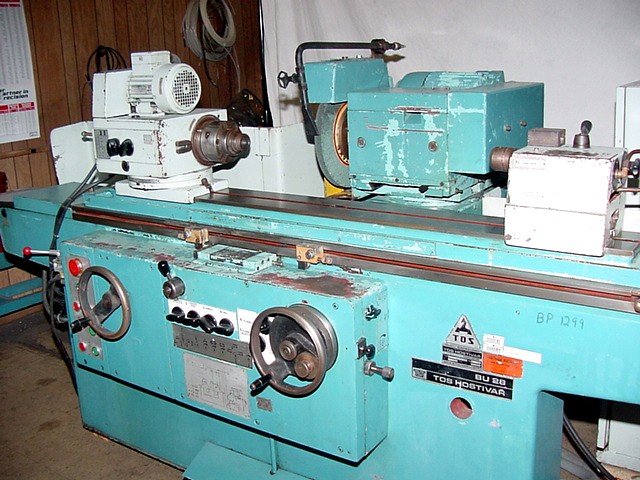

11- 1/2" X 40" TOS HOSTIVAR UNIVERSAL CYLINDRICAL GRINDERPrice: On Request

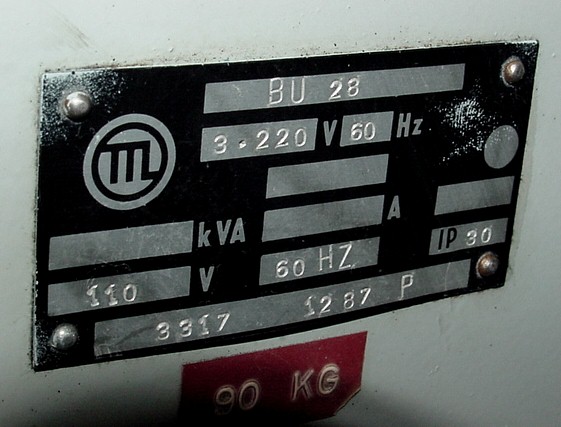

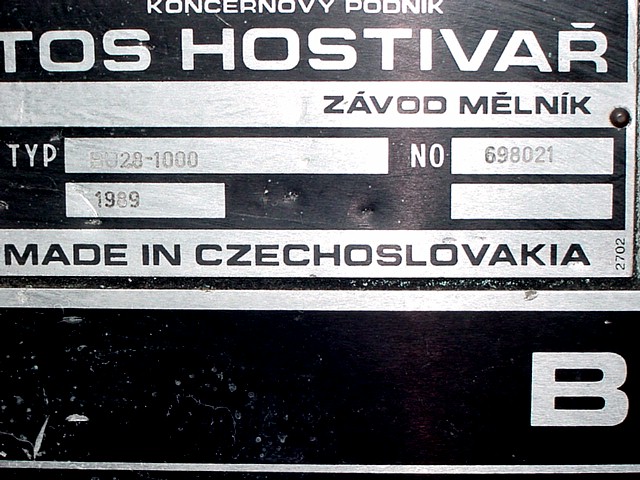

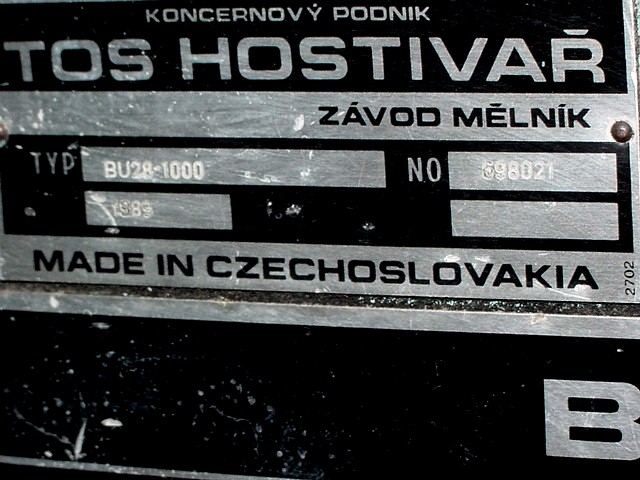

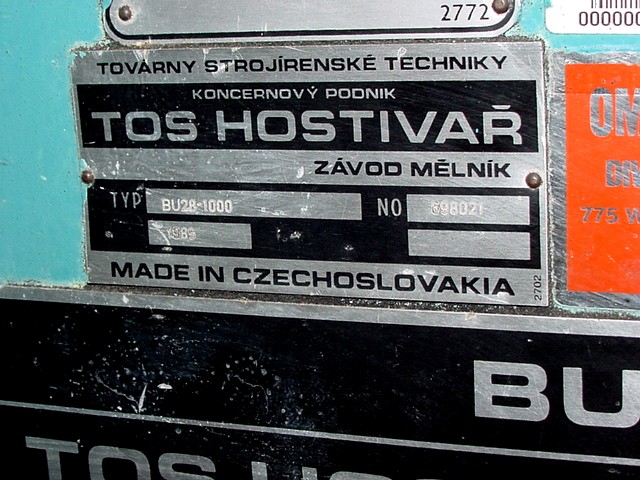

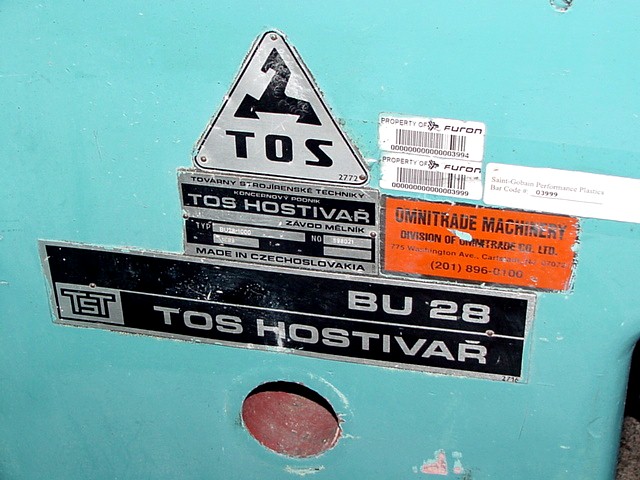

MODEL: BU28 S/N: 698021 NEW: 1989
MAX. GRINDING DIAMETER ................. 11- 1/2"
DISTANCE BETWEEN CENTERS ............... 40"

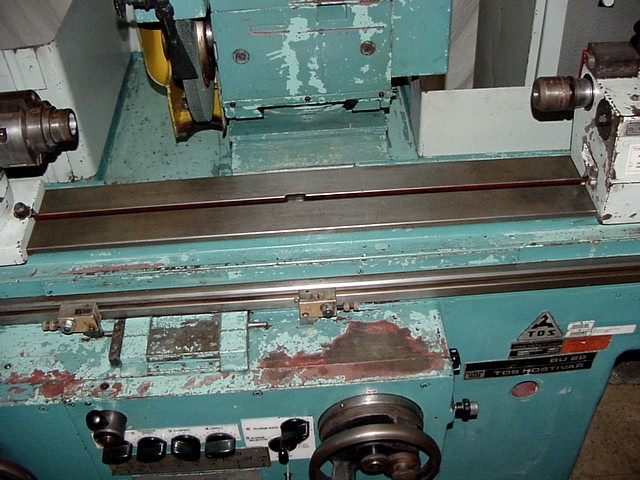

MAX TABLE TRAVEL .................. .... 51"
TABLE SWIVELS .......................... 8 DEG CW
3 DEG CCW
HYDRAULIC TABLE TRAVERSE ............... 2" TO 275"
AUTOMATIC INFEED OF GRINDING WHEEL
PER TABLE REVERSAL .................... 0.0002" - .0012"
HYDRAULIC RAPID TRAVERSE (STROKE) ...... 1- 5/8"

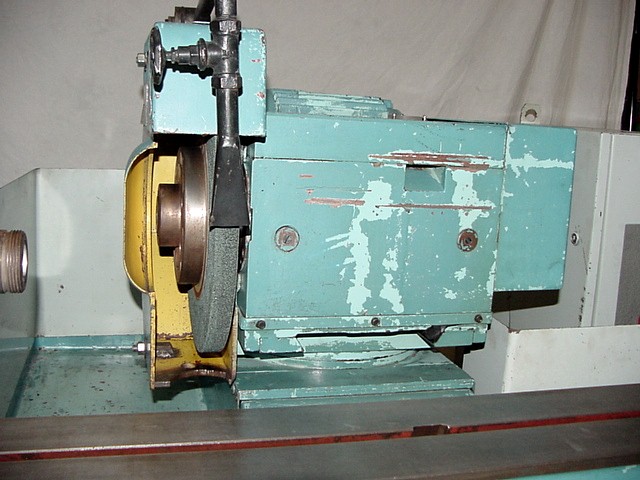

WHEELHEAD SWIVELS, LEFT & RIGHT ........ 45 DEGREES

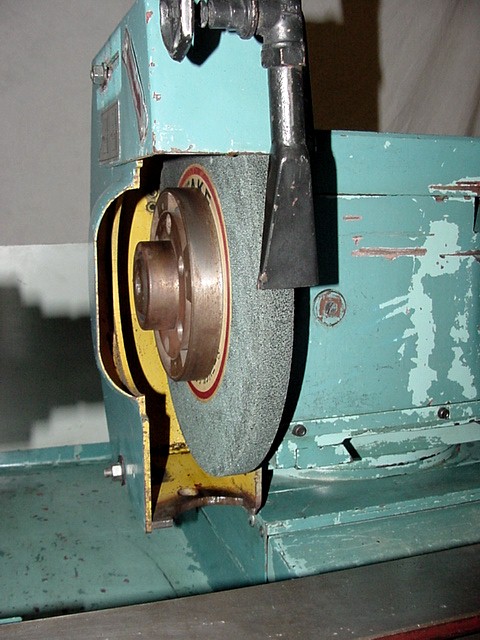

GRINDING WHEEL DIMENSIONS .............. 16" X 1- 1/2"
X 5"
MINIMUM GRINDING WHEEL DIAMETER ........ 10"
MAX. WIDTH OF GRINDING WHEEL ........... 2- 1/2"
GRINDING WHEEL SPEEDS (2) .............. 1570 & 2050 RPM
WORKHEAD SPINDLE TAPER ................. #4 MT

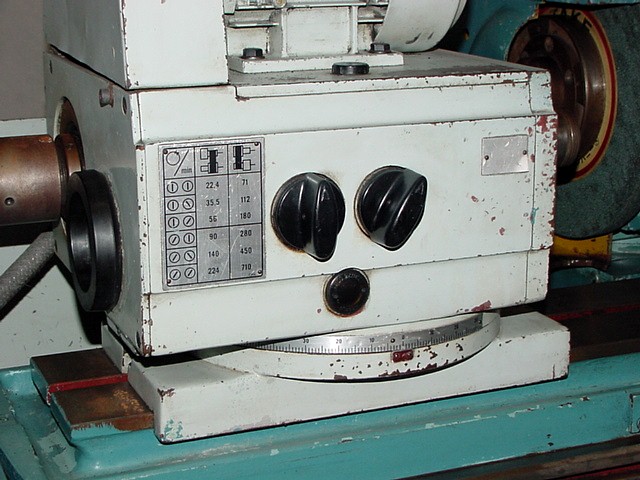

WORKHEAD SPINDLE SPEED RANGE ........... 22.4 TO 710 RPM
SWIVEL OF WORKHEAD ..................... 90 DEGREES
WHEELHEAD MOTOR ........................ 5.5 H.P.
TAILSTOCK SPINDLE TAPER ................ #3 MT
APPROX. FLOOR SPACE REQUIRED ........... 108" X 63"
APPROX. MACHINE WEIGHT ................. 5,500 LBS.
MACHINE FEATURES:
HYDRAULIC TABLE TRAVERSE
AUTO INFEED AT TABLE REVERSALS

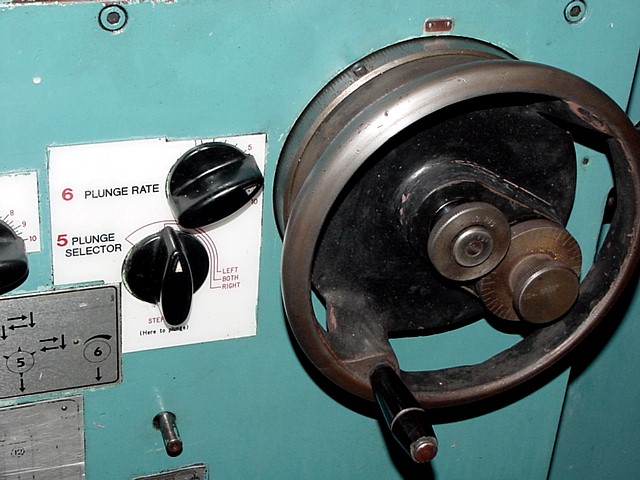

AUTO PLUNGE INFEED
POWER RAPID WHEELHEAD ADVANCE & RETRACTION
DUAL LIVE/DEAD WORKHEAD SPINDLE
HYDRAULIC TAILSTOCK
EQUIPPED WITH:

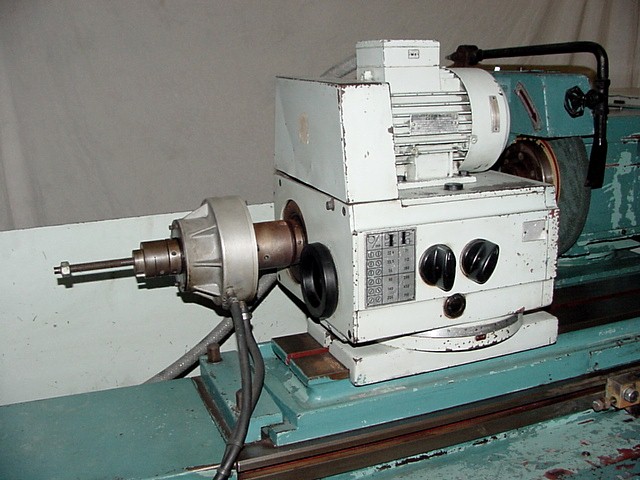

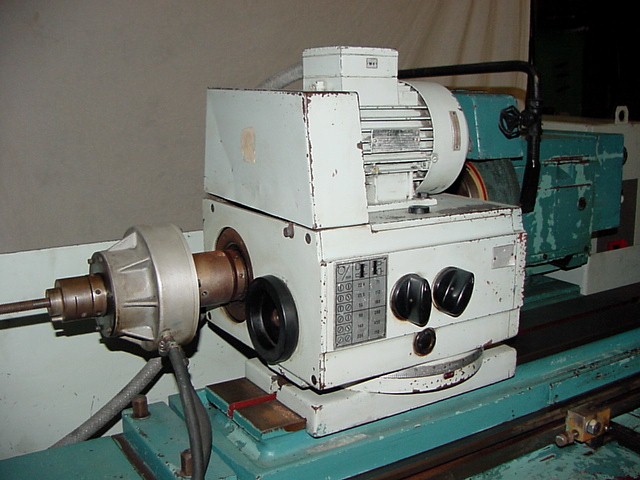

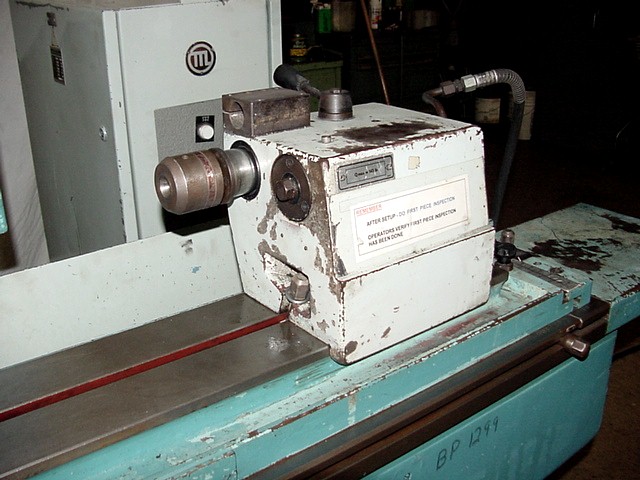

PNEUMATIC COLLET CLOSER, SET-UP FOR 5C COLLETS, MADE BY
"POWERHOLD" INC. OF MIDDLEFIELD, CT (MODEL #3B)
SEPERATE ELECTRICAL CABINET
MACHINE IS WIRED FOR 3/60/220-440 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE **
