Reference Number: 141901

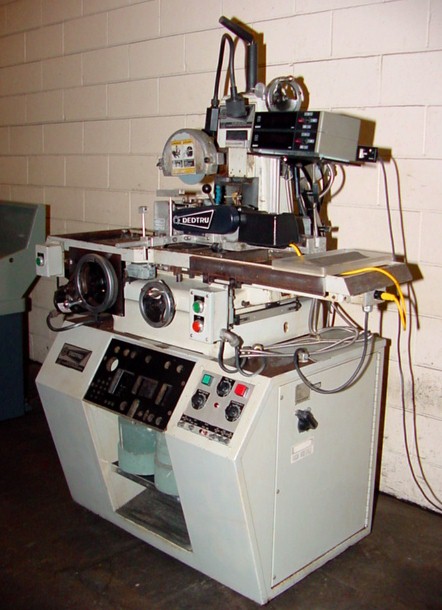

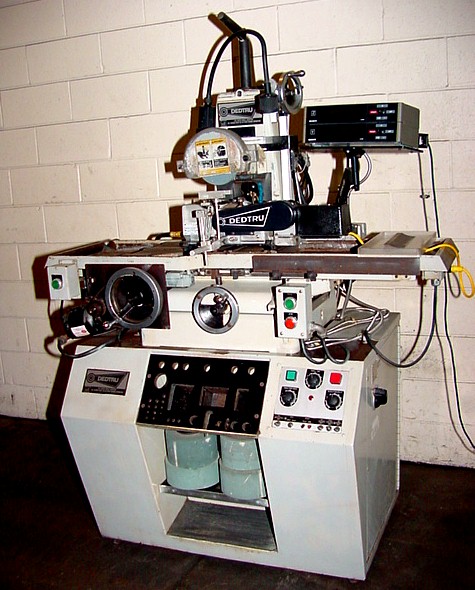

 UNISON "DEDTRU" CENTERLESS GRINDER

 MODEL: 288-0000    S/N: 5497-3010     NEW: 1984

 VERTICAL WORKING HEIGHT (CENTER OF SPINDLE ABOVE)
  REGULATING ROLL ................................. 10"
 CROSS FEED TRAVEL .............................. 6-3/4"
 LONGITUDINAL TRAVEL ............................... 18"
 TABLE SIZE ................................... 6" X 18"
 WORKPIECE SIZE:
  O.D. WORK WITH BASIC EQUIPMENT ....... 1/4" TO 1-1/4"
  O.D. WORK W/STD. OPTIONAL ACCESSORIES .. 0.031" TO 5"
  I.D. WORK - MAXIMUM O.D. ......................... 5"
 MAXIMUM WHEEL DIAMETER ............................. 8"
 MAXIMUM WHEEL LENGTH ............................... 3"
 APPROXIMATE MACHINE WEIGHT .................. 1,500 LBS

 EQUIPPED WITH:
     UNISON MODEL "C4" DED-TRU CENTERLESS GRINDING UNIT
       -DESIGNED TO DO THROUGH FEED, O.D., I.D. AND
        SECOND OPERATIONS.
     REGULATING ROLL WITH ITS OWN SELF-CONTAINED DC
       DRIVE CONTROLLER. REGULATING ROLL SIZE 4" X 4"
     HARIG #618W SURFACE GRINDER BASE
     OPTIONAL FINE DOWNFEED KNOB (.0001" GRAD.)
     "AUTOMATIC LONGITUDINAL FEED CYCLE" - PROVIDES
       RAPID APPROACH TO WORK, SLOW DOWN TO FEED RATE,
       FEED TO POSITIVE STOP, DWELL FOR PRESET TIME, &
       AUTOMATIC RAPID CARRIAGE RETURN.  SLOW DOWN
       POSITION, FEED RATE, POSITIVE STOP, & DWELL TIME
       ARE ADJUSTABLE.  INCLUDES LIMIT SWITCH START & STOP
       CONTROL OF REGULATING ROLL.
     2-AXIS DIGITAL READOUT
     3 HP "POPE" SUPER-PRECISION DIRECT DRIVE SPINDLE
     SUPPLIED WITH HOLE THROUGH COLUMN FOR LONGER PARTS
     DUAL SINE BASE
     EXTERNAL COOLANT TANKS & PUMP (WITH FILTRATION)
     MACHINE IS PRESENTLY WIRED FOR 3/60/440 VOLTS

 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
 ** EXCEPTIONAL CONDITION & APPEARANCE (ORIGINAL PAINT) **
