Reference Number: 141905

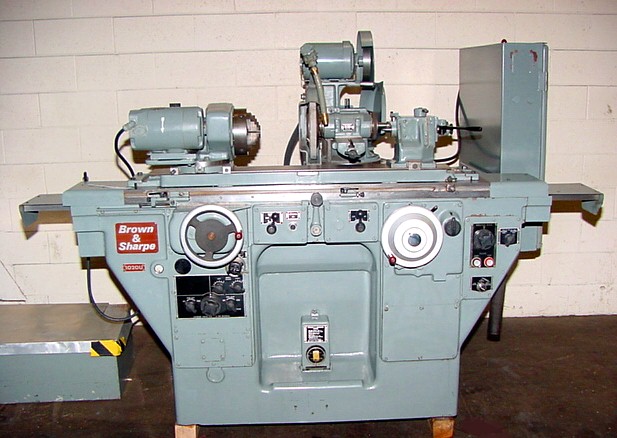

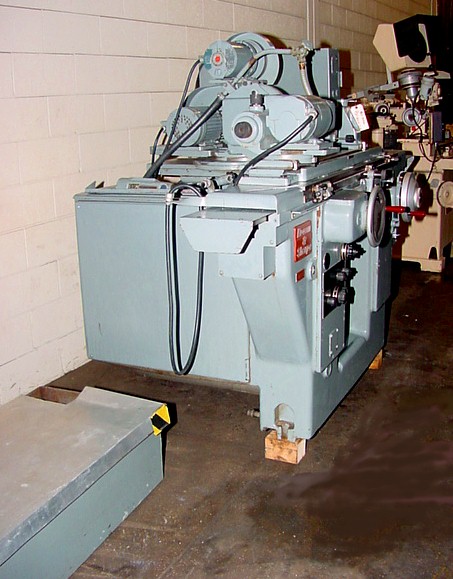

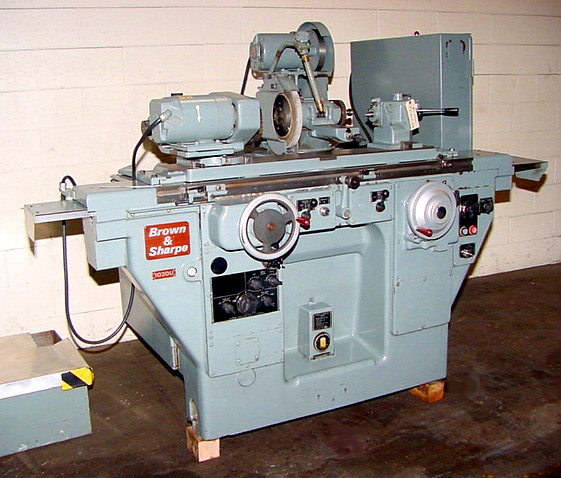

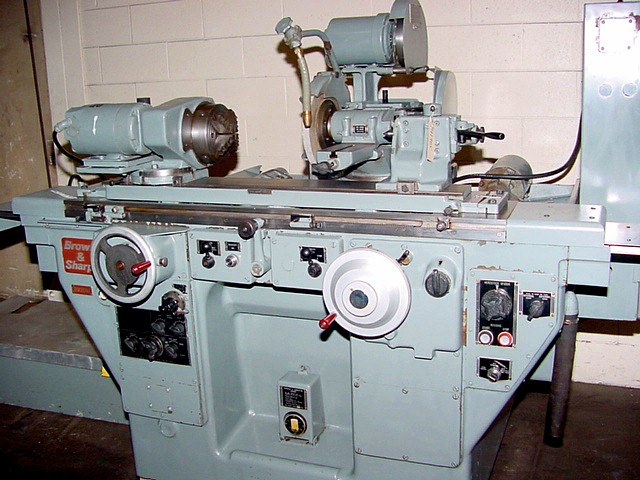

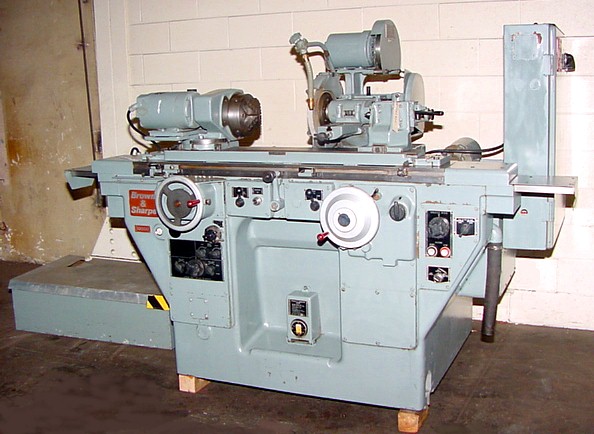

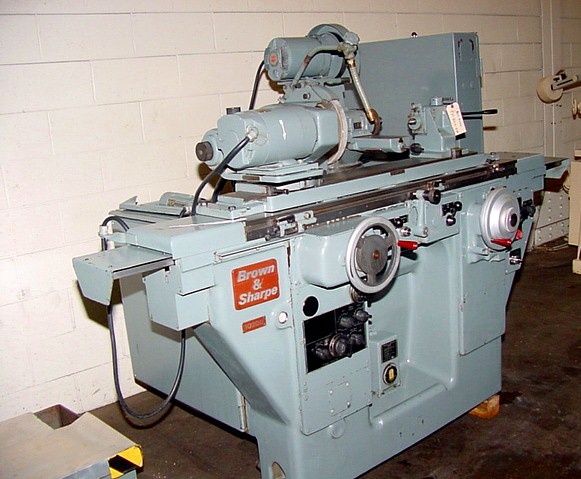

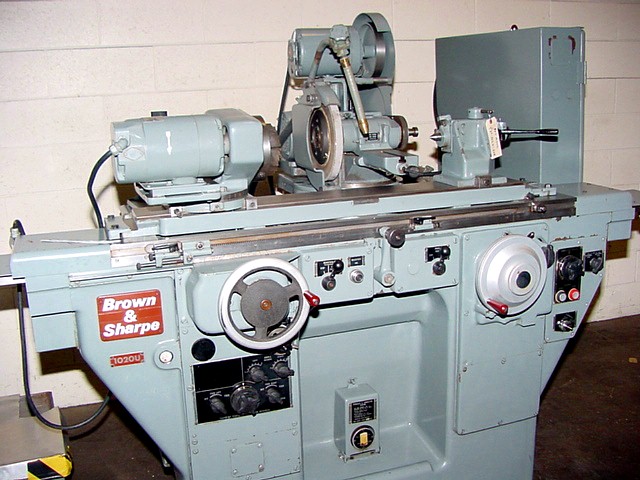

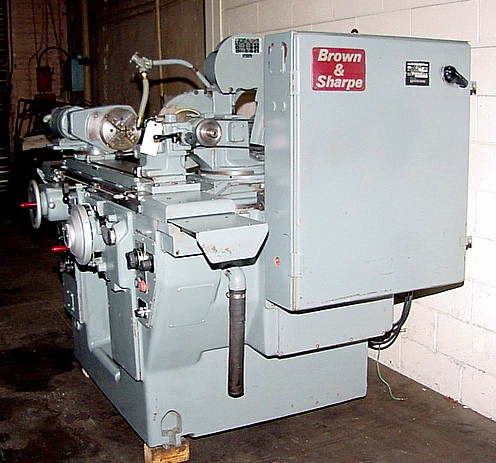

10" X 20" BROWN & SHARPE
 (MADE IN USA) "HIGH-PRECISION"
 UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

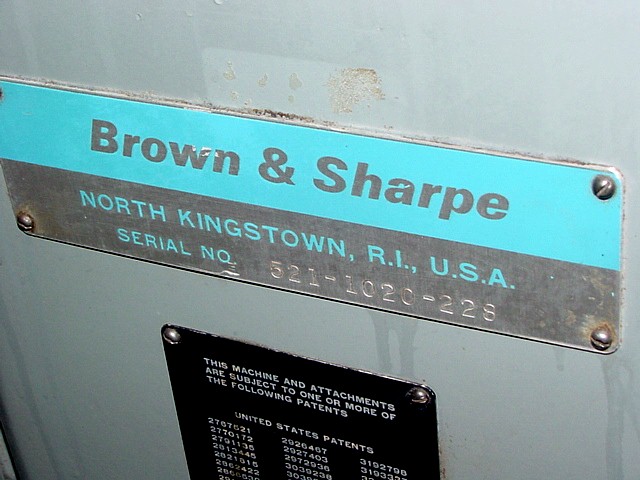

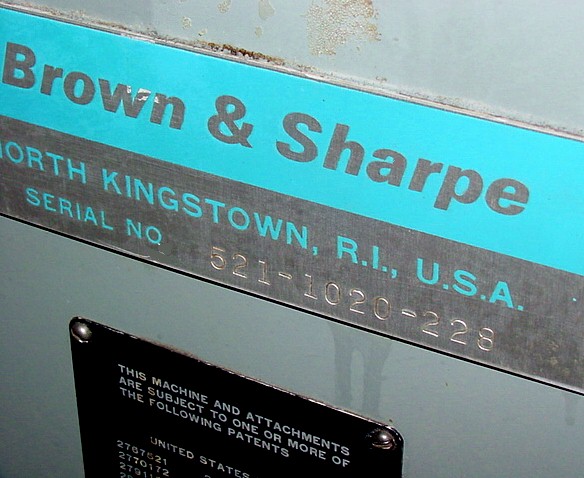

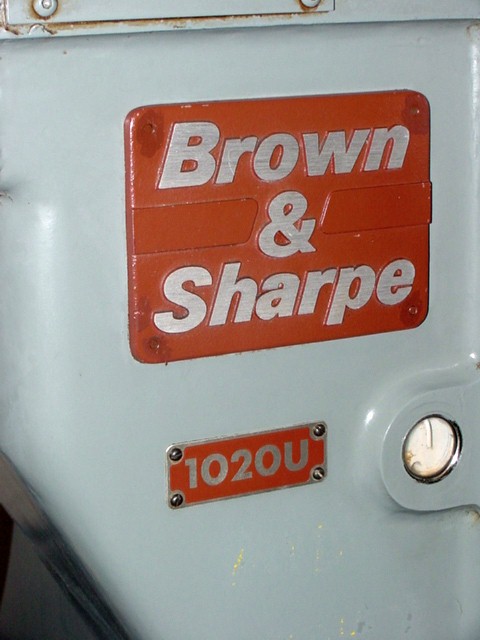

  MODEL: 1020U   S/N: 521-1020-228    NEW: 1975


  SWING OVER TABLE .................................... 10"
 DISTANCE BETWEEN CENTERS, NOMINAL .................... 20"
 DISTANCE BETWEEN CENTERS, MAXIMUM ................ 22-3/4"

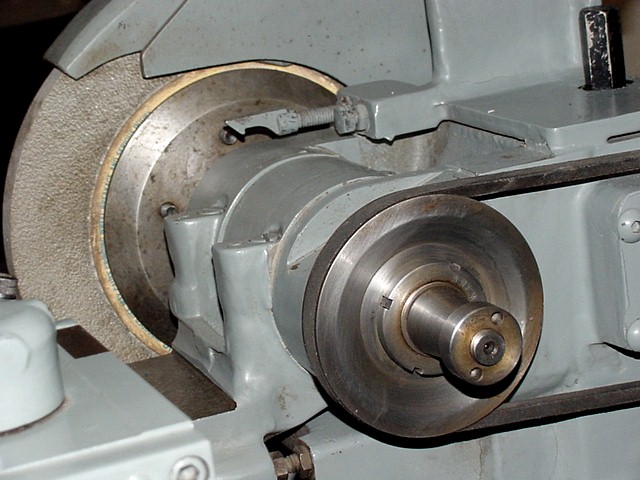

  WHEELHEAD SPINDLE SPEEDS (3) ...... 2100, 2400 & 2800 RPM
 GRINDING WHEEL SIZE ........................ 12" X 1" X 5"
 MINIMUM GRINDING WHEEL WIDTH ........................ 3/8"
 SWIVEL AT THE WHEELSLIDE ........... 90 DEGREES EITHER WAY
 WHEEL SPINDLE SWIVELS .............. 90 DEGREES EITHER WAY

  INFINITELY VARIABLE SPINDLE SPEEDS ........ 60 TO 600 RPM
 HEADSTOCK SPINDLE NOSE TAPER ....................... A2-5"
 HEADSTOCK SWIVELS EITHER SIDE OF ZERO ......... 90 DEGREES

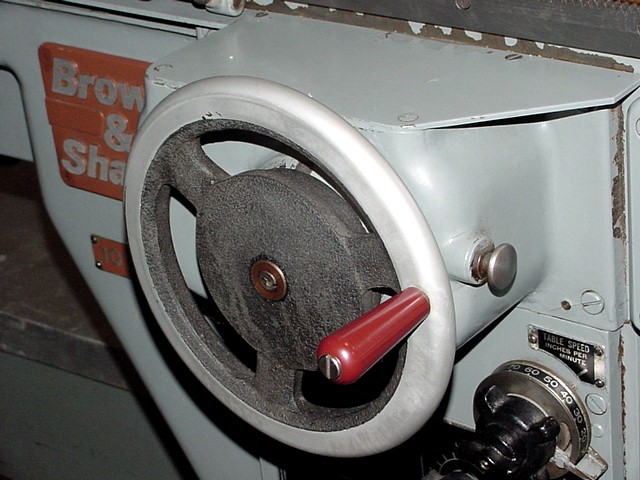

  INFINITELY VARIABLE TABLE SPEED .......... 3" TO 150" IPM
 TABLE PER REV. OF HANDWHEEL:
 SLOW ................................................ 0.1"
 FAST ................................................ 1.5"

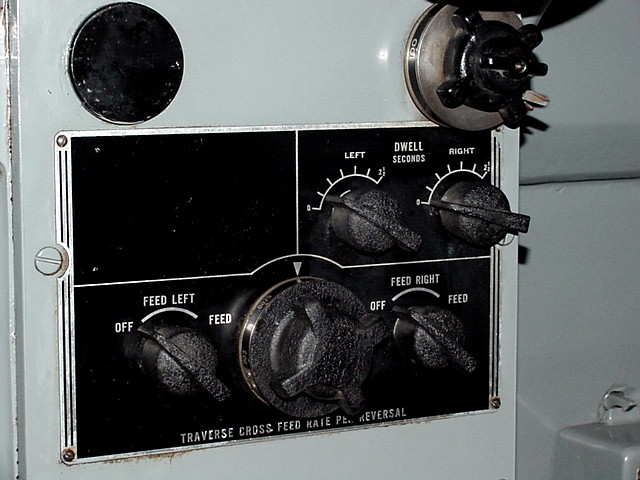

 DWELL AT EACH OR ALTERNATE TABLE REV. ..... 0 - 2-1/2 SEC.

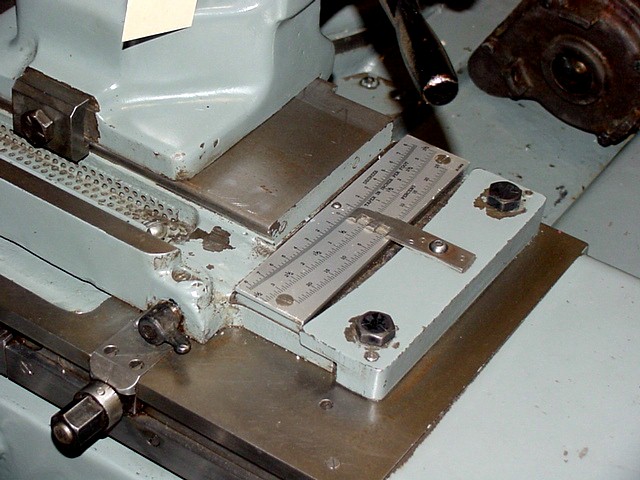

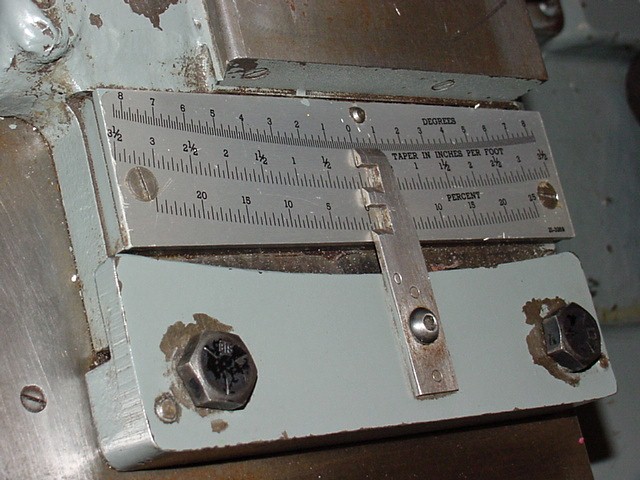

 TABLE SWIVEL, SCALES FOR ANGULAR SETTING ...... 8-1/4 DEG.
 SCALES-TAPER PER FT. .............................. 3-1/2"

  MAX. TRAVEL OF WHEELSLIDE ............................ 5"
 CROSSFEED HANDWHEEL GRAD. ....................... 0.00002"

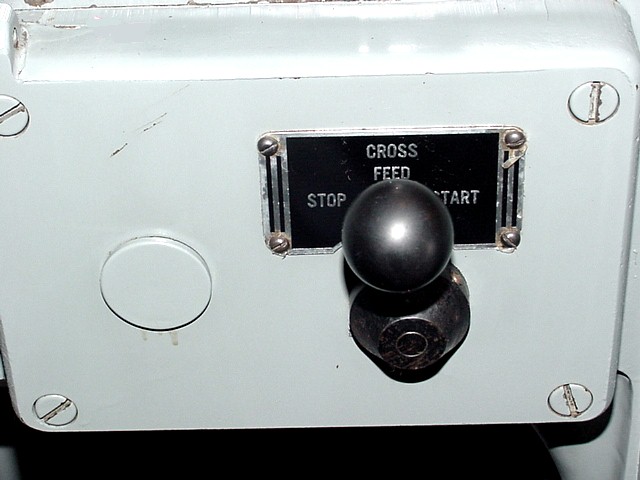

 AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER
  OR WORK AT EACH OR ALTERNATE REVERSALS .. 0.0001" - .003"
 HAND FEED PER REV. OF HANDWHEEL:
 SLOW ................................................ 0.1"
 FAST ................................................ 0.3"

  TAILSTOCK SPINDLE TAPER .........................#7 JARNO
 TAILSTOCK SPINDLE TRAVEL ............................ 5/8"

  APPROXIMATE WEIGHT ............................ 5,100 LBS

 MACHINE FEATURES:
 DUAL RIGHT OR LEFT END WHEEL MOUNTING
 SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL
  SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN
  COMBINATION STRAIGHT AND TAPER GRINDING,
  EXTERNAL OR INTERNAL.

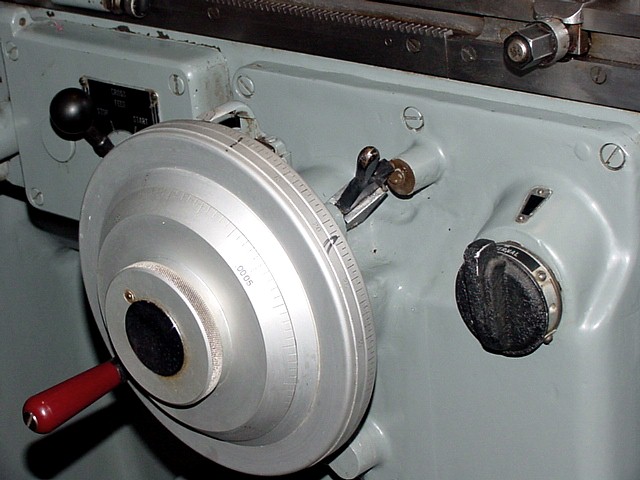

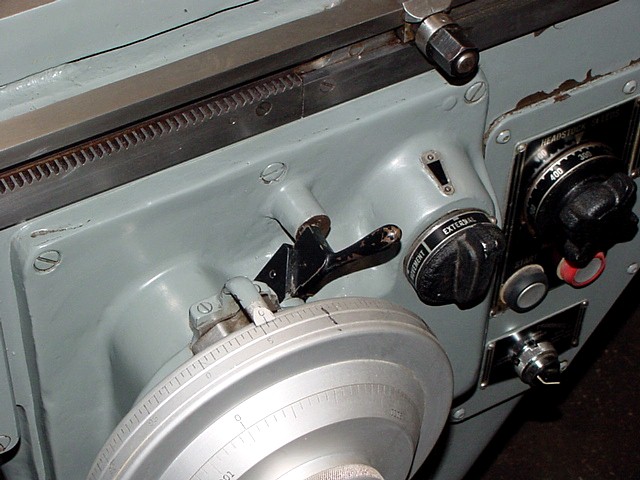

 INFEED HANDWHEEL GRADUATED TO READ TO 0.000020"
 HYDRAULIC TABLE TRAVERSE
 AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS

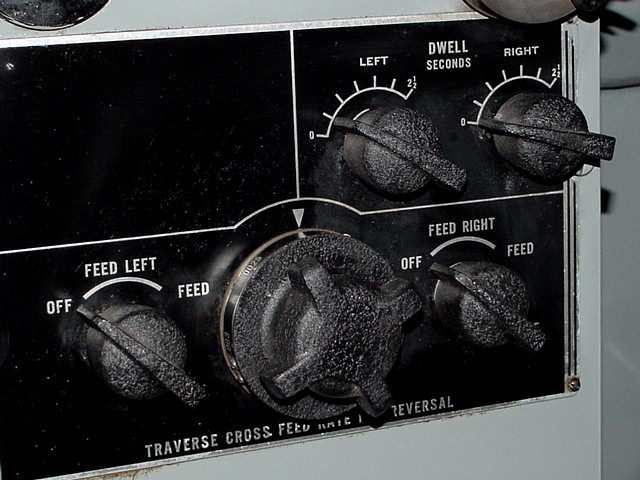

 ADJUSTABLE TABLE DWELL
 DUAL LIVE/DEAD WORKHEAD SPINDLE

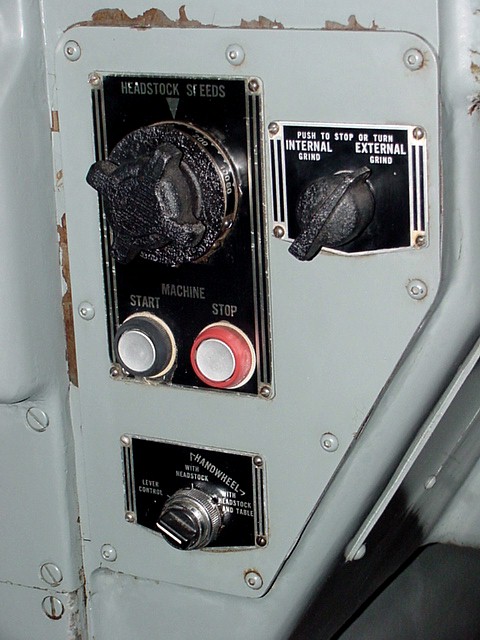

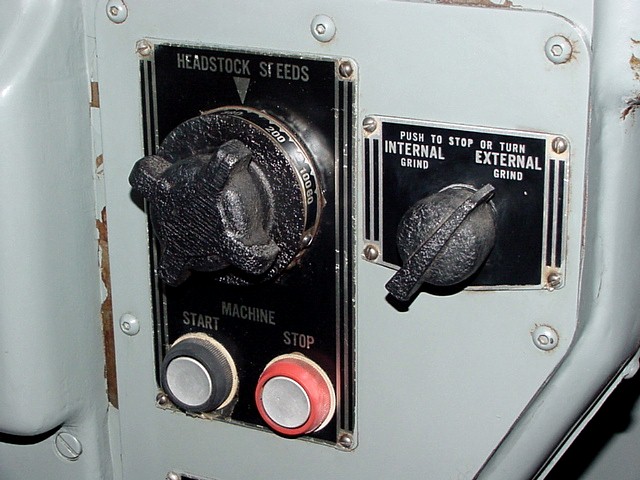

 WORKHEAD HAS INFINITELY VARIABLE SPINDLE SPEEDS

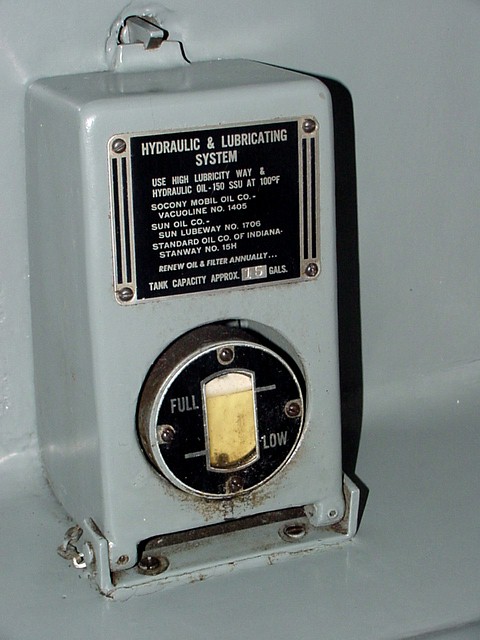

 SELF-CONTAINED HYDRAULIC SYSTEM
 OIL CHILLER UNIT (FAN COOLED)


 EQUIPPED WITH:

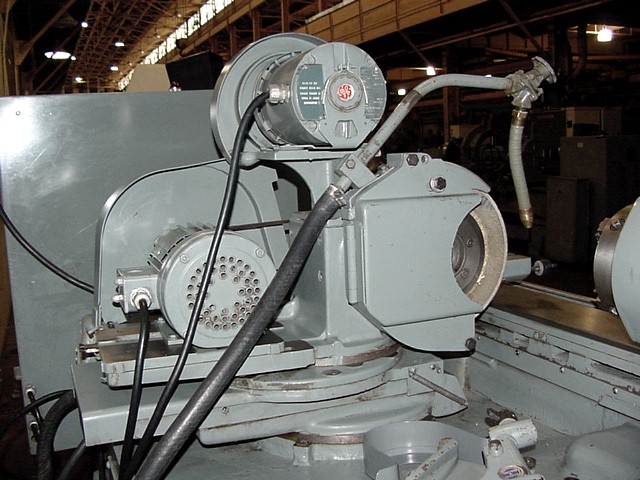

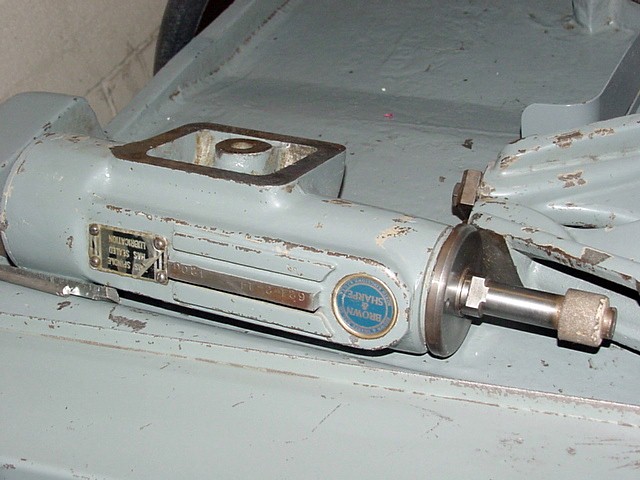

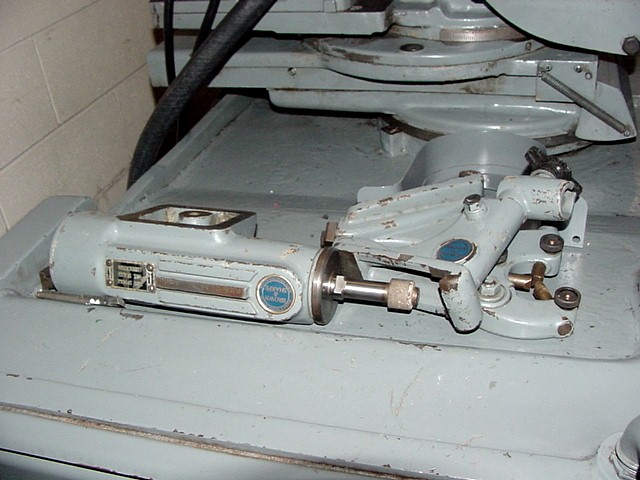

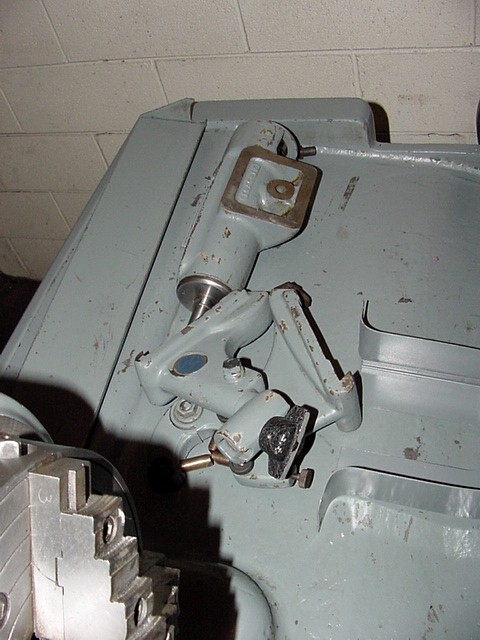

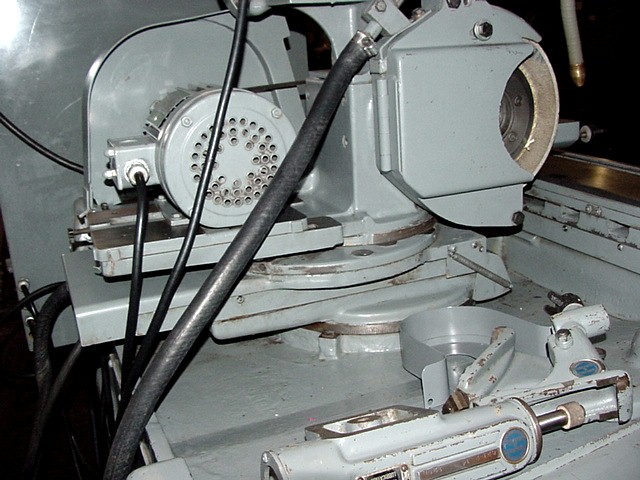

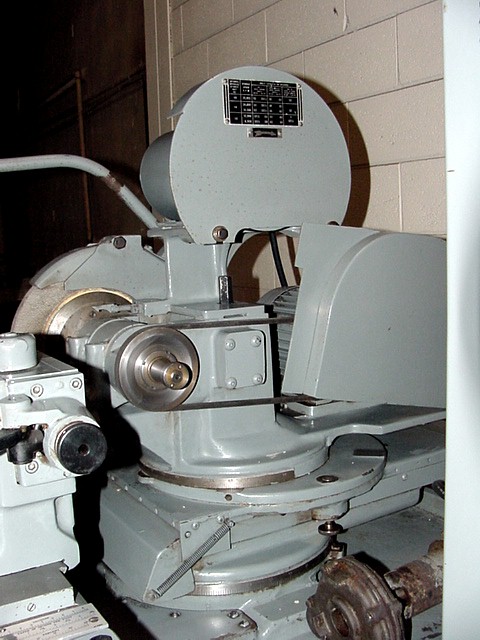

 SWING DOWN INTERNAL GRINDING ATTACHMENT W/SPINDLE

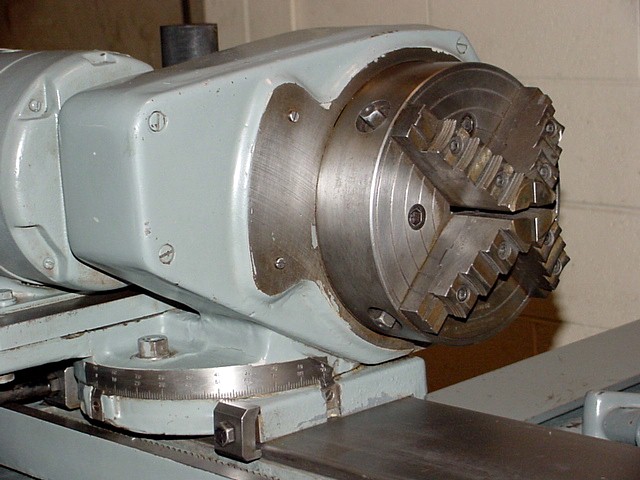

 4-JAW CHUCK MOUNTED ON WORKHEAD
 3POINT STEADY REST

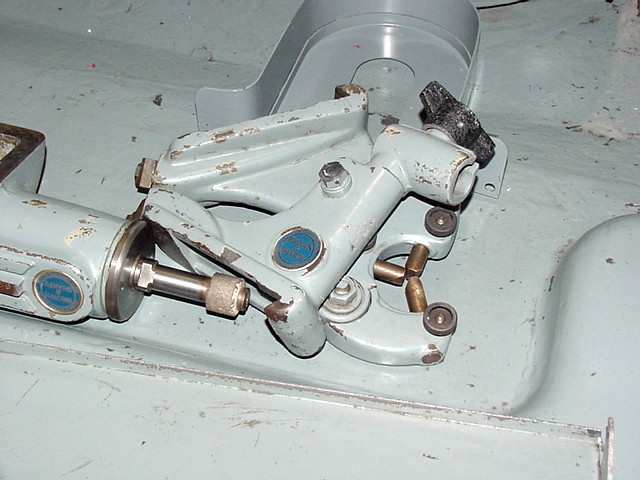

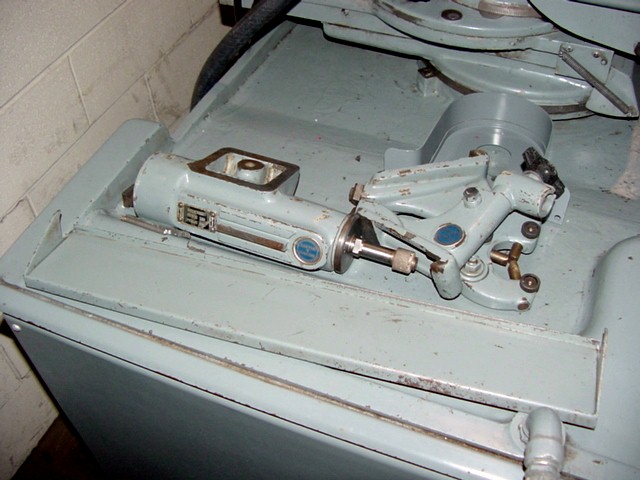

 TABLE MOUNTED DRESSER

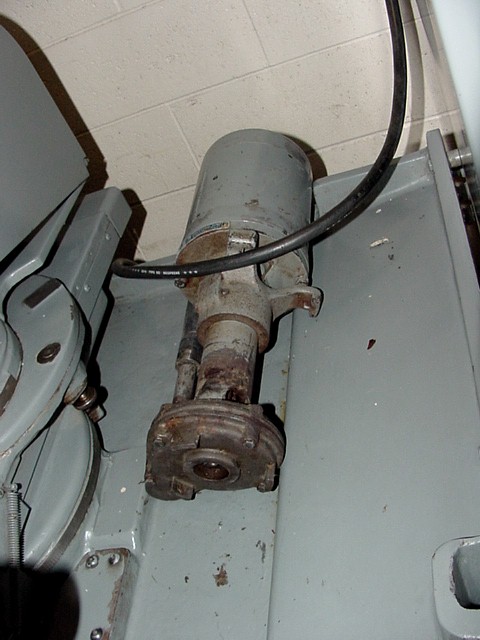

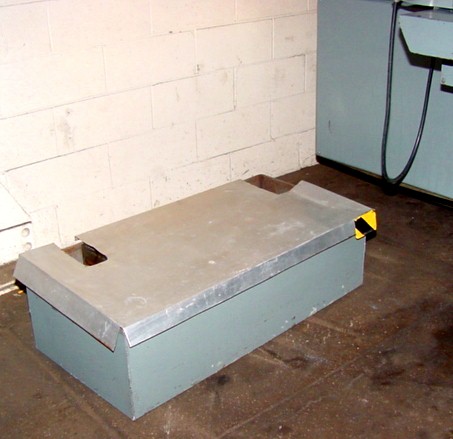

 EXTERNAL COOLANT SYSTEM

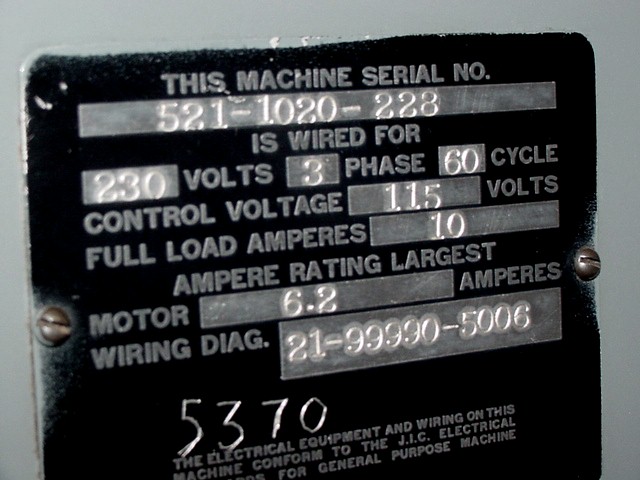

 MOTORS ARE 3/60/230-460 VOLTS


 ** MACHINE WAS USED IN A SCHOOL. THIS MACHINE
    IS UNUSUALLY PRISITINE, WITH VERY LOW HOURS! **

  ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
 ** NEARLY NEW CONDITION FROM A SCHOOL! **
