Reference Number: 141914

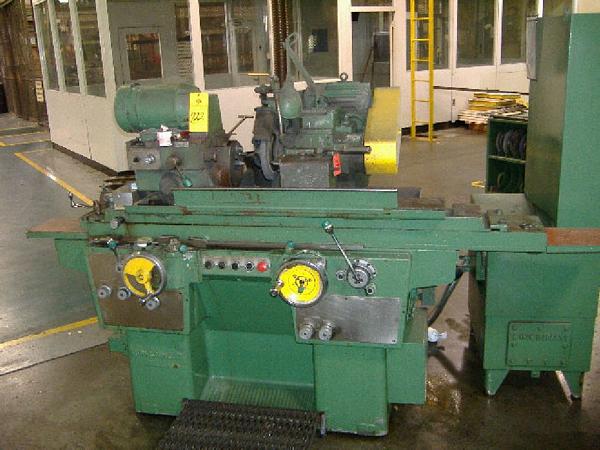

10" X 24" CINCINNATI (MADE IN USA) "PRECISION"
  UNIVERSAL CYLINDRICAL GRINDER

 MODEL: DH        S/N: 35252B5V-0023     NEW:  1969

  CAPACITY:
 MAXIMUM SWING OVER TABLE .................. 10-15/16"
 NOMINAL DISTANCE BETWEEN CENTERS ........... 24"

 SWIVEL TABLE GRAD. TO AN ANGLE OF:
  TOWARD WHEELHEAD .......................... 8 DEG.
  AWAY FROM WHEELHEAD ....................... 3 DEG.
 SWIVEL TABLE GRAD. TAPER PER FT.:
  TOWARD WHEELHEAD .......................... 3- 1/2"
  AWAY FROM WHEELHEAD ....................... 2"

  GRINDING WHEELHEAD:
 GRINDING WHEEL .............. 12" DIA. X 1" X 5" HOLE
 GRINDING WHEEL SPINDLE SPEED (12" DIA.)..... 2060 RPM
 WORN WHEEL (10" DIA.) ...................... 2480 RPM


  SWIVEL RANGE:
 LOWER SWIVEL, RIGHT AND LEFT (APPROX.)....... 110 DEG.
 UPPER SWIVEL, RIGHT (APPROXIMATELY) ......... 90 DEG.
 UPPER SWIVEL, LEFT (APPROXIMATELY) .......... 30 DEG.


  TABLE TRAVERSE:
 RANGE OF TABLE TRAVERSE GRINDING RATES ..... 3" TO 220"
 TABLE TARRY ADJUSTMENT - INFINITE .......... 0 - 5 SEC.
 HAND TABLE TRAVERSE - RATE PER REVOLUTION
 OF HAND WHEEL (RAPID)....................... 1"
               (SLOW) ...................... 1/10"

  HEADSTOCK AND FOOTSTOCK:
 HEADSTOCK AND FOOTSTOCK CENTER TAPER .... NO. 7 JARNO
 WORKHEAD SPINDLE SPEED RANGE ............ 50 - 600 RPM
 HEADSTOCK SWIVEL RANGE:
 TOWARD WHEEL HEAD ........................... 90 DEG.
 AWAY FROM WHEEL HEAD ........................ 30 DEG.

  INFEED ADJUSTMENTS:
 DIA. REDUCTION PER REV. OF INFEED HANDWHEEL ... 0.100"
 MINIMUM INFEED INCREMENT IN TERMS OF DIAMETER
 REDUCTION ............................... 0.000010"
 AUTOMATIC INFEED AT TABLE REVERSAL
 (DIAMETER REDUCTION) ................ 0.0002" MINIMUM
                                      0.004" MAXIMUM
 TOTAL ADJUSTMENT OF WHEEL HEAD BY HAND ....... 5-1/2"

 POWER REQUIREMENTS:
 WHEEL HEAD MOTOR ............................... 2 HP
 HEADSTOCK MOTOR .............................. 3/4 HP
 HYDRAULIC PUMP MOTOR ......................... 3/4 HP
 COOLANT PUMP MOTOR ........................... 1/4 HP

 APPROX. MACHINE WEIGHT ............. ......... 6,900 LBS

 EQUIPPED WITH:
 HYDRAULIC TABLE TRAVERSE
 "AUTOMATIC HYDRAULIC INFEED" OPTION PROVIDING:
 -AUTOMATIC INFEED
 -ADJUSTABLE LEFT & RIGHT TABLE TARRY
 -POWER RAPID WHEELHEAD POSITIONING BY LEVER

 "FILAMATIC" HYDRASTATIC WHEELHEAD BEARINGS
 DUAL LIVE/DEAD WORKHEAD SPINDLE
 SWIVEL TABLE GRADUATED IN DEGREES & TAPER PER FOOT
 COOLANT SYSTEM
 EXTERNAL HYDRAULIC SYSTEM
 ELECTRICAL CABINET MOUNTED ABOVE HDRAULIC SYSTEM
 3/60/220-440 VOLT MOTORS

 ** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
 ** EXCELLENT CONDITION & APPEARANCE **
