Reference Number: 141945

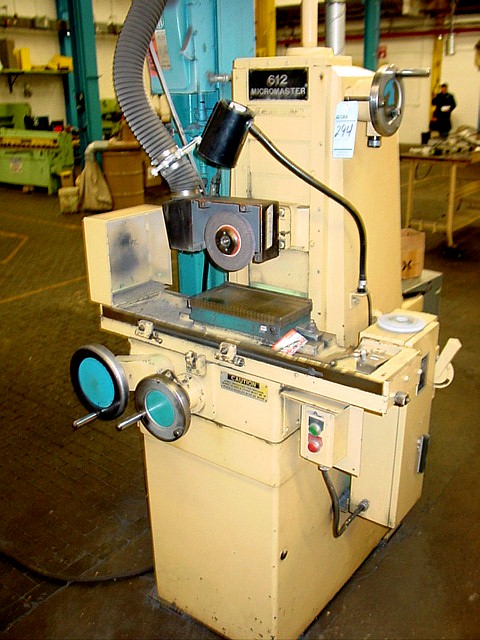

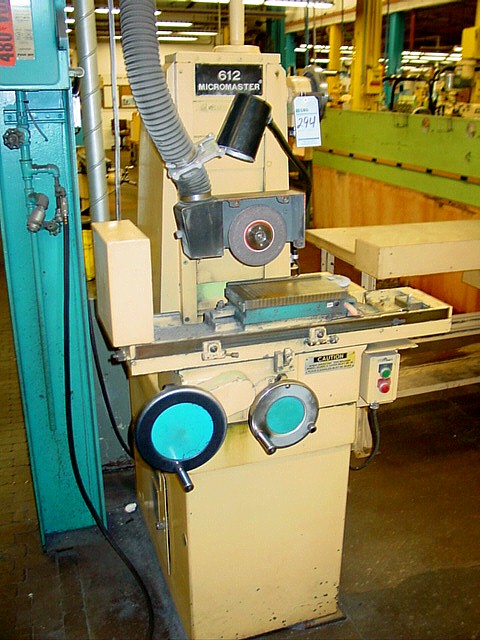

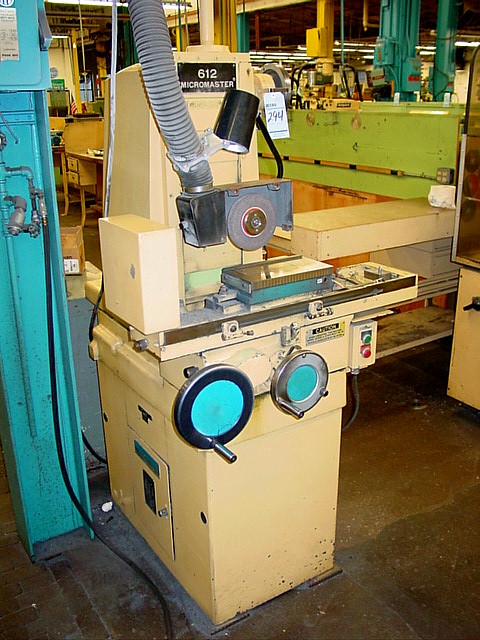

Price: On Request6" X 12" BROWN & SHARPE (MADE IN USA)
"PRECISION" HAND FEED SURFACE GRINDER
MODEL:#612 MICROMASTER S/N:523-612-730 NEW: 1977
WIDTH & LENGTH GROUND ........................ 6" X 12"
HEIGHT OF WORK GROUND W/7" WHEEL .............. 12-1/2"
DISTANCE, CENTER OF WHEEL SPINDLE:
TO TOP OF TABLE, MINIMUM ..................... 3-1/2"
MAXIMUM ........................ 16"
LONGITUDINAL TABLE TRAVEL ......................... 14"
CROSS TRAVEL ....................................... 7"
CROSS HANDWHEEL GRADUATED TO READ TO ........ 0.0002"
VERTICAL ADJUSTMENT OF WHEEL SPINDLE .......... 12-1/2"
VERTICAL HANDWHEEL GRADUATED TO READ TO ..... 0.0002"
VERTICAL, FINE FEED KNOB GRADUATED TO READ TO 0.0001"
STD. GRINDING WHEEL SIZE .................... 7" X 1/2"
APPROX. MACHINE WEIGHT ..................... 1,425 LBS.
APPROX. MACHINE DIMENSIONS ............ 36" X 36" X 70"
EQUIPPED WITH:
ROLLER BEARING TABLE
HANDWHEEL FOR LONGITUDINAL TABLE TRAVERSE
FINE FEED KNOB, VERTICAL FEED (.0001" GRAD.)
6" X 12" FINE-DIVISION PERMANENT MAGNETIC CHUCK
WORK LIGHT
SET-UP FOR DRY GRINDING
BIJUR ONE-SHOT LUBRICATOR
1 H.P. 3/60/230-460 VOLT BROWN & SHARPE SUPER-PRECISION
SPINDLE DRIVE
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
* * EXCELLENT CONDITION * *
