Reference Number: 141948

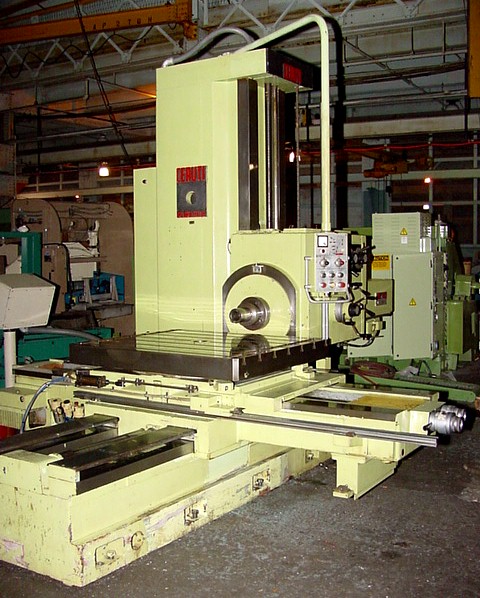

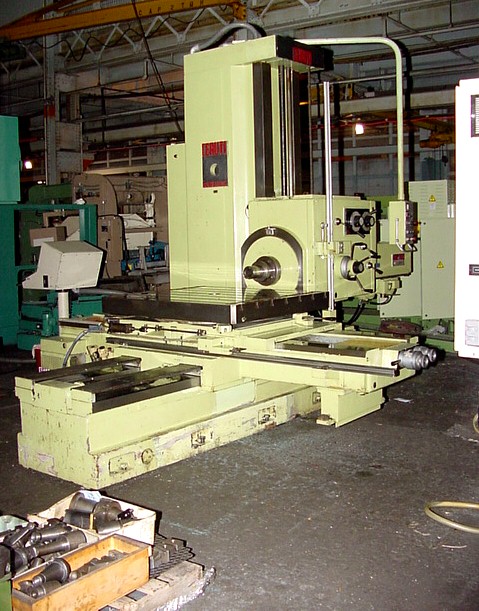

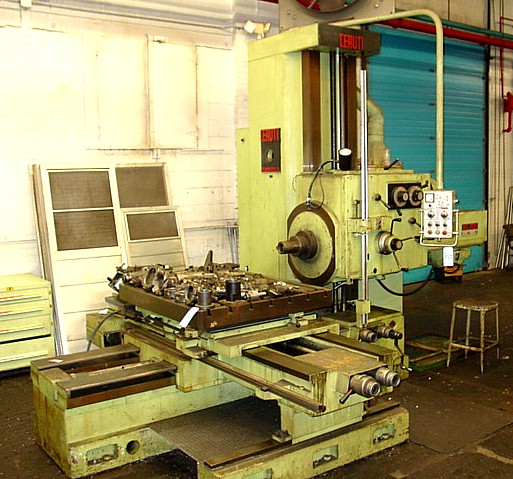

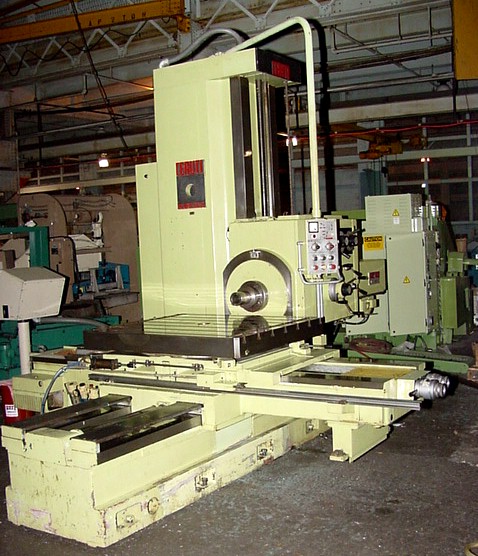

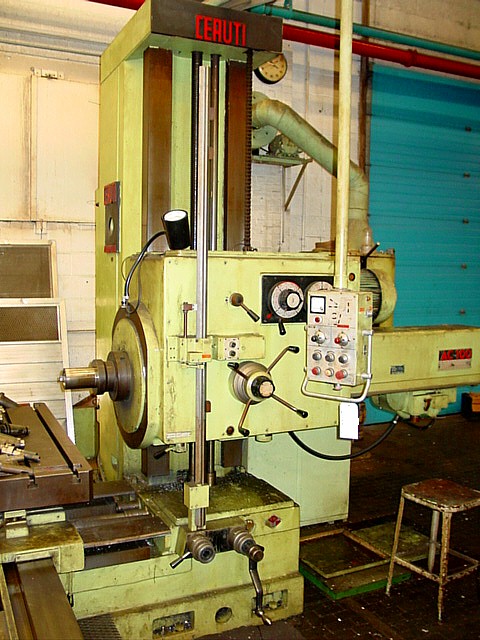

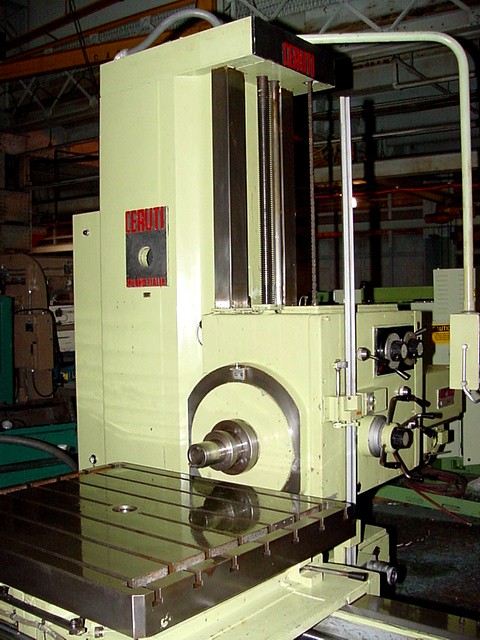

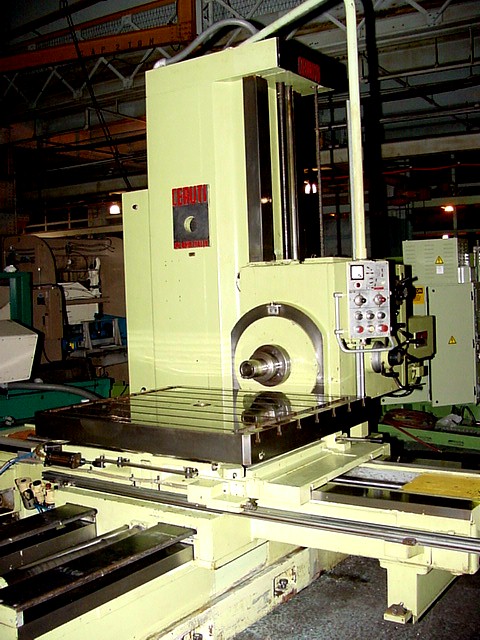

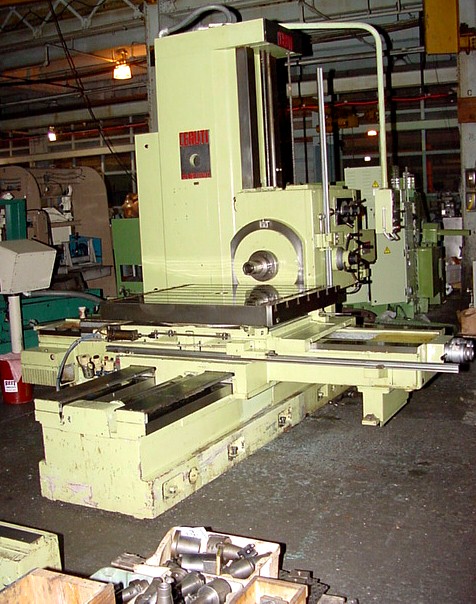

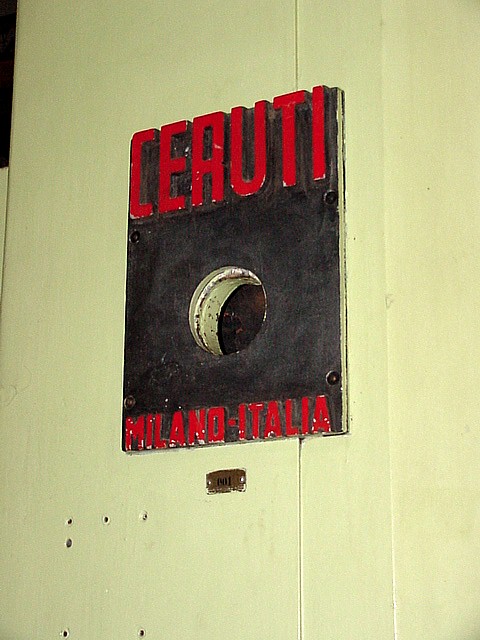

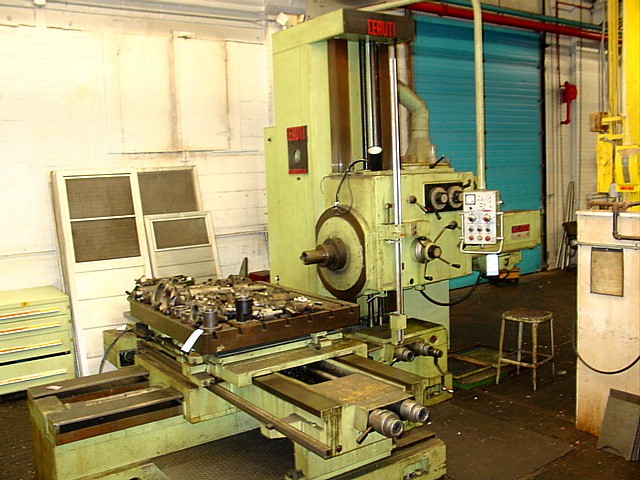

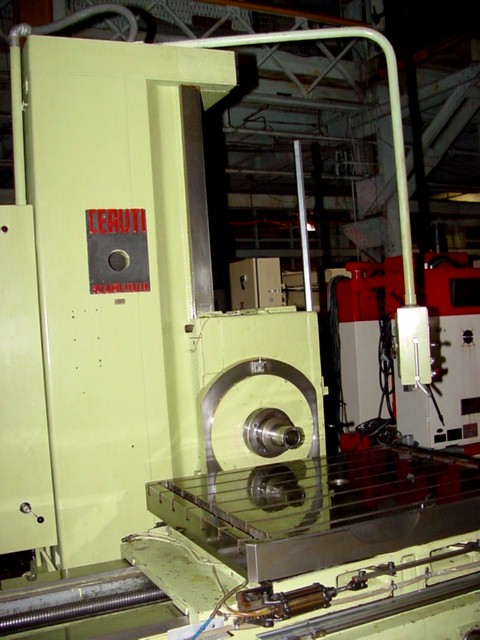

SPECIFICATIONS:4" CERUTI TABLE TYPE HORIZONTAL BORING MILL

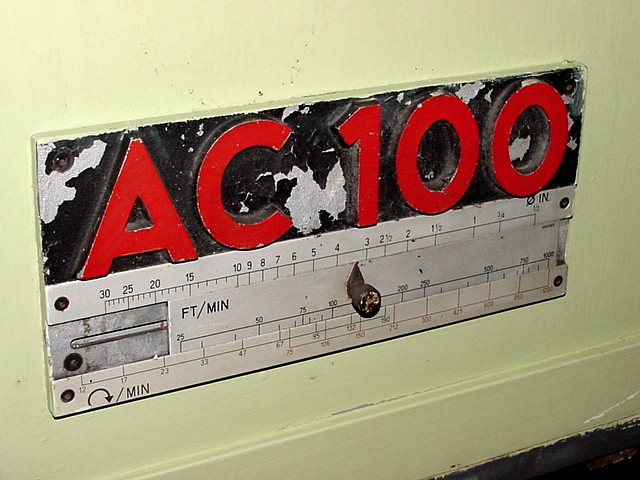

MODEL: AC-100, S/N: 12192, NEW: 1970

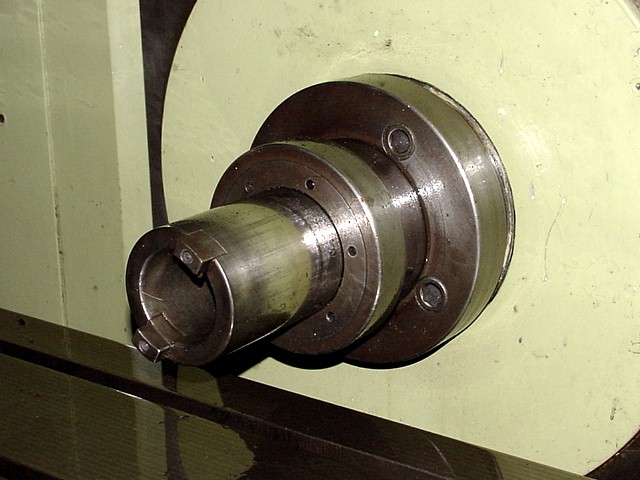

DIAMETER OF SPINDLE ...................... 4"
SPINDLE TAPER ............................ #50 STD.
SPINDLE CONTINUOUS TRAVEL ................ 31.5"
HEADSTOCK VERTICAL TRAVEL ................ 48"

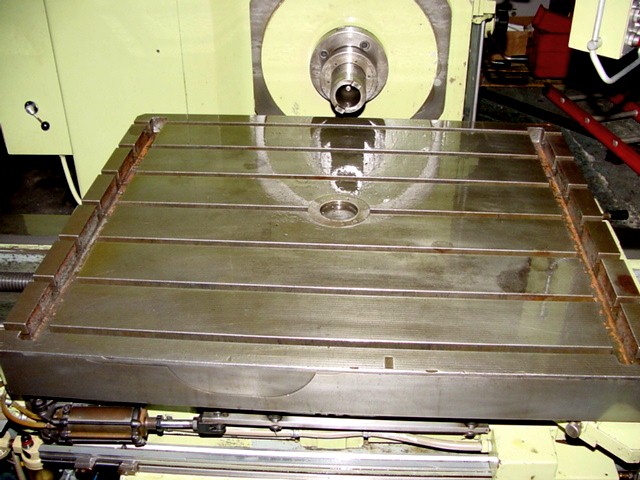

ROTARY TABLE WORKING SURFACE ............. 43" X 51"
TABLE CROSS TRAVEL ....................... 72"
TABLE LONGITUDINAL TRAVEL ................ 34"
MAX. TABLE LOAD .......................... 11,000 LBS.

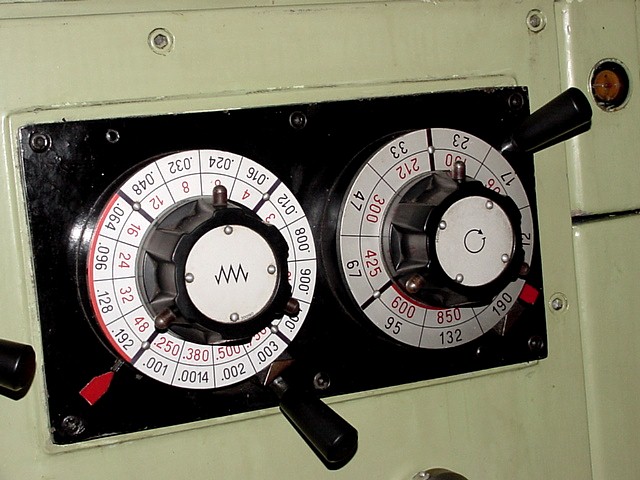

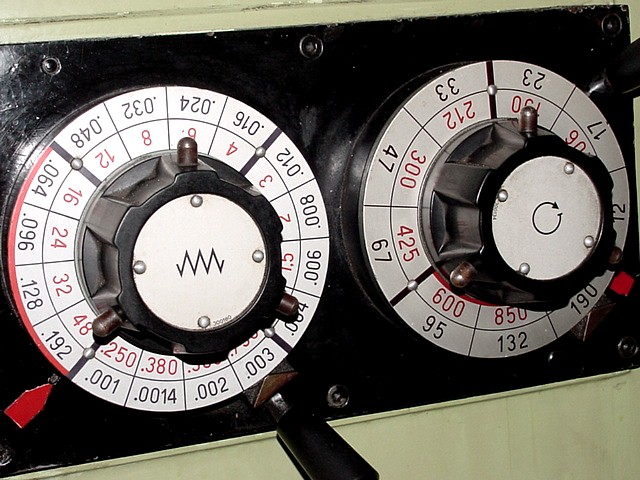

SPINDLE SPEEDS(18) ....................... 12 - 1200 RPM
FEEDS(16) ................................ .001 - 0.129 IPR
MILLING FEEDS(16) ........................ .250 - 48 IPM
RAPID TRAVERSE RATE ...................... 98.4 IPM
APPROXIMATE DIMENSIONS ................... 130"L x 140"W x 100"H
APPROXIMATE WEIGHT ....................... 27,500 LBS
EQUIPPED WITH:

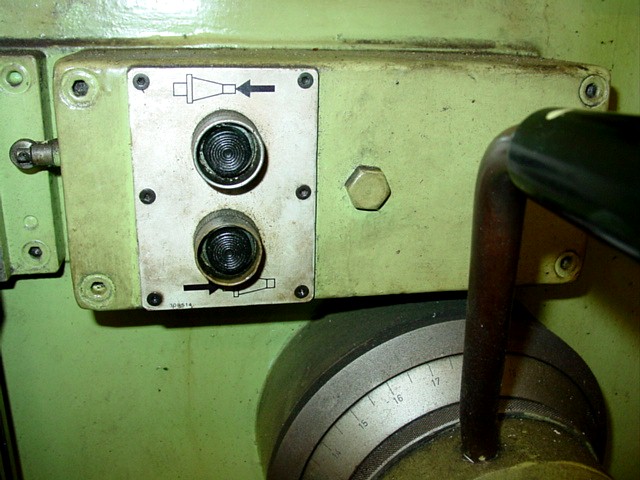

#50 TAPER POWER DRAW BAR

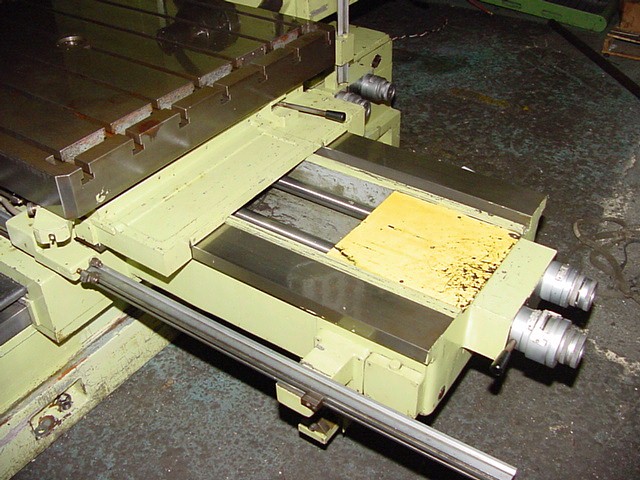

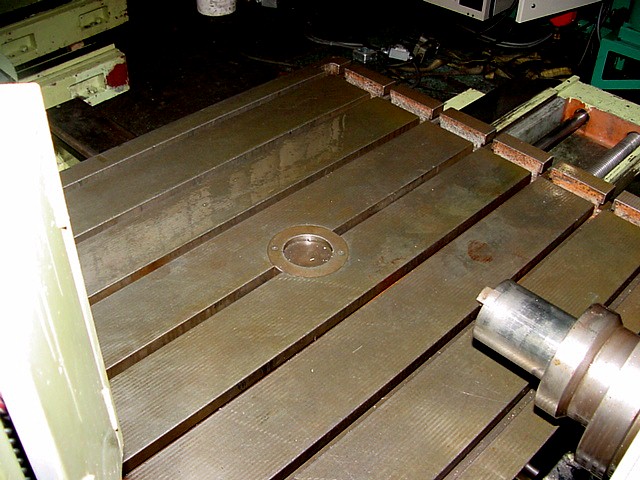

BUILT-IN POWER ROTARY TABLE
WITH 90 DEGREE POSITON FIXED STOPS

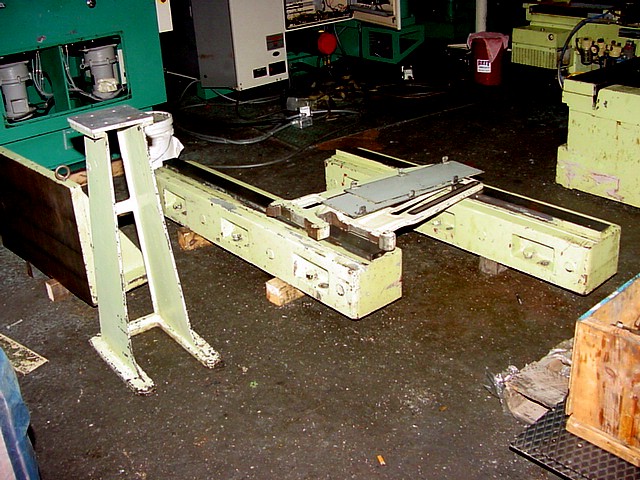

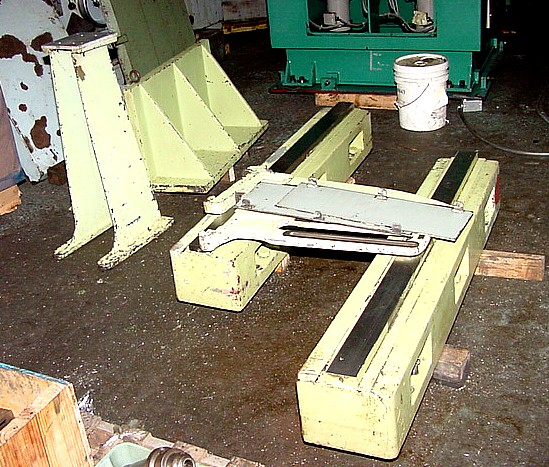

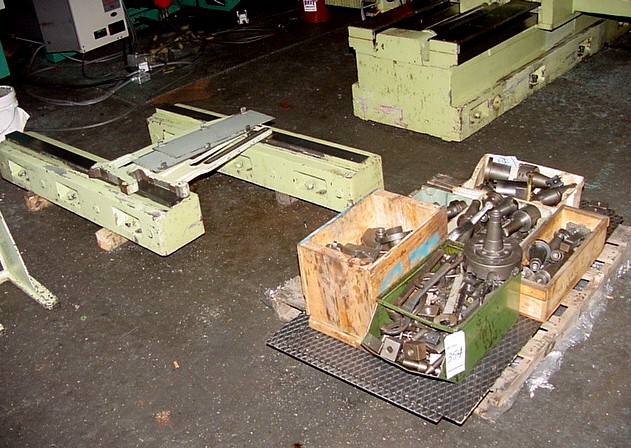

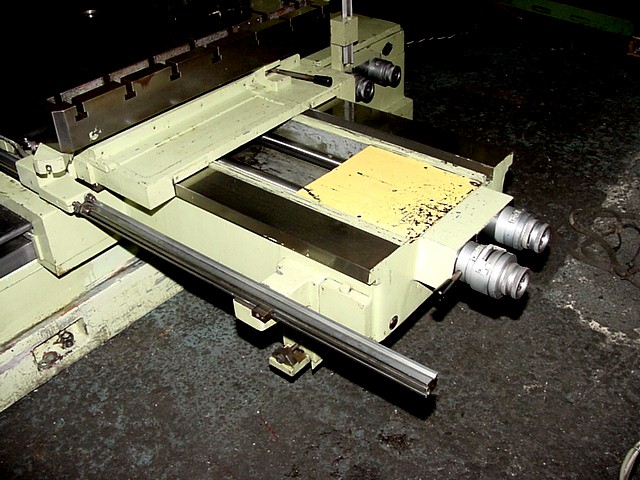

AUXILIARY SADDLE SUPPORTS
POWER RAPID TRAVERSE

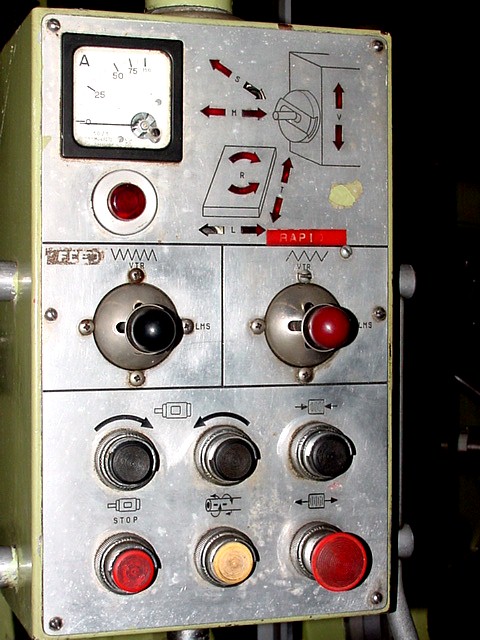

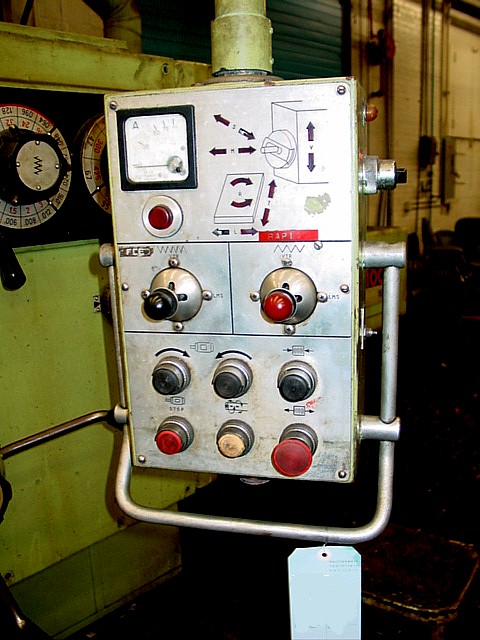

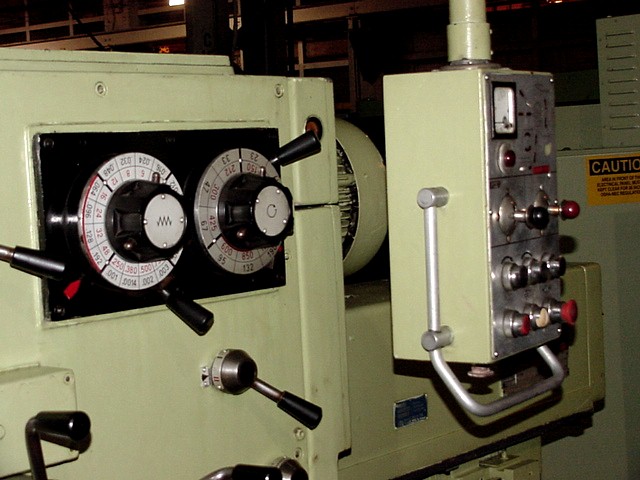

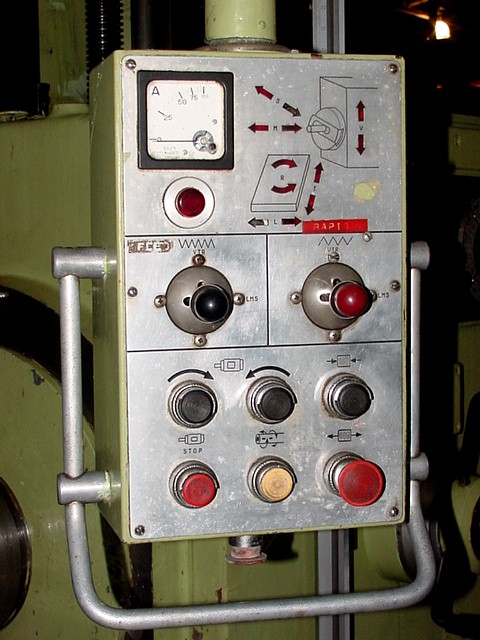

PENDANT CONTROL

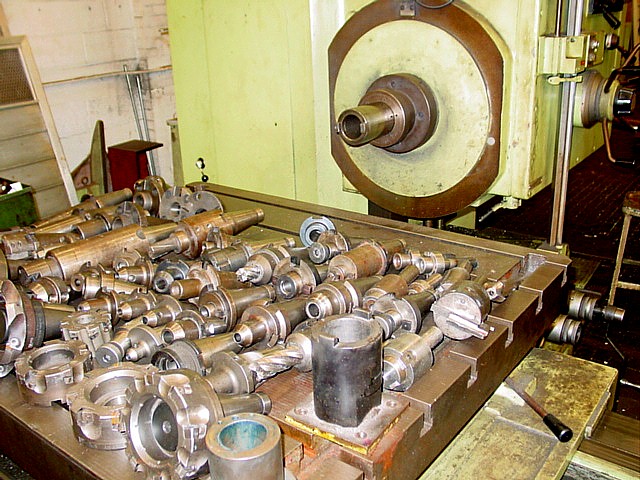

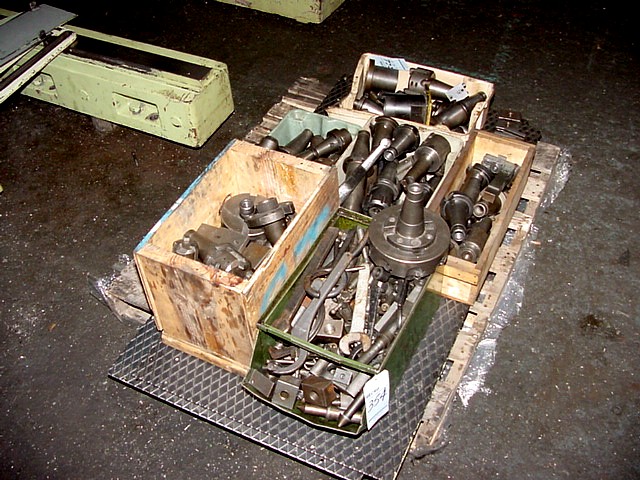

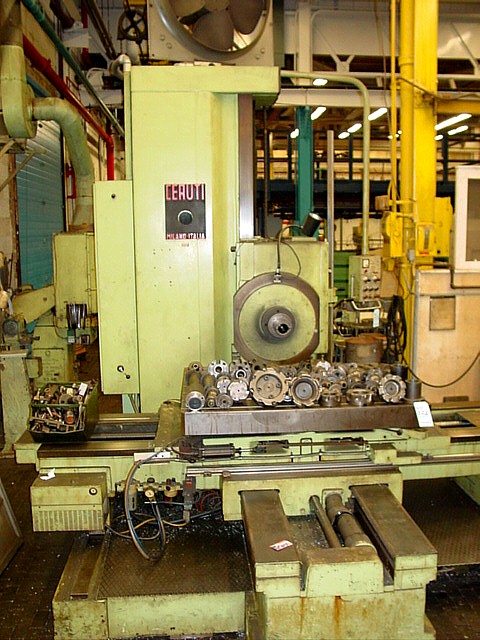

LARGE ASSORTMENT OF #50 TAPER TOOLING
HARDENED & GROUND BED, SADDLE & VERTICAL COLUMN WAYS
3 HORSE POWER RAPID TRAVERSE MOTOR
15 HORSE POWER 3/60/220-440 VOLT MAIN DRIVE MOTOR
MACHINE PRESENTLY WIRED FOR 440 VOLT OPERATION
CONDITION: **** EXCELLENT ****
