Reference Number: 141958
Price: On Request

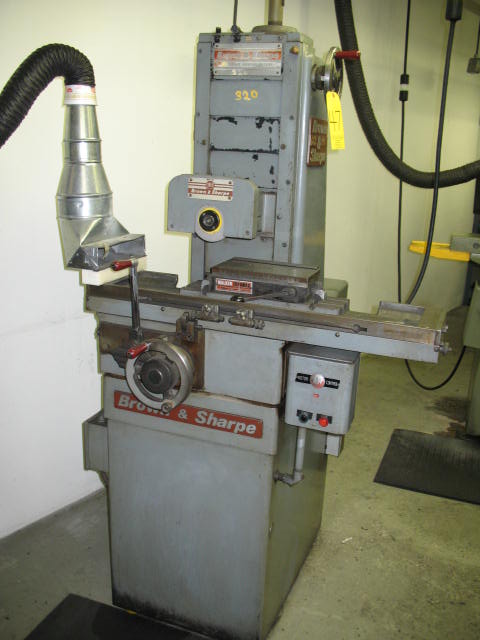

5" X 10" BROWN & SHARPE "SUPER-PRECISION"
HAND FEED SURFACE GRINDER
MODEL: 510 MICROMASTER S/N: 523-510-1679 NEW: 1970
WIDTH & LENGTH GROUND ........................ 5" X 10"
HEIGHT OF WORK GROUND W/7" WHEEL .................. 12"
DISTANCE, CENTER OF WHEEL SPINDLE:
TO TOP OF TABLE, MINIMUM ..................... 3-1/4"
MAXIMUM ........................ 16"
LONGITUDINAL TABLE TRAVEL ......................... 11"
CROSS TRAVEL ....................................... 6"
CROSS HANDWHEEL GRADUATED TO READ TO ........ 0.0002"
VERTICAL ADJUSTMENT OF WHEEL SPINDLE .......... 12-1/2"
VERTICAL HANDWHEEL GRADUATED TO READ TO ..... 0.0002"
STD. GRINDING WHEEL SIZE .......... 7" X 1/2" X 1- 1/4"
APPROX. MACHINE WEIGHT ..................... 1,225 LBS.
APPROX. MACHINE DIMENSIONS ............ 36" X 36" X 70"
EQUIPPED WITH:
ROLLER BEARING TABLE W/QUICK ACTING HANDLEVER
- ONE 180 DEG. SWING OF HANDLEVER MOVES THE TABLE 11"
5" X 10" WALKER CERAMAX FINE- DIVISION PERMANENT MAGNETIC
CHUCK
BROWN & SHARPE "ORIFLEX" SUPER-PRECISION SPINDLE DRIVE
3/60/220-440 VOLT ELECTRICS
* INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE *
* EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) *
