Reference Number: 141960


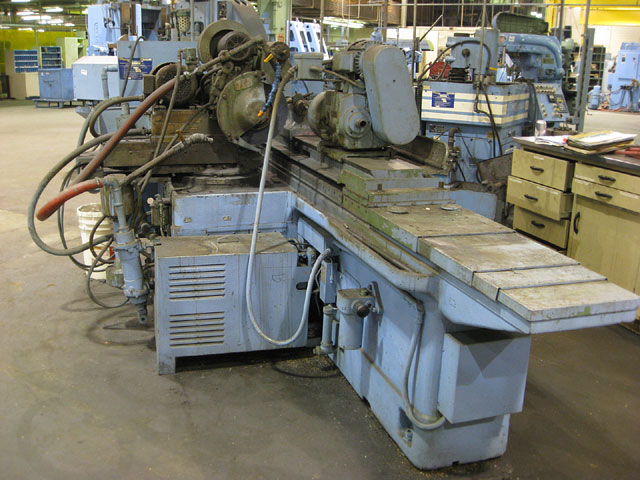

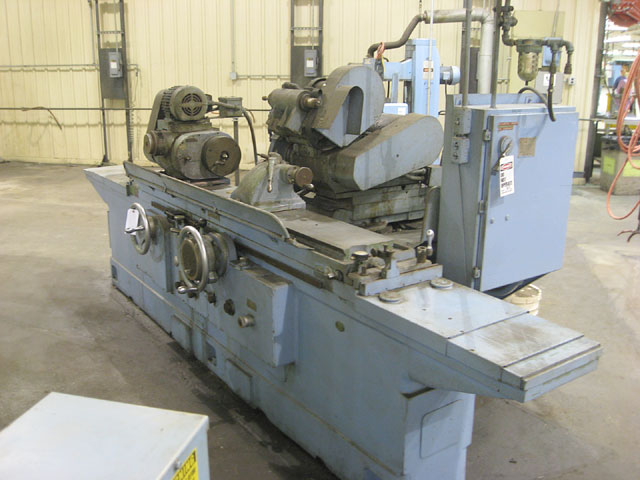

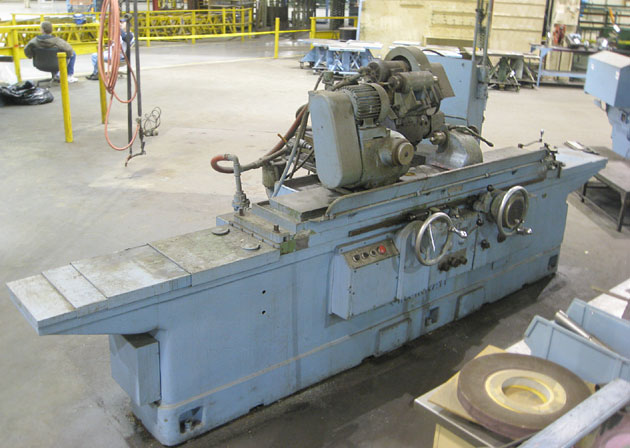

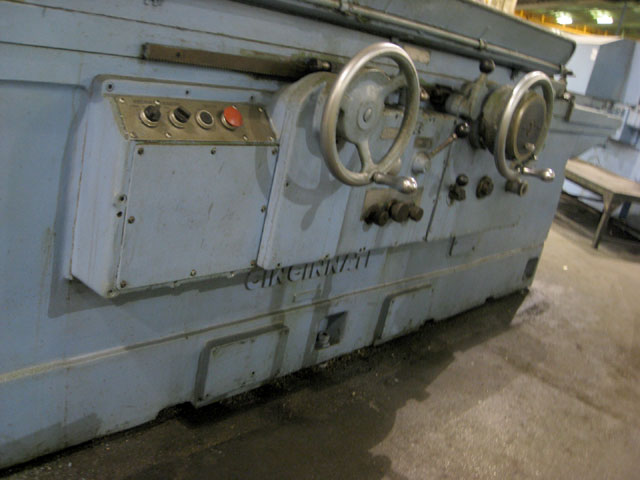

 12" X 48" CINCINNATI UNIVERSAL CYLINDRICAL GRINDER
 W/SWING DOWN I.D. GRINDING ATTACHMENT W/SPINDLE

 MODEL: DE        S/N: 35323E-5V-0001      NEW: 1968

  SWING OVER TABLE ............................ 12-15/16"
 DISTANCE BETWEEN CENTERS .......................... 48"
 TABLE SWIVEL, TOWARD WHEELHEAD .............. 9 DEGREES
              AWAY FROM WHEELHEAD ........... 2 DEGREES

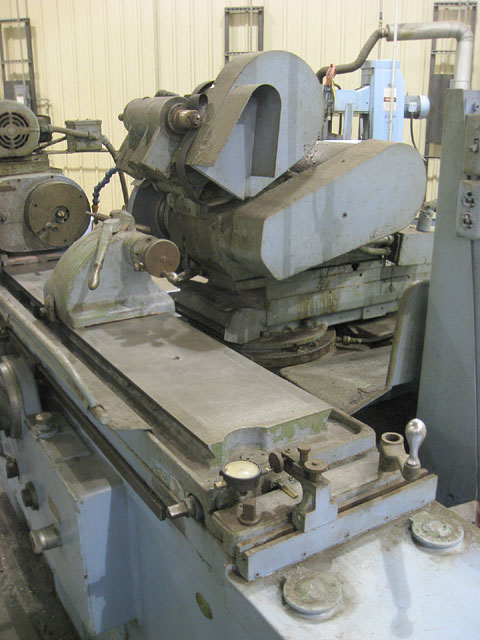

  GRINDING WHEELHEAD:
 LOWER SWIVEL LEFT & RIGHT OF CENTER ............ 90 DEG.
 UPPER SWIVEL, RIGHT & LEFT ..................... 30 DEG.
 MOTOR .......................................... 5 HP
 GRINDING WHEEL SIZE ....... 14" WHEEL DIA. X 1-1/2" X 5"

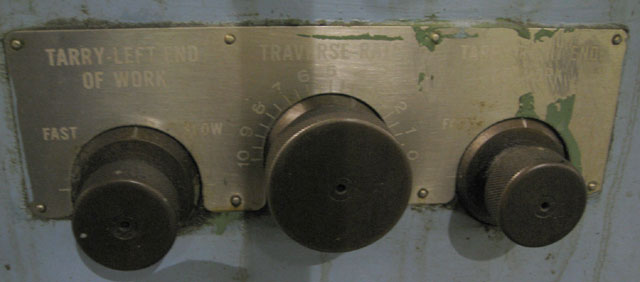

  TABLE TRAVERSE:
 INF. VARIABLE TABLE SPEEDS ............. 3" TO 220" IPM

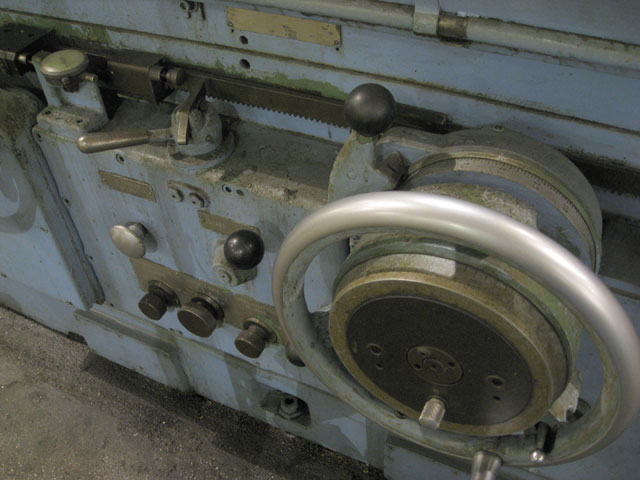

 HAND TABLE TRAVERSE PRE REVOLUTION OF HANDWHEEL
 (RAPID/SLOW) ............................ 15/16" / 0.2"

  CROSS FEED:
 AUTOMATIC INFEED AT TABLE REVERSAL:
 LOW ................................. 0.0002" TO .0005"
 HIGH ................................. .0005" TO .0125"
 WHEELHEAD MOVEMENT PER TURN OF HANDWHEEL:
 LOW ............................................ 0.050"
 HIGH ........................................... 0.250"
 MINIMUM INFEED ON DIAMETER ................... 0.00005"

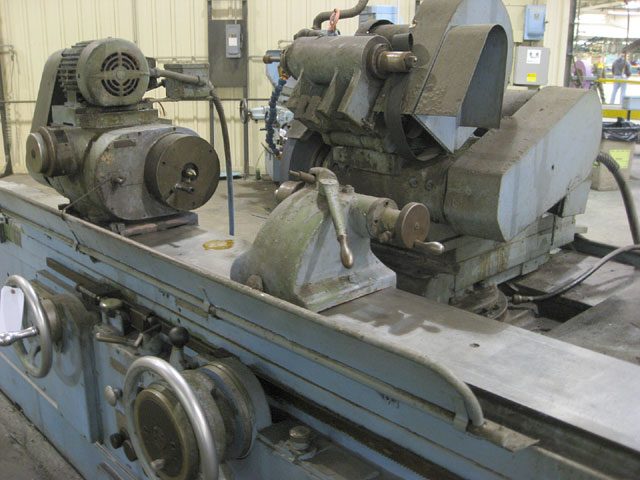

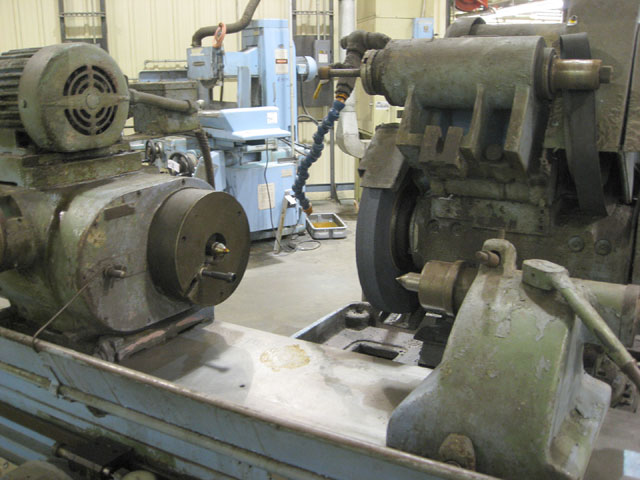

  HEADSTOCK:
 MOTOR .......................................... 1 H.P.
 TAPER HOLE IN SPINDLES ........................ #9 B&S
 INF. VARIABLE WORKHEAD SPEEDS .......... 50 T0 500 RPM
 SPINDLE NOSE, AMERICAN STANDARD ................... 5"
 HEADSTOCK SWIVEL, TOWARD WHEELHEAD ............ 90 DEG.
                    AWAY FROM WHEELHEAD ....... 30 DEG.

 FLOOR SPACE FOR OPERATION:....................72" X 185"
 APPROX. DIMENSIONS:............ 166" L-R, 72" F-B, 66" H
 APPROX. MACHINE WEIGHT ...................... 12,800 LBS

 FULL HYDRAULIC OPERATION FEATURING:
 -POWER TABLE TRAVERSE
 -PICK FEED (AUTO INFEED)

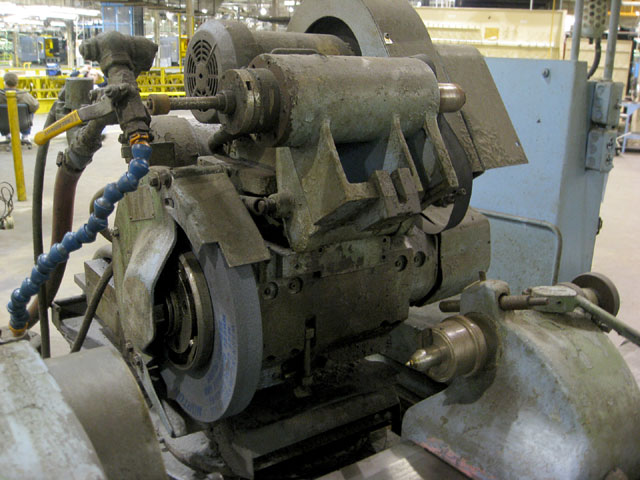

 SWING DOWN I.D. ATTACHMENT W/SPINDLE
 MACHINE WILL ACCEPT AN 14" WHEEL
 INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS
 WORKHEAD SPINDLE IS BOTH LIVE & DEAD

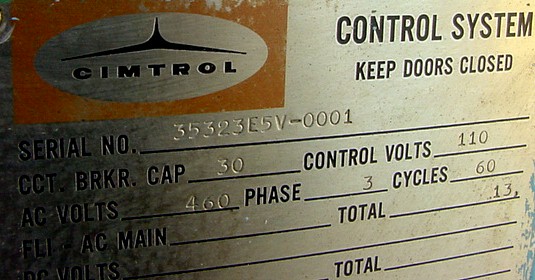

 ELECTRICAL CABINET MOUNTED ON MACHINE, NOT SEPERATE
 SELF-CONTAINED COOLANT SYSTEM

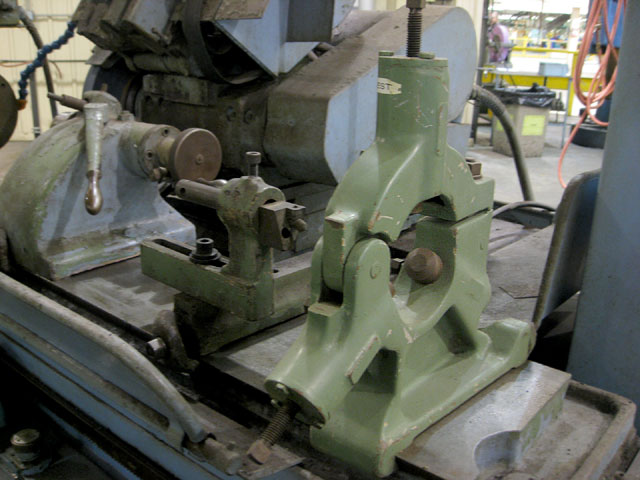

 STEADY REST
 TABLE MOUNTED DRESSER
 DIAL INDICATOR FOR TABLE SWIVEL ADJUSTMENT
 WORKHEAD & TAILSTOCK EACH HAVE A CENTER
 5 H.P./3/60/230-460 VOLT SPINDLE MOTOR


 ** INSPECT IN OUR HARRISON, NJ WAREHOUSE **
 ** EXCELLENT CONDITION & APPEARANCE **
