Reference Number: 141962

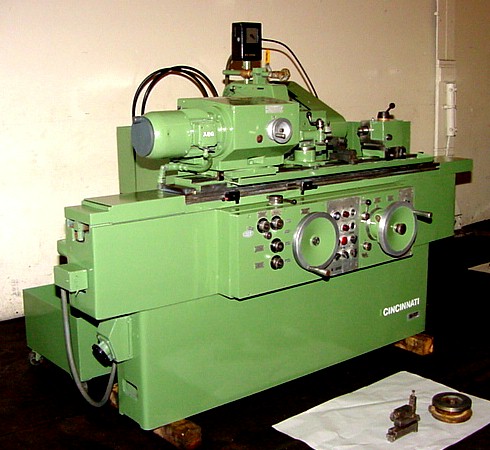

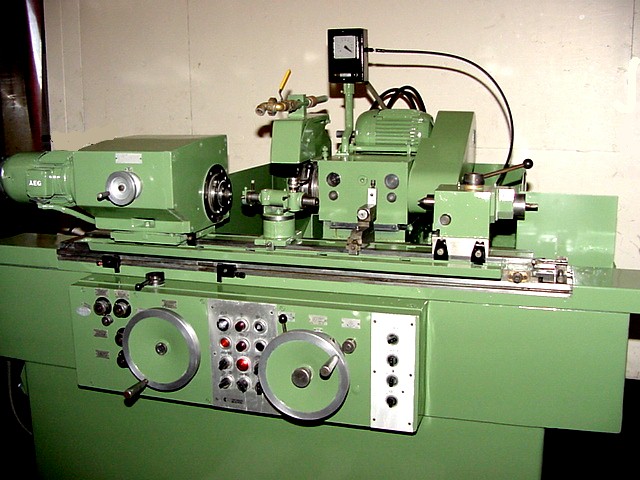

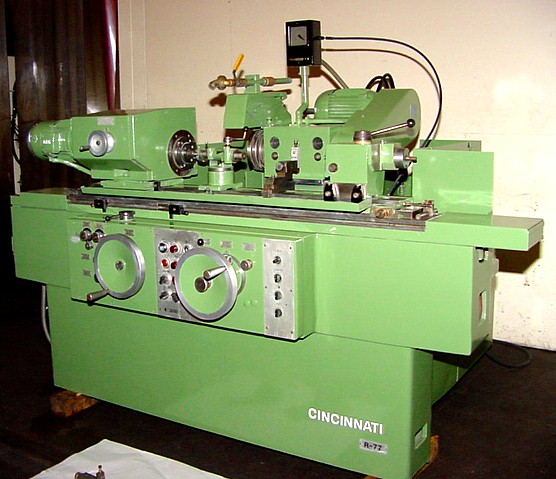

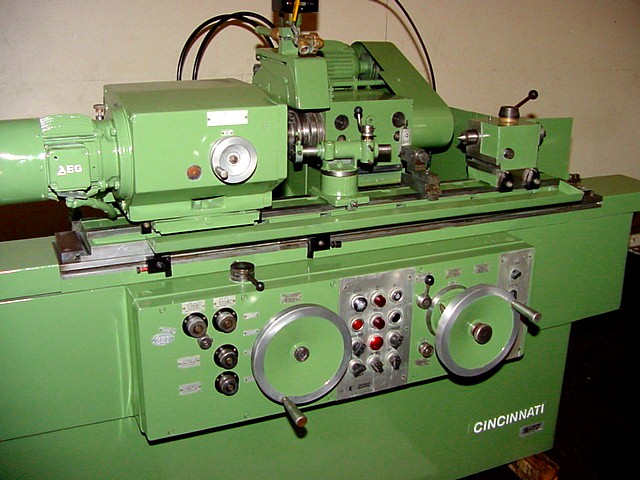

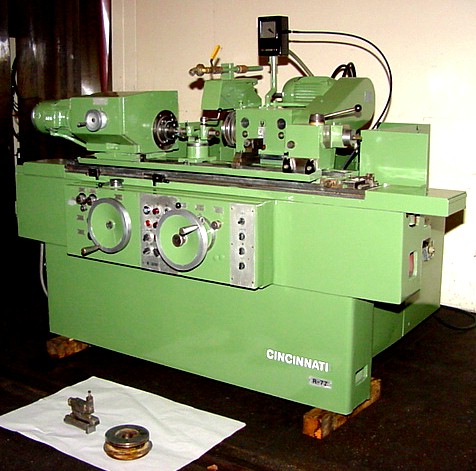

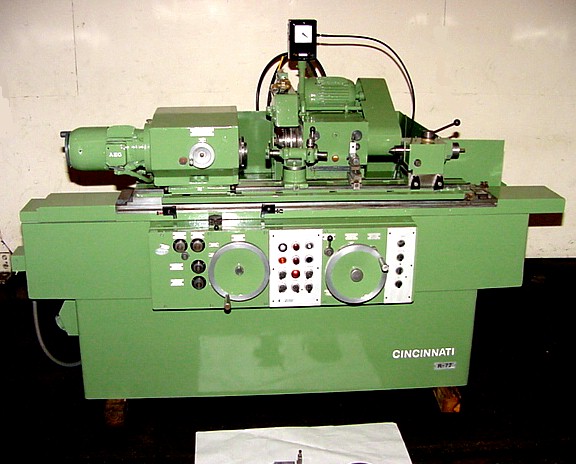

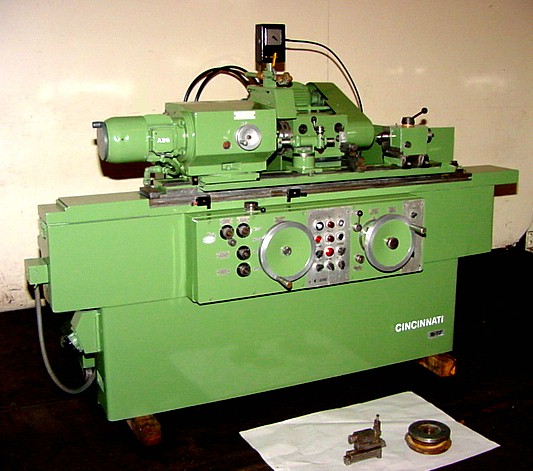

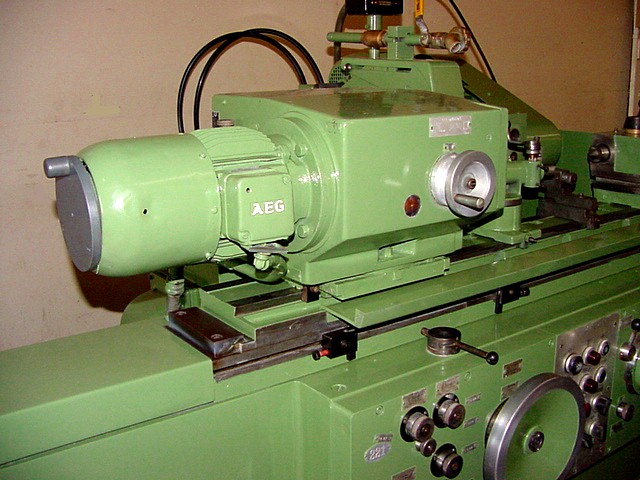

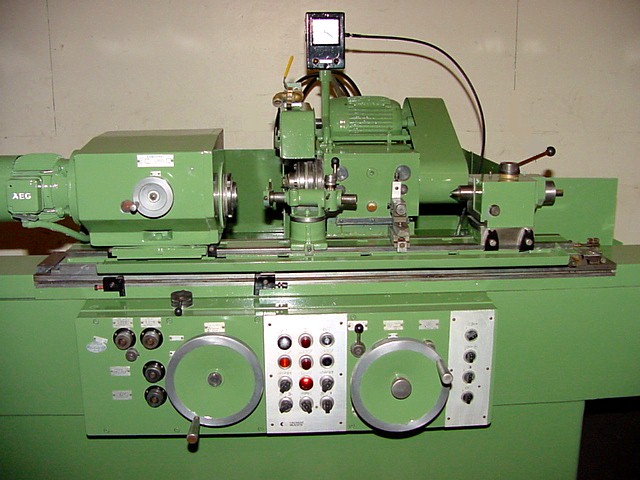

10" X 31" CINCINNATI-MILACRON
 UNIVERSAL CYLINDRICAL GRINDER


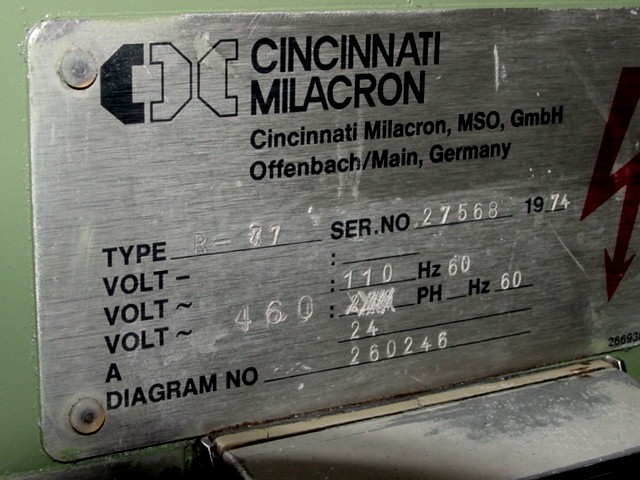

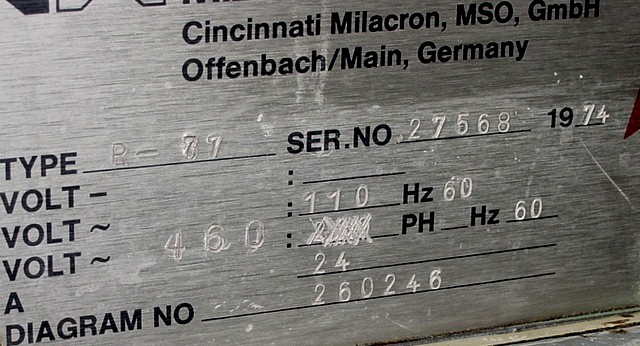

 MODEL: R-77      S/N: 27568         NEW: 1974

 SPECIFICATIONS:
 MAXIMUM DISTANCE BETWEEN CENTERS..................... 31"
 MAXIMUM SWING OVER TABLE............................. 10"
 MAXIMUM WEIGHT OF WORKPIECE BETWEEN CENTERS...... 165 LBS
 MAXIMUM WEIGHT OF CHUCK HELD WORK................. 44 LBS

 TABLE:
 TABLE TRAVERSE SPEEDS, INFINITELY VARIABLE..... 2-240 IPM
 TABLE TRAVERSE PER REVOLUTION OF HANDWHEEL...... 0.1"-.5"
 MINIMUM MOVEMENT NECESSARY TO REVERSE TABLE........ 5/32"

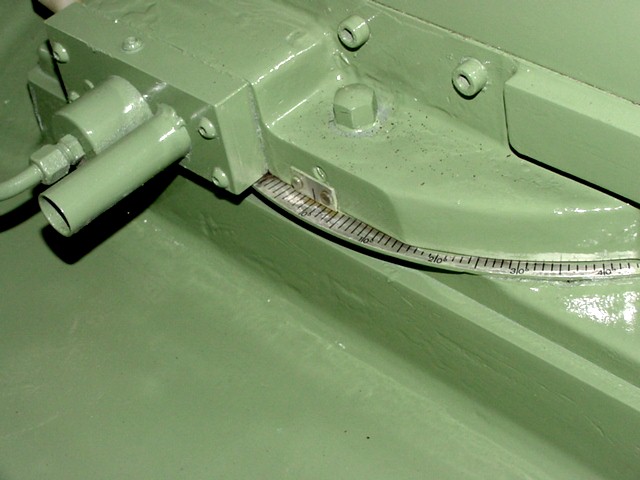

 MAXIMUM SWIVEL OF TABLE..................... +/-14 DEGREE

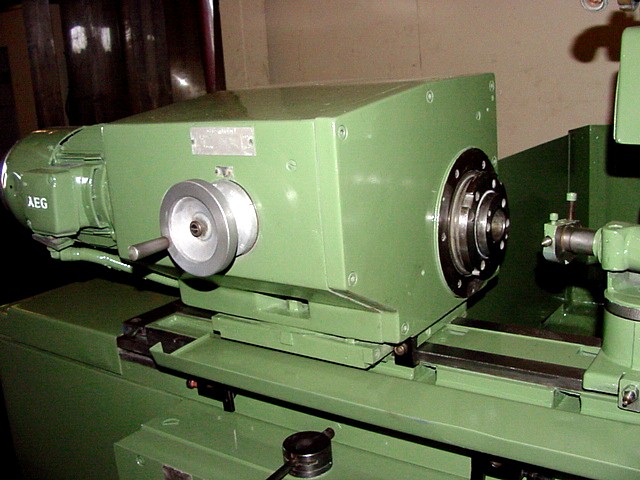

 HEADSTOCK:
 NUMBER OF SPEEDS................................ INFINITE
 SPEED RANGE................................... 60-500 RPM
 DIAMETER OF BORE IN SPINDLE....................... 1-1/2"
 HEADSTOCK SPINDLE NOSE-AMERICAN LATHE STANDARD........ 5"
 CENTER TAPER.................................... #6 JARNO
 SWIVEL....................................... 0-90 DEGREE

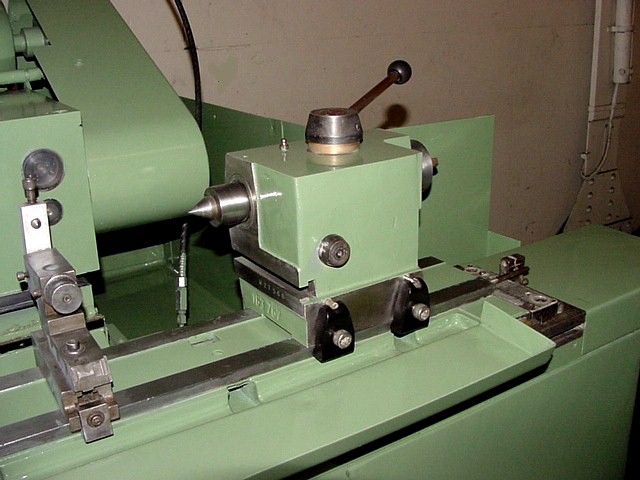

 FOOTSTOCK:
 CENTER TAPER.................................... #6 JARNO
 QUILL RETRACTION..................................... .8"

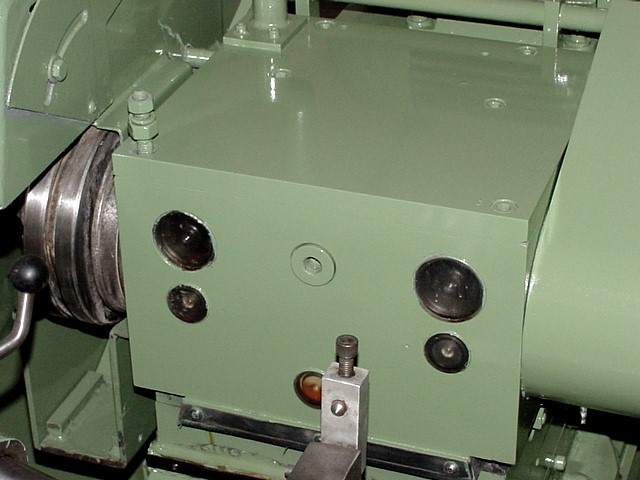

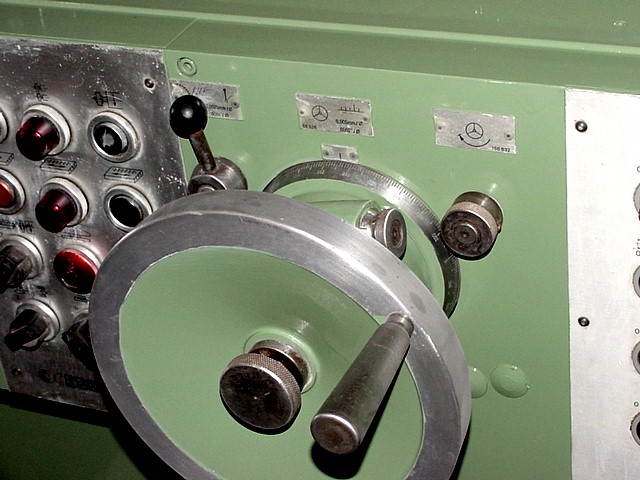

 WHEELHEAD:
 SWIVEL .................................. +/- 45 DEGREES
 RAPID ADVANCE STROKE.................................. 2"

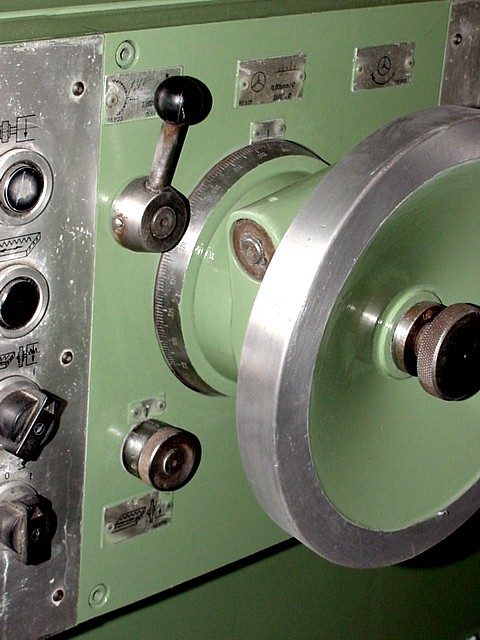

 MANUAL INFEED PER HANDWHEEL REVOLUTION (DIA.)..... 0.050"

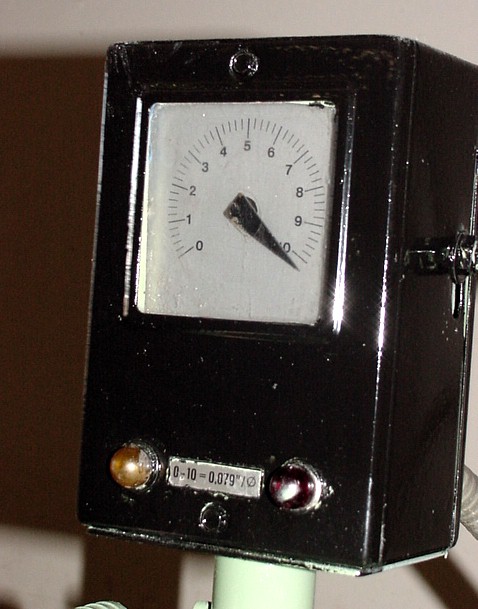

 AUTO PICKFEED ON DIAMETER................. 0.0002"-.0016"
 HAND LEVER COMPENSATION ON DIAMETER.............. 0.0001"

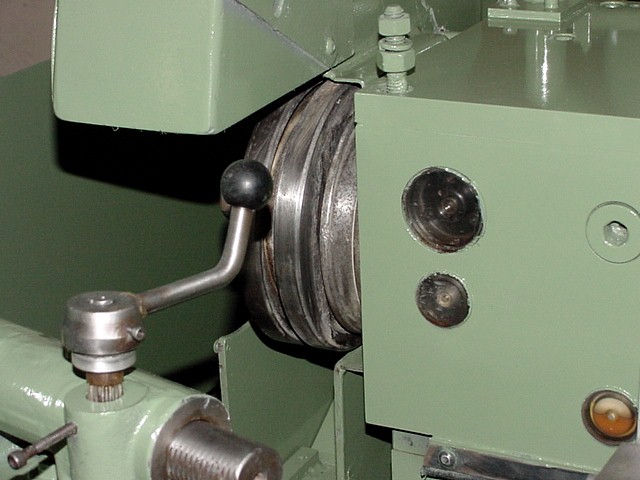

 GRINDING WHEEL:
 STANDARD WHEEL SIZE......... 16" O.D. X 2" WIDE X 5" HOLE


 APPROXIMATE WEIGHT............................. 5,100 LBS


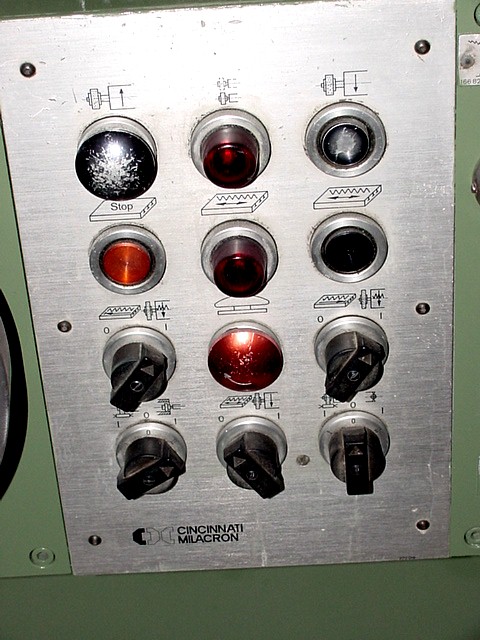

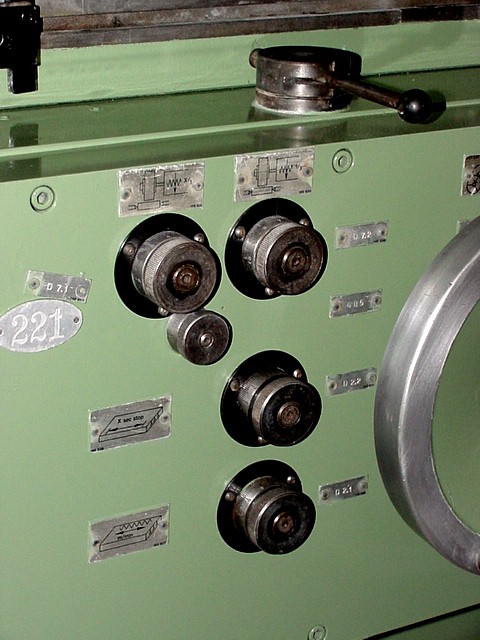

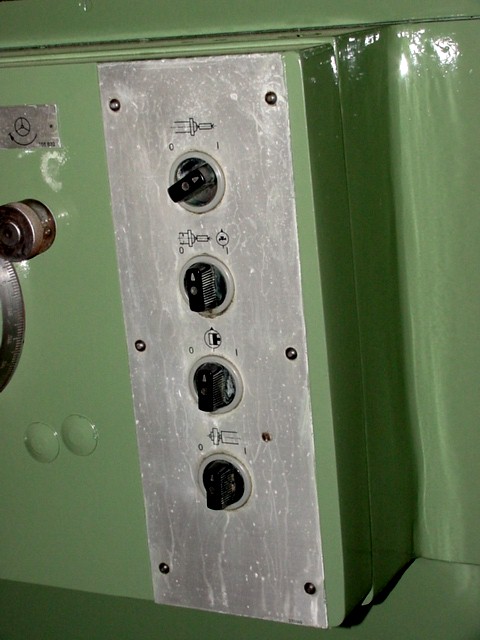

 MACHINE FEATURES:

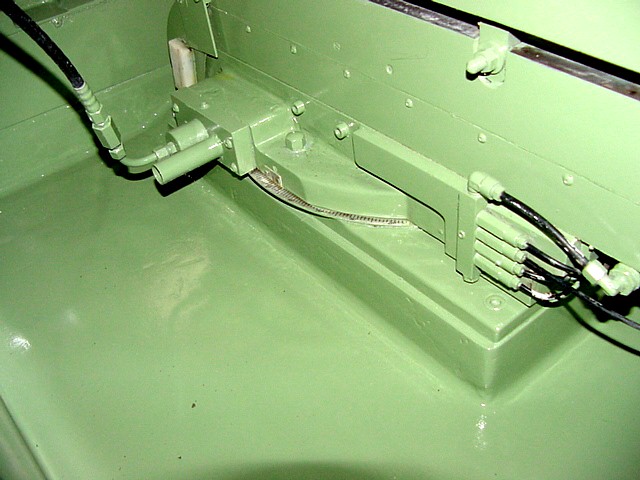

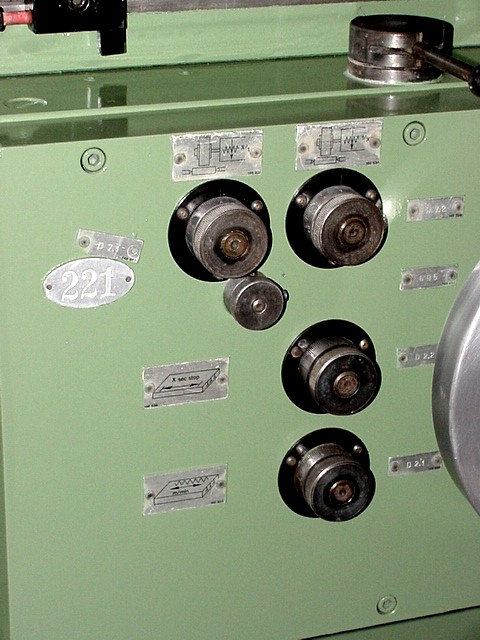

 HYDRAULIC OPERATION FEATURING:
 -HYDRAULIC TABLE TRAVERSE
 -INFINITELY VARIABLE HYDRAULIC TRAVERSE WITH PICKFEED
  AMOUNTS FROM .0002" TO .0016" (DIAMETER REDUCTION) IN
  EIGHT STEPS WHICH CAN BE SET AT "LEFT END ONLY," RIGHT
  END ONLY," LEFT AND RIGHT END" OF TABLE REVERSAL, OR
  "OFF"
 - AUTOMATIC DUAL RATE PLUNGE INFEED (COARSE & FINE FEED
  SELECTIONS)
 -POWER RAPID WHEELHEAD ADVANCE & RETRACTION

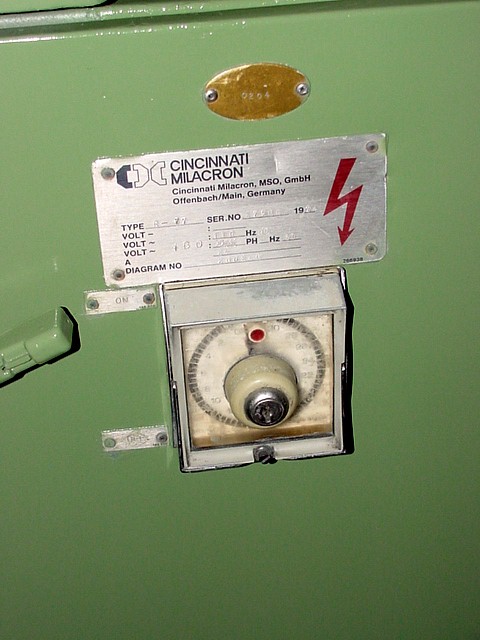

 SPARKOUT TIMER

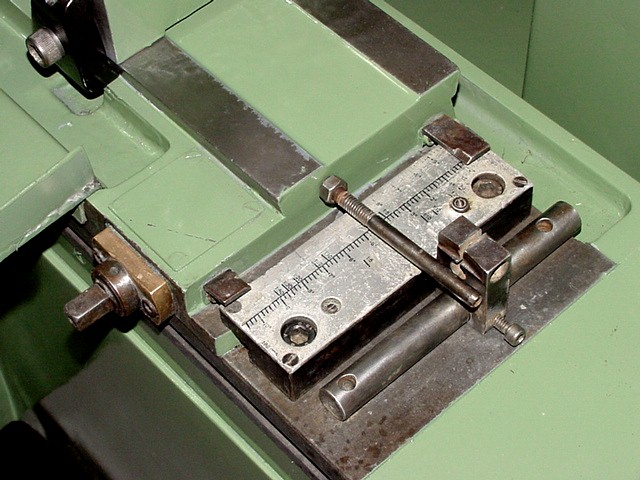

 SWIVEL TABLE ALLOWING FOR GRINDING OF PARTS WITH TAPERS
  UP TO 28 DEGREES INCLUDED ANGLE

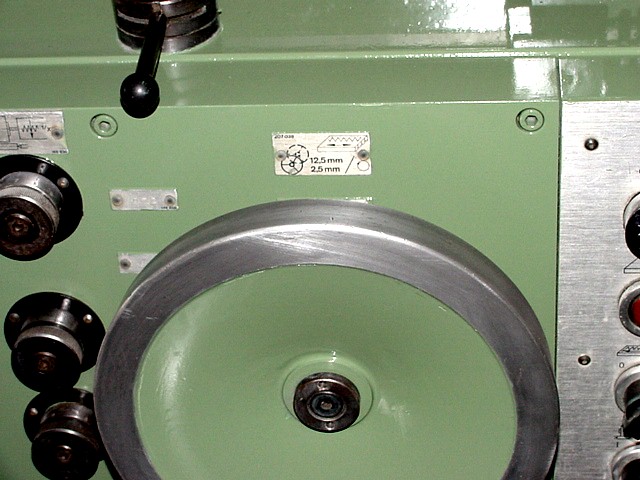

 TWO SPEED (COARSE AND FINE) TABLE TRAVERSE HANDWHEEL

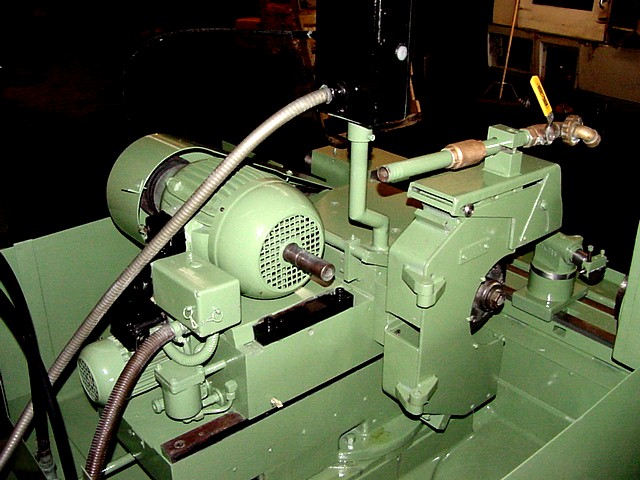

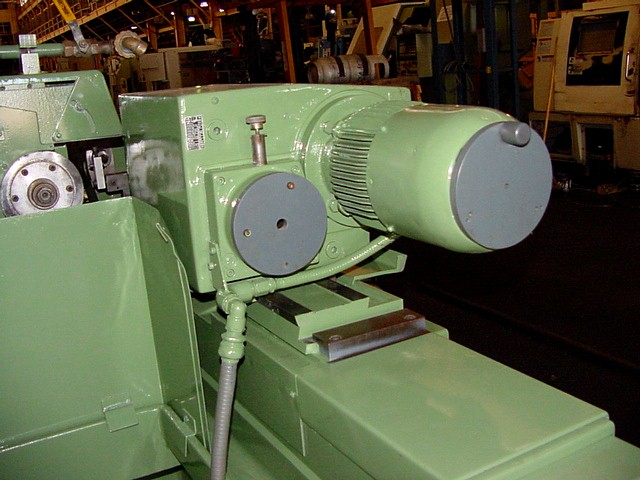

 1 H.P. UNIVERSAL MOTORIZED HEADSTOCK WITH COMBINATION
  LIVE AND DEAD SPINDLE AND CENTER
 LEVER-TYPE FOOTSTOCK WITH CENTER
 AUTOMATIC LUBRICATION TO TABLE AND WHEELHEAD WAYS
 1 H.P. HYDRAULIC PUMP MOTOR AND TANK
 4 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR AND
  ELECTRICAL CONTROLS

 EQUIPPED WITH:
 COOLANT SYSTEM w/COOLANT TANK, PUMP, PIPING, ETC.
 EXTRA WHEEL HUB

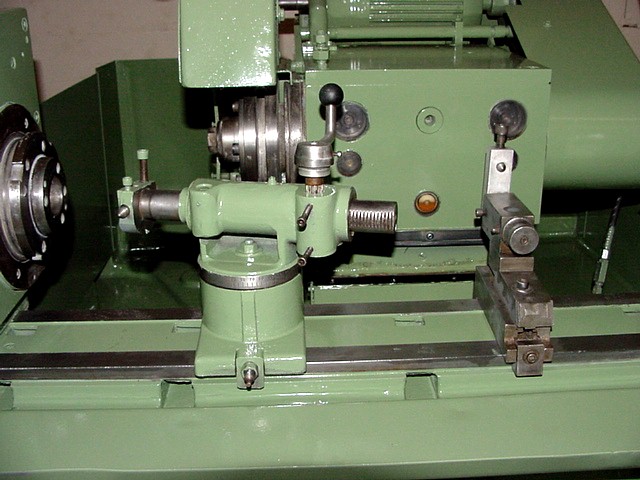

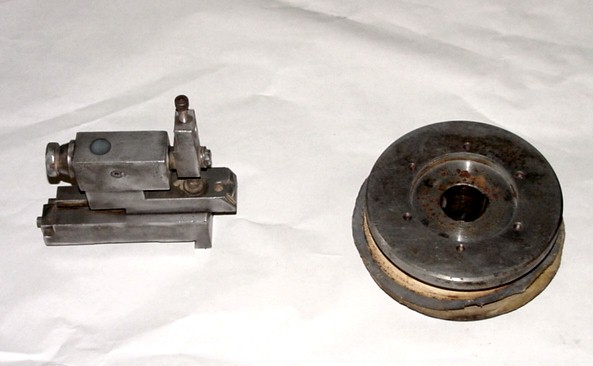

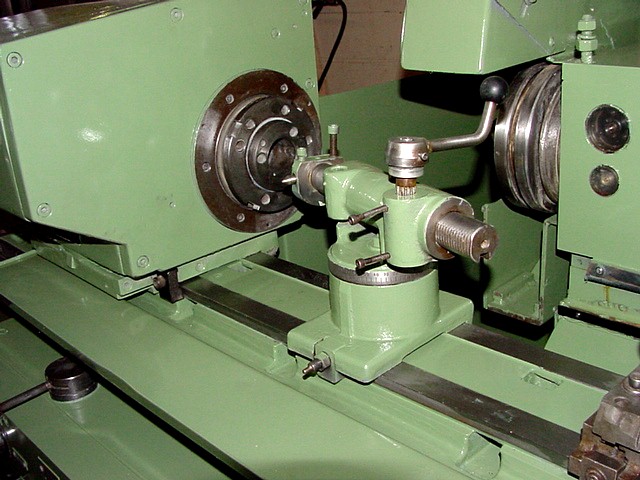

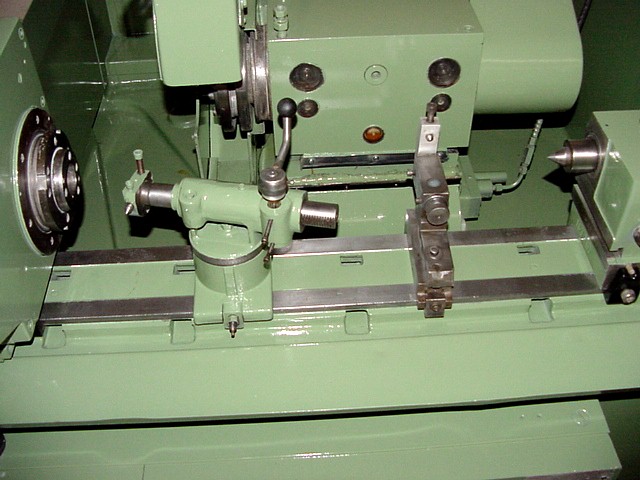

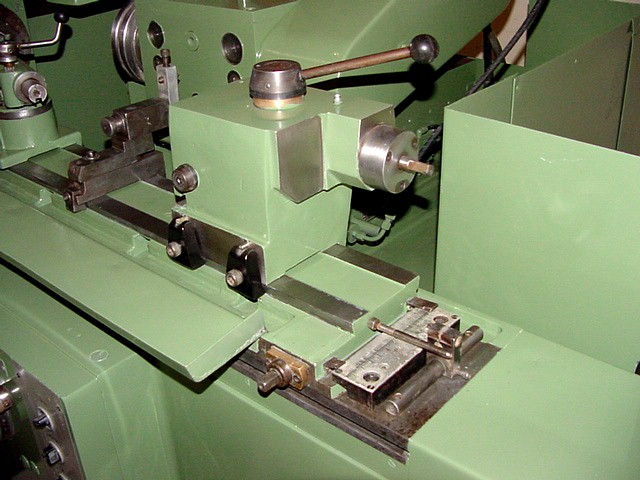

 TABLE MOUNTED DRESSER
 ANGLE DRESSER

 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
               **  EXCELLENT CONDITION  **
