Reference Number: 141982
Price: $16,500PACIFIC
MODEL J75-8

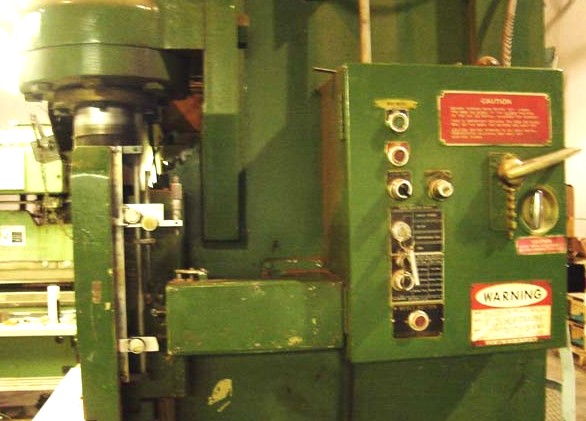

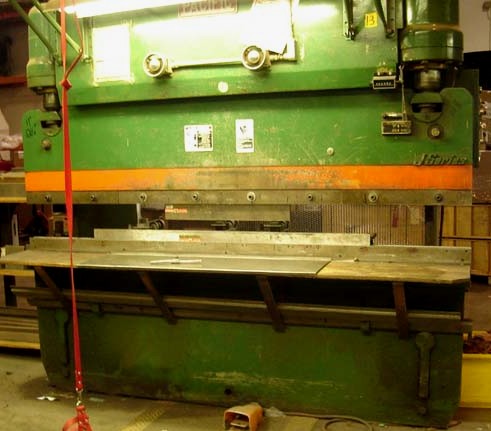

HYDRAULIC PRESS BRAKE
Year 1974
Capacity 75 tons
Overall length of bed & ram 8' (96")
Distance between housings 6' 6 1/2" (78 1/2")
Stroke 7"
Open height 13"
Closed height 6"
Throat depth 6"
Floor to top of bed/platen 34"
Speed: approach 166 ipm
pressing 66 ipm
anti-whip 15 ipm
return 203 ipm
Motor 15 hp
Weight 9,000 lb.
Dimensions 98" x 44" x 89" high
Machine is equipped with:
Lower die holder
Upper sectional ram clamps
Press mounted palm buttons
Remote foot pedal
Tilt adjustment
Multi-speed operation w/ anti-whip circuit
Lube system
Floor standing
