Reference Number: 142005

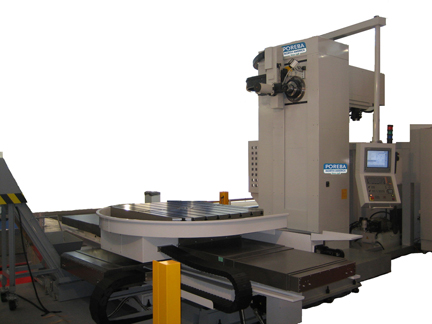

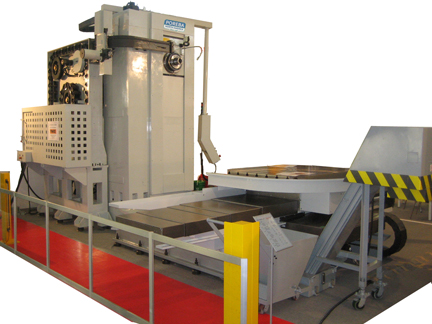

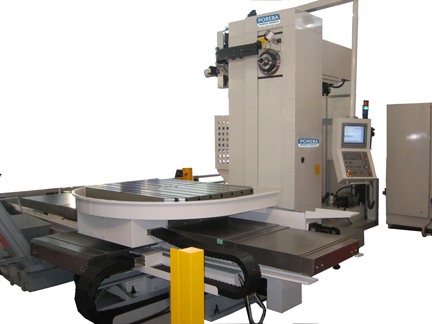

4.33" POREBA CNC Table Type Horizontal Boring Mill
 Age: New
 Model: HBM-4

 FANUC 18i CNC Control

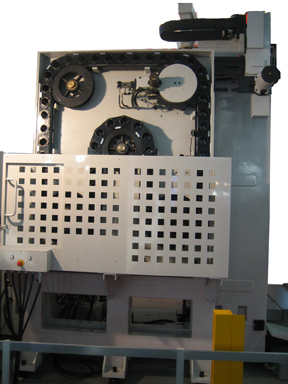

 60 Station Automatic Tool Changer

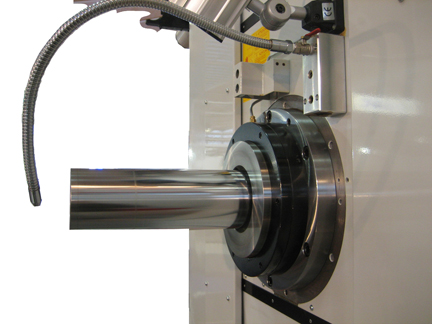

 Spindle Diameter...................... 4.33"
 Spindle Taper......................... ISO #50
 Vertical Head Travel, y............... 63"
 Table Travel, x....................... 86.6"
 Spindle Travel, w..................... 21.65"
 Saddle Travel, z...................... 63"
 Distance Spindle To Table Center...... 0-64.9"
 Built in Rotary Table................. 47.24" x 59.05"
 Table Index........................... 1 Degree
 Rapid Traverse: x,y,z Axis............ 472.44 IPM
 Feed Rates: x,y,z Axis................ .04-196.85 IPM
 Table Load Capacity................... 11,000 LBS
 Spindle Speeds (2 Ranges)............. 35-3000 RPM
 Tool Change Time (Tool to Tool)....... 9 Seconds
 Maximum Tool Weight in Tool Changer... 55 LBS

 EQUIPPED WITH:
 FANUC 18i MB CNC Control
 MGP and RS 232 Interface
 Built-In Rotary Table
 60 Position Automatic Tool Changer
 Rigid Tapping
 Coolant Thru Spindle
 Spindle Sleeve Extension
 Spindle Oil Chiller
 Steel Telescoping Way Covers
 Auto Power Off
 Auto Lubrication System
 Auger Style Chip Conveyor
 Table Guarding for High Pressure Coolant System
 25 HP Spindle Drive Motor 220/3/60

 Floor Space: 300" L x 186" W x 146" H
 Machine Weight: 50,000 LBS



 Full 1-Year Parts and Labor Warranty on Machine
 Full 2-Year Parts and Labor Warranty on CNC Control
