Reference Number: 142008

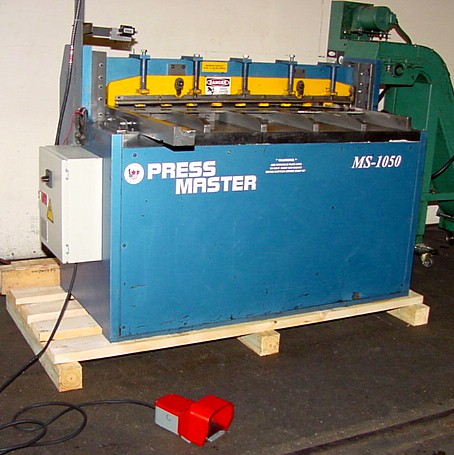

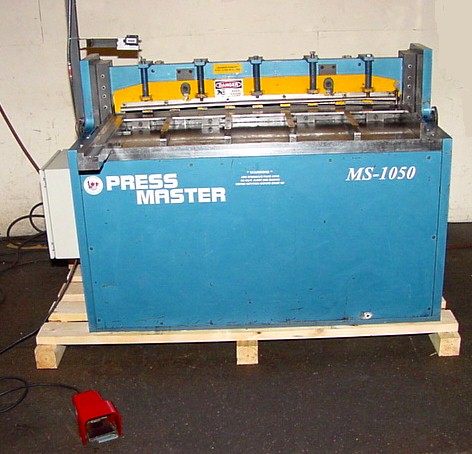

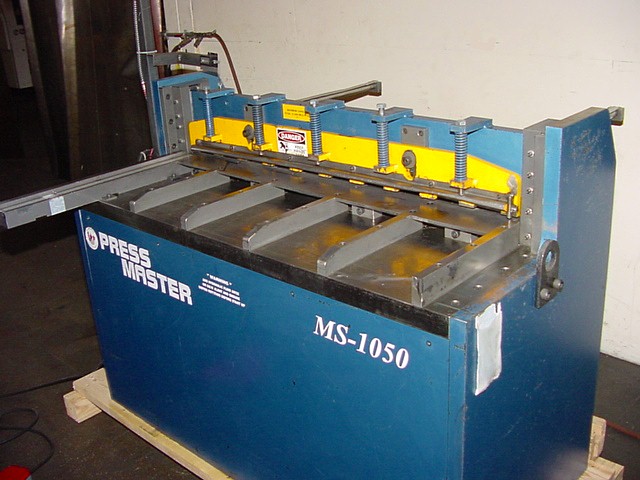

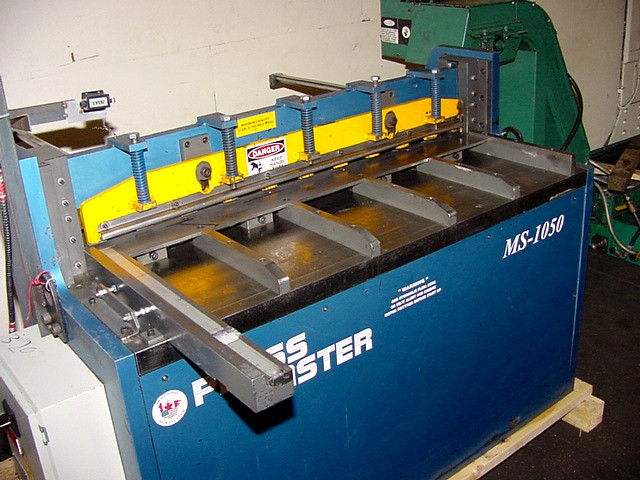

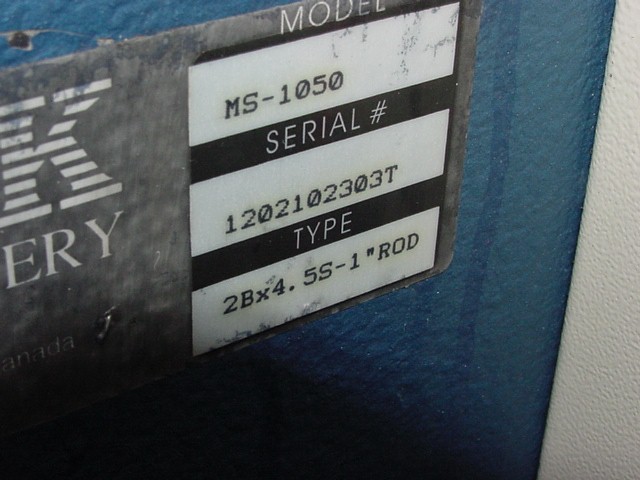

PRESSMASTER MODEL MS-1050 HYDRAULIC SHEAR
 10 Ga x 50" SHEAR
 USED MACHINE - BUILT IN 2002


 CUTTING CAP. .............................. 10 GA. (0.1345")
 CUTTING LENGTH ............................ 50"
 RAKE ANGLE ................................ 1.5" / 50"
 SPM ....................................... 36
 NUMBER OF HOLDDOWN FEET ................... 11
 MOTOR ..................................... 10 HP 1760 RPM

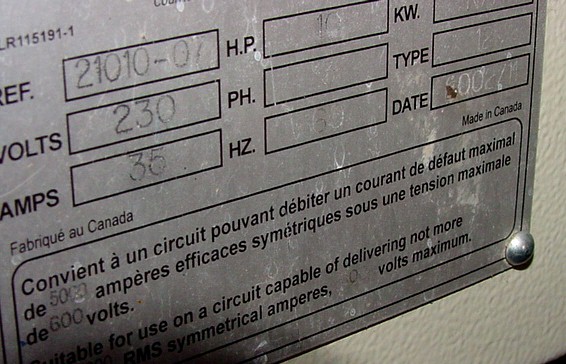

 VOLTAGES AVAILABLE ........................ 230/460/575
                                             3 PH/60 HZ
 TABLE DEPTH ............................... 18"
 TABLE WORK HEIGHT ......................... 34"
 FOOTPRINT ................................. 60" LONG
                                             28" WIDE
 WEIGHT .................................... 2,950 LBS.

 STANDARD FEATURES:
 - EQUIPPED WITH FULLY INTEGRATED HYDRAULIC UNIT, LOW WORKING
 PRESSURE OF 2,000 P.S.I.
 - PRESSURE RELIEF VALVE TO PREVENT OVERLOADING
 - ELECTRIC SOLENOID HYDRAULIC VALVING FOR INSTANTANEOUS
 RESPONSE
 - FOOT SWITCH, IF RELEASED ANYWHERE IN THE STROKE THE
 CROSSHEAD RETURNS TO "UP" POSITION
 - CLEAN HYDRAULIC OIL IS ASSURED BY A RENEWABLE CARTRIDGE
 TYPE FILTER IN THE RETURN LINES.
 - TWO DOUBLE ACTING CYLINDERS WORKING UNIFORMLY
 - BLADES MADE FROM D2 HIGH CARBON PREMIUM QUALITY TOOL
 STEEL.
 - THE BOTTOM BLADE CAN BE USED ON ALL 4 SIDES.
 - THE TOP BLADE HAS REVERSIBLE CUTTING EDGES WITH 5 DEGREE
 BACK BEVEL TO ENSURE A CLEAN CUT.

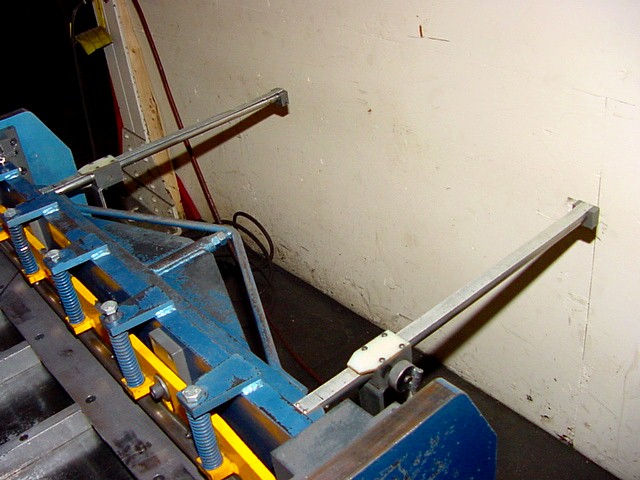

 - A 30" SQUARING ARM COMPLETE WITH MEASUREMENT INDICATOR.
 - OUR 4 SUPPORT ARMS ARE ROUNDED FOR EASY HANDLING OF
 MATERIAL, THIS ALSO PREVENTS MARRING MATERIAL WHILE LOADING.

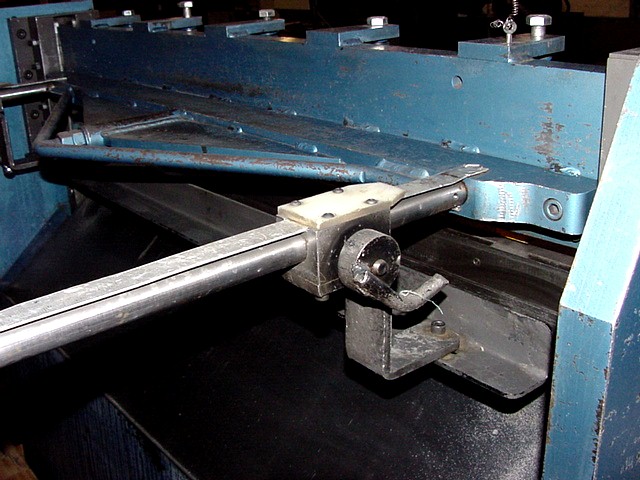

 - RACK & PINION, PARALLEL DRIVEN MANUAL 25" TRAVEL
 BACK GAUGE FOR FAST SETUPS AND HIGH ACCURACY.
 - LOW SPEED TEFC BALDOR ELECTRIC MOTOR.

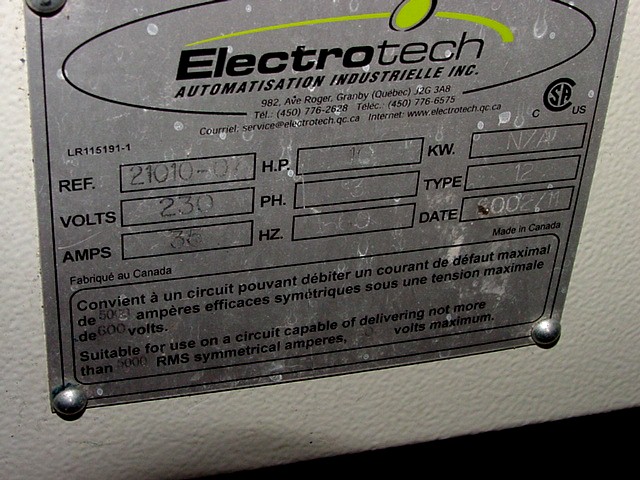

 - FULLY ENCLOSED CONTROL PANEL COMPLETE WITH LOW VOLTAGE
 CONTROLS.
 - REMOTE FOOT PEDAL CONTROL.
 - THE FRAME IS MADE FROM A SOLID STEEL WELDED CONSTRUCTION,
 GIVING MAXIMUM RIGIDITY.
 - ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE
 INDUSTRY, MADE IN THE USA OR CANADA, AND READILY AVAILABLE
 ALMOST ANYWHERE.

 USED, BUT IN EXCELLENT CONDITION - WAS TAKEN IN TRADE FOR
 A LARGER SIZE PRESSMASTER SHEAR
