Reference Number: 142023

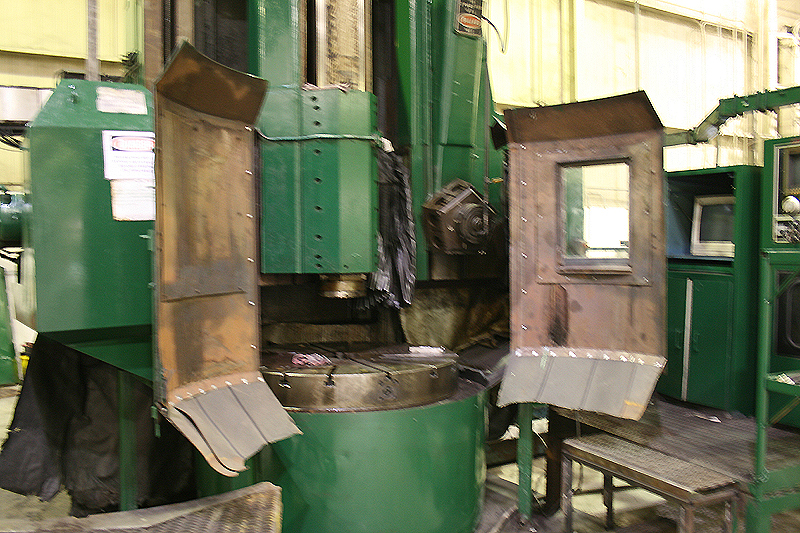

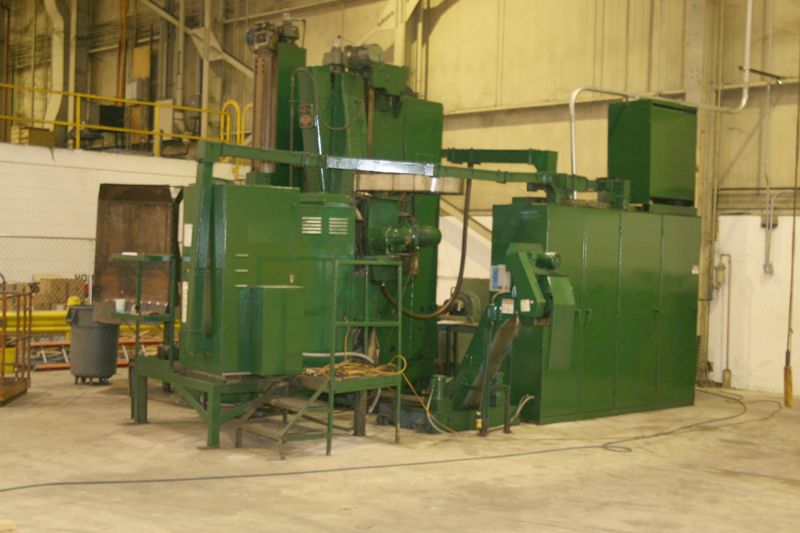

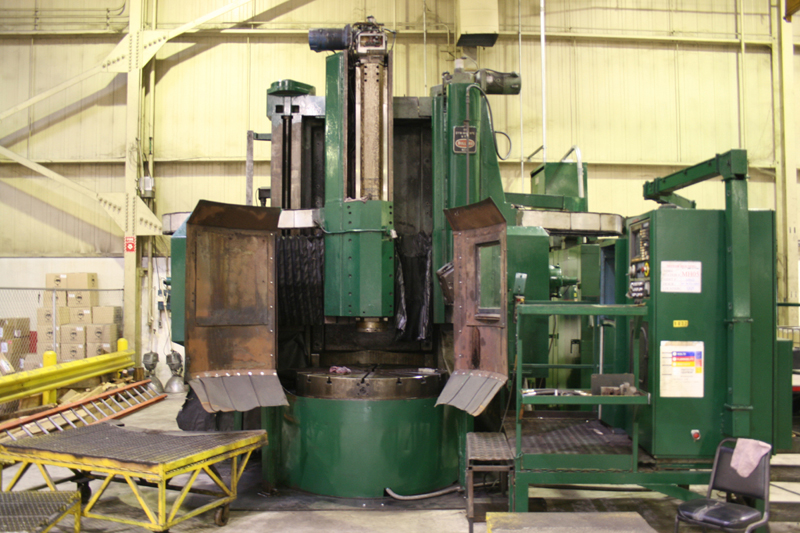

SPECIFICATIONS:56" BULLARD HIGH COLUMN CNC VERTICAL BORING MILL,
MODEL: DYN-AU-TAPE IV,
NEW: 1976, CONTROL RETROFIT: 1987
CHUCK DIAMETER .............. 56"
MAX. SWING .................. 68.00"
MAX. HEIGHT UNDER RAIL ...... 69.50"
SPINDLE MOTOR ............... 100 HP
SPINDLE SPEEDS .............. 2.2 - 267 RPM
RAM STROKE .................. 51"
TURRET STROKE ............... 35.5"
EQUIPPED WITH:

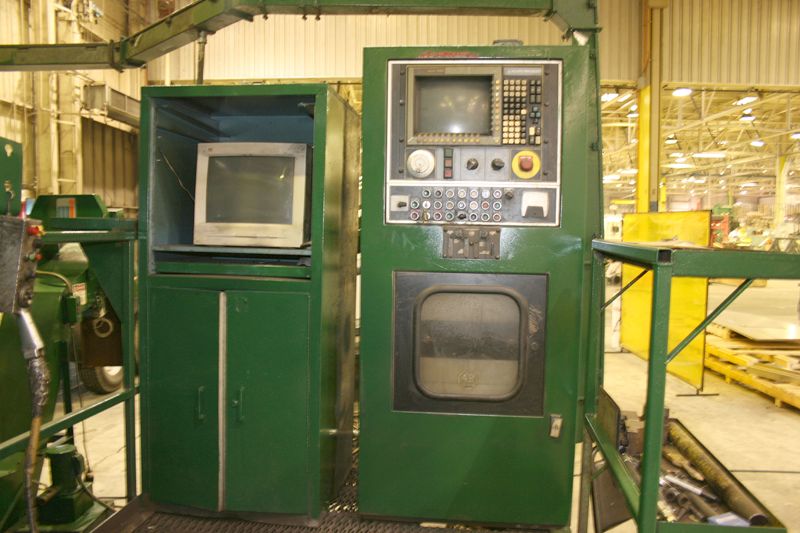

- ALLEN BRADLEY 8200 CNC CONTROL
- 56" 4 JAW POWER CHUCK
- 4 POSITION POWER INDEXING RAM
- 5 POSITION TURRET HEAD
- CHIP CONVEYOR
- WORK ENCLOSURE/COOLANT GUARD
- BALL SCREWS & INDEPENDENT SERVO DRIVES
Price: On Request
