Reference Number: 142033

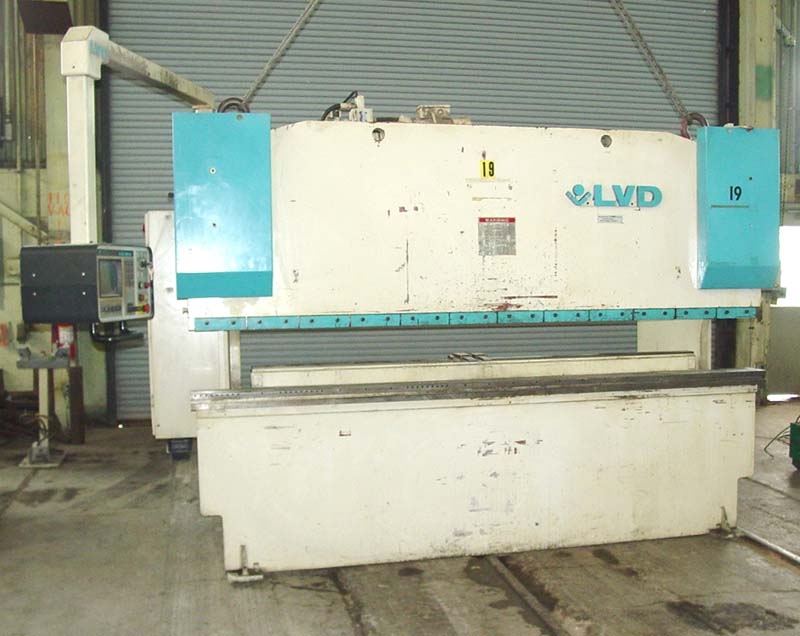

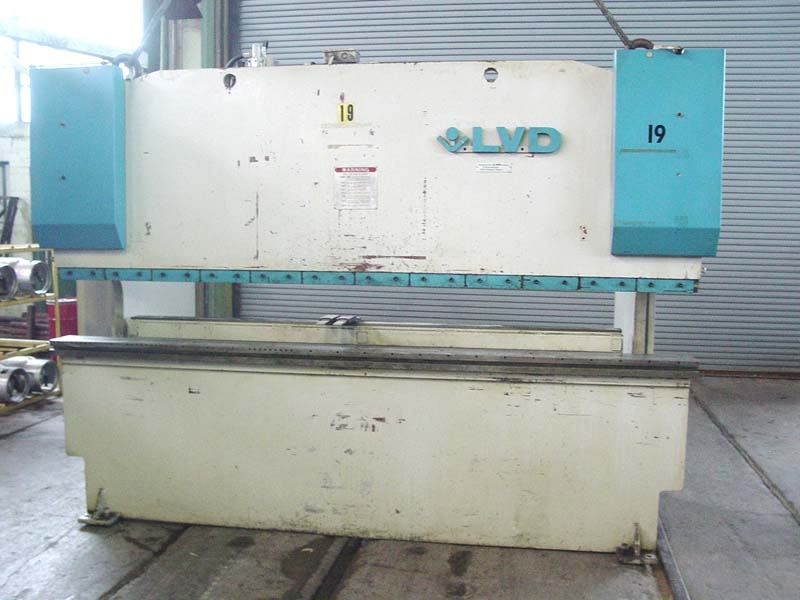

Price: $29,500LVD HYDRAULIC PRESS BRAKE
110 TON X 10' Model 110BH10 MNC 85N
New 1991
EQUIPPED WITH:

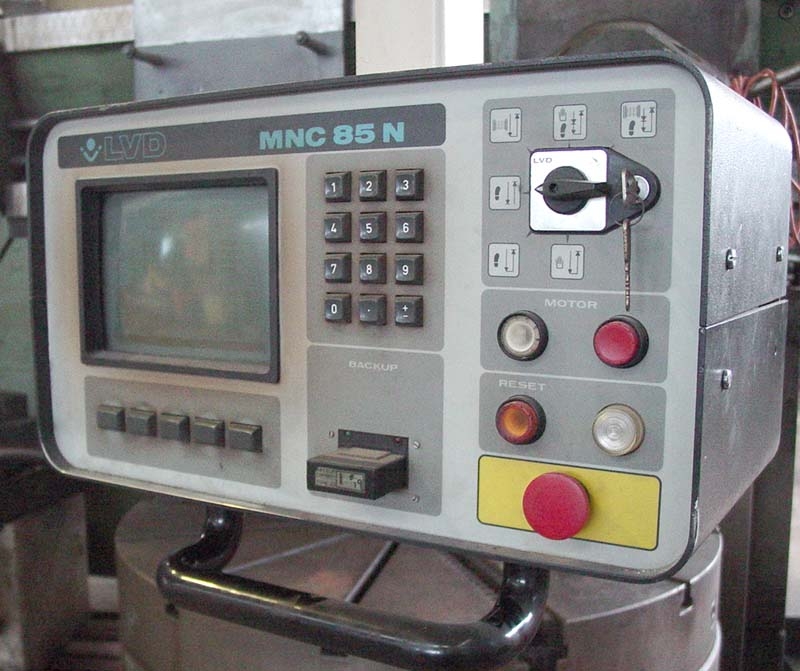

LVD MNC 85N CNC Control

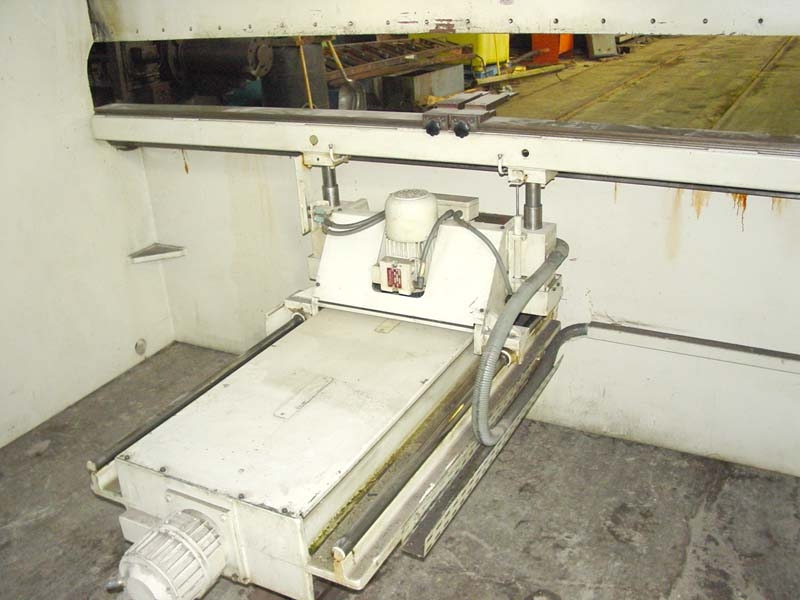

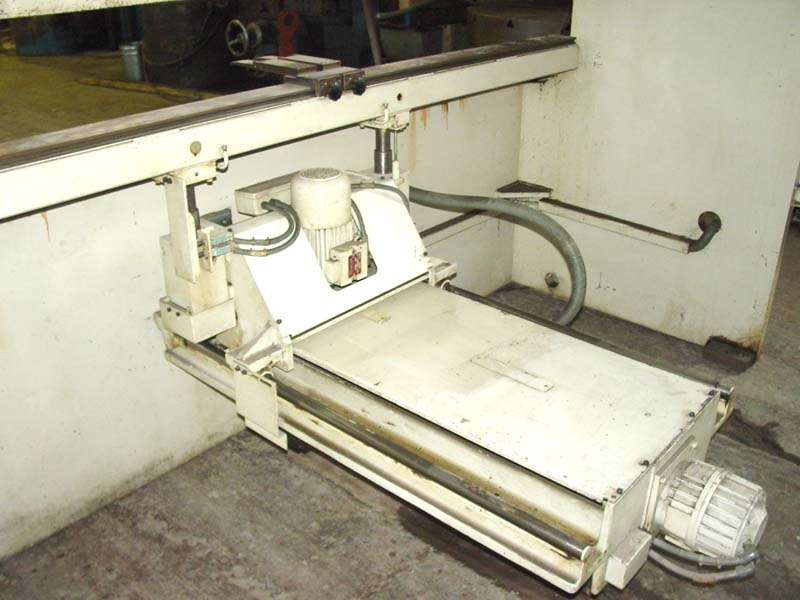

LVD 2-Axis Backgauge
Adjustable Stroke
Heidenhain Scales On Ram
Infinite Pressure Adjustment
CATALOG SPECIFICATIONS:
Overall Length of Die Surface ......... 120" (10')
Maximum Bending Length................. 120" (10')
Distance Between Housings.............. 100" (8'4")
Tonnage Capacity:...................... 115 Ton
Throat Depth........................... 7.8"
Shut Height w/o Bolster................ 7.1"
Length of Stroke (Adjustable)...........5.1
Open Height.................... ........12.2"
Pressing Speed .........................191 IPM
Fast Approach Speed.....................237 IPM
Fast Return Speed.......................200 IPM
Drive Motor.............................10 HP
Electrical System...................... 440/3/60
Approximate Machine Dimensions......... 125" x 60"
Approximate Machine Height............. 103"
Approximate Machine Weight............. 13,500 Lbs
CONDITION: Machine Appears to be in Excellent Condition
