Reference Number: 142075

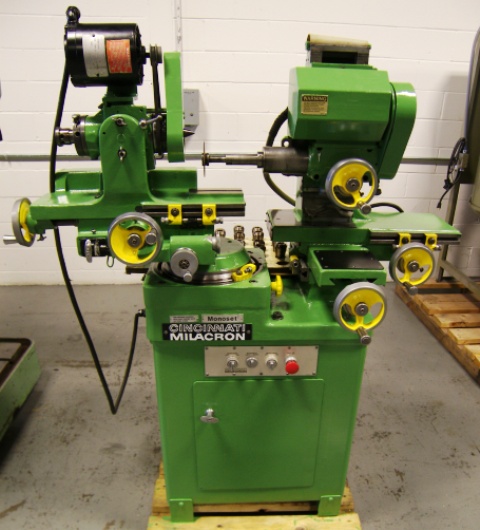

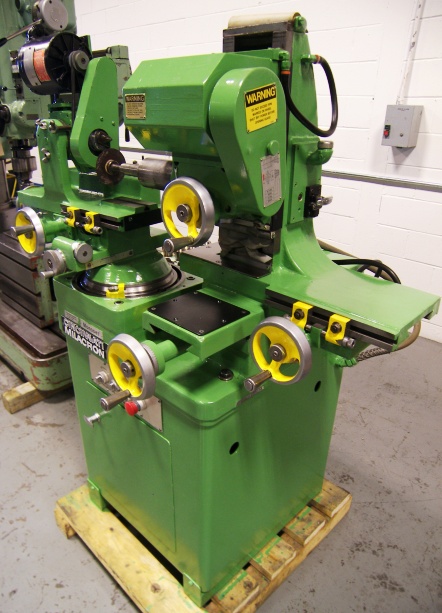

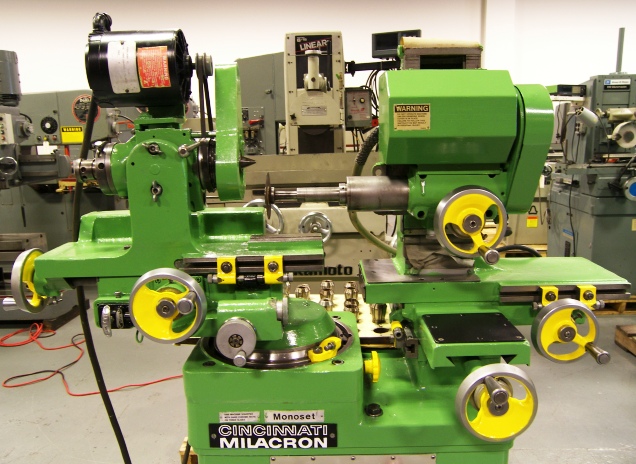

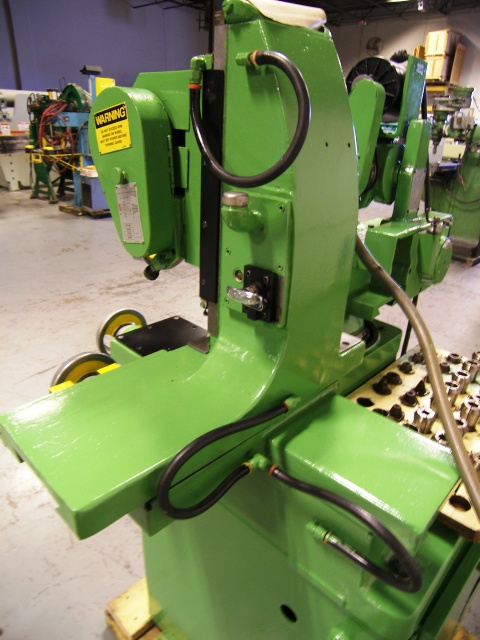

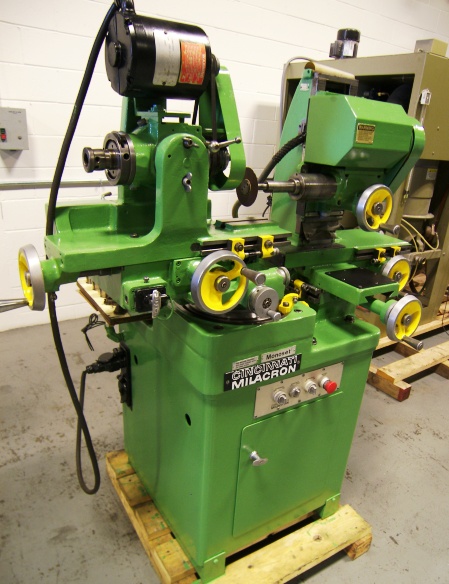

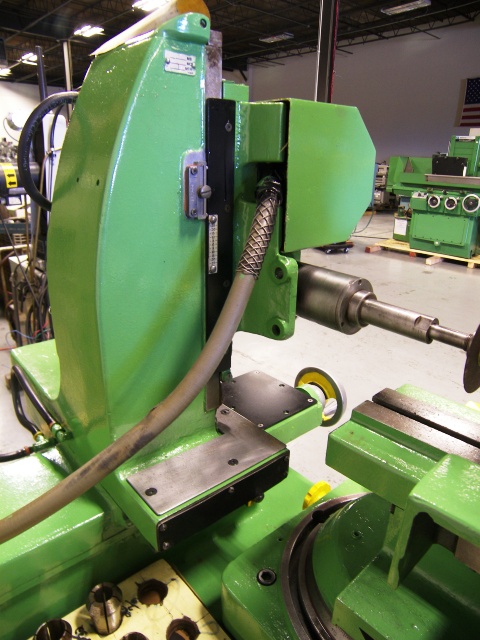

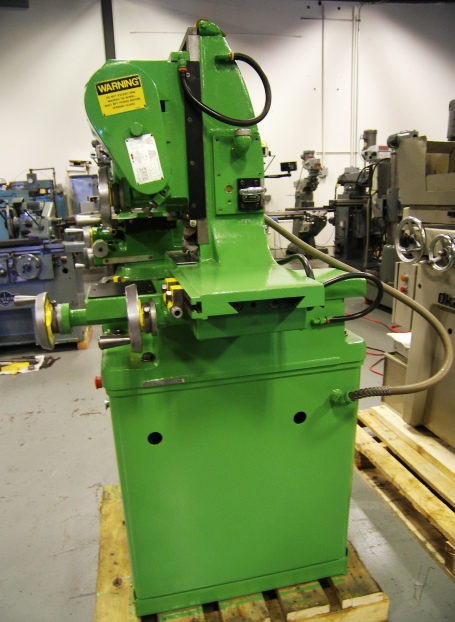

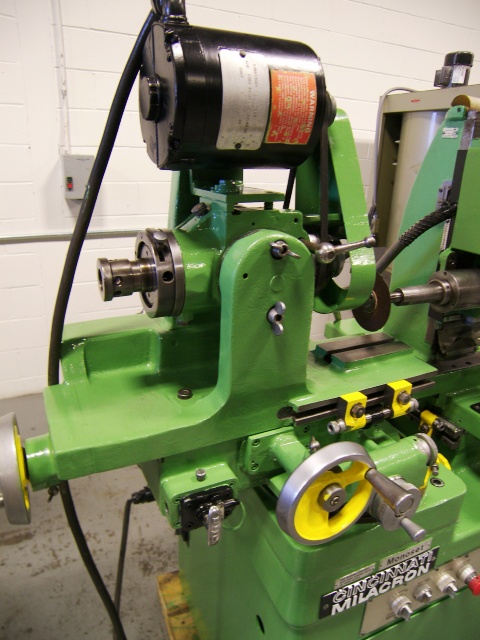

Price: On RequestCINCINNATI MONOSET Tool + Cutter Grinder, Capacity: Work Head

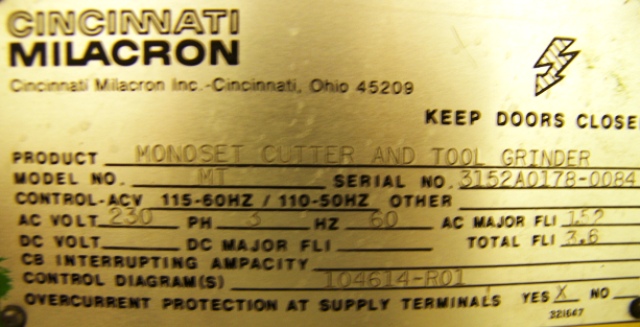

Model MT, S/N 3152A178-0084, New 1978
Swing over main slide 12"
Collet work dia. max 1.25"
Collet work dia. min 0.12"

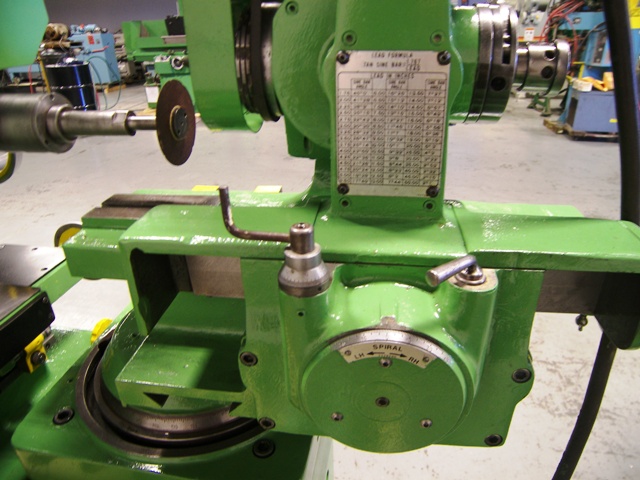

Lead generated by spiral lead mechanism, min. 1.81"
Length between spindle nose and tail center, max. 6"

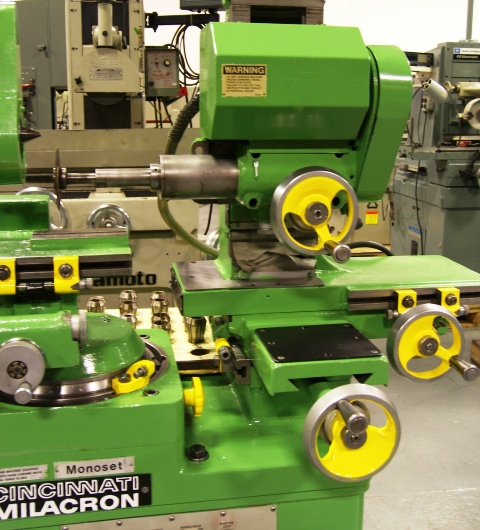

Capacity: Wheel head
Grinding wheel dia. max 4"
Range: Work head
Main slide travel 5.75"
Offset slide travel, total 5.25"
Front of center 3"
Rear of center 2.25"
Range: Work head angular adjustment

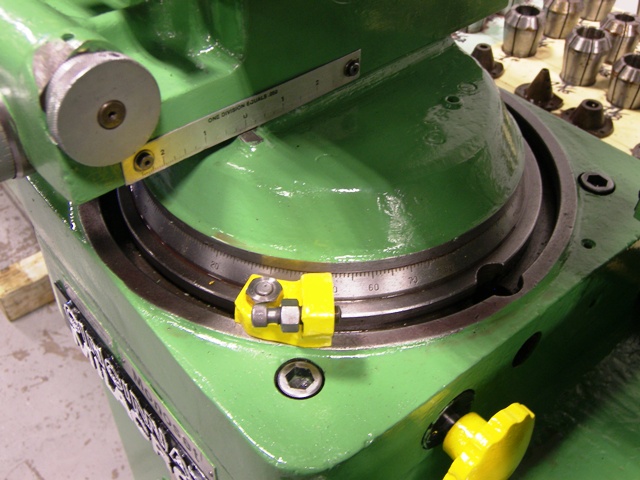

Horizontal plane(turnable base) 235 º
Vertical plane above center 40 º
Vertical plane below center 40 º
Range: Wheel head
Longitudinal slide travel 6"
Vertical slide travel total 9.5"
-Above center 4.5"
-Below center 5"
Cross slide travel total 7.5"
Front of Center 3"

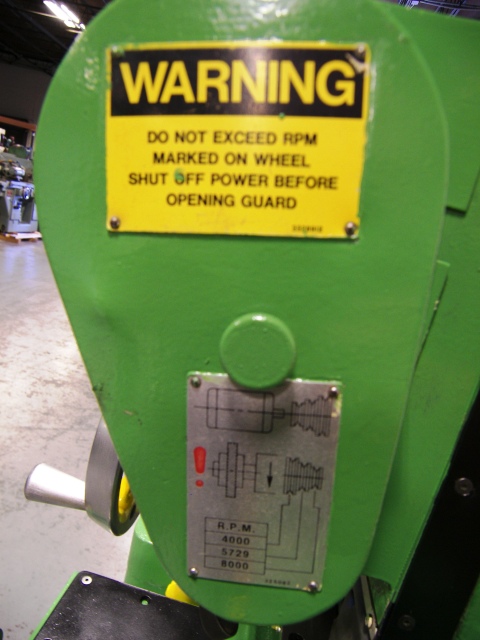

(3) Wheel head spindle speeds 4000, 5729, 8000 RPM
(1) Work Head Spindle speed 436 RPM

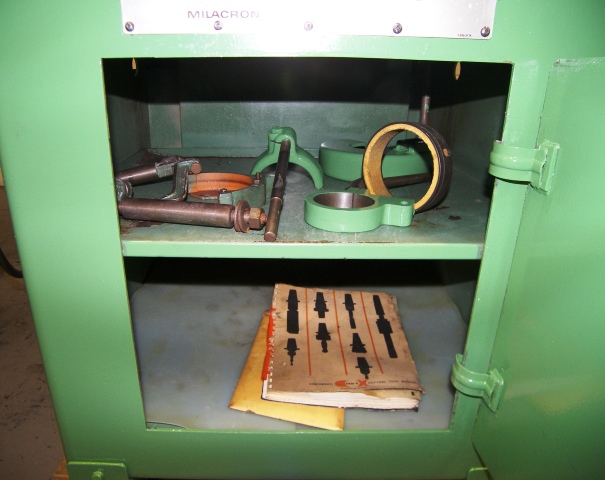

EQUIPPED WITH:
Index plates for spiral lead indexing unit:
10, 12 & 14 divisions

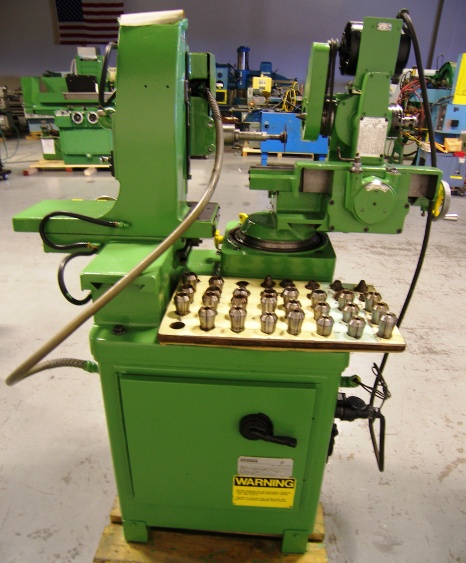

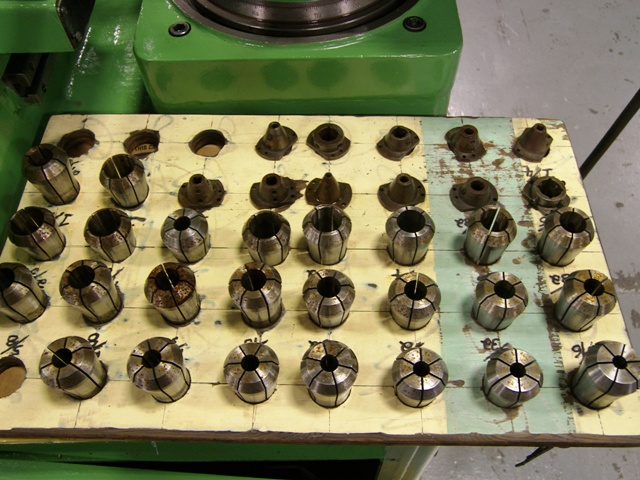

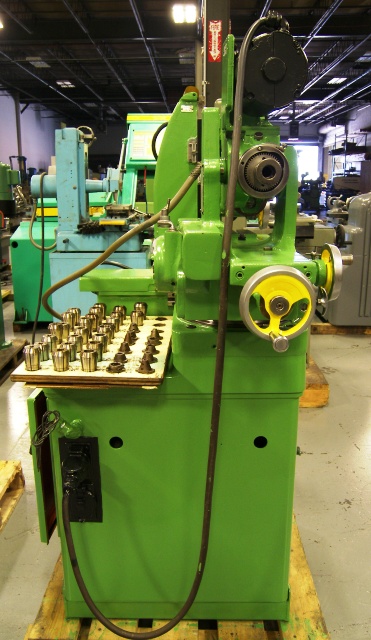

(26) Straight cylindrical collets ranging in size from 5/8" to 1-7/32" with (12)
adapters that fit into the straight cylindrical collets and are used when
grinding smaller diameters
Spindle centering gage
Toothrest assembly with blade

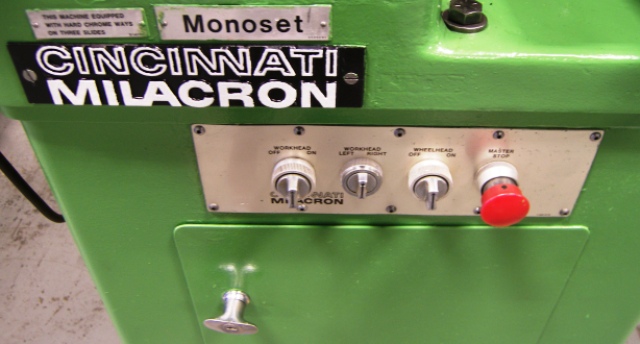

Hard chrome ways on three slides
BIJUR one-shot lubrication system

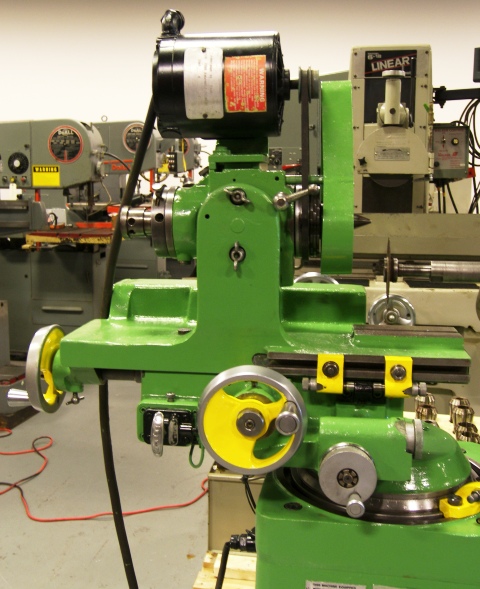

1/4 HP 3/60/230-460 volt motorized workhead
1/2 HP 3/60/230-460 volt wheelhead drive motor
Machine wired for 3/60/230 Volt operation
Floor space required: 60"x 67"x 62.12" (Max.height)
Approx.wt.: 1,550 lbs.
PRICE: F.O.B Truck, Wilmington,DE
