Reference Number: 142123

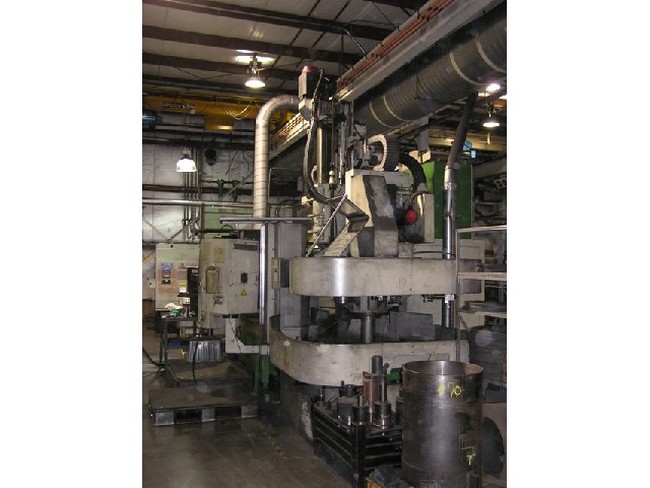

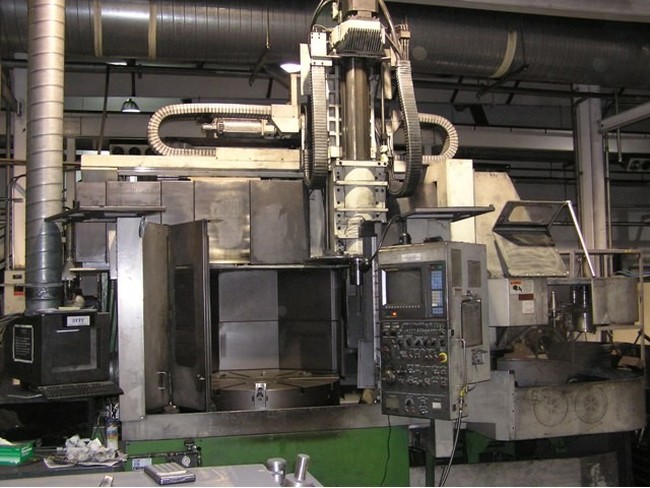

Price: On RequestMAZAK 3-AXIS CNC MEGATURN VERTICAL TURNING LATHE
MODEL: A-12, NEW 1990
SPECIFICATION

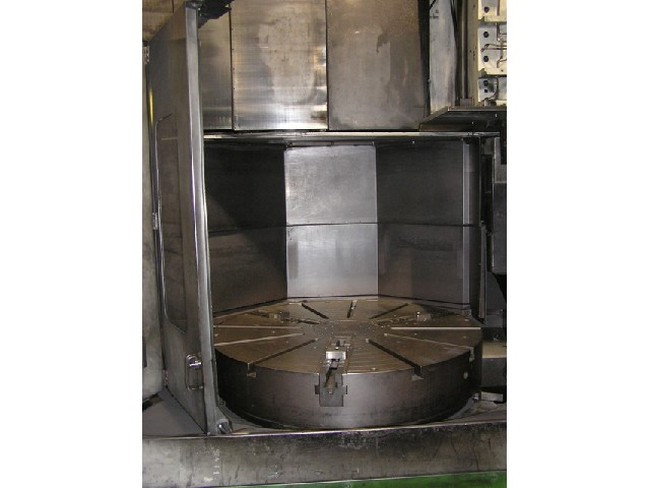

CHUCK DIAMETER:...................... 49.2"
MAX. SWING:.......................... 57"
MAX. TURNING DIAMETER:............... 53"
MAX. WORKPIECE HEIGHT:............... 48.2"
X-AXIS TRAVEL:R-L OF CENTERLINE...... 32" + 21"
Z-AXIS TRAVEL:....................... 31.4"
MAX. TABLE LOAD:..................... 15,400 LBS
SPINDLE SPEED:....................... 1 ~ 350 RPM
SPINDLE TAPER:....................... CAT 50
SPINDLE SPEED RANGE OF LIVE MILLING . 0 - 1,500 RPM
LIVE MILLING MOTOR................... 20 HP
SPINDLE MOTOR:....................... 60/80 HP
APPROX. DIMENSIONS:.................. 200" X 177" X 197"
APPROX. WEIGHT:...................... 44,600 LBS
EQUIPPED WITH:

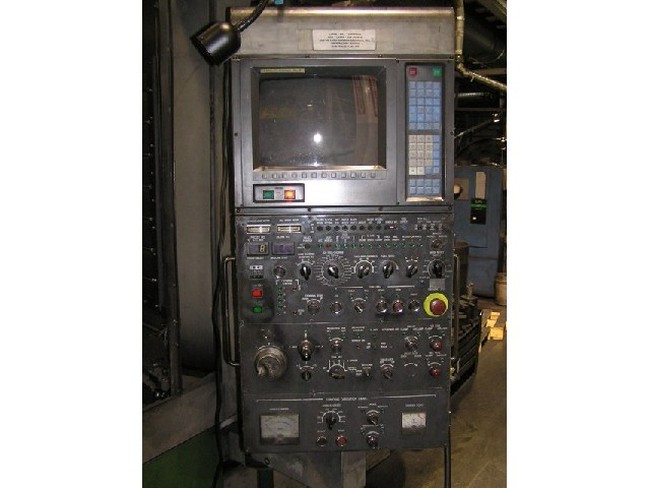

FANUC 15T CNC 3AXIS CNC CONTYROL
COOLANT THRU SPINDLE, TOOLING, CHIP CONVEYOR
C-AXIS MILLING, AUTOMATIC TOOL CHANGER
POWER CHUCK, 30 POSITION TOOL CHANGER
LIVE MILLING,PROBE
