Reference Number: 142164

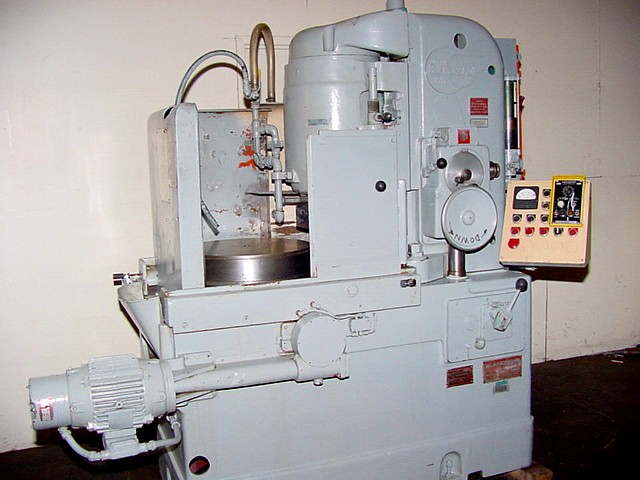

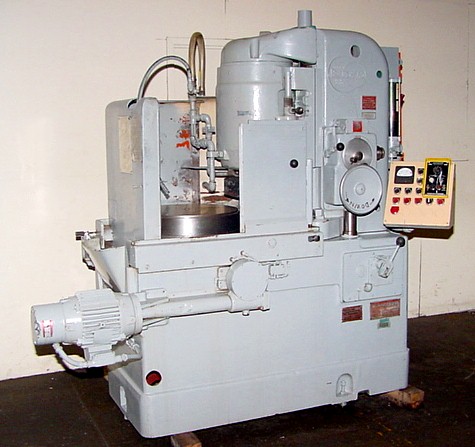

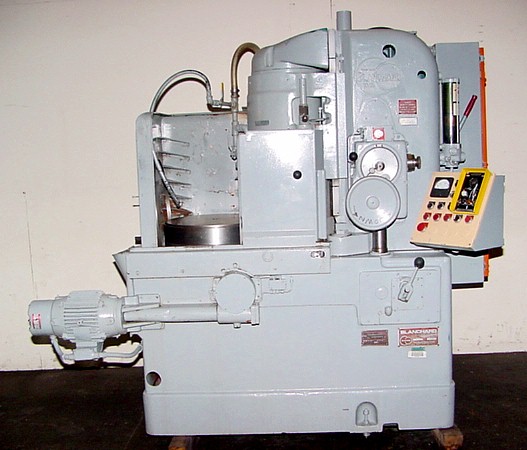

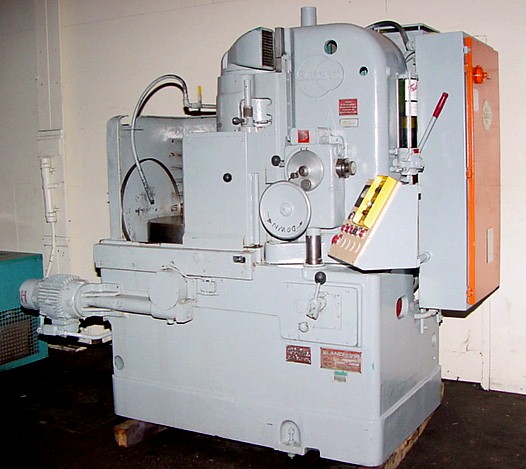

 20" BLANCHARD ROTARY SURFACE GRINDER

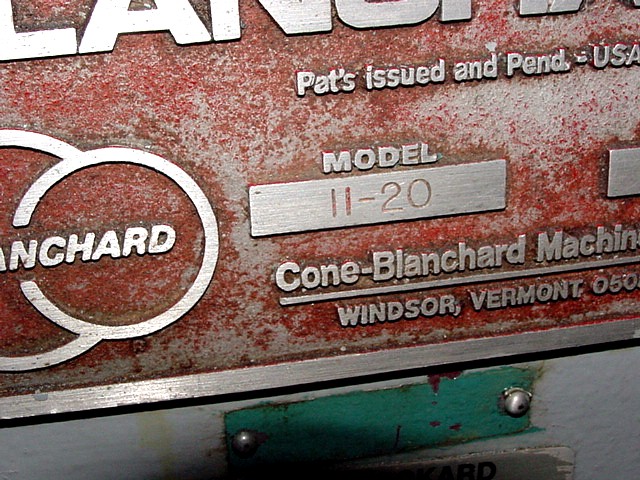

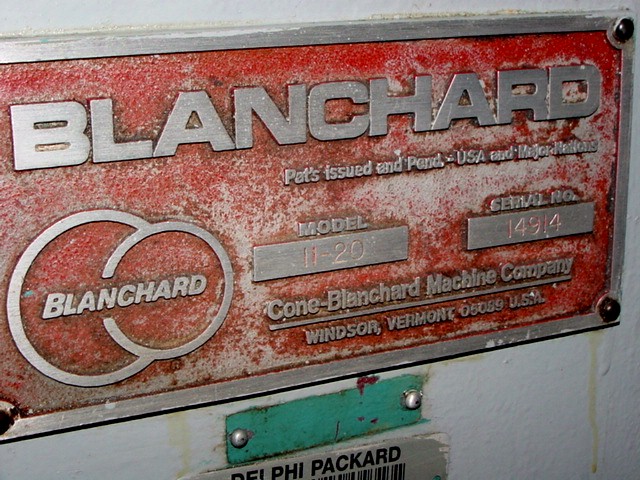

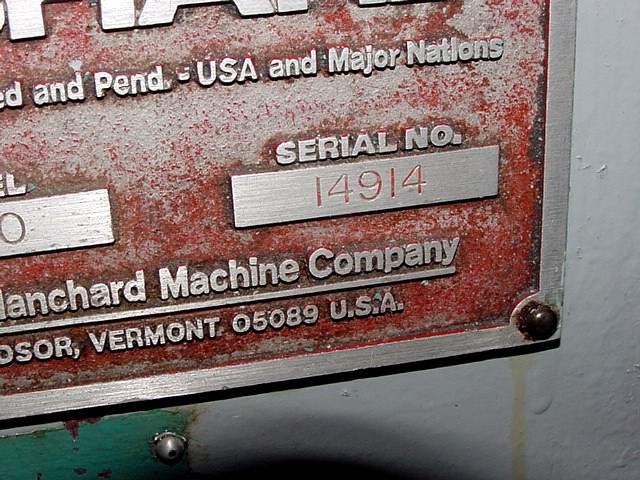

 MODEL: #11-20    S/N: 14914     NEW: 1977


 CHUCK DIAMETER .................................... 20"
 SWING INSIDE GUARDS ............................... 21"
 VERTICAL RANGE UNDER NEW WHEEL .................... 7"
 MAXIMUM LOAD ON CHUCK ......................... 500 LBS.
 GRINDING WHEEL DIAMETER ........................... 16"
 GRINDING WHEEL SPEED ......................... 1160 RPM
 CHUCK SPEEDS (4) .................. 15, 24, 41 & 64 RPM

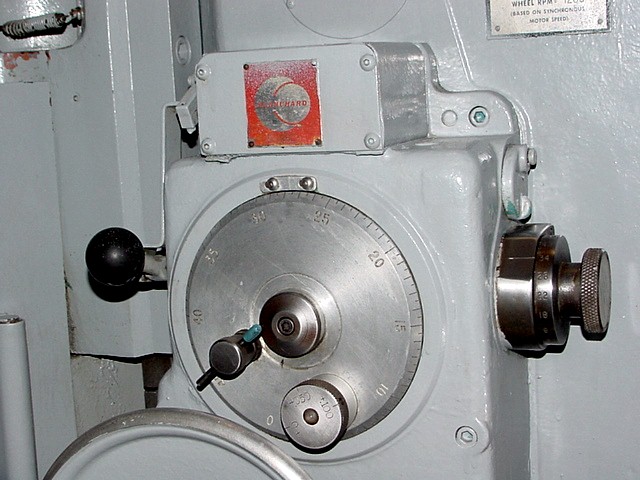

 INFINITELY VARIABLE POWER DOWNFEED .... 0.003" TO .070"

 APPROXIMATE DIMENSIONS..................7"L X 5'6W X 7'7"H
 APPROXIMATE WEIGHT ......................... 6,500 LBS.

 EQUIPPED WITH:
 NEARLY NEW CHUCK LIFE, JUST UNDER 1/2"
 HARDENED & REPLACEABLE BASE WAYS
 15 HP 3/60/230-460 VOLT SPINDLE MOTOR
 7" VERTICAL RANGE (STANDARD)
 SELF-CONTAINED COOLANT SYSTEM (WET BASE)

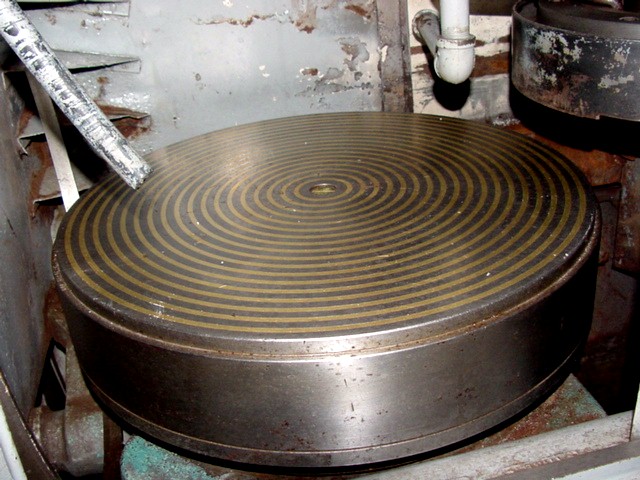

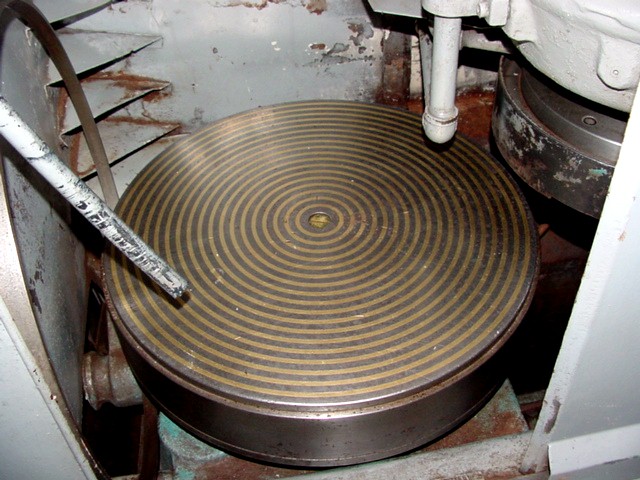

 20" ELECTRO-MAGNETIC CHUCK

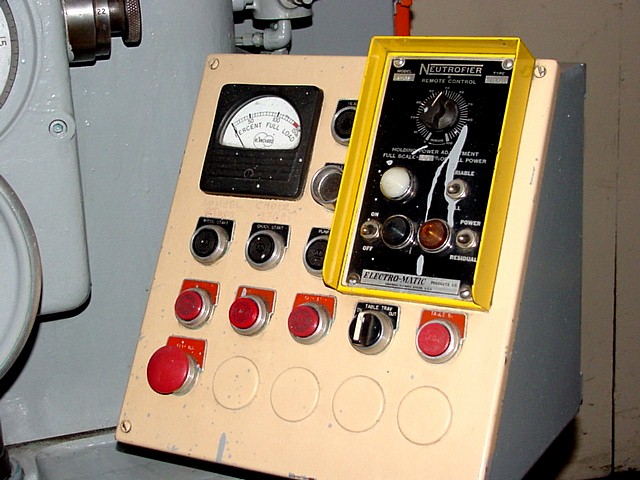

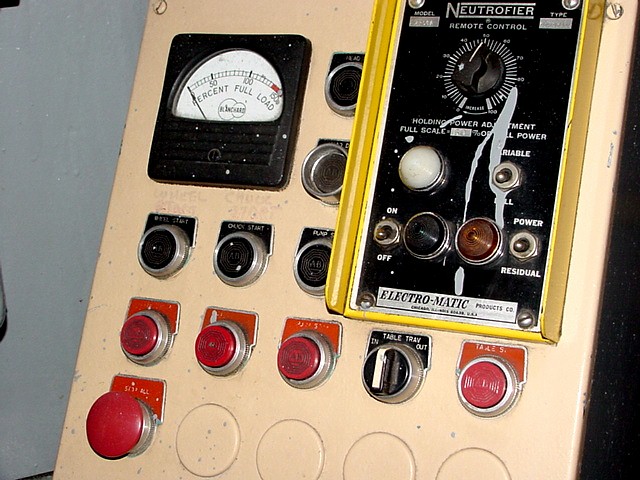

 "ELECTRO-MATIC" VARIABLE HOLD NEUTROFIER CONTROL
 "TRABON" LUBE SYSTEM

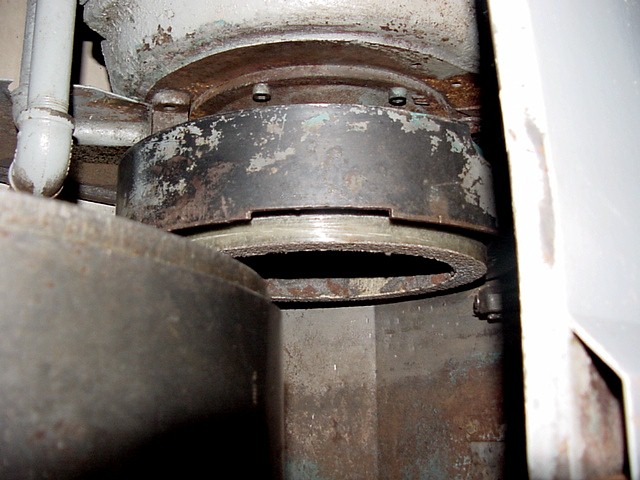

 11" x 5" x 9" DIAMETER GRINDING WHEEL
 DRESSER

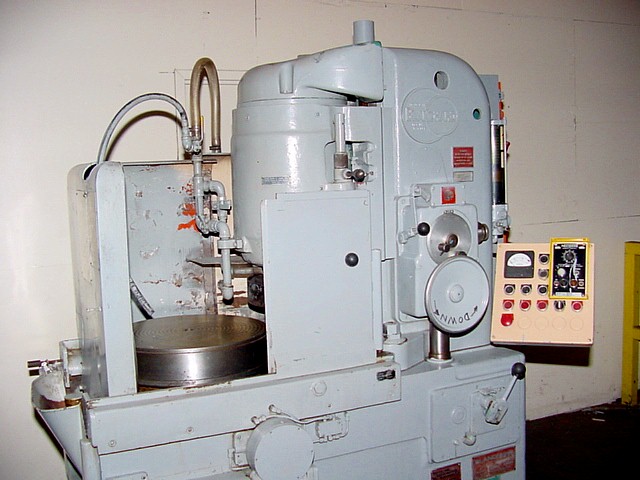

 WHEELHEAD HAS RAPID RAISE & LOWER BY POWER
  INTERLOCKED WITH FEED.
 POWER RAPID TRAVERSE FOR TABLE OPTION
 PRESENTLY WIRED FOR 3/60/460 VOLTS

 SPECIAL NOTE:
 ** MACHINE HAS BETWEEN 7/16" TO 1/2" CHUCK LIFE **

 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
 ** EXCEPTIONAL CONDITION & APPEARANCE **
 ** BEAUTIFUL MACHINE FROM A TOOLROOM - WOW! **
