Reference Number: 142169

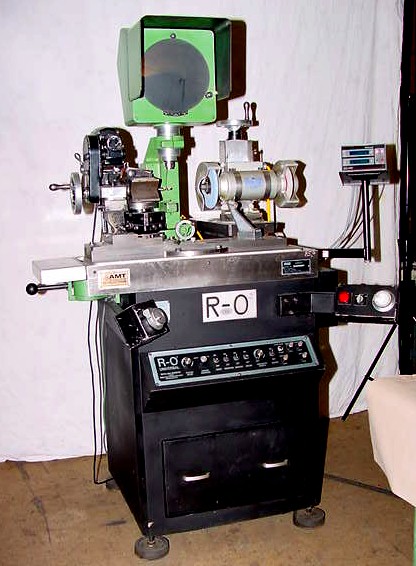

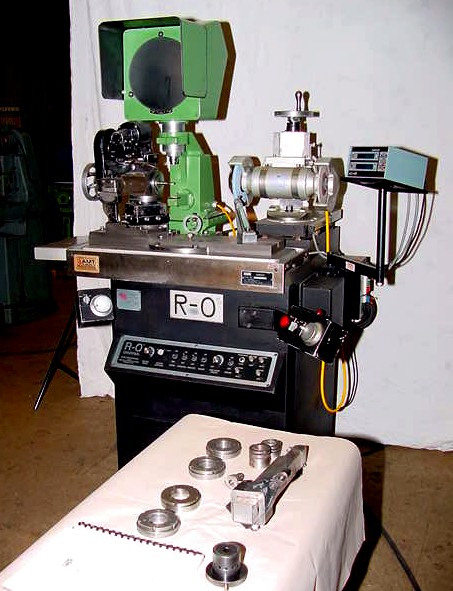

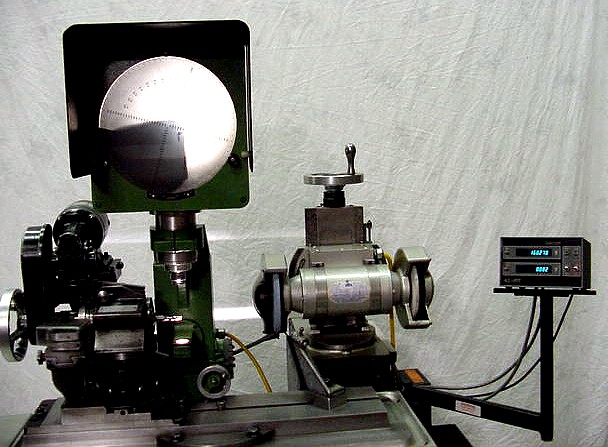

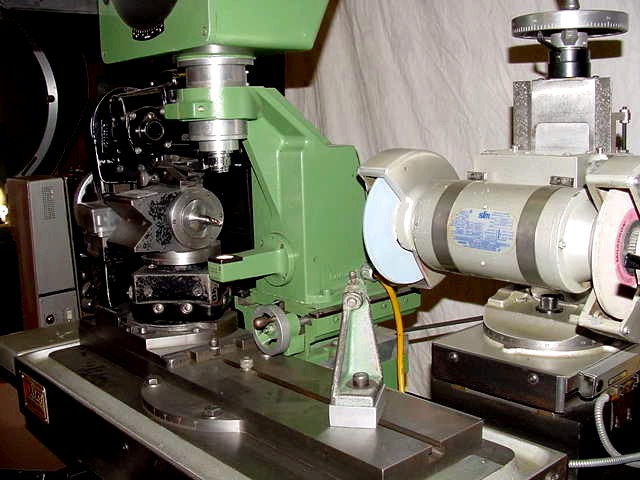

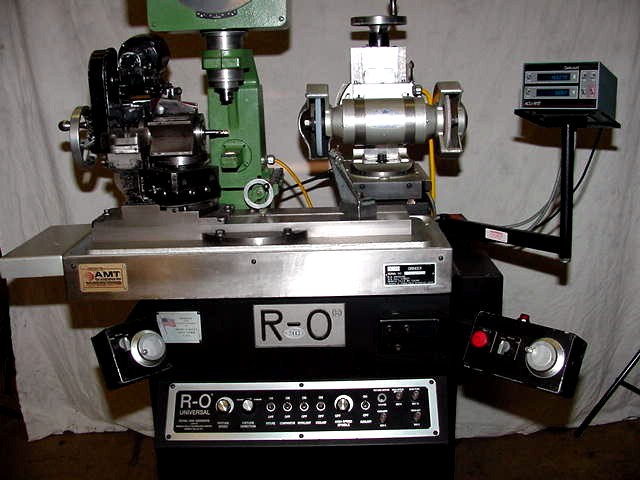

SENECA FALLS (ROYAL OAK) FORM RELIEVING GRINDERPrice: On Request
********* OPTICAL COMPARATOR *********

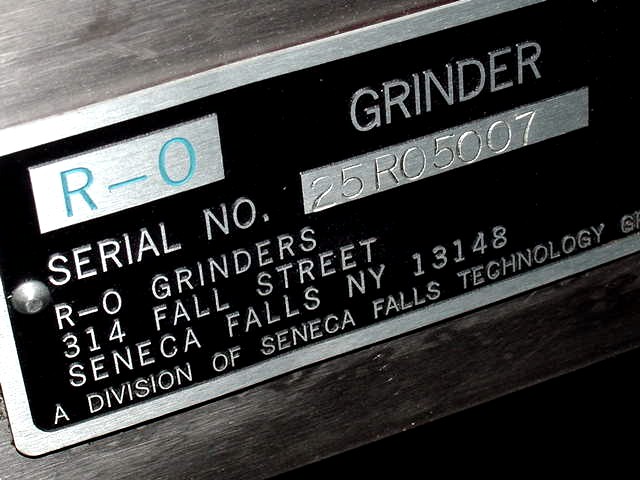

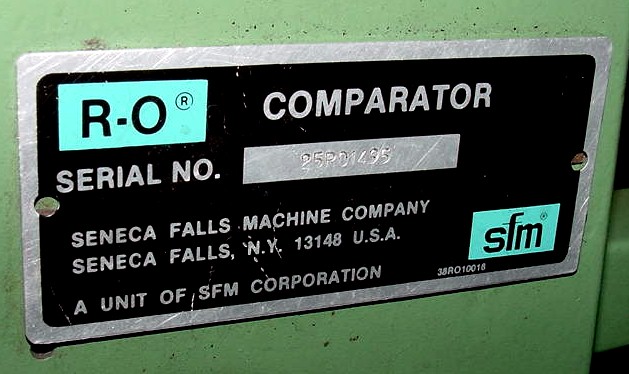

MODEL: 25R0 S/N: 25R05007 NEW: 1994
PLATEN TABLE SIZE ........................ 8-7/8" X 30"
PLATEN TABLE TRAVEL ............................... 16"
GRINDER COLUMN CROSS TRAVEL .................... 5-1/8"
GRINDER SPINDLE VERTICAL TRAVEL ................ 5-1/4"
GRINDER SPINDLE TILT ......... 25 DEGREES ABOVE & BELOW
GRINDER SPINDLE INDEXES ................... 360 DEGREES
MAXIMUM DIAMETER BETWEEN CENTERS OF FORM RELIEVING
FIXTURE WITH .......................... 1-3/4" SQUARE
CENTER HOLDING FIXTURE ....................... 5-1/2"
MAXIMUM LENGTH BETWEEN CENTER OF FORM RELIEVING
FIXTURE WITH .......................... 1-3/4" SQUARE
CENTER HOLDING FIXTURE ........................... 8"
MAXIMUM COLLET CAPACITY OF FORM RELIEVING
FIXTURE ...................................... 2-1/2"
APPROX. MACHINE WEIGHT ..................... 1,000 LBS.
EQUIPPED WITH:
ACU-RITE 2-AXIS DIGITAL READOUT DISPLAY

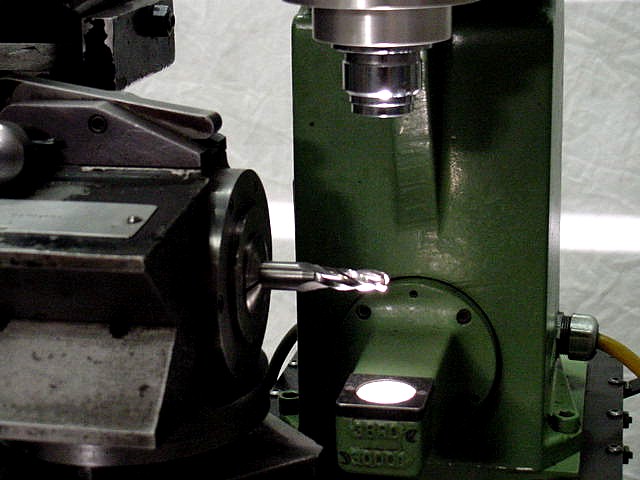

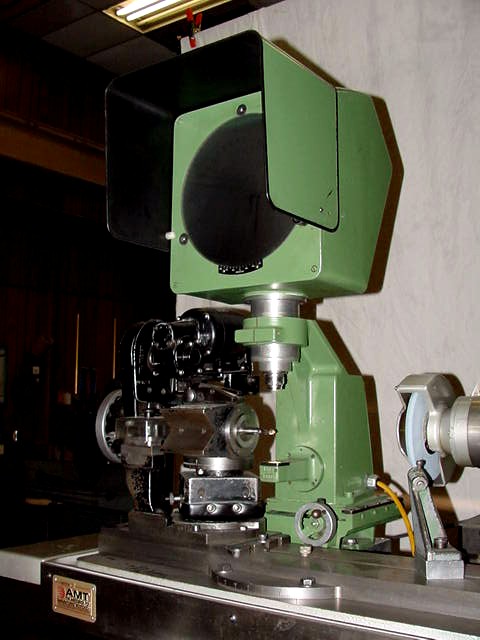

R-O OPTICAL COMPARATOR ATTACHMENT W/LENS

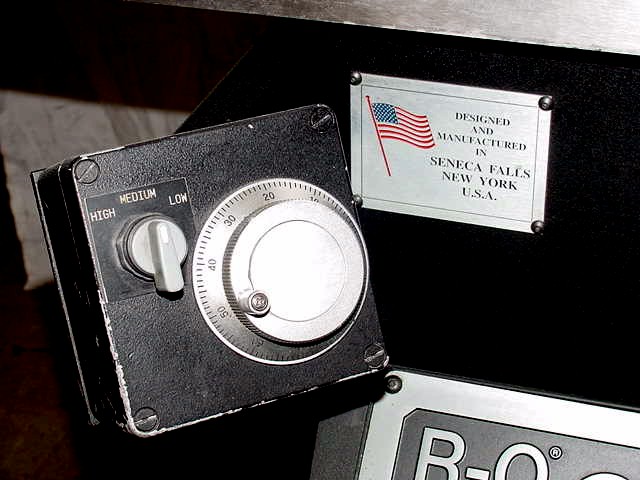

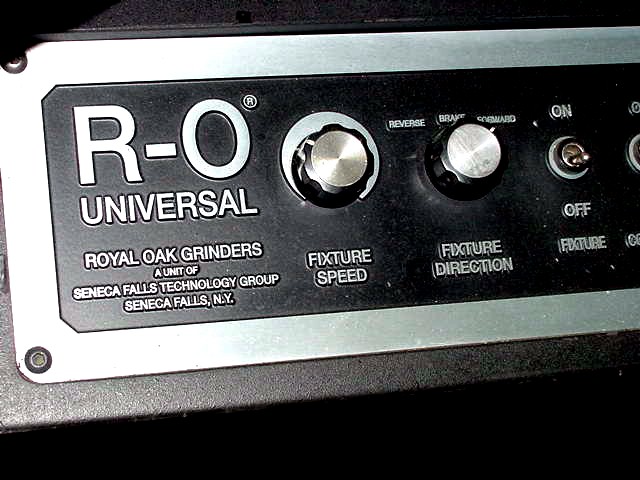

R-O MOTORIZED RELIEVING FIXTURE W/INFINITELY VARIABLE

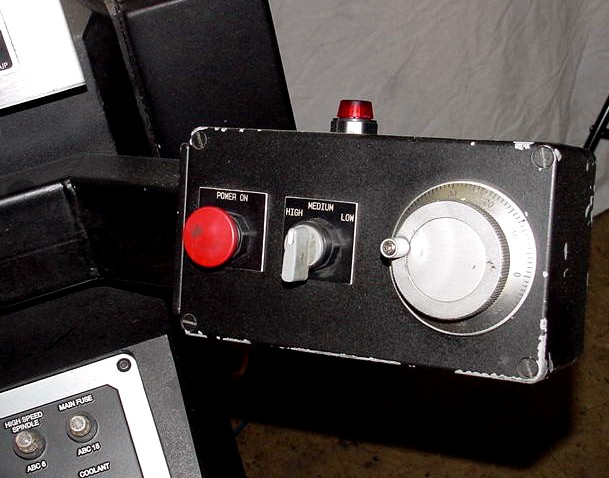

SPEED RHEOSTAT CONTROL (0 TO 80 RPM)
COLLETS
CAMS & INDEX PLATES
CENTER HOLDING FIXTURE
STEADY REST FIXTURE W/1- 3/8" I/O BUSHING
HORIZONTAL TABLE MEASURING DEVICE

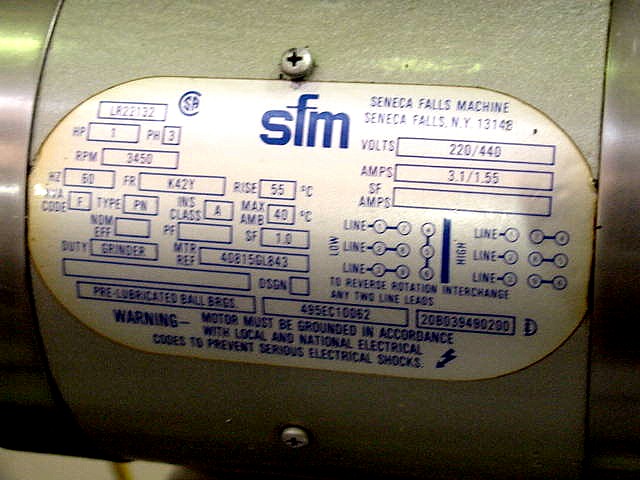

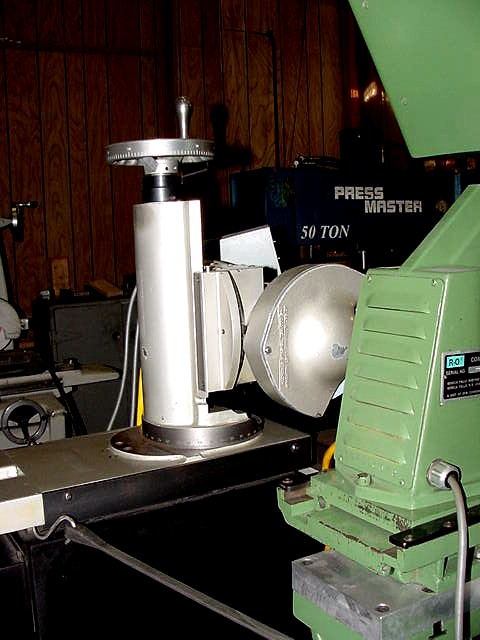

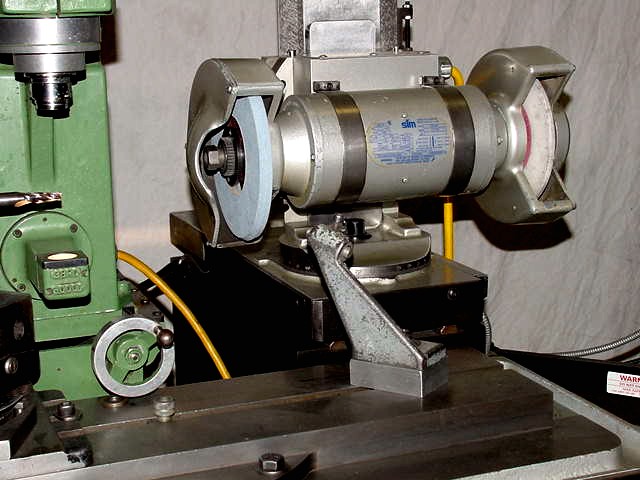

R-O GRINDING WHEELHEAD W/1 H.P. /3/60/220-440 VOLT MOTOR

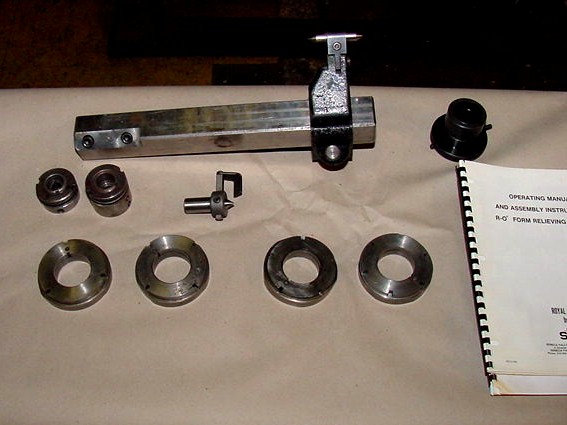

TOOLING PACKAGE

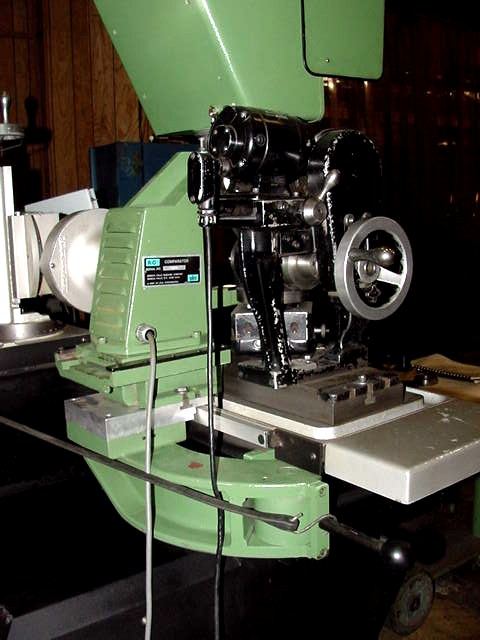

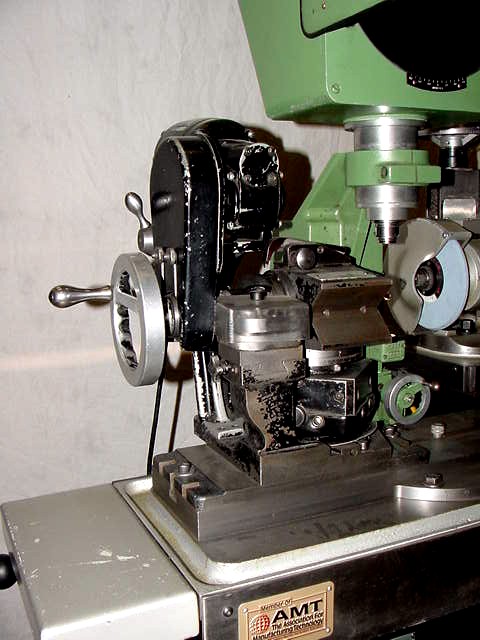

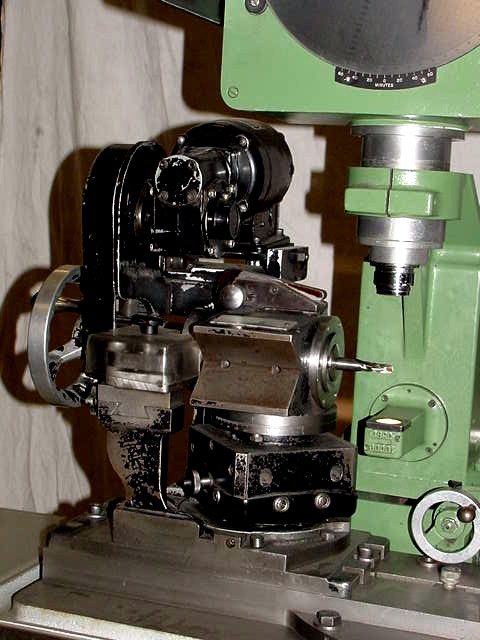

R.O. FORM RELIEVING FIXTURE
CAMS & INDEX PLATES (5)
2 FLUT
3 FLUT
4 FLUT
5 FLUT
6 FLUT
USES 5 C COLLETS
OPERATORS MANUAL FOR R-O FIXTURE & 25RO MACHINE
EXTRA WHEEL HUBS

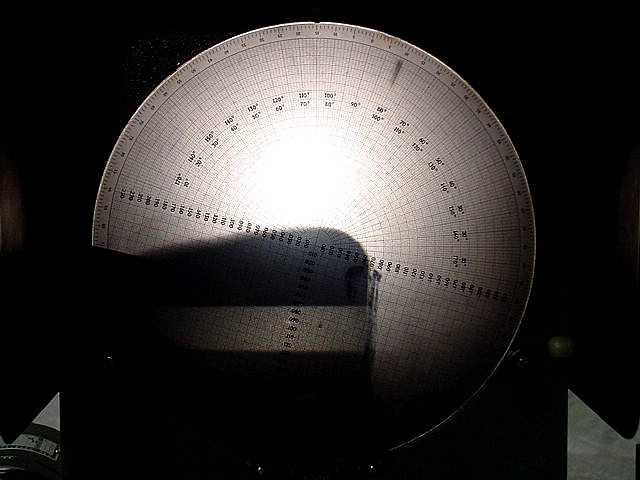

R.O. OPTICAL COMPARATOR WITH RADIUS CHART

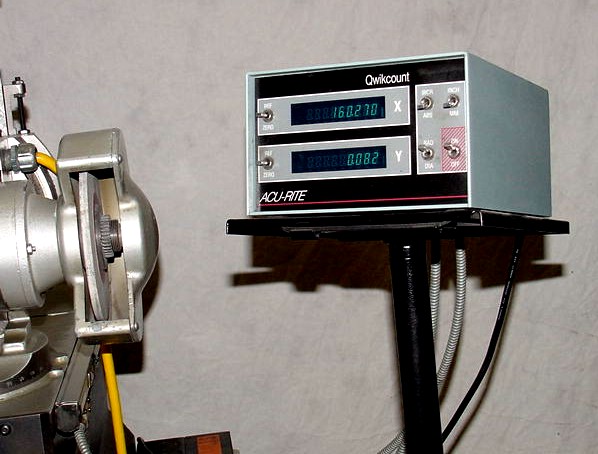

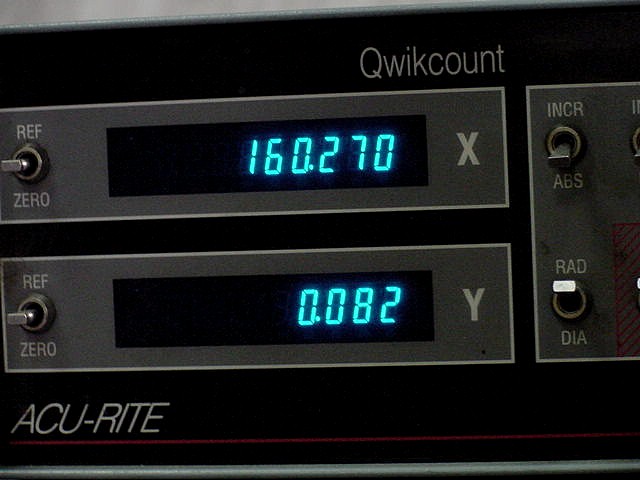

ACU-RITE DRO "QUICKCOUNT" 2 AXIS DISPLAY
CENTER SUPPORT & TAILSTOCK, MOUNTS ON RELIEVING FIXTURE
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
*** EXCELLENT CONDITION & APPEARANCE ***
