Reference Number: 142184

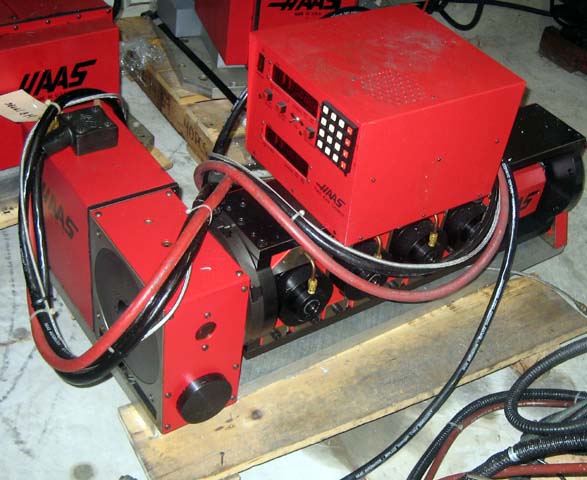

HAAS T5C4 4-SPINDLE TILTING ROTARY TABLEPrice: $19,500
S/N 213807 LIKE NEW
COMBINATION OF AN HRT-210-CNCB ROTARY INDEXER WITH AN HA5C4, 4 HEAD, 5C ROTARY INDEXER
SPECIFICATIONS
SPINDLE SPEED
ON HRT-210: 0.001° TO 60° PER SEC.
ON HA5C4: 0.001° TO 200° PER SEC.
TORQUE
ON HRT-210: 210 FT-LB
ON HA5C4: 20 FT-LB
CENTER HEIGHT ON HRT-210: 6"
ACCURACY
ON HRT-210: ± 25 ARC-SEC
ON HA5C4: ± 60 ARC-SEC
RESOLUTION (BOTH UNITS): 0.001°
COLLET CAPACITY, STD 5C
ON HA5C4: 1/64" - 1-1/16"
FACEPLATE DIAMETER ON HRT-210: 8.26"
REPEATABILITY, BOTH UNITS: 10 ARC-SEC
WEIGHT
HRT-210: 165 LBS
HA5C4: 250 LBS
DRIVE MOTOR
HRT-210: 1.5 HP
HA5C4: 0.5 HP
ELECTRICS: 120V, 1 PH, 60 CYCLE
EQUIPPED WITH
HAAS 2-AXIS CONTROL
PNEUMATIC CLOSERS ALL 4-5C HEADS
MOUNTED ON SUB-PLATE
PNEUMATIC BRAKE
