Reference Number: 142198

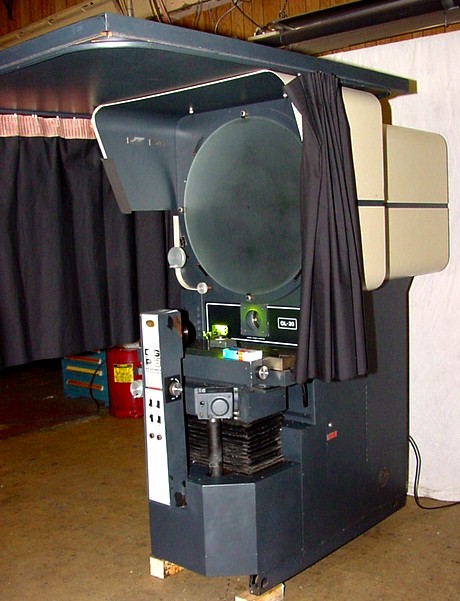

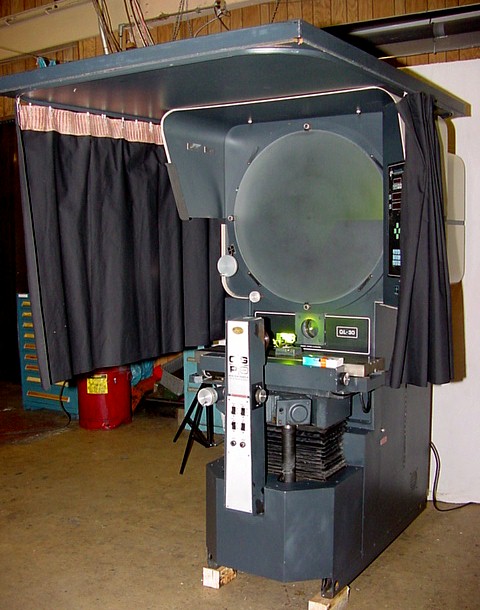

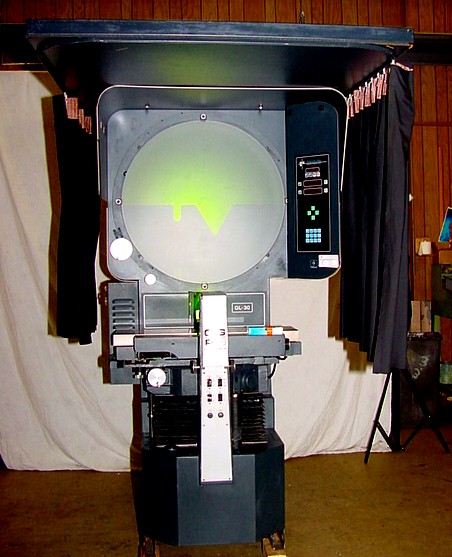

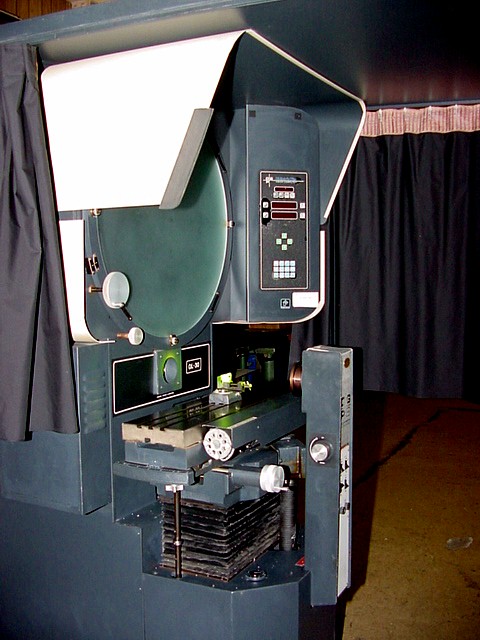

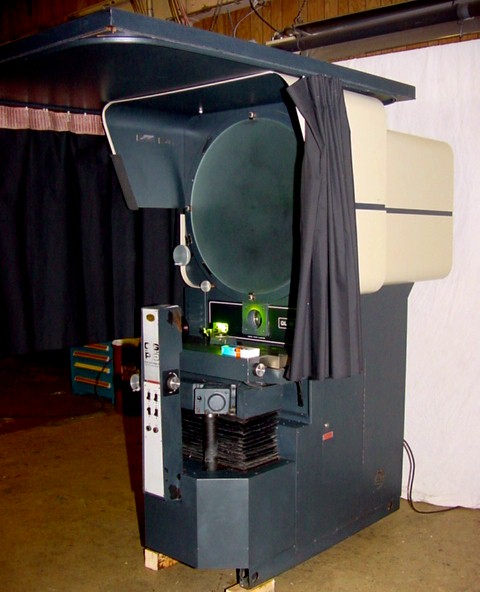

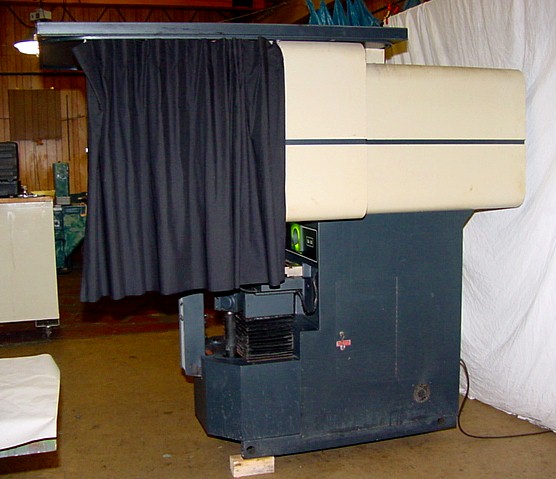

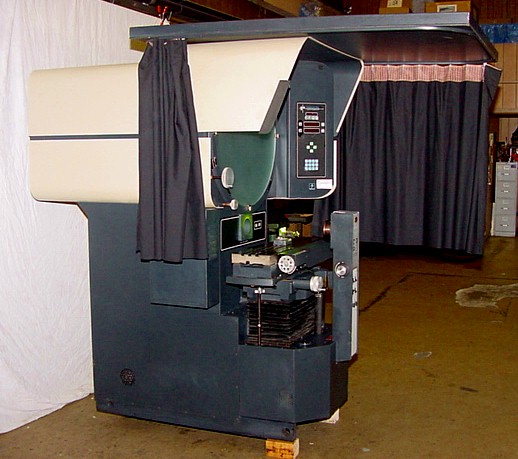

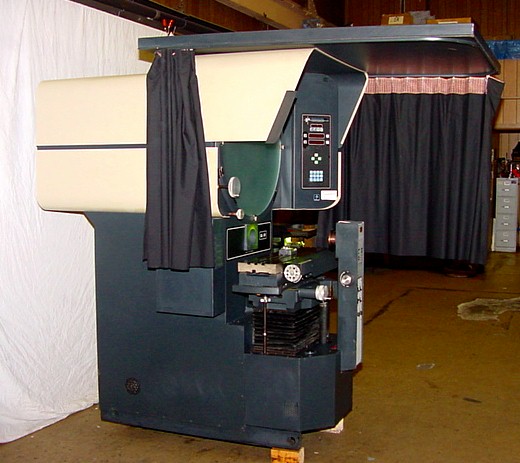

30" OPTICAL GAGING PRODUCTS, INC. (O.G.P.)
 HORIZONTAL PROJECTION FLOOR TYPE OPTICAL COMPARATOR

 MODEL: QL-30S      S/N: QL-300180      NEW: 1990

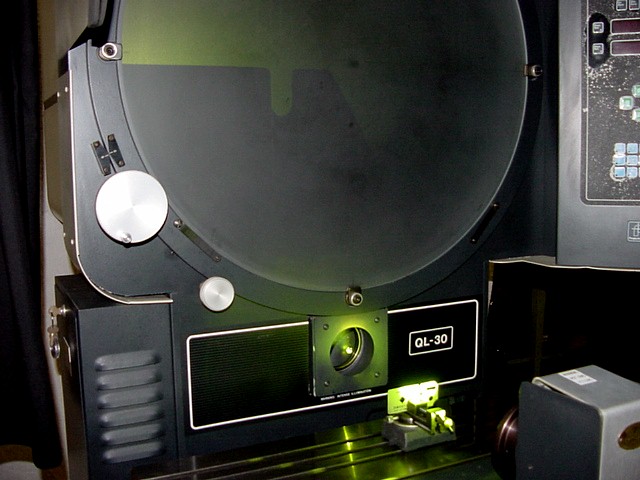

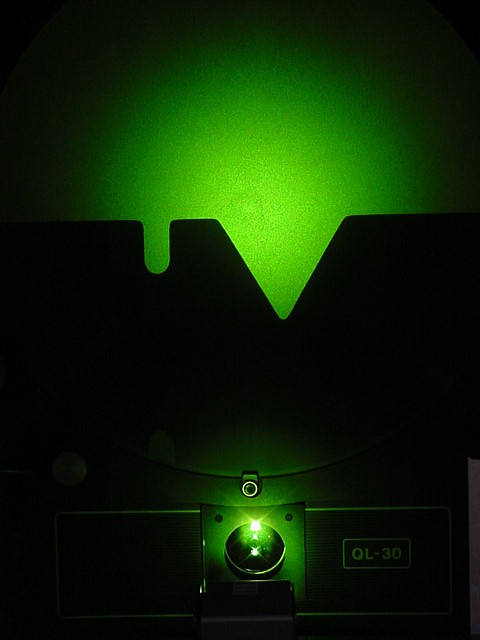

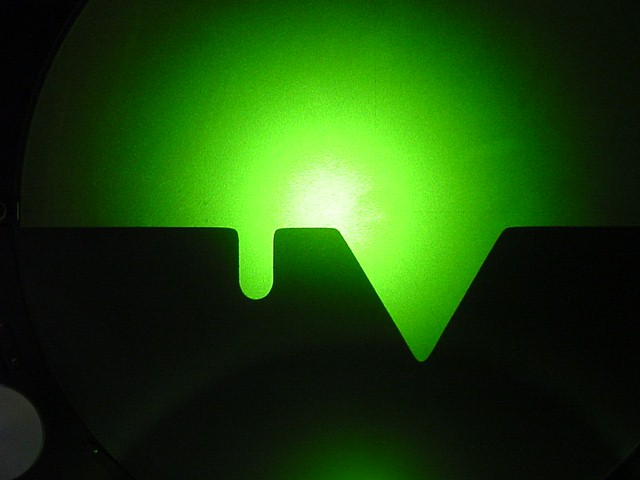

 SCREEN DIAMETER ............................. 30"
 ANGULAR (GRADUATED PROTRACTOR W/VERNIER
  TO 1' OF ARC) .............................. 360 DEG.
 TABLE SIZE .................................. 8" X 32"
 TABLE TRAVEL, HORIZONTAL .................... 12"
 TABLE TRAVEL, VERTICAL ...................... 9"
 FOCUS TRAVEL ................................ 3"

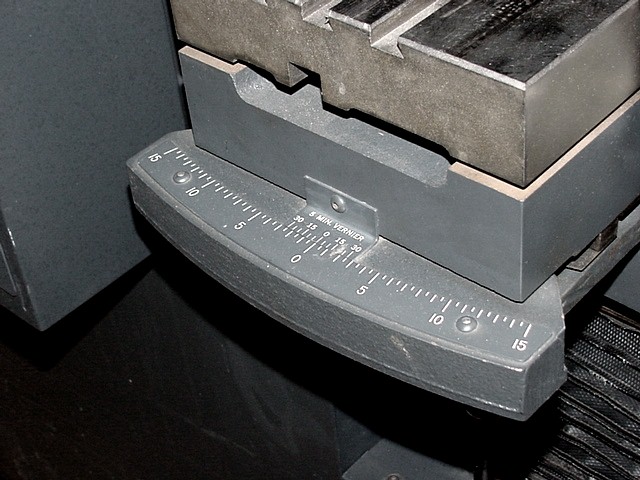

 HELIX ROTATION (TO 5 DEG. ARC) .............. +/- 10 DEG.
 THROAT CLEARANCE ............................ 18- 3/4"
 WORKING DISTANCE, FOCAL PLANE TO FRONT
  RELAY LENS HOUSING ......................... 8- 3/8"
 COLLIMATOR TO FOCAL PLANE ................... 10"
 OPTICAL AXIS TO WORKTABLE,
  WITH HELIX (MAX./MIN.) ............... 9- 3/4"/3/4"
  WITHOUT HELIX (MAX./MIN.) ............ 11"/2"
 WORKTABLE TO FLOOR,
  WITH HELIX (MAX./MIN.) ............... 42"/33"
  WITHOUT HELIX ........................ 40- 3/4"/31- 3/4"

 APPROX. DIMENSIONS .................... 71"F-B X 41.2"W
                                         X 80.3"H
 APPROX. MACHINE WEIGHT ................ 1,700 LBS.

 EQUIPPED WITH:

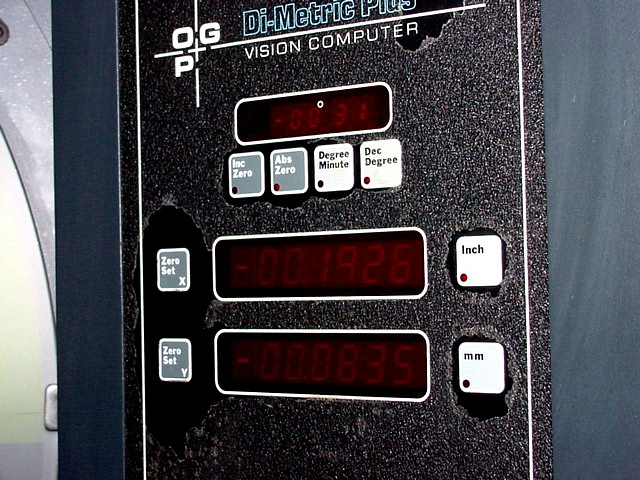

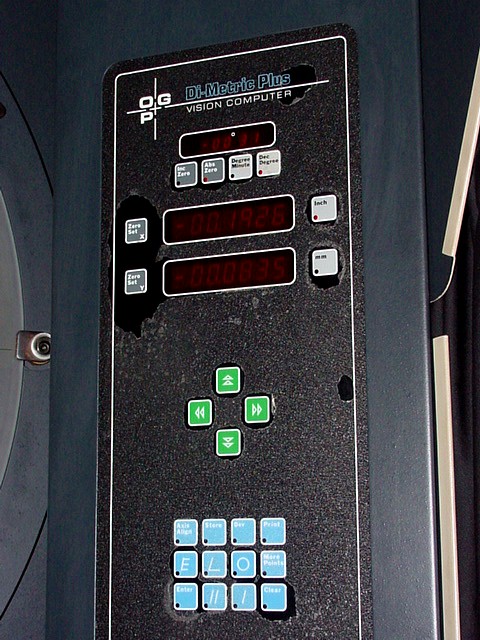

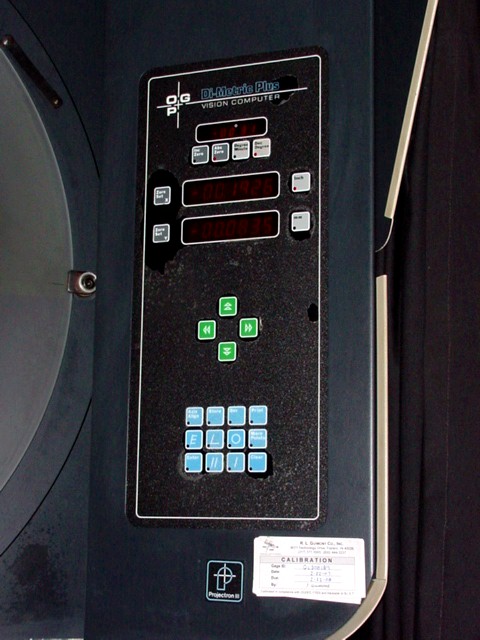

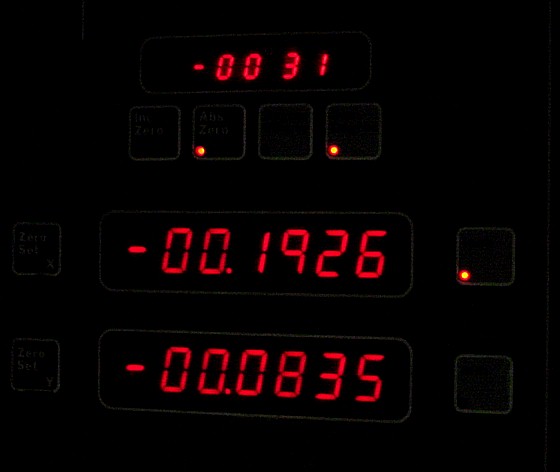

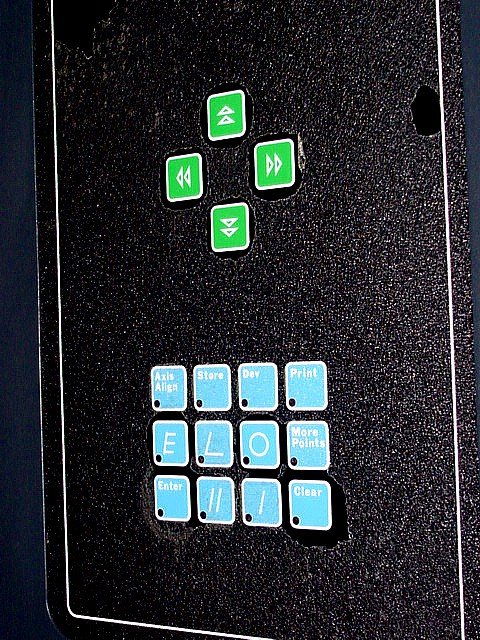

 OGP "DI-METRIC PLUS" DIGITAL READOUT DISPLAY
  w/PROGRAMABLE GEOMETRIC FUNCTIONS

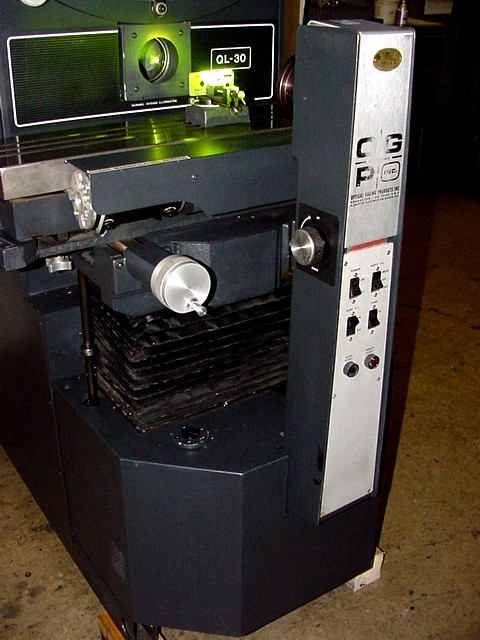

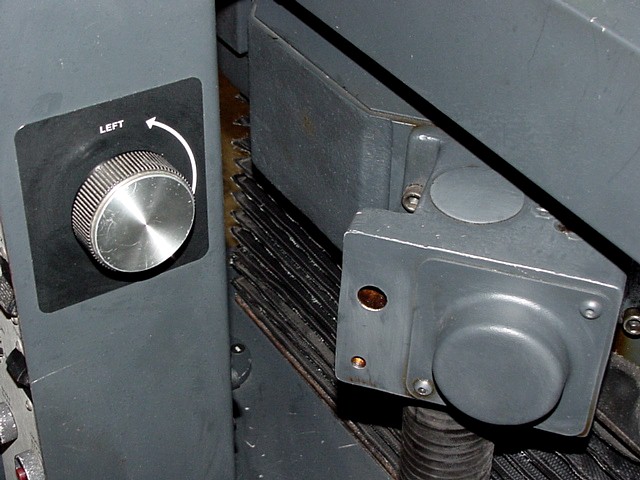

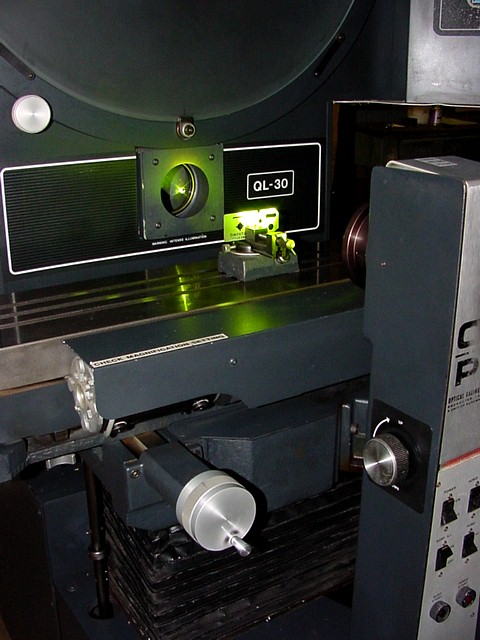

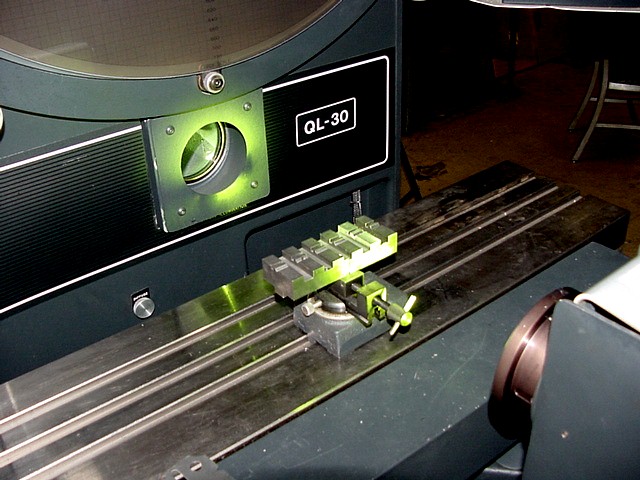

 HEAVY DUTY 8" x 32" TABLE, WITH INFINITELY VARIABLE SPEED
  POWER DRIVE ON BOTH HORIZONTAL & VERTICAL AXES.

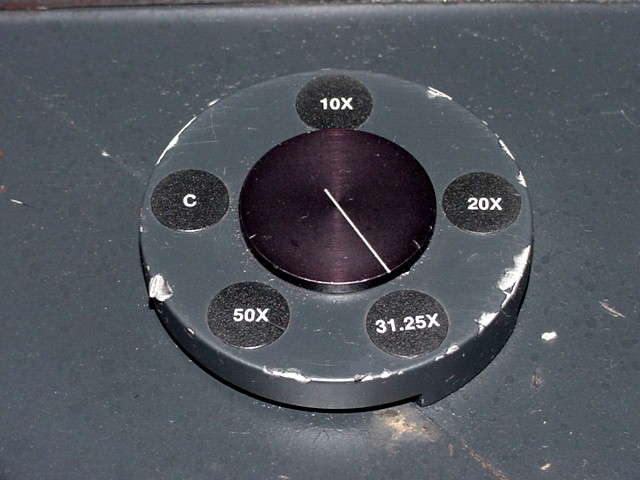

 5-POSITION POWER LENS TURRET

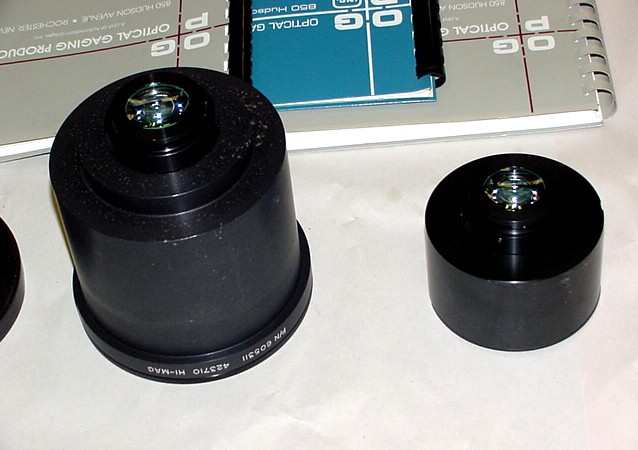

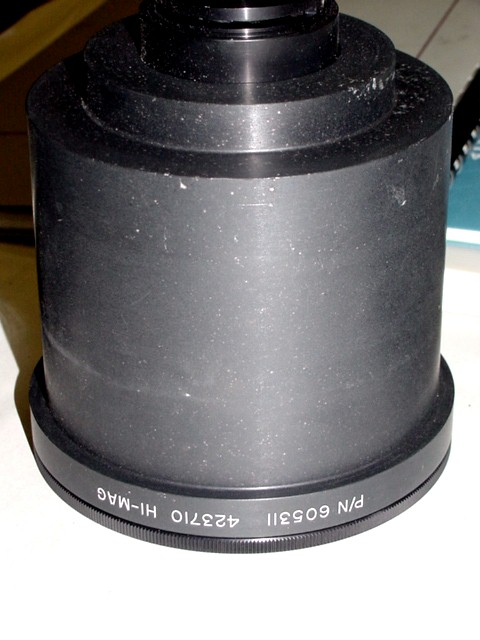

 10X, 20X, 31.25X & 50X LENSES

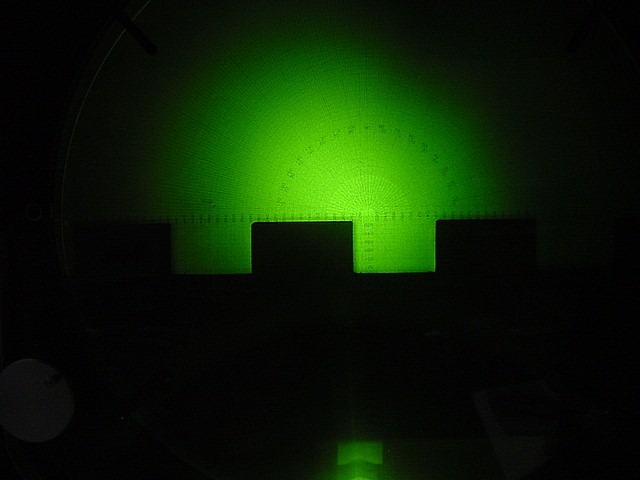

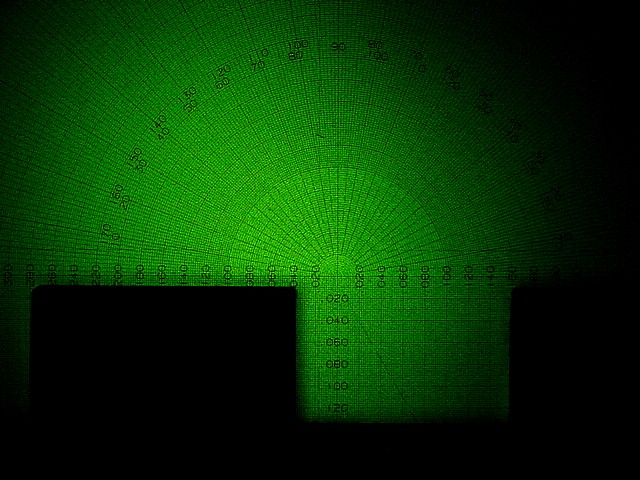

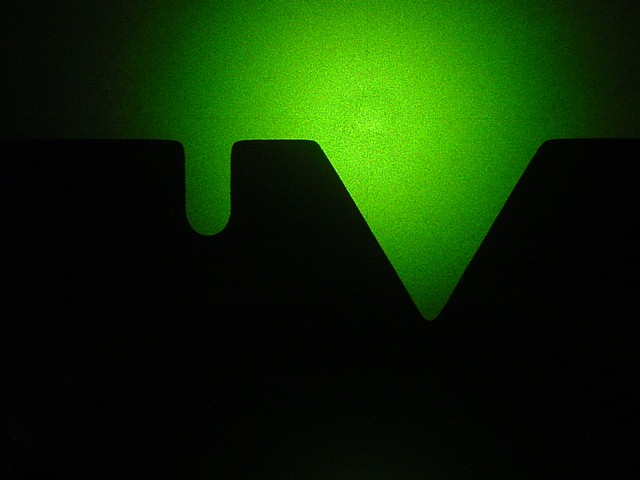

 DIGITAL ELECTRONIC ROTARY SCREEN

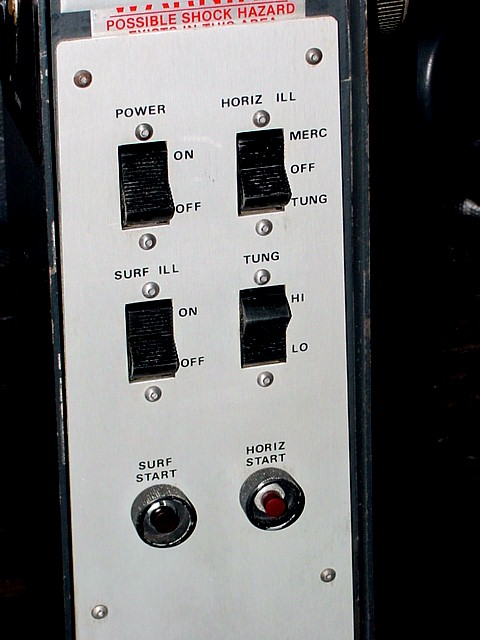

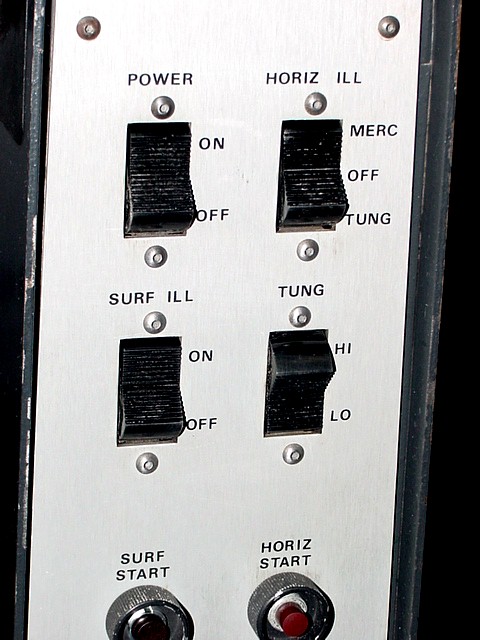

 HIGH INTENSITY MERCURY ARC LIGHTING
 SURFACE ILLUMINATION
 TELECENTRIC RELAY LENS SYSTEM & MIRRORS FOR ERECT,
  UNREVERSED IMAGE

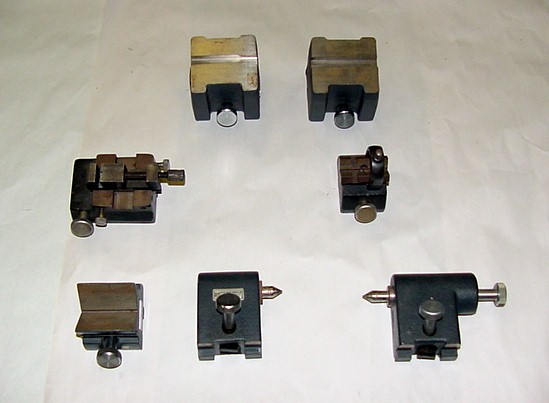

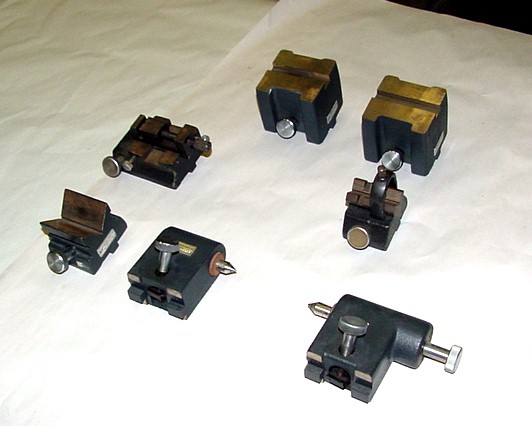

 TOOLING FOR THE WORKTABLE INCLUDING:
 SET OF CENTERS, 2- 1/2" CENTER HEIGHT

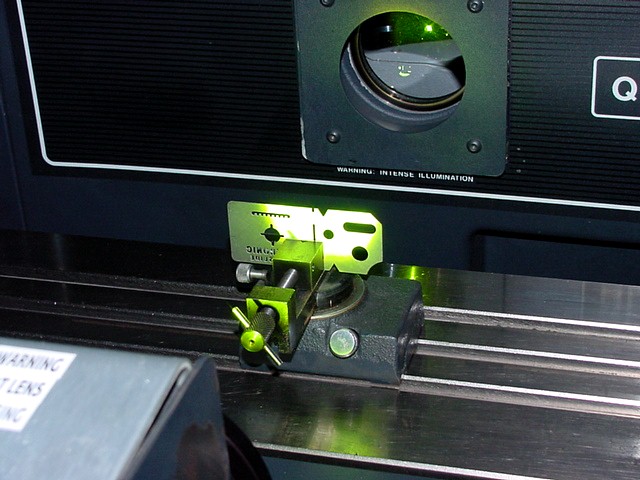

 SET OF BLOCKS w/A T-SLOT IN THE MIDDLE, 3" CENTER HEIGHT
 SET OF V-BLOCK w/CLAMPS, 1- 1/2" CENTER HEIGHT
 (2) VICES w/ROTARY SWIVEL & ANGLE DISPLAY

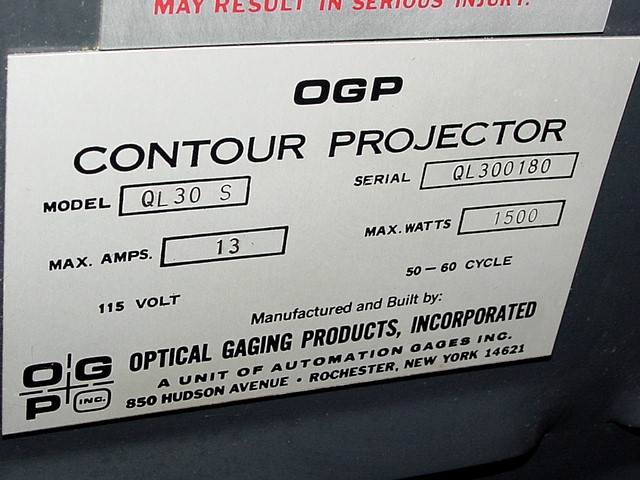

 ELECTRICAL INFO:
 MAX AMP 13 AMPS
 MAXIMUM WATTS 1,500
 WIRED FOR 1 PH/60 CYCLE/115 VOLTS

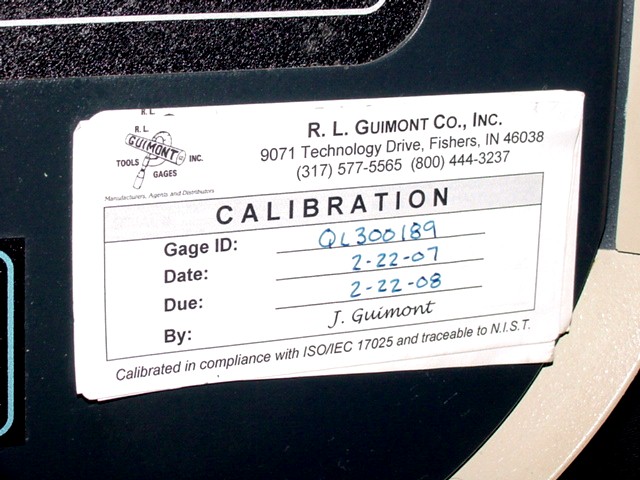

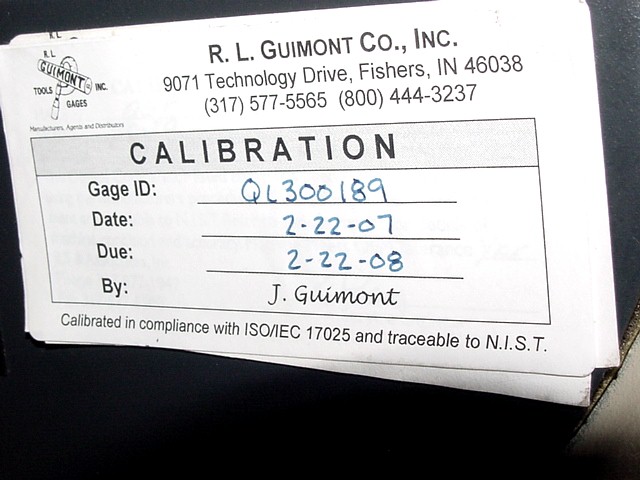

 LAST CALIBRATED ON 2/22/2007 BY:
 R.L. GUIMONT, CO.
 FISHER, IN
 (317) 577-5565


 SPECIAL NOTE:
 THIS IS THE TOP OF THE LINE!  PARTS & SERVICE ARE AVAILABLE
  FROM THE MANUFACTURER (585)544-0131.

 ** EXCELLENT CONDITION & APPEARANCE **
 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
