Reference Number: 142217

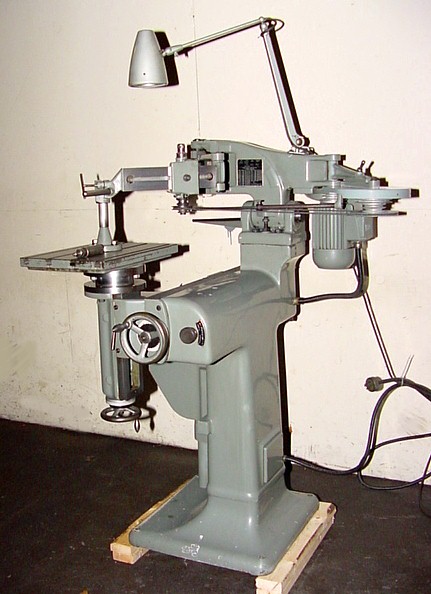

Deckel Three-Dimensional Pantograph/Engraving & Profile EngraverPrice: On Request
Model: GK-21 S/N: 7026 NEW: 1975
Pantograph Ratio:
Maximum: 1:1.5
Minimum: 1:10
Size of Work Table: 7-7/8 x 13-3/4"
Max. Distance, Spindle Nose to top
of work table: 13-3/4"
Range of Work Table:
Longitudinal: 5-7/8"
Cross: 11-3/4"
Size of copy table: 12-5/8" x 17-3/4"
Maximum distance, pantograph arm
to top of copy holder: 5-7/8"
Copy table swivel range: 360 degrees
(23) Spindle Speeds: 475 - 20,000 rpm
Maximum Collet Capacity: 5/16"
Approximate Weight: 1,000 lbs.
Equipped With:
3/60/220 Volt Two-Speed Drive Motor & Electrical Controls
Inspect Under Power in our Harrison, NJ Warehouse **
** Superb Condition & Appearance (Original Paint)
