Reference Number: 142219

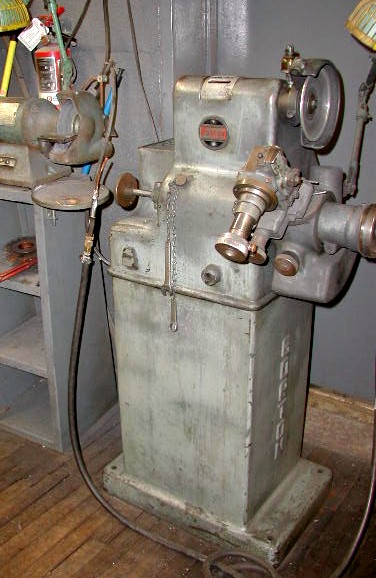

LARS GORTON UNIVERSAL CUTTER GRINDER

  MODEL: 375-3     S/N: 30539     NEW: 1945

  SPINDLE DRIVE MOTOR ............................ 1/4 HP
 SPINDLE SPEEDS:
 HIGH ...................................... 3,230 RPM
 LOW ....................................... 1,440 RPM
 MAXIMUM WHEEL DIAMETER ............................. 6"
 MAXIMUM COLLET DIAMETER .......................... 5/8"
 SOLID SLEEVE TO ........................... 1" DIAMETER

 APPROXIMATE FLOOR SPACE .............. 25" X 31" X 48"H
 APPROXIMATE WEIGHT ............................ 450 LBS

  ** THE TOTALLY VERSATILE MODEL 375 WILL ACCURATELY
 GRIND SINGLE-FLUTE CUTTERS UP TO 1" DIAMETER. WITH
 THE "717" TOOL HEAD, THE MACHINE WILL GRIND SQUARE,
 BALL-NOSE, OR CORNER RADIUS SHAPES ON SINGLE AND
 MULTI-FLUTED CUTTERS, AS WE;; AS CONICAL SHAPED
 STRAIGHT-FLUTED CUTTERS, TOOL BITS & TAP LEAD
 REGRINDING.**

  EQUIPPED WITH:
 "717" TOOL HEAD - INDEPENDENT RADIAL & AXIAL
  CLEARANCE SETTING. ANY PREDETERMINED GRINDING
  ANGLE, RADIUS OR DIAMETER MAY BE OBTAINED WITH
  ANY SHAPE OR CLEARANCE
 COMPLETE WITH COLLETS & DRAW BAR
 PEDESTAL BASE

 ** THIS IS ACTUALLY A VERY GOOD, USEABLE MACHINE
   FOR UNDER A GRAND! **

 *INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE*
