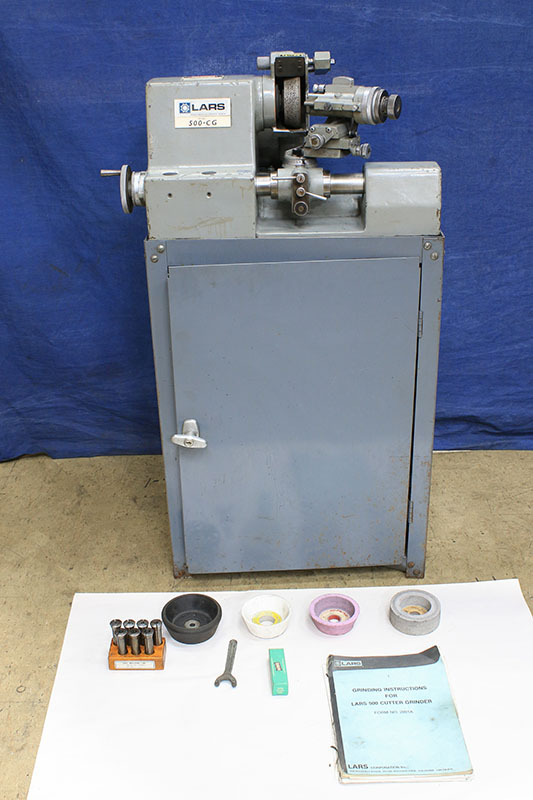

  LARS GORTON UNIVERSAL CUTTER GRINDER

 MODEL: 500CG      S/N:  86G76406      NEW: 1986

 ** WILL GRIND SINGLE FLUTE CUTTERS - HIGH SPEED STEEL,
  COBALT OR CARBIDE UP TO 1/2" DIAMETER SHANK.  THE MACHINE
  WILL GRIND BALL NOSE, CORNER RADIUS, CONICAL, CONICAL WITH
  A BALL AND A SQUARE NOSE SINGLE FLUTE CUTTERS.  MANY
  PREDETERMINED ANGLES, RADII OR DIAMETERS MAY BE OBTAINED.

 TOOL HEAD:
 MAX. COLLET SIZE ............................. 1/2"
 COLLET HOLDER PIVOT .......................... +/- 15 DEG.
 NUMBER OF INDEXES ............................ 12

 RANGE:
 HORIZONTAL SHAFT
  LONGITUDINAL LINEAR MOVEMENT ................ 3.375"
 TOOL HEAD ASSEMBLY
  LONGITUDINAL LINEAR MOVEMENT ................ 1.5"
  CROSS LINEAR MOVEMENT - TO RIGHT ............ 1/2"
  CROSS LINEAR MOVEMENT - TO LEFT STOP ........ 0.044"
  CROSS LINEAR MOVEMENT - TO LEFT W/O STOP .... 1/2"
  VERTICAL PIVOT - BETWEEN STOPS .............. 90 DEG. MAX.
  VERTICAL PIVOT - STOPS REMOVED .............. 180 DEG. PLUS
  HORIZONTAL SHAFT PIVOT ...................... 50 DEG. MAX.

 DRESSER:
  FINE MICROMETER ADJUSTMENT .................. 0.312"
  COURSE CLAMP ADJUSTMENT W/DIAMOND ........... 1.120" MAX.

 WHEEL CAPABILITIES:
 DIAMETER .................................... 4"
 WIDTH ....................................... 1- 1/2" MAX.
 BACK (FOR MOUNTING .......................... 3/8"
 MAX. SPEED .................................. 5,730 SFPM

 DRIVE TRAIN:
 MOTOR H.P. ................................... 1/4 H.P.
 MOTOR SPEED .................................. 1,725 RPM
 SPINDLE SPEED ................................ 5,500 RPM
 ELECTRICS .................................. 115 VOLTS/1/60

 APPROX. DIMENSIONS ........................ 24" X 35" X 13"H
 APPROX. WEIGHT ............................... 150 LBS.

 EQUIPPED WITH:
 MULTI-SLIDE DESIGN TOOL HEAD W/MICROMETER POSITIONING
  OF SPINDLE CARRIER
 SLIDE LOCKS FOR EACH ADJUSTABLE SLIDE MEMBER
 INDEPENDENT ADJUSTMENTS FOR RADIAL & END CLEARANCES
 EXTRA GRINDING WHEELS
 ASSORTMENT OF COLLETS
 NICE CABINET BASE

 ** MADE IN U.S.A **
 ** PARTS & SERVICE AVAILABLE FROM THE LARS CORP. IN RACINE,
   WI (262) 654-3516 **
 *** NEW PRICE TODAY IS $9,880 **

 ** LIKE NEW CONDITION & APPEARANCE **
 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
