Reference Number: 142249

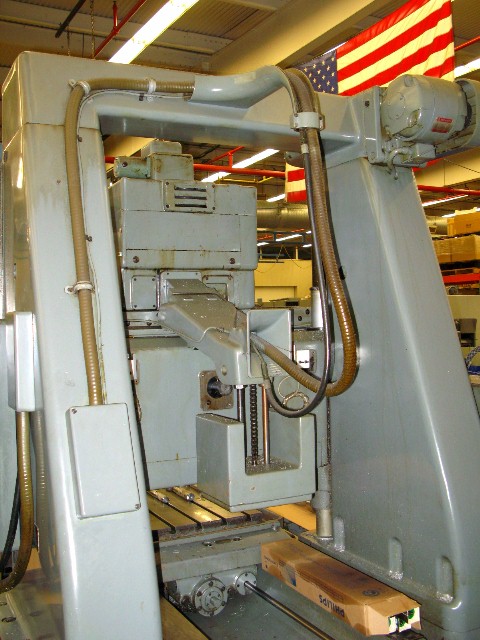

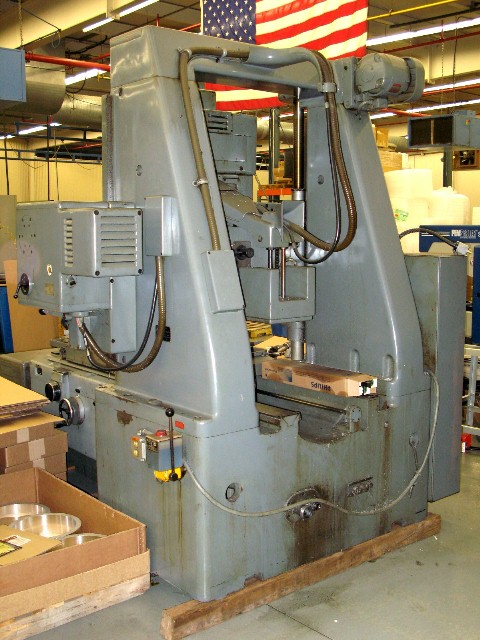

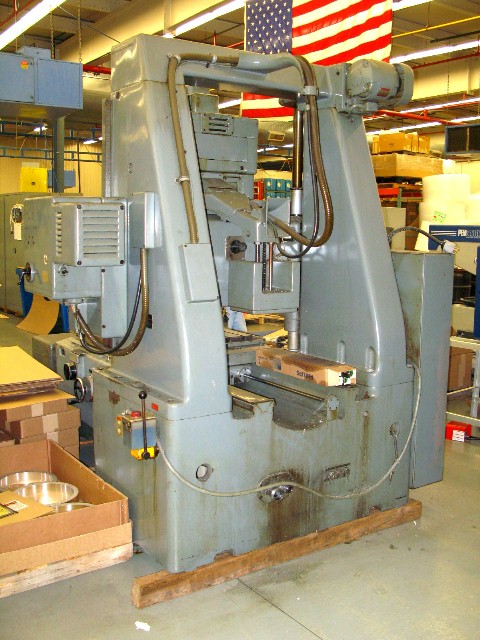

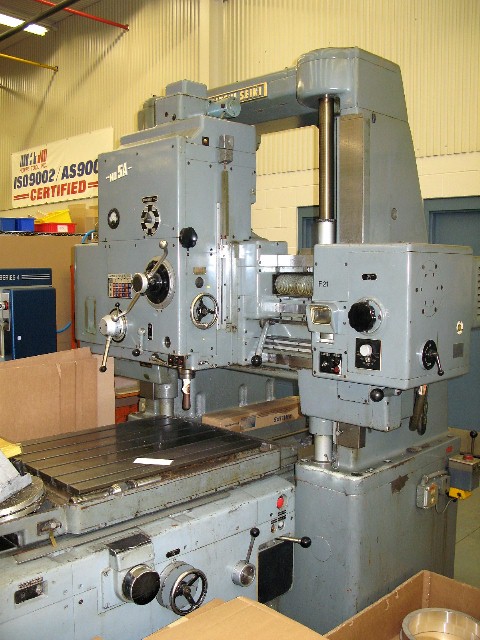

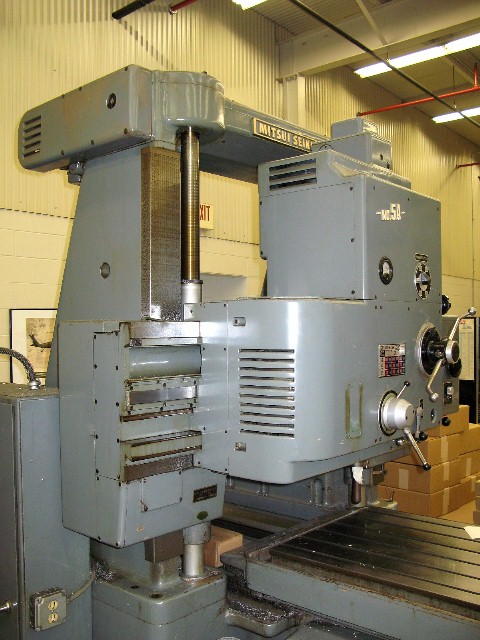

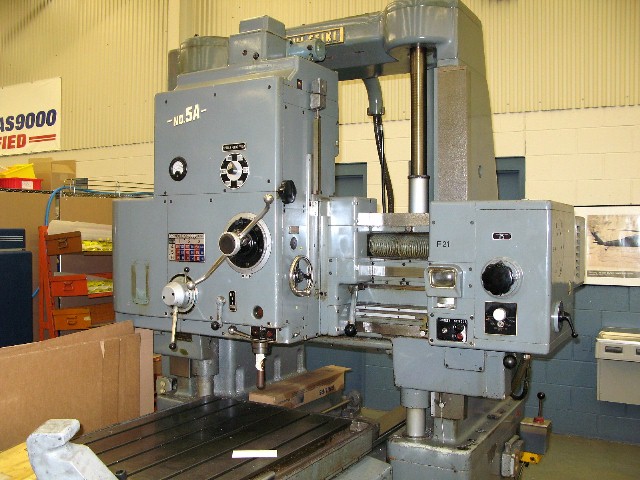

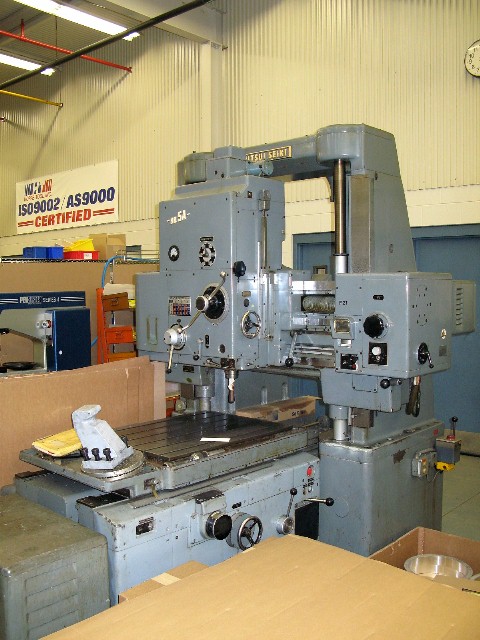

MITSUI (MADE IN JAPAN)  BRIDGE TYPE
  "ULTRA-HIGH PRECISION" JIG BORER

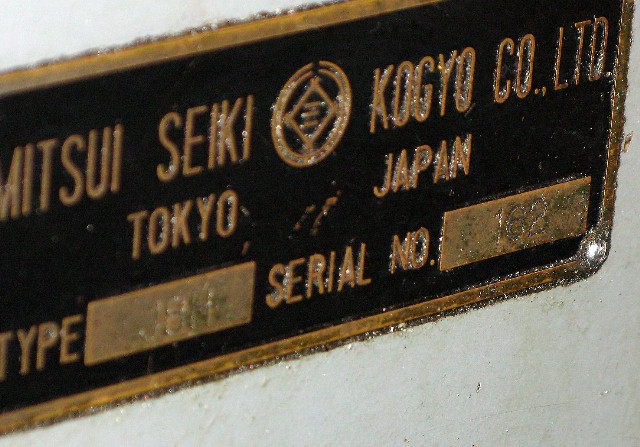

 MODEL:  No. 5A       S/N: 162         NEW: 1984

 WORKING RANGE:

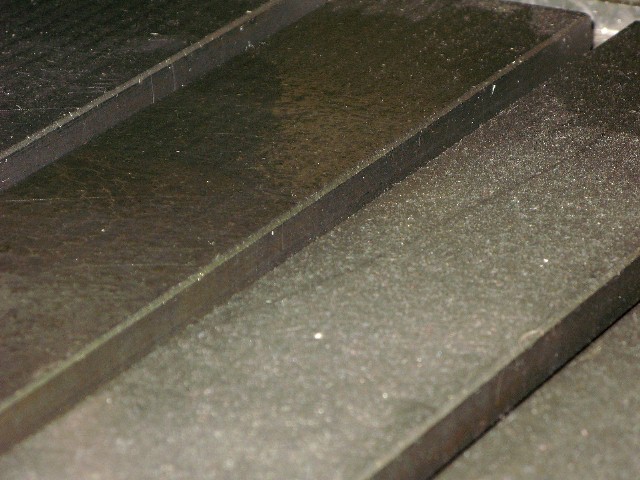

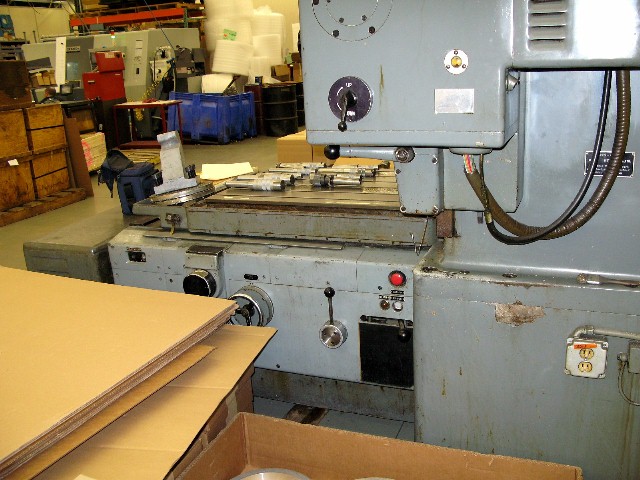

 Table Working Surface: 26" x 33- 1/2"
 Max. Load on Table: 1,320 Lbs.
 Longitudinal Travel of Work Table: 29- 1/2"
 Transverse Travel of Spindle Saddle: 20"
 Maximum Distance from Table Top to Spindle End: 29-1/2"
 Free Space Between Uprights: 35-1/4"
 SPINDLE:
 Internal Taper: Morse #4

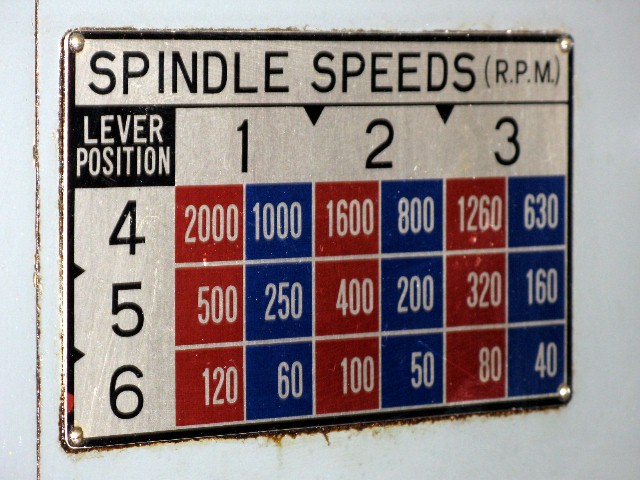

 (18) Spindle Speeds: 40 to 2,000 RPM

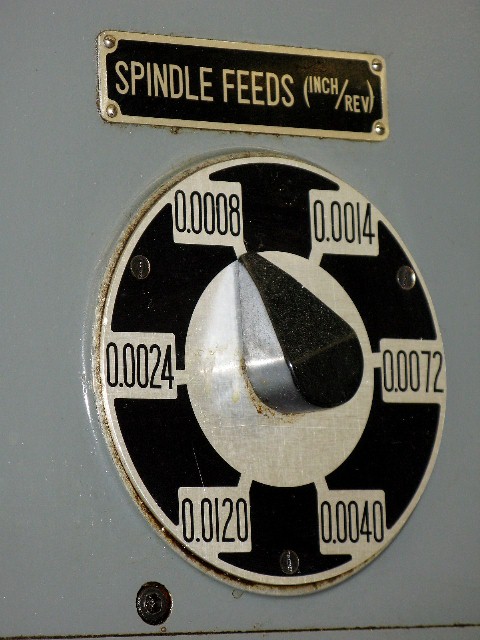

 (6) Power Feeds: 0.0008", 0.0014", 0.0024", 0.004", 0.0072" & 0.012"
 Drilling Capacity (In Cast Iron): 2- 5/16"
 Drilling Capacity (In Steel): 1- 9/16"
 Boring Capacity: 10"
 Max. Dia. of Milling Cutter: 6"
 Spindle Quill Travel: 8"
 Travel of Vertical Slide: 23- 5/8"
 Dims:
 Overall Size: 106"  x 78" x 110" H
 Weight: Approx. 13,200 Lbs.
 EQUIPPED WITH:

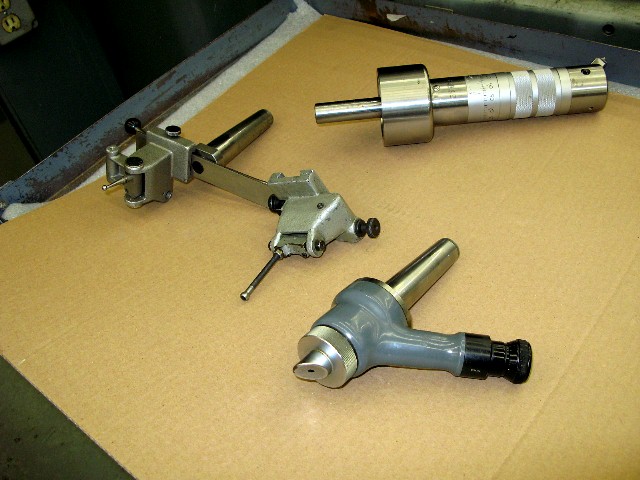

 Microscopes, Unit Mounts on Spindle, for Peering Down into the Hole
 (2) Tool Indicators
 Dial Indicator & Assembly for Spindle Depth

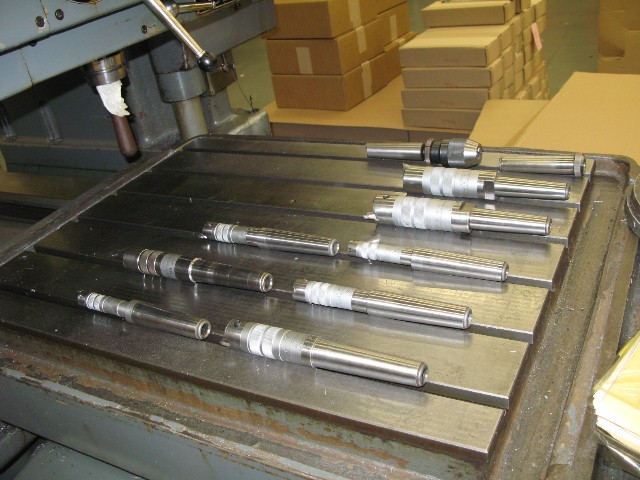

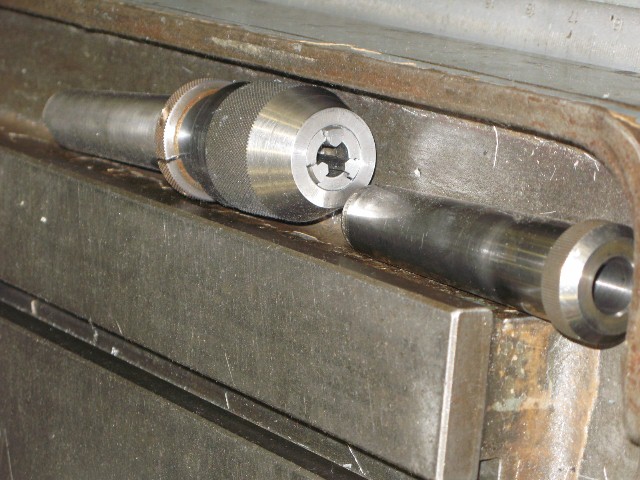

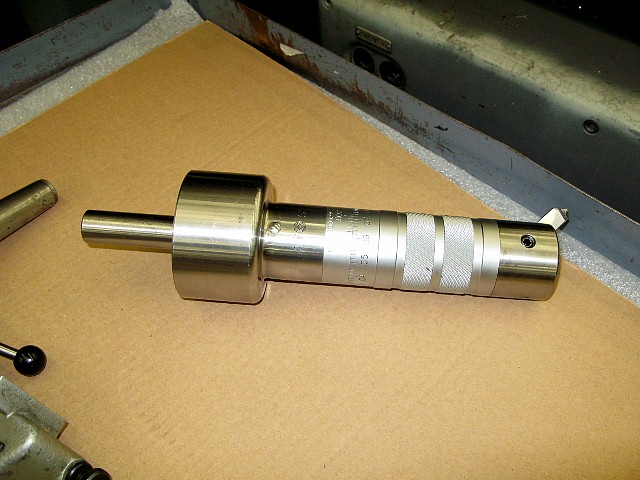

 Boring Bar Holders, Capacity Range from:
   (1) 2- 3/8" to 5"
   (2) 2" to 2- 7/8"
   (2) 1- 3/16" to 1- 9/16"
   (2) 1- 1/2" to 2- 1/16"
   (2) 15/16" to 1- 1/4"
   (1) Solid Holder
   (1) Drill Chuck
   (7) Miscellaneous Wrenches
   1/8" to 3/16"

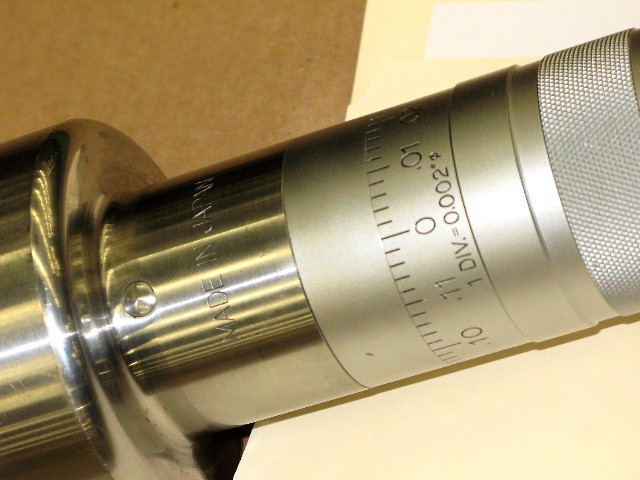

 Micro Vernier Reading .00005" Grad.

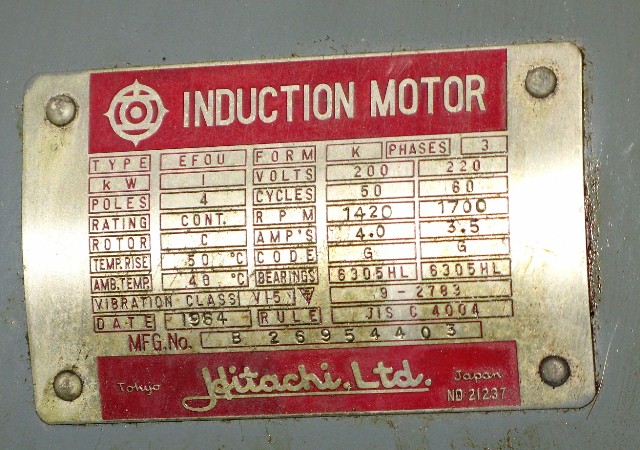

 Spindle Motor is 3 -4 H.P.

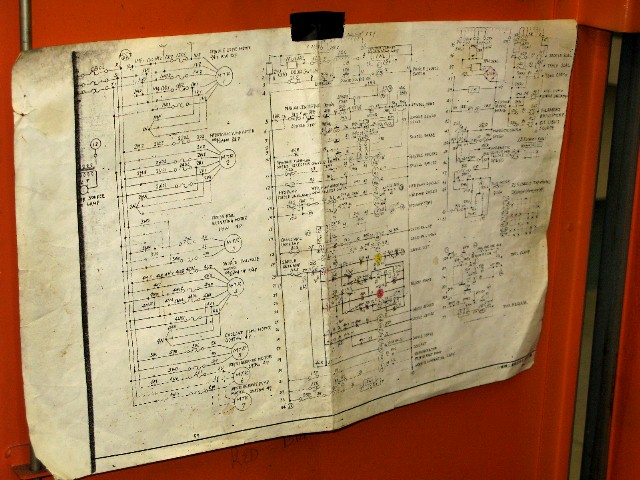

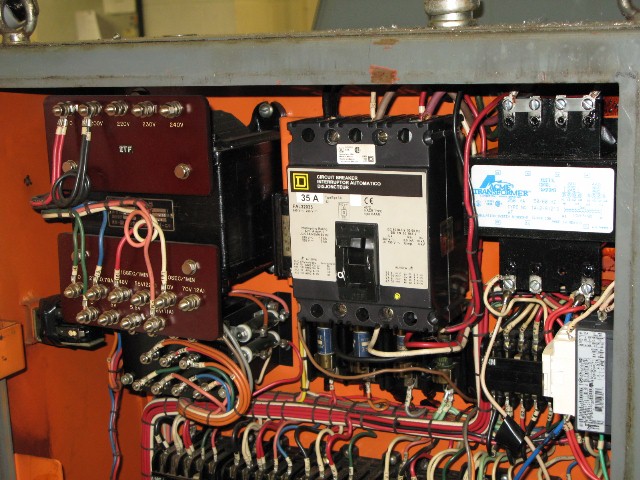

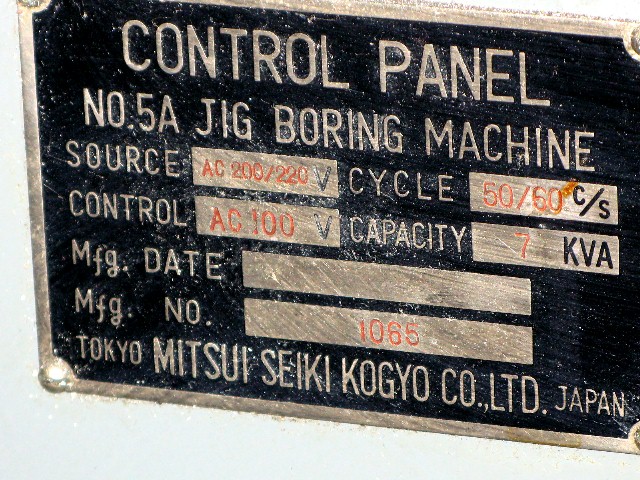

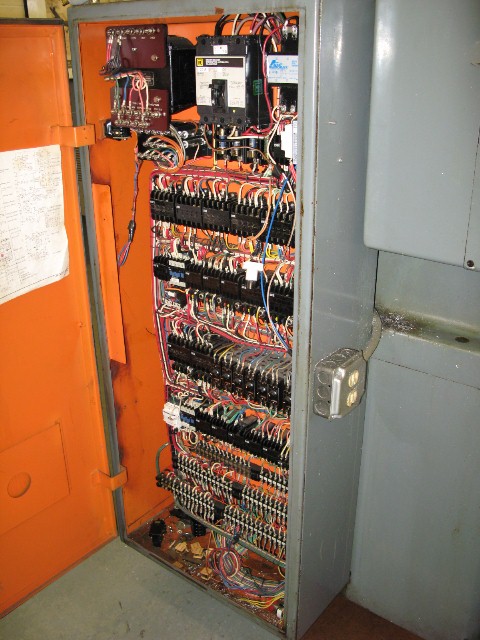

 Presently Wired for 3 Phase, 60 Cycle, 200-220 Volts

 ** Exceptional Condition & Appearance **
 ** Inspect in our Harrison, N.J. Warehouse **
