Reference Number: 142364

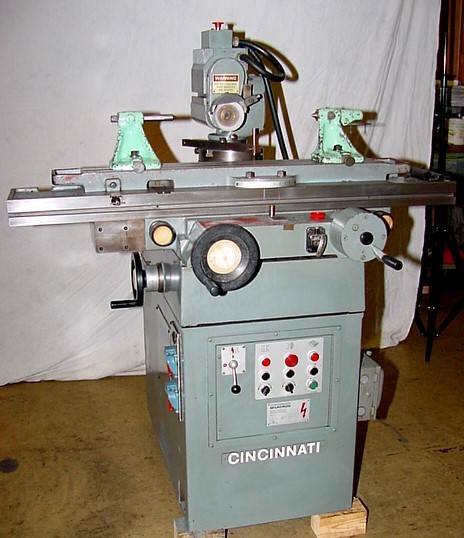

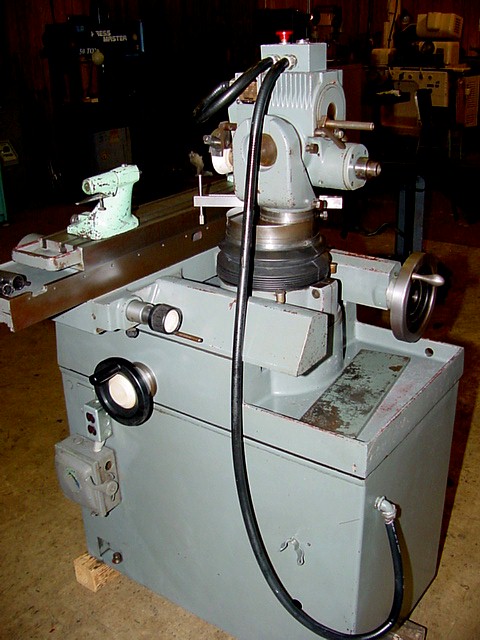

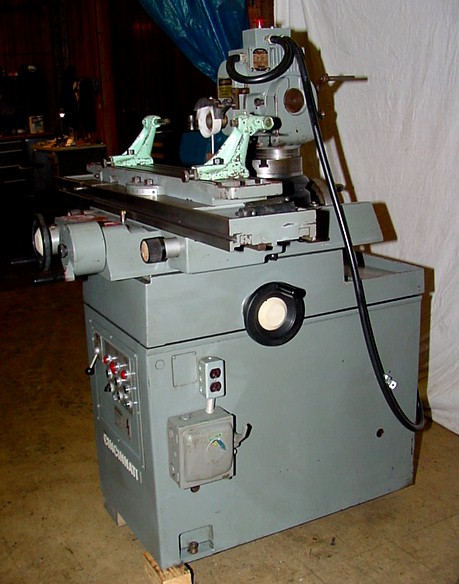

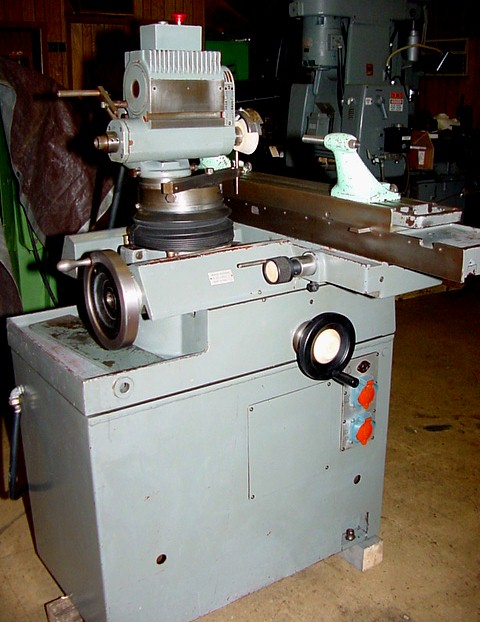

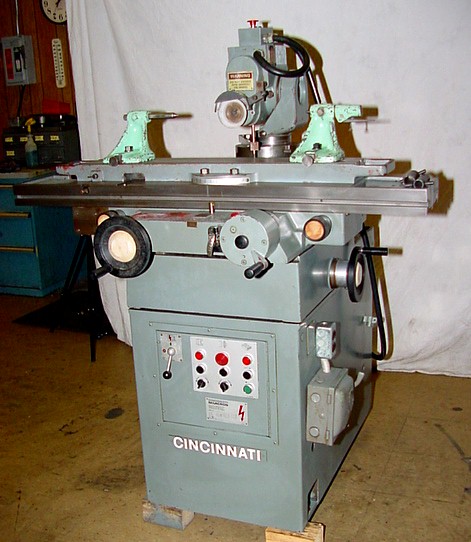

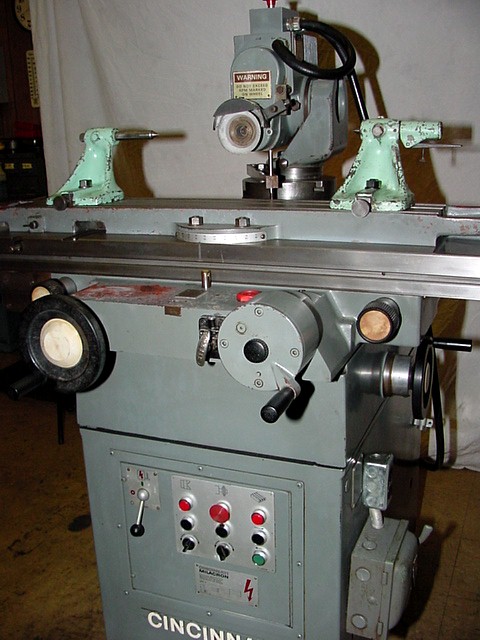

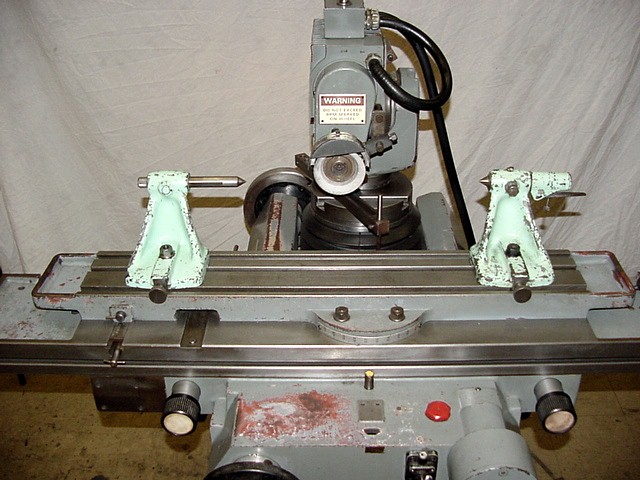

  #2 CINCINNATI-MILACRON
  UNIVERSAL TOOL & CUTTER GRINDER

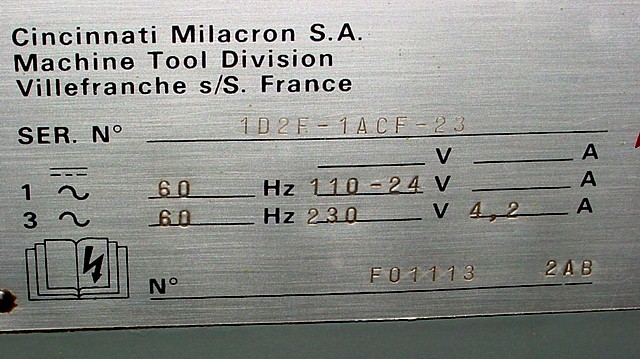

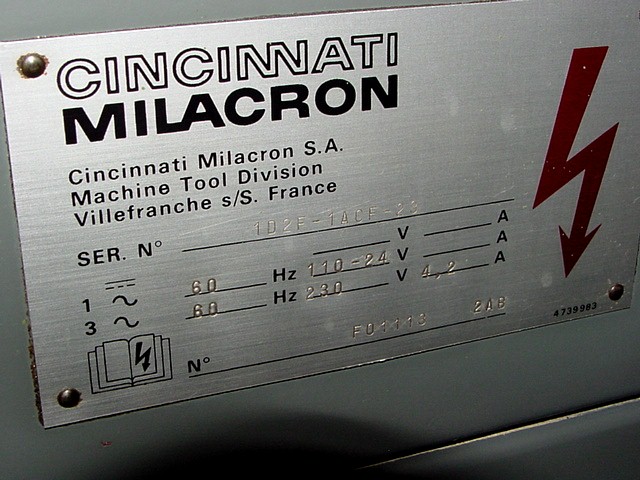

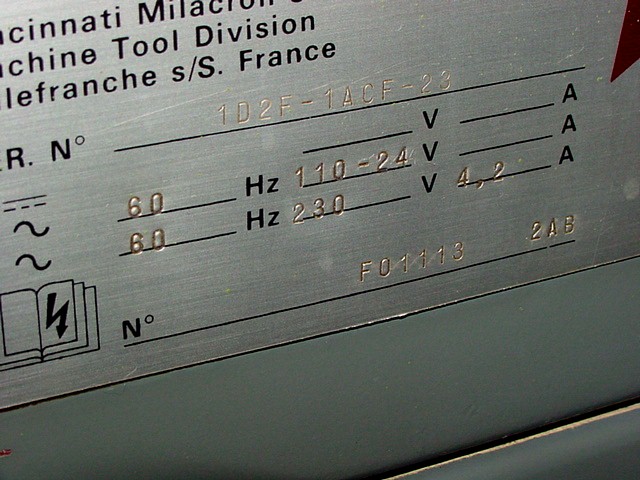

  MODEL: MT      S/N: 1D2F-1ACF-23    NEW: 1975

  CAPACITY:
 SWING OVER TABLE DIAMETER ....................... 10"
 LENGTH, BETWEEN RIGHT & LEFT-HAND TAILSTOCKS .... 27"
 LENGTH, BETWEEN TAILSTOCK & WORKHEAD ........ 21-1/2"
 FACE MILLS ON WORKHEAD DIAMETER ................. 10"
 FACE MILLS USING FACE MILL GRINDING ATTACH. DIA. 18"
 SAWS ON TABLE DIAMETER .......................... 48"
 FORMED CUTTERS (USING 6" WHEEL) DIAMETER ........ 10"

  RANGE:
 TABLE SIZE ................................. 6" X 36"
 LONGITUDINAL TABLE TRAVEL ....................... 16"
 CROSS MOVEMENT OF TABLE ......................... 10"
 TABLE SWIVEL ............................... 180 DEG.
 TABLE TAPER PER FOOT ON DIA. (TOWARD & AWAY) ..... 5"
 FINE ADJ. TAPER PER FT. ON DIA. (TOWARD & AWAY) .. 2"
 TABLE GRADUATIONS IN CENTER, IN DEGREES ..... 90 DEG.
 VERTICAL MOVEMENT OF GRINDING WHEEL SPINDLE . 10-1/2"
 MAX. DIST. CENTERLINE OF SPINDLE TO TABLE ... 13-1/2"
 SPINDLE TILTS ABOVE AND BELOW CENTER ........ 15 DEG.
 SWIVEL MOVEMENT OF GRINDING WHEEL SPINDLE .. 360 DEG.

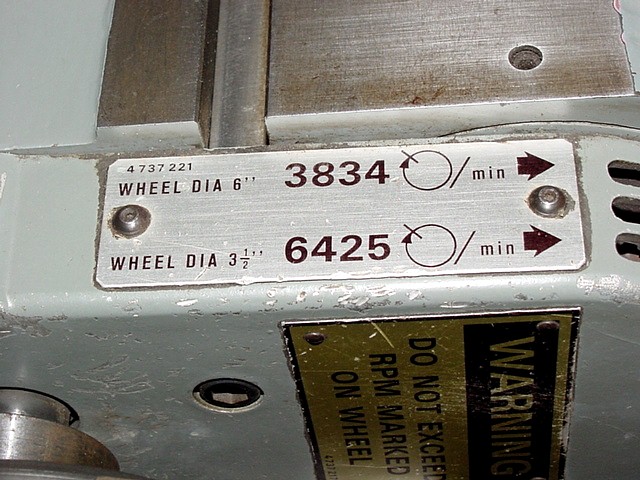

  SPINDLE SPEEDS:
 6" WHEEL, SURFACE SPEED 6,022 FT./MIN. .... 3,834 RPM
 3" WHEEL, SURFACE SPEED 5,887 FT./MIN. .... 6,425 RPM

  APPROXIMATE MACHINE WEIGHT .................. 3,000 LBS
 APPROXIMATE DIMENSIONS ................ 3' X 38"D X 5'H

  MACHINE FEATURES:

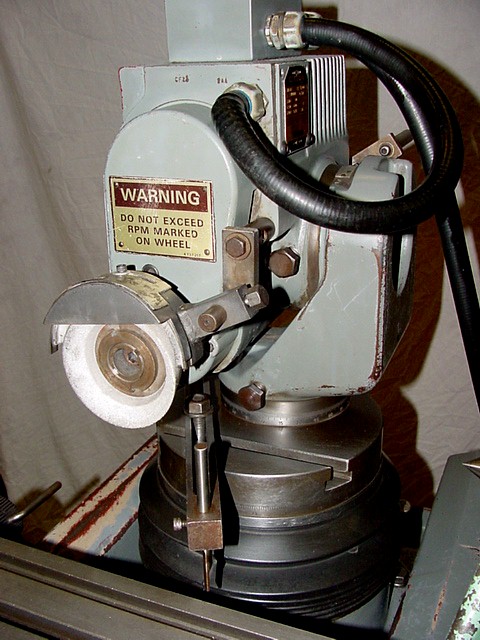

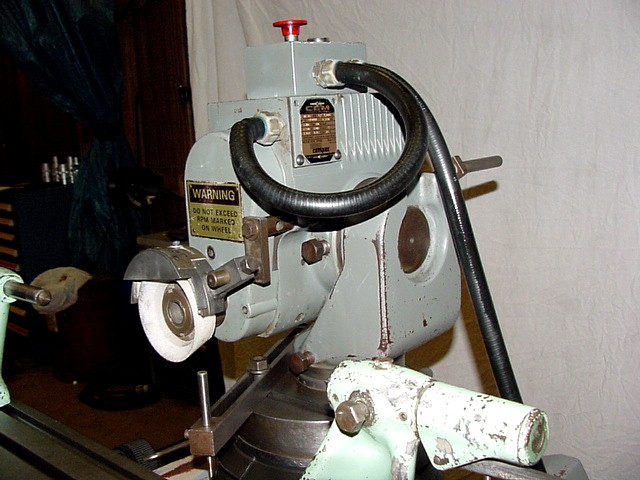

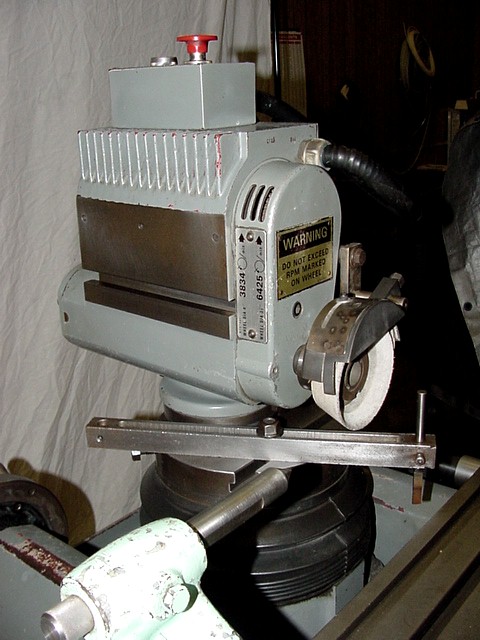

 TILTING WHEELHEAD (15 DEG. ABOVE & BELOW)

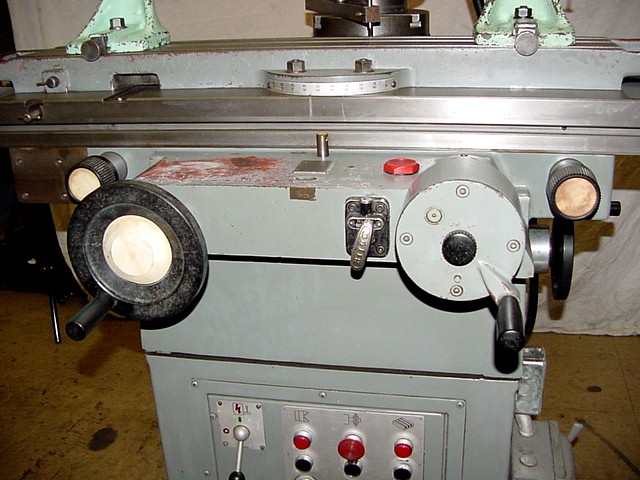

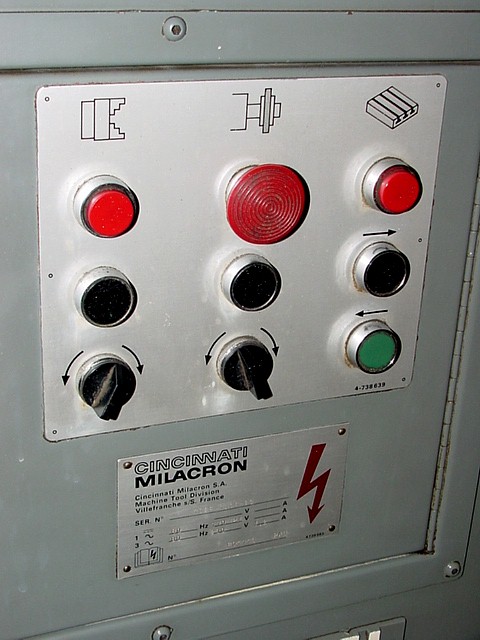

 DUPLICATE CONTROLS @ THE FRONT & REAR OF THE TABLE
 BALL BEARING ANTI-FRICTION TABLE ROLLING IN
 REPLACEABLE HARDENED STEEL V-WAYS
 360 DEG. ECCENTRIC WHEELHEAD & SWIVEL TABLE WHICH
 CAN INCREASE SPECIFIED CROSS RANGE BY 70%
 CAST IRON CONSTRUCTION
 ONE-SHOT LUBRICATION SYSTEM
 2-SPEED SPINDLE, INSTANTLY REVERSIBLE

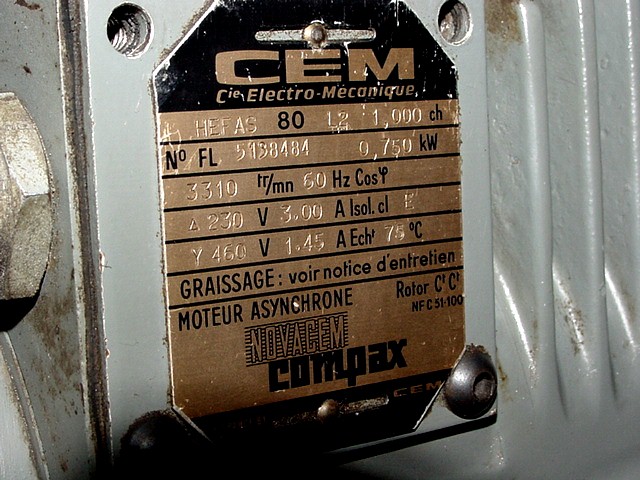

 1 HP 3/60/230-460 VOLT SPINDLE MOTOR
 PRESENTLY WIRED FOR 3/60/230 VOLTS

 AVAILABLE TO PURCHASE FOR THIS MACHINE::
 -CINCINNATI-MILACRON WORKHEAD WITH 24 POSITION INDEX PLATE
  ... WORKHEAD HAS #5 MT & #50 NST TAPERS .... PRICE IS $950
 -CINCINNATI MOTORIZED WORKHEAD ..... PRICE IS $1,500
 -K.O. LEE AIR BEARING FIXTURE ...... PRICE IS $1,500
 -SET OF CINCINNATI MILACRON TAILSTOCKS ...... PRICE IS $500

 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
 ** EXCELLENT CONDITION & APPEARANCE **
