Reference Number: 142389
Price: On Request

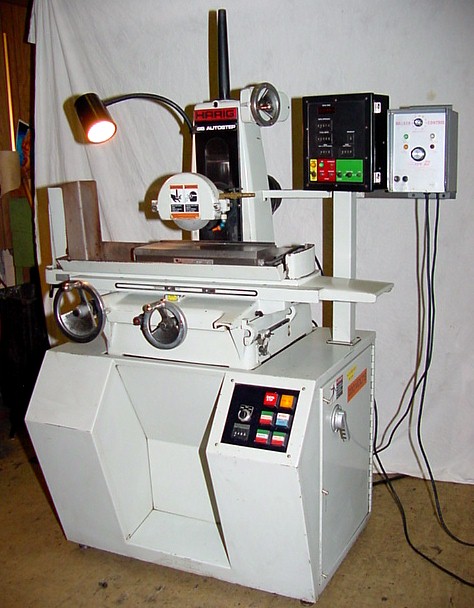

6" X 18" HARIG "AUTOSTEP" SURFACE GRINDER
WITH ELECTRONIC AUTOMATIC INCREMENTAL DOWNFEED
S/N: 6823-H NEW: 1987
WIDTH & LENGTH GROUND ........................ 6" X 18"
VERTICAL WORKING HEIGHT UNDER 7" WHEEL ............ 12"
LONGITUDINAL TABLE TRAVEL ..................... 18-3/4"
LONGITUDINAL TABLE SPEEDS ................ 0 TO 70' FPM
AUTO CROSS FEED PER TABLE PASS ............. 0 TO 3/32"
DOWNFEED OF GRINDING WHEEL RATE ............. 0.9"/MIN.
RAPID UP/DOWN TRAVERSE .................... 2-1/2"/MIN.
AUTO DOWNFEED INCREMENT PER PASS .... 0.0001" TO .0099"
GRINDING WHEEL ..................... 7" X 1/2" X 1-1/4"
MAXIMUM GRINDING WHEEL DIAMETER .................... 8"
FLOOR AREA OPERATING SPACE .................. 71" X 45"
APPROXIMATE WEIGHT .......................... 1,500 LBS
EQUIPPED WITH:
HARIG "AUTOSTEP III" AUTOMATIC INCREMENTAL DOWNFEED
CONTROL FEATURING:
-5 DIGIT THUMBWHEELS TO PRESET TOTAL DEPTH
-2 DIGIT THUMBWHEELS FOR SETTING DOWNFEED
INCREMENT FOR FEEDING @ BOTH LEFT & RIGHT, OR
LEFT ONLY OR RIGHT ONLY
-THUMBWHEEL TO PRESET 1 TO 9 AUTO SPARKOUT PASSES
-AUTOMATIC CYCLE INCLUDING RAPID RETURN STARTING
POSITION
-JOG BUTTON FOR REPOSITIONING 0.0001" PER JOG
-RAPID TRAVERSE BUTTON
-DIGITAL READOUT DISPLAY
-"AUTOSTEP III" FEEDS IN BOTH PLUNGE OR SURFACE
GRINDING MODES
EQUIPPED WITH: (CONTINUED)
HYDRAULIC TABLE TRAVERSE
ELECTRO-MECHANICAL CROSS FEED (DIAL CONTROLLED)
6" X 18" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
O.S. WALKER VARIABLE HOLD NEUTROFIER CONTROL
COOLANT SYSTEM
WORK LIGHT
1 HP 3/60/230-460 VOLT HARIG SUPER-PRECISION DIRECT
DRIVE CARTRIDGE TYPE SPINDLE
MACHINE IS 3/60/220 VOLTS
* * EXCELLENT CONDITION * *
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
