Reference Number: 142392
ESTARTA CENTERLESS GRINDERPrice: On Request

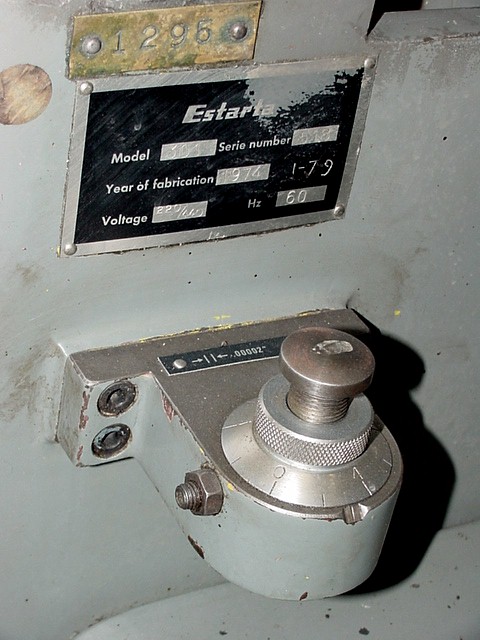

MODEL: EE-310 S/N: 518 NEW: 1974
CAPACITY:
MAX. GRINDING DIAMETER ....................................... 1/16" TO 2"
MAXIMUM INFEED GRINDING LENGTH ...................... 5"
GRINDING WHEEL, (DIA. x WIDTH x BORE) .............. 12" x 7"W x 5" B
SPINDLE SPEED ...................................................... 1,900 RPM
GRINDING WHEEL MOTOR ............................................. 10 H.P.
REGULATING WHEEL, (DIA. x WIDTH x BORE) .......... 8" X 5" x 5"
REGULATING WHEEL SPEEDS (4 SPEEDS) .......... 22 TO 335 RPM
APPROXIMATE MACHINE WEIGHT ............................... 3,400 LBS
APPROXIMATE MACHINE DIMENSIONS ........... 62"L X 41"W X 49"H

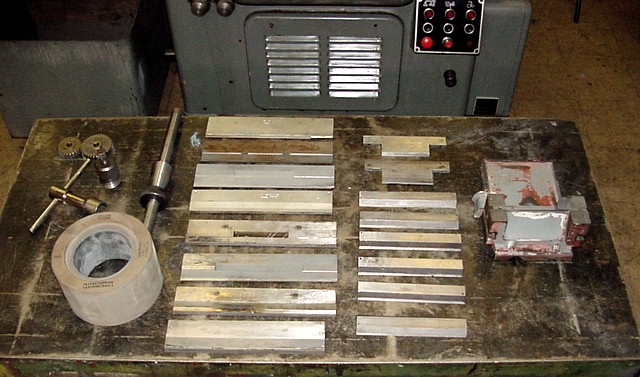

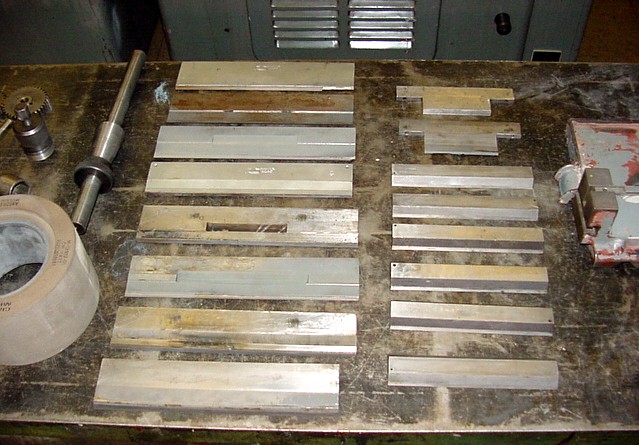

EQUIPPED WITH:
OUTBOARD BEARINGS FOR ADDED RIGIDITY
WORK REST
COOLANT TANK AND PUMP

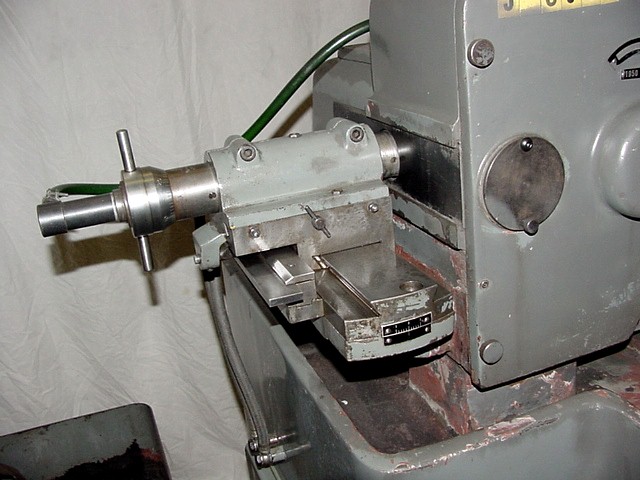

HYDRAULIC PROFILE GRINDING WHEEL DRESSER
HYDRAULIC REGULATING WHEEL DRESSER
AUTO LUBRICATION SYSTEM
10 H.P. GRINDING WHEEL MOTOR
HYDRAULIC PUMP MOTOR
3/60/220-440 VOLT ELECTRICS
*** EXCELLENT CONDITION & APPEARANCE ***
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
